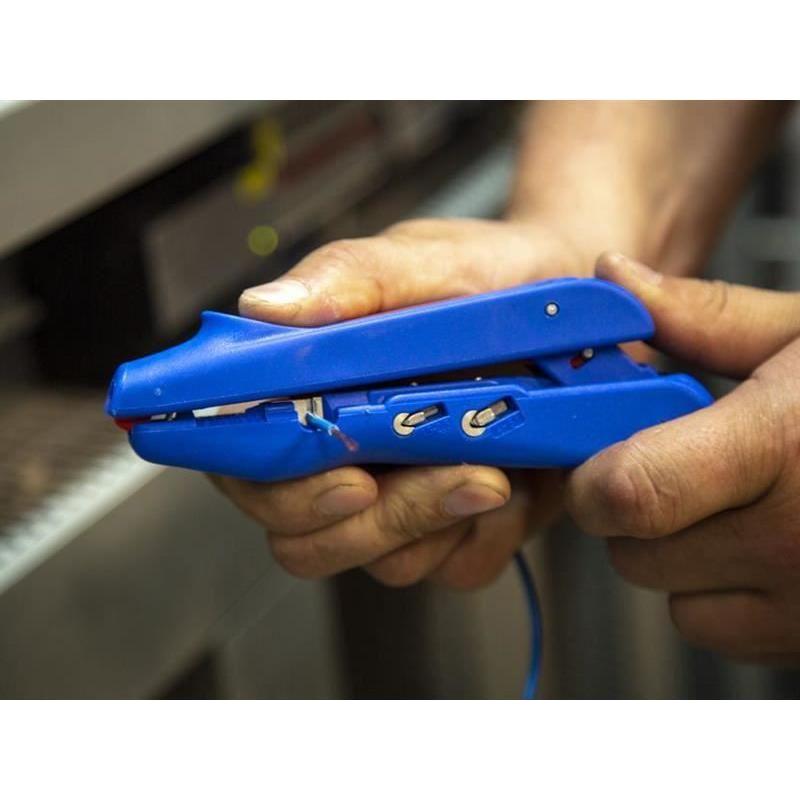

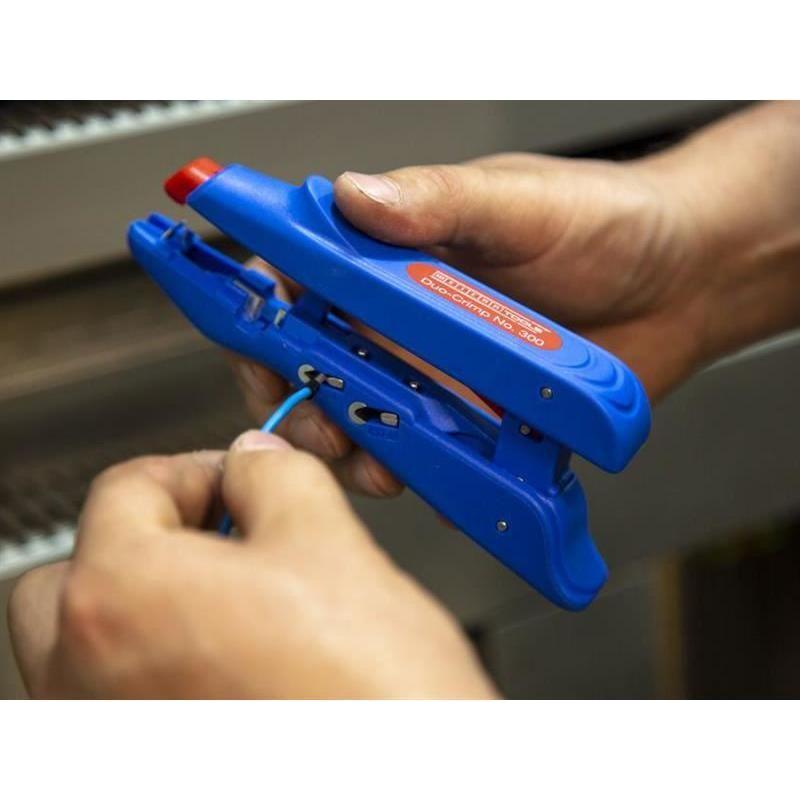

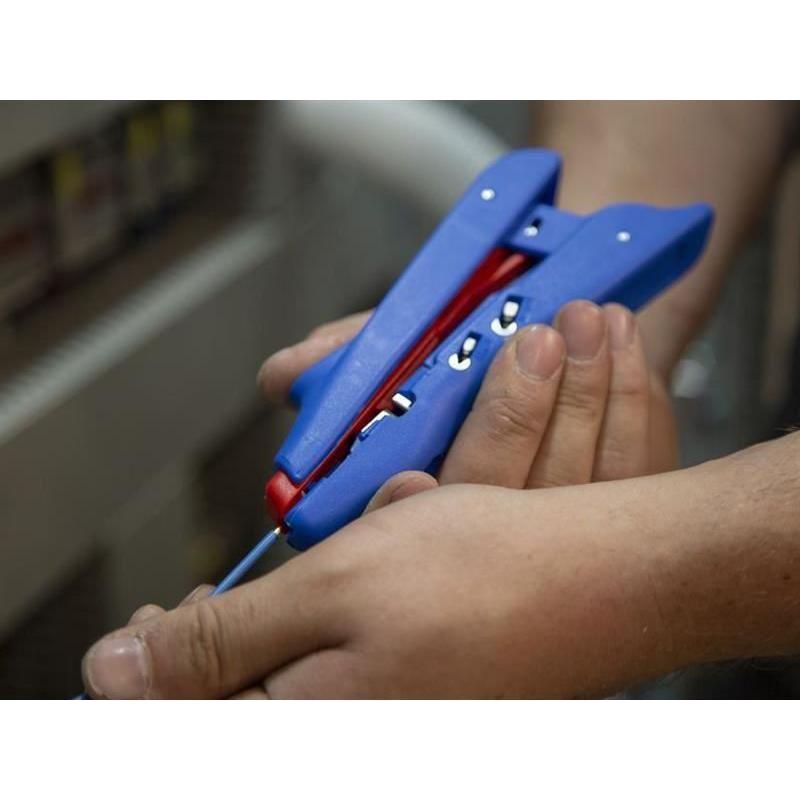

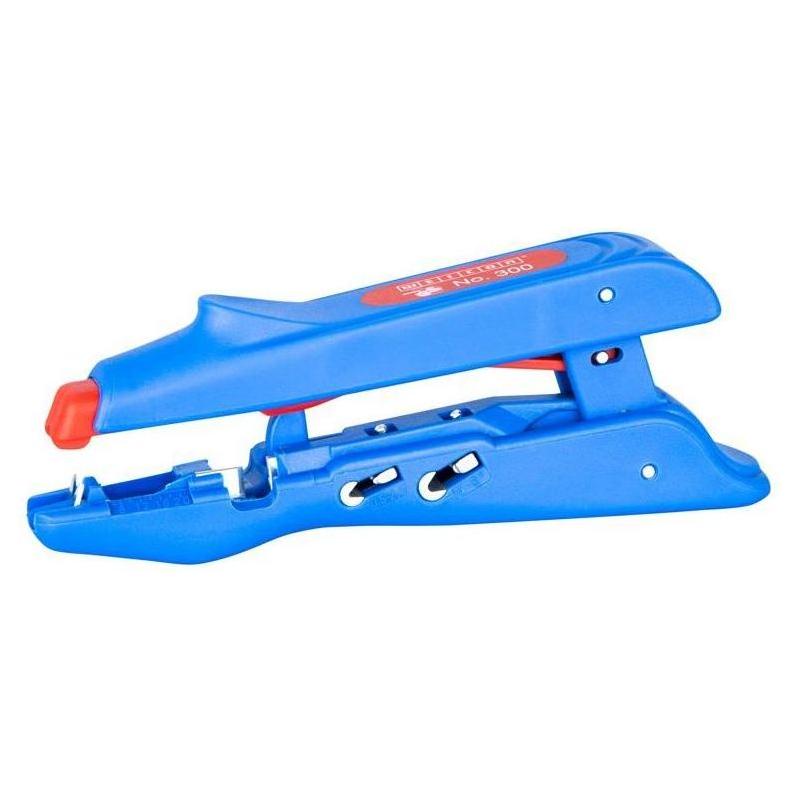

The Weicon® No. 300 Duo-Crimp can be used to strip conductors and crimp wire end ferrules. No adjustment to the cable cross-section is necessary thanks to the automatic scanning system. The stripper has an optical length scale of 8- 20mm and is suitable for all common stranded and solid conductors from 0.5 - 6.0mm².
The Duo-Crimp No. 300 insulates conductors to a length of 5mm, preventing the individual conductors from splicing. Two crimping ranges are offered: 0.5 – 2.5mm² and 4.0 – 6.0mm². A well-accessible side cutter is also integrated in the tool, which is suitable for cable cross-sectors up to 6mm² (solid conductors up to 4mm²).
Approval / certificate safety tested by TUV NORD.
Specifications:
Application Area: 0.5 - 6.0 mm² (20 - 10 AWG).
Length: 160mm.
