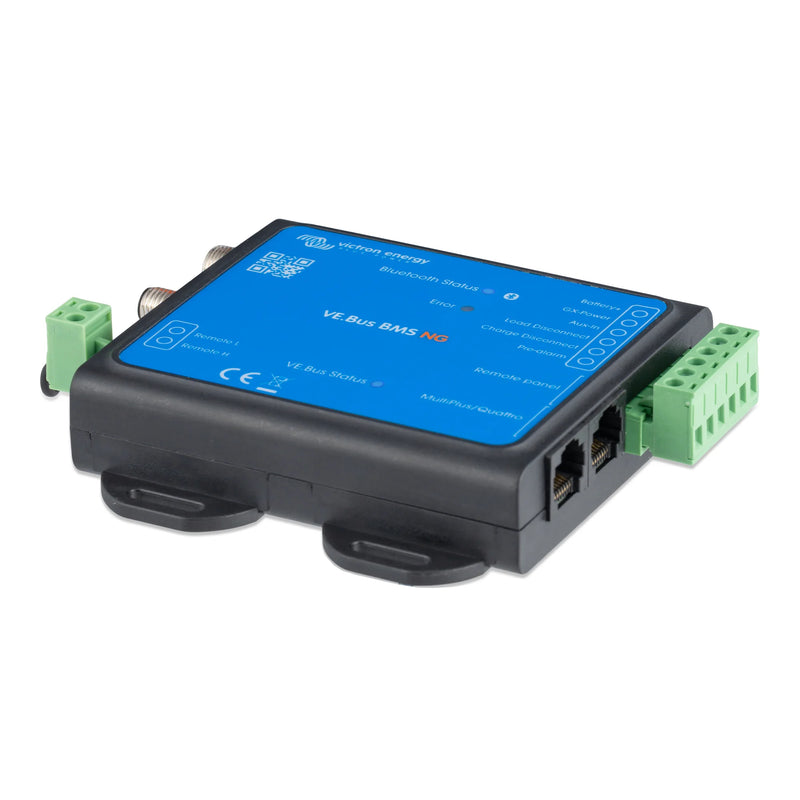

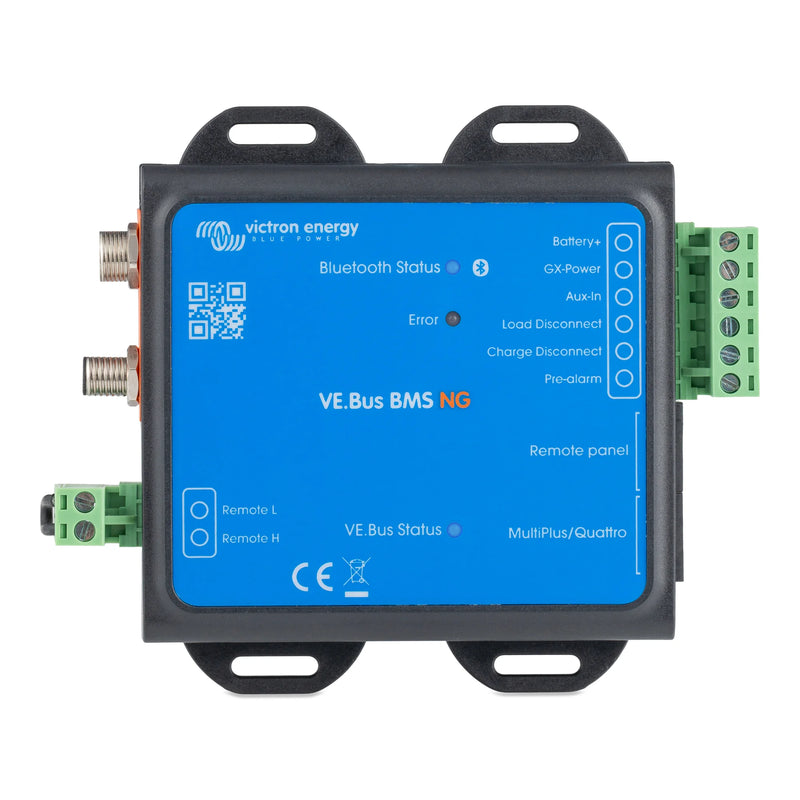

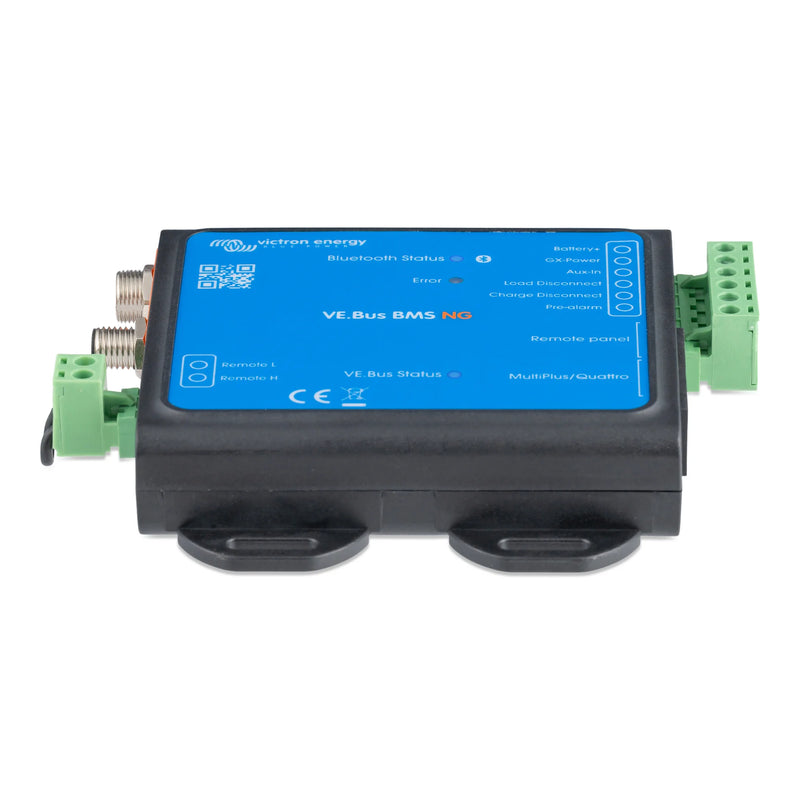

Victron VE.Bus BMS NG Battery Management System
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The VE.Bus BMS NG is an all-in-one Battery Management System (BMS) for Victron Lithium NG batteries (not compatible with Lithium Battery Smart batteries), designed for systems with Victron inverters or inverter/chargers using VE.Bus communication. It monitors and protects the batteries against over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.
With built-in Bluetooth, the BMS provides central monitoring via VictronConnect. The BMS derives all key parameters including voltage, current, state of charge and individual cell data directly from the battery, removing the need for a separate SmartShunt. The lithium NG batteries can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems.
A maximum of 50 batteries can be used in 12V or 24V banks, and 25 batteries in 48V banks, enabling up to 192 kWh (12V), 384 kWh (24V), and 128 kWh (48V) of storage. Multiple Lynx Smart BMS units can be paralleled to expand capacity and ensure redundancy.
Key Features
- Bluetooth Smart for wireless configuration and monitoring via VictronConnect App.
- Load disconnect output prevents deep discharge of batteries.
- Charge disconnect output protects against overvoltage.
- Pre-alarm output provides early warning for low battery voltage.
- LED indicators for Bluetooth status and warnings.
Specifications
| Brand | Victron |
| EAN | 8719076063520 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Battery communication terminals | Terminals with M8 circular connectors |
| DC connector battery minus | Screw terminals |

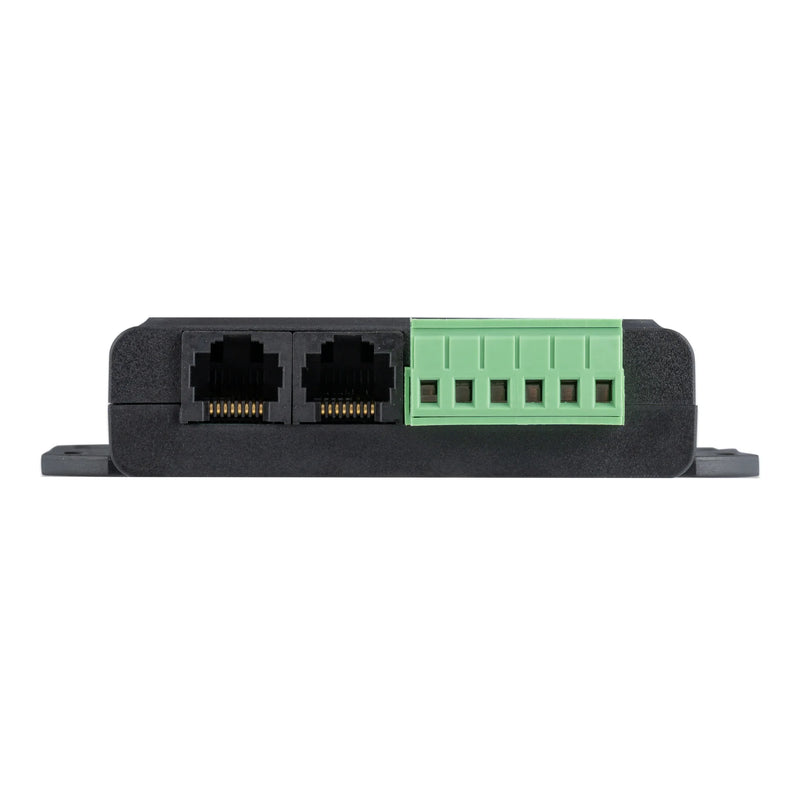

| VE.Bus terminals | 2 x RJ45 sockets to connect to all VE.Bus products |
| Power supply cable and fuse (not supplied) | Recommended fuse size 0.3 A - 2.5 (dependent on devices connected to Load disconnect and pre-alarm output) |
| Input/output terminals | Screw terminals |
| Item Width | 95 mm |
| Weight | 0.12 kg |
| Protection category | IP20 |
| Material | ABS |
| Item Height | 23.2 mm |
| Item Depth | 105.8 mm |
| Colour | Matt black with a blue sticker |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Automotive | EN 50498 |
| Safety | EN 60950 |
| Immunity | EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN 55014-2 |
| Current draw - regular operation (excluding Load disconnect current) | 10 mA |
| Load disconnect Output | Normally high (output voltage ≈ supply voltage – 1 V) Floating when the load needs to be disconnected |
| Load disconnect output source current limit | 1 A |
| Current draw - switched off via remote on/off terminal | 1.5 mA |
| Maximum humidity (non-condensing) | 95 % |
| Operating temperature range | [-20, 50] °C |
| Current draw - low cell voltage | 2 mA |
| Pre alarm output current rating (not short circuit protected) | 1 A |
| Pre alarm output (not short circuit proof) | Normally free floating - In case of alarm: output voltage Vbat -0.1 V |
| Charge disconnect output source current limit | 10 mA |
| Remote terminals | Usage modes to turn the system on or off:\na) ON when the L and H terminal are interconnected (switch or relay\ncontact)\nb) ON when the L terminal is pulled to battery minus (V<3.5 V)\nc) ON when the H terminal is high (2.9 V < VH < Vbat)\nd) OFF in all other conditions |
| DC Input operating voltage range | [9, 70] V |
| Charge disconnect output | Normally high (output voltage ≈ supply voltage – 1 V) Floating when the load needs to be disconnected |
| Aux-in input current rating | 1 A |
| GX power output current rating | 1 A |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BMS300200300 |
