Description

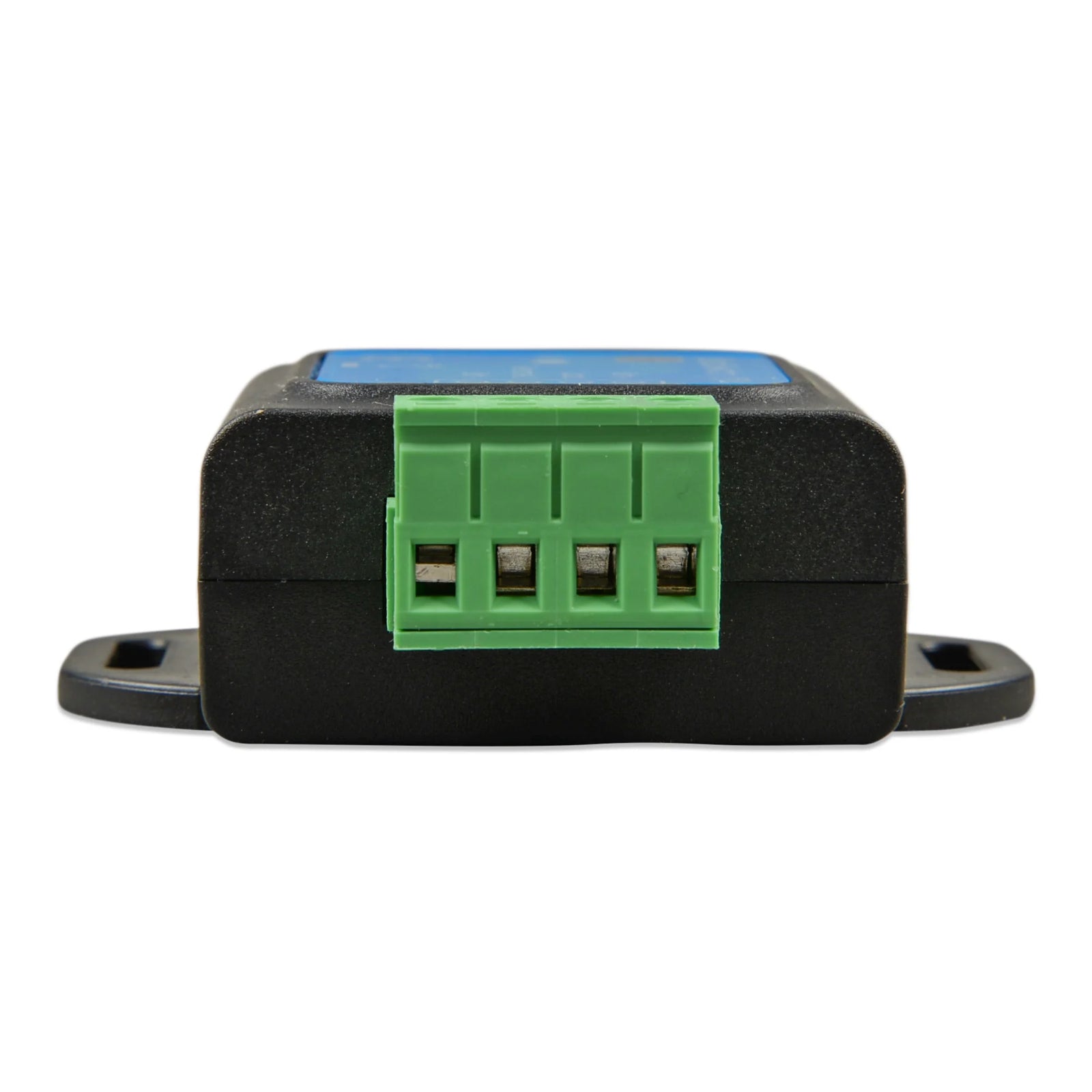

The Victron SolidSwitch 104 is designed for efficient power management. It features screw terminals for secure connections and operates within a wide DC voltage range of 8 to 70 V.

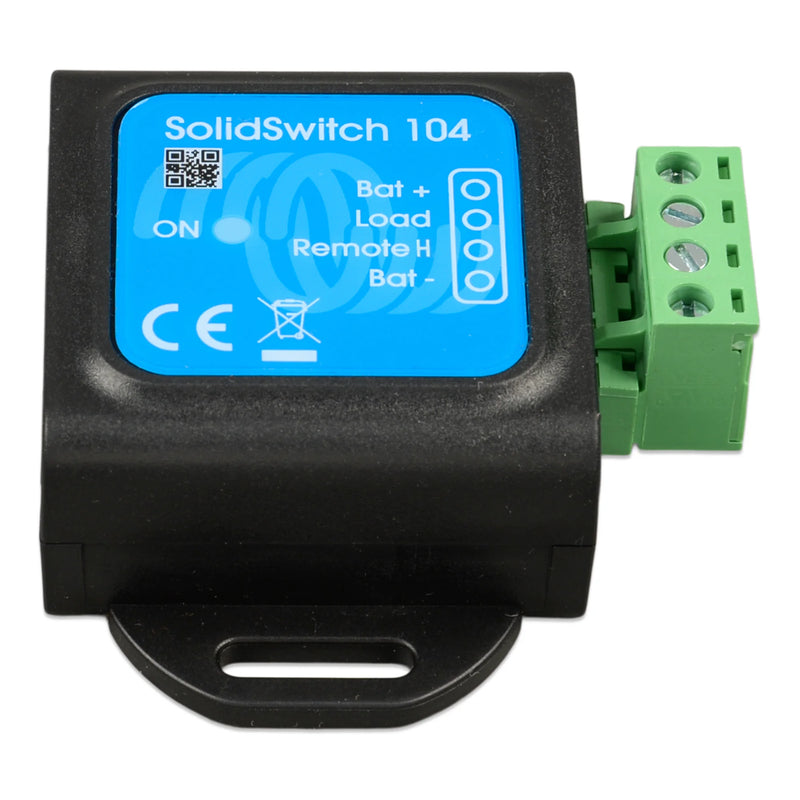

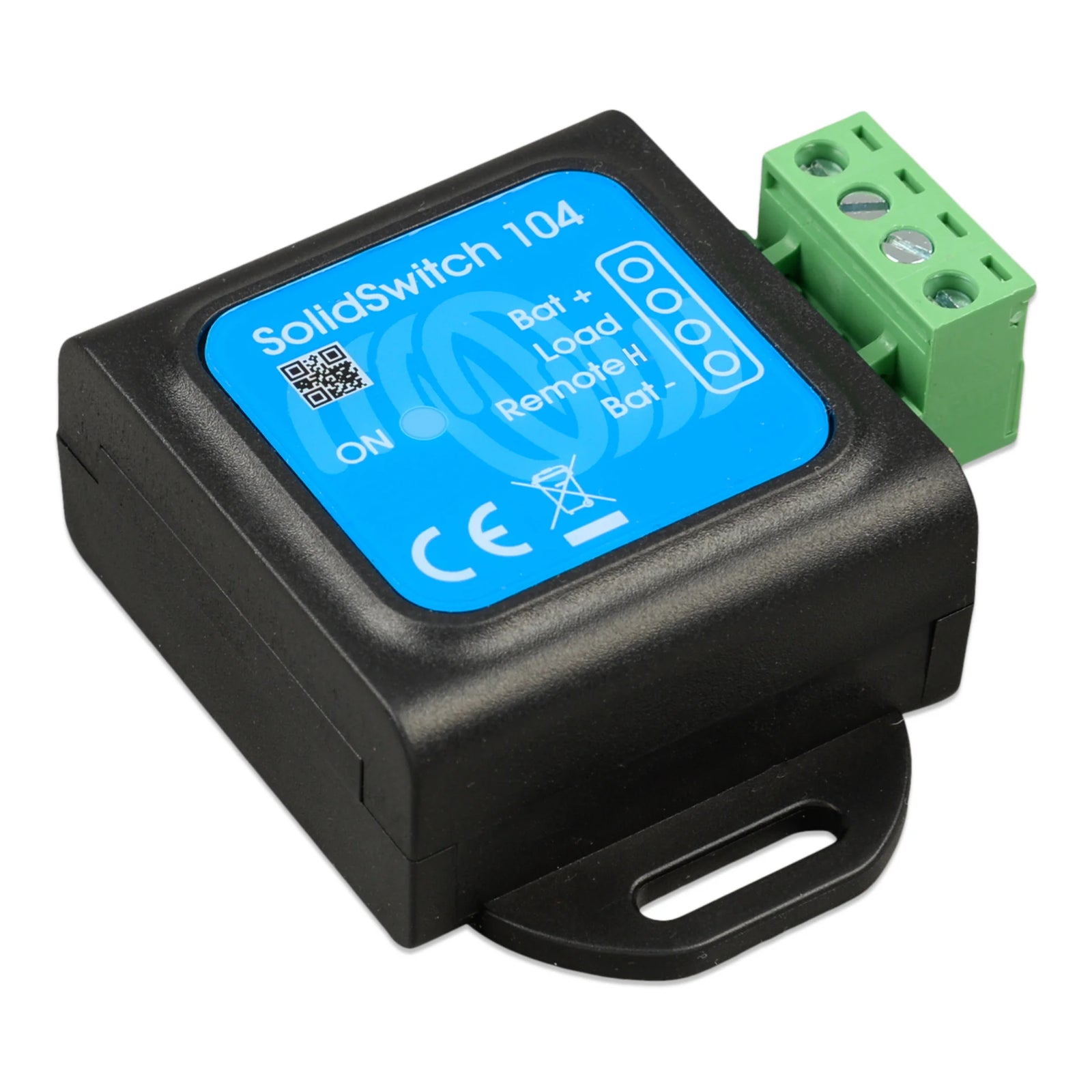

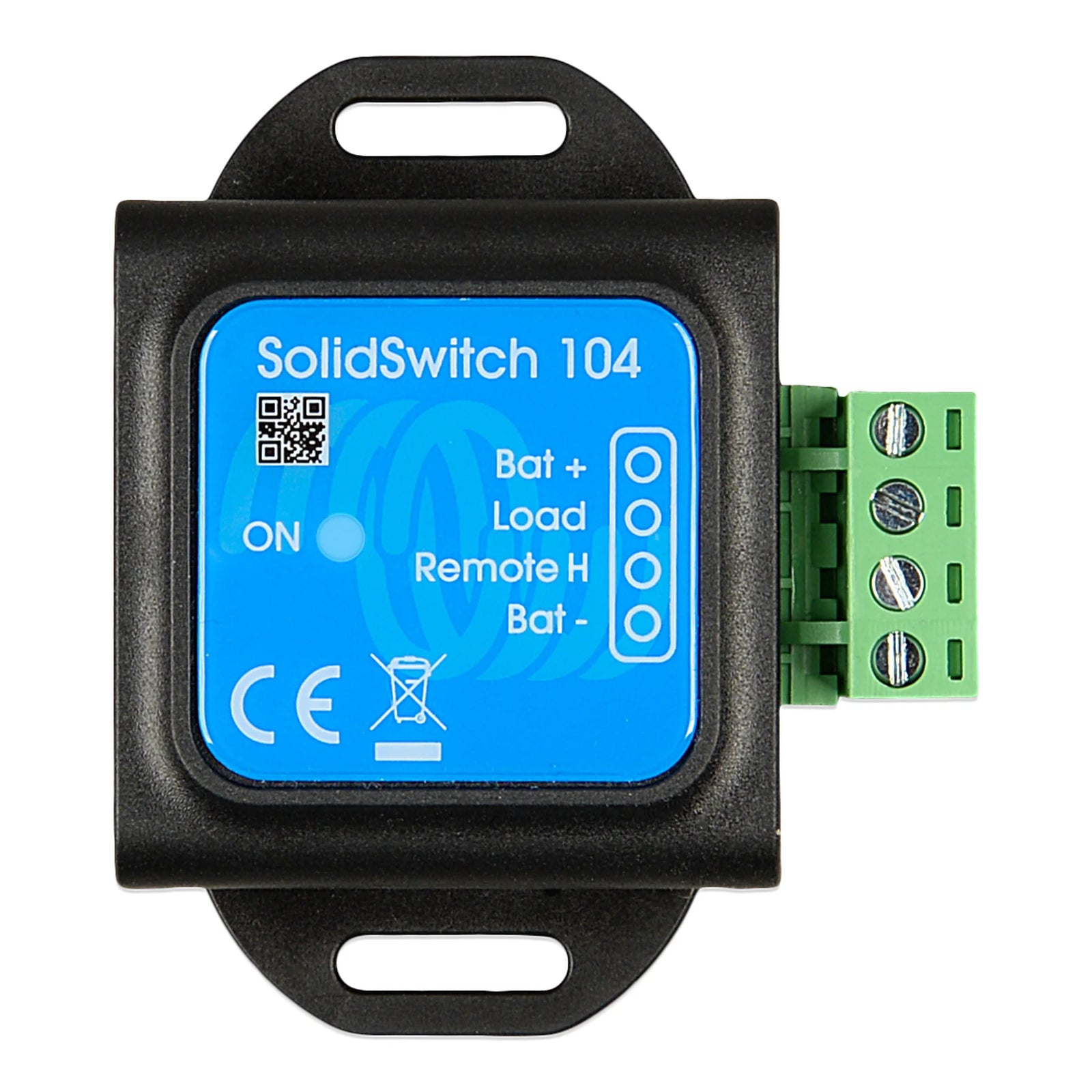

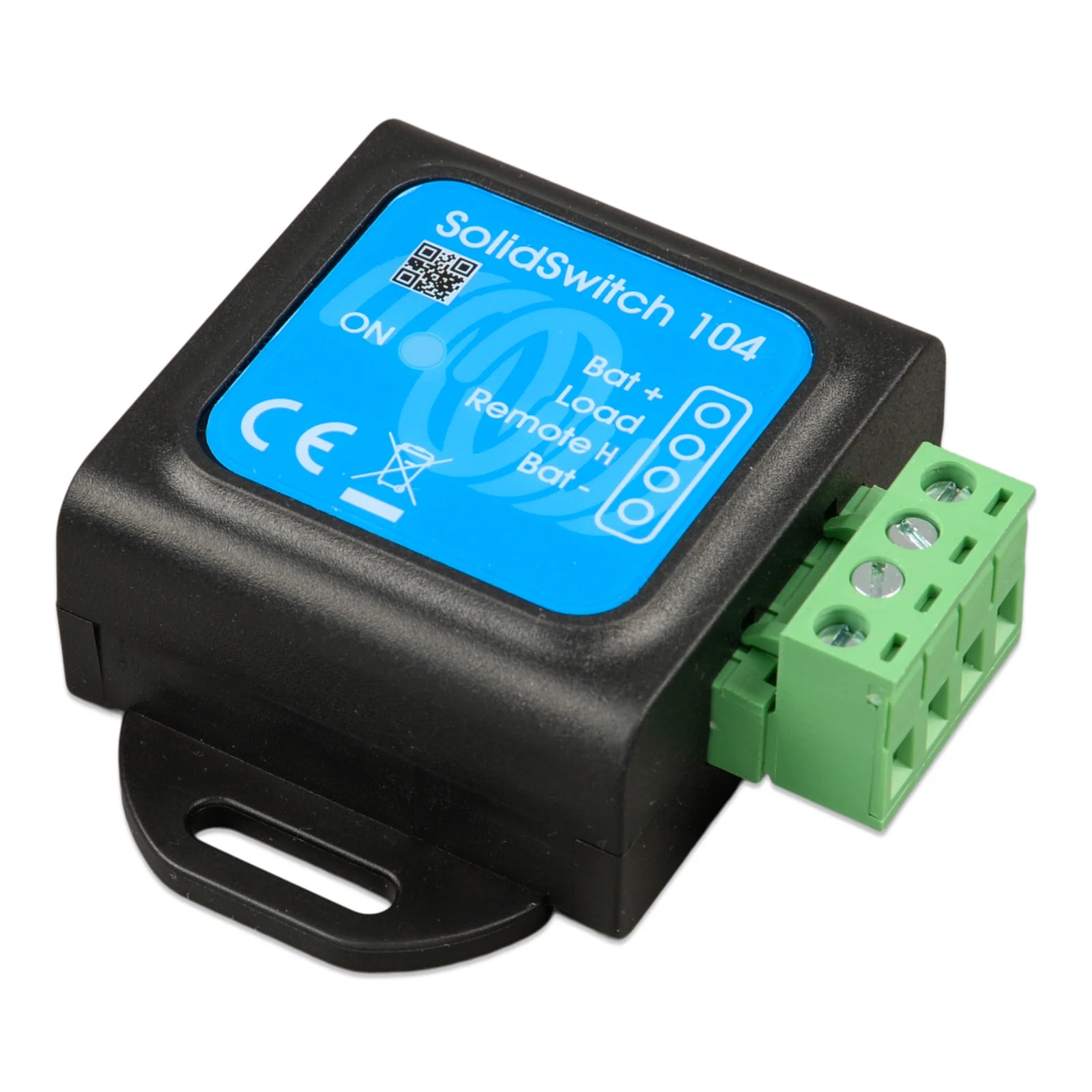

This power switch is housed in a durable ABS material with a sleek matt black finish and a blue sticker. Its compact dimensions of 66 mm in width, 58 mm in height, and 23 mm in depth make it suitable for various applications.
With a maximum load current of 4 A and the ability to handle capacitive loads up to 1,000 µF at 15VDC, this switch ensures reliable performance. It also operates effectively in a temperature range from -20 to 50 °C and can withstand humidity levels up to 95% (non-condensing).
Key Features
- Compact dimensions: 66 mm (W) x 58 mm (H) x 23 mm (D)
- Maximum load current of 4 A
- Wide operating DC voltage range: 8 to 70 V
- High capacitive load handling: up to 1,000 µF
- Durable ABS construction with IP20 protection
- Remote input voltage range for switching on: 3.3 to 70 V
Specifications
| Brand | Victron |
| EAN | 8719076055556 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| connections | Screw terminals |
| Item Width | 66 mm |
| Colour | Matt black with a blue sticker |
| Protection category | IP20 |
| Material | ABS |
| Item Height | 58 mm |
| Item Depth | 23 mm |
| Maximum capacitive load up to 15VDC | 1,000 µF |
| Maximum capacitive load between 15 and 30VDC | 400 µF |
| Maximum capacitive load above 30VDC | 50 µF |
| Maximum humidity (non-condensing) | 95 % |
| Maximum inductive load above 2A | 10 |
| Maximum inductive load between 1 and 2A | 200 |
| Maximum inductive load up to 1A | 1,000 |
| Maximum load current | 4 A |
| Operating temperature range | [-20, 50] °C |
| Operating DC voltage range | [8, 70] V |
| Remote input voltage range to switch off | [-∞, 3] V |
| Remote input voltage range to switch on | [3.3, 70] V |
| Remote input minimun current to switch on | 30 µA |
| Length | 66mm |
| Manufacturer Part Number (MPN) | BMS800200104 |
