Victron Solar Panel 90W-12V Poly 780x668x30mm
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

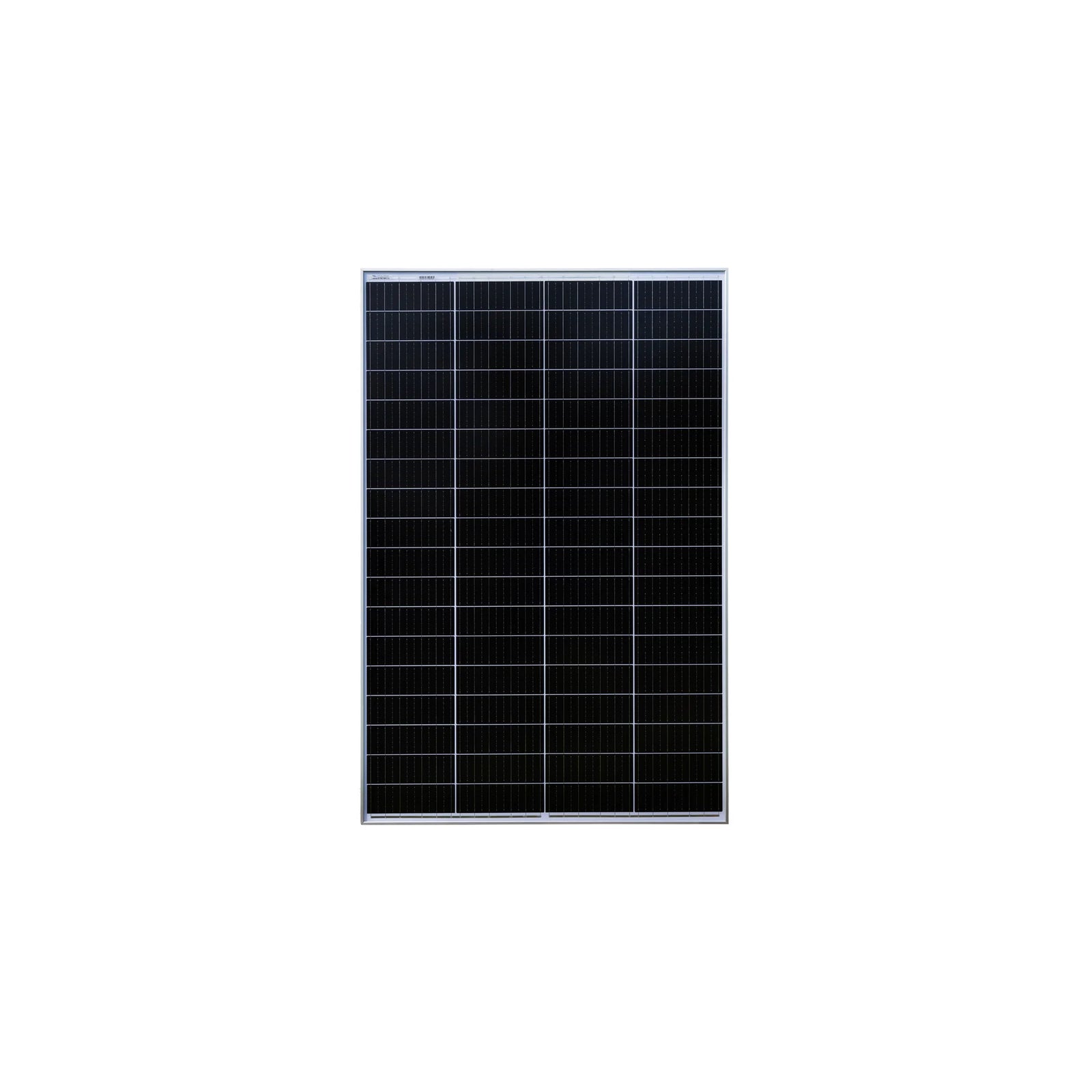

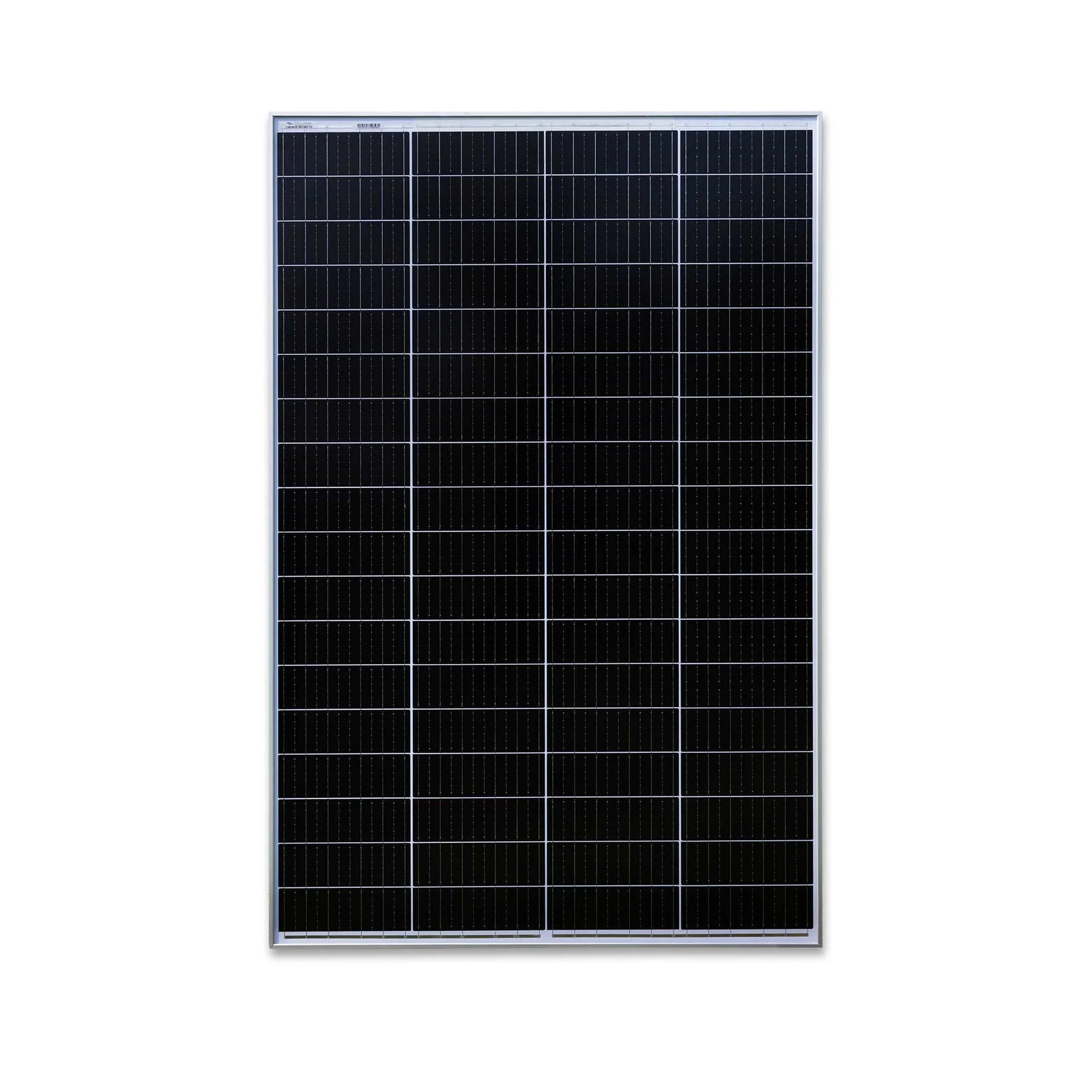

The BlueSolar Panels require exceptionally low light output and have high sensitivity to light. This 90W solar panel is designed for optimal performance, featuring a robust polycrystalline cell type.

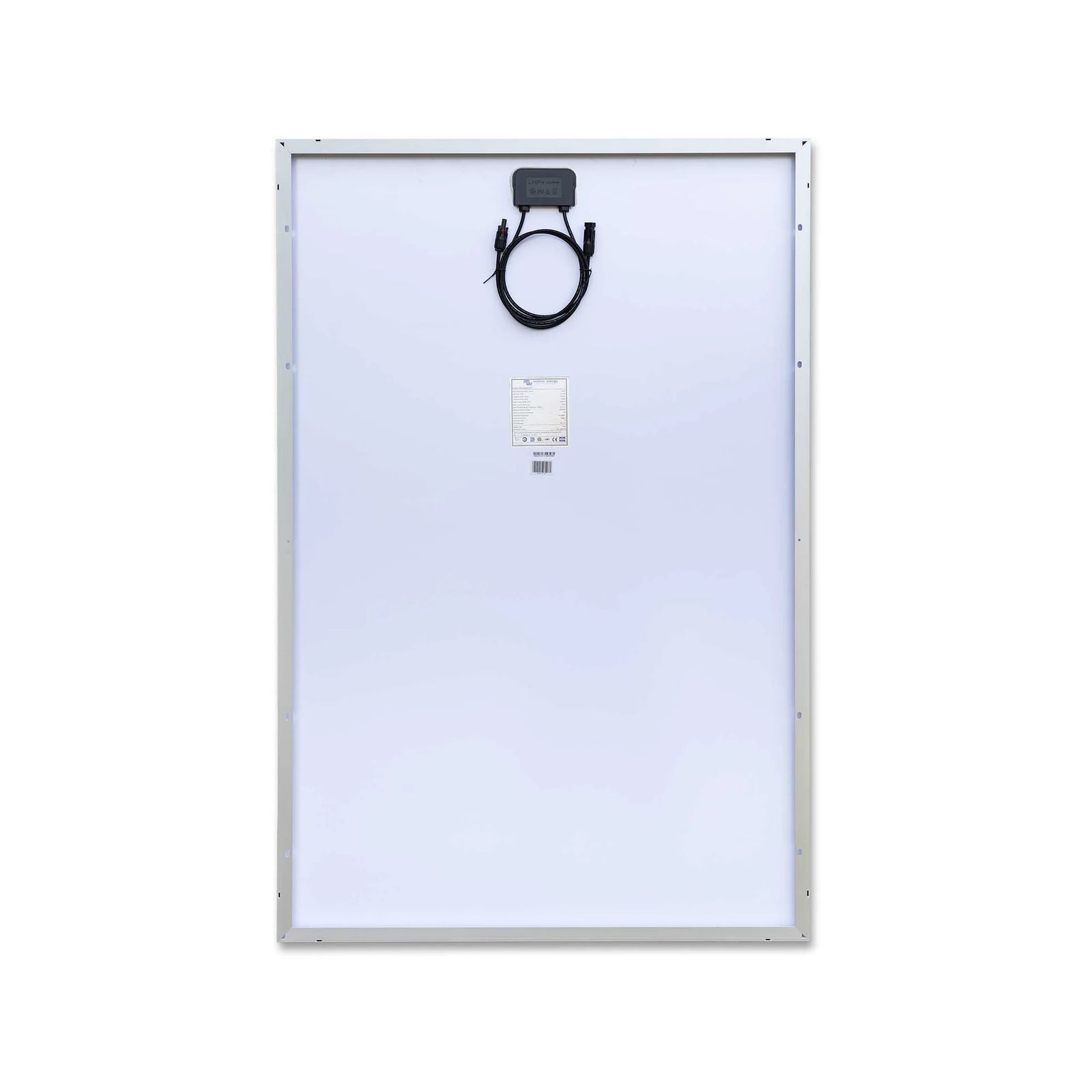

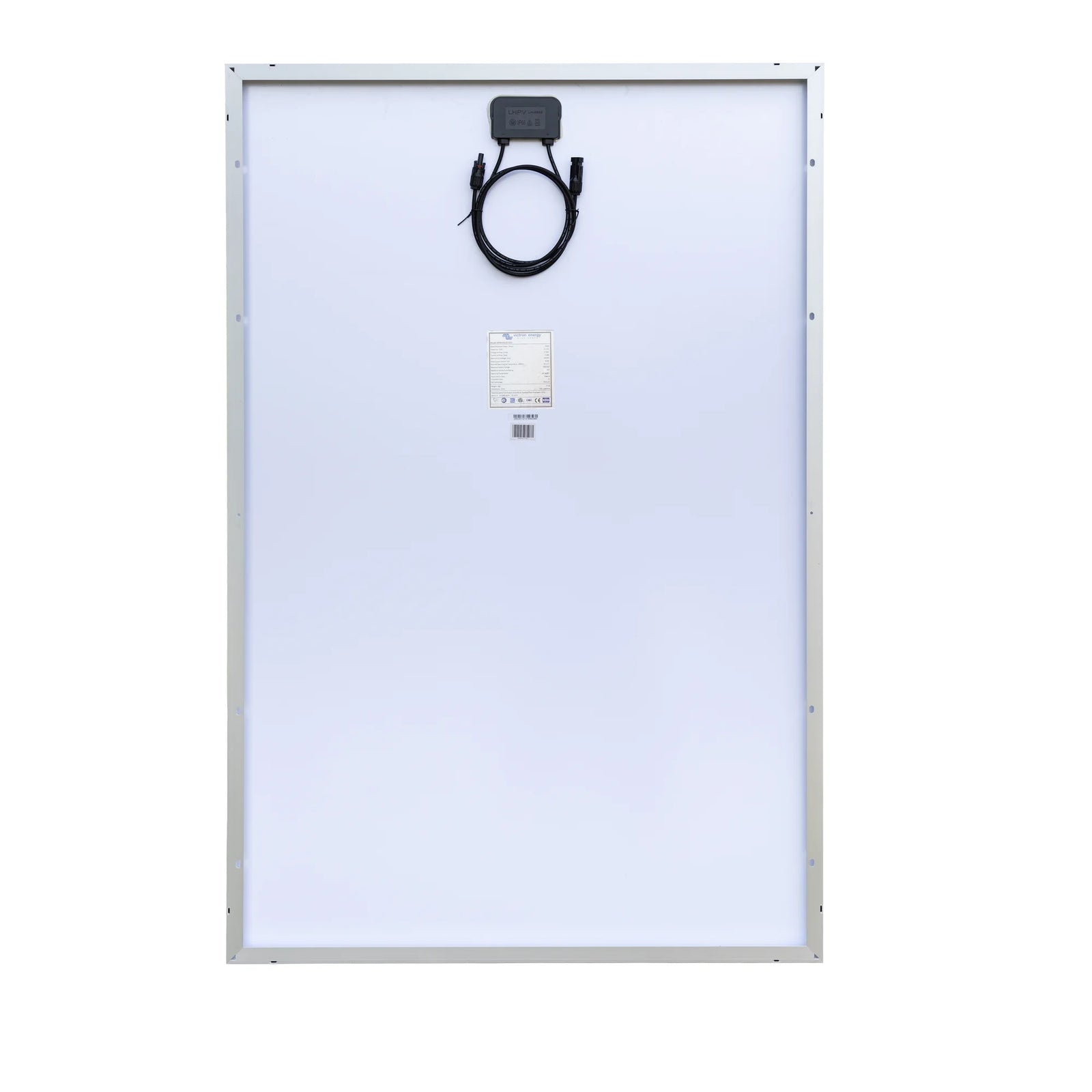

With dimensions of 780 mm in height, 668 mm in width, and a depth of 30 mm, this panel is lightweight at 6.1 kg. It includes a PV cable length of 900 mm and a junction box type of PV-LH0801 for easy installation.
The panel boasts a maximum system voltage of 1,000 V and can withstand a surface maximum load capacity of 200 kg/m². It has a product warranty of 5 years and an electrical performance warranty of 10 years at 90% power output.
Key Features
- Nominal Power: 90W ±3%
- Operating Temperature Range: [-40, 85] °C
- Short-Circuit Current (ICS): 4.98 A
- Open-Circuit Voltage (Voc): 23.44 V
- Temperature Coefficient Voc: -0.35 %/°C
- Maximum Power Voltage (Vmpp): 19.5 V
Specifications
| Brand | Victron |
| EAN | 8719076040521 |
| Type | Solar Battery |
| Sub-Type | solar_storage |
| Custom Bundle | No |
| PV cable length | 900 mm |
| PV cable connection type | 900 mm |
| Junction box type | PV-LH0801 |
| Item Height | 780 mm |
| Weight | 6.1 kg |
| Item Width | 668 mm |
| Item Depth | 30 mm |
| Frame | Aluminium |
| Warranty on elctrical performance 90% power output | 10 y |
| Smallest packaging unit | 1 |
| Warranty on on elctrical performance 80% power output | 10 y |
| Number of panels per pallet | 72 |
| Product warranty | 5 y |
| Temperature coefficient Voc | -0.35 %/°C |
| Temperature coefficient MPP | -0.45 %/°C |
| Temperature coefficient Isc | 0.04 %/°C |
| Surface maximum load capacity | 200 kg/m² |
| Short-circuit current (ICS) | 4.98 A |
| PV output tolerance | 3 % |
| Operating temperature range | [-40, 85] °C |
| Open -circuit voltage (Voc) | 23.44 V |
| Number of cells in series | 36 |
| Nominal Power ±3% (Pmpp) | 90 W |
| Maximum system voltage | 1,000 V |
| Maximum power voltage (Vmpp) | 19.5 V |
| Maximum power current (Impp) | 4.61 A |
| Cell type | Polycrystalline |
| Allowable hail load, weight | 7.53 g |
| Allowable hail load, speed | 23 m/s |
| Voltage | 12V |
| Power Source | Battery |
| Application | Electrical |
| Manufacturer Part Number (MPN) | SPP040901200 |
