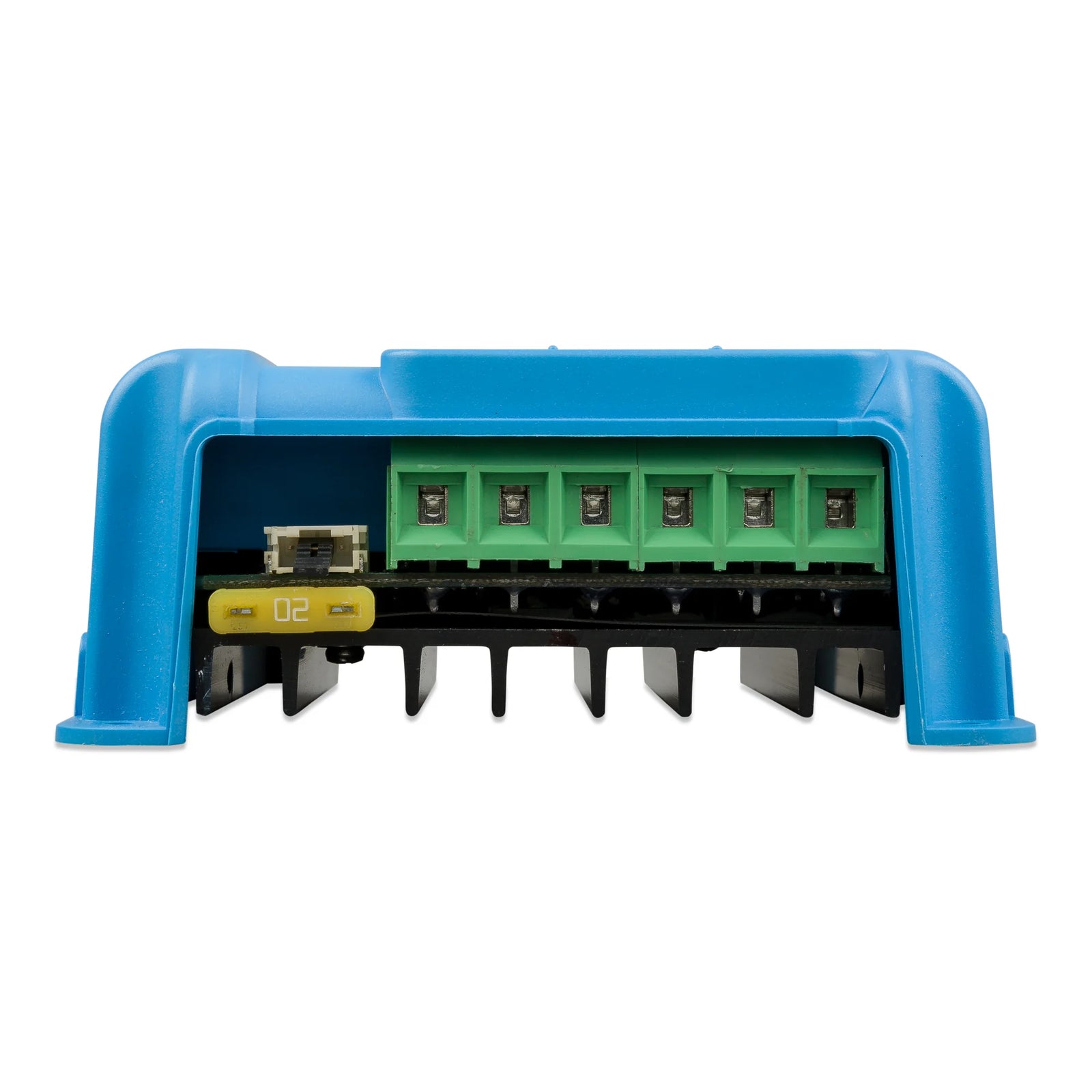

Victron SmartSolar MPPT 75/15 Solar Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Maximize the energy-harvest, driving it intelligently to achieve full charge in the shortest possible time using the SmartSolar MPPT 75/15. This solar charge controller is designed for both 12V and 24V battery systems, ensuring optimal performance and safety.
With a rated charge current of 15 A, it features a maximum efficiency of 98% and is equipped with Bluetooth for easy monitoring and control. The controller supports a nominal PV power of 220 W at 12V and 440 W at 24V, making it versatile for various solar applications.
Constructed with IP43 protection, it is suitable for outdoor use, and it can operate in temperatures ranging from -30°C to 60°C. The device also includes multiple protection features such as automatic load disconnect and output short-circuit protection.
Key Features
- Rated Charge Current: 15 A

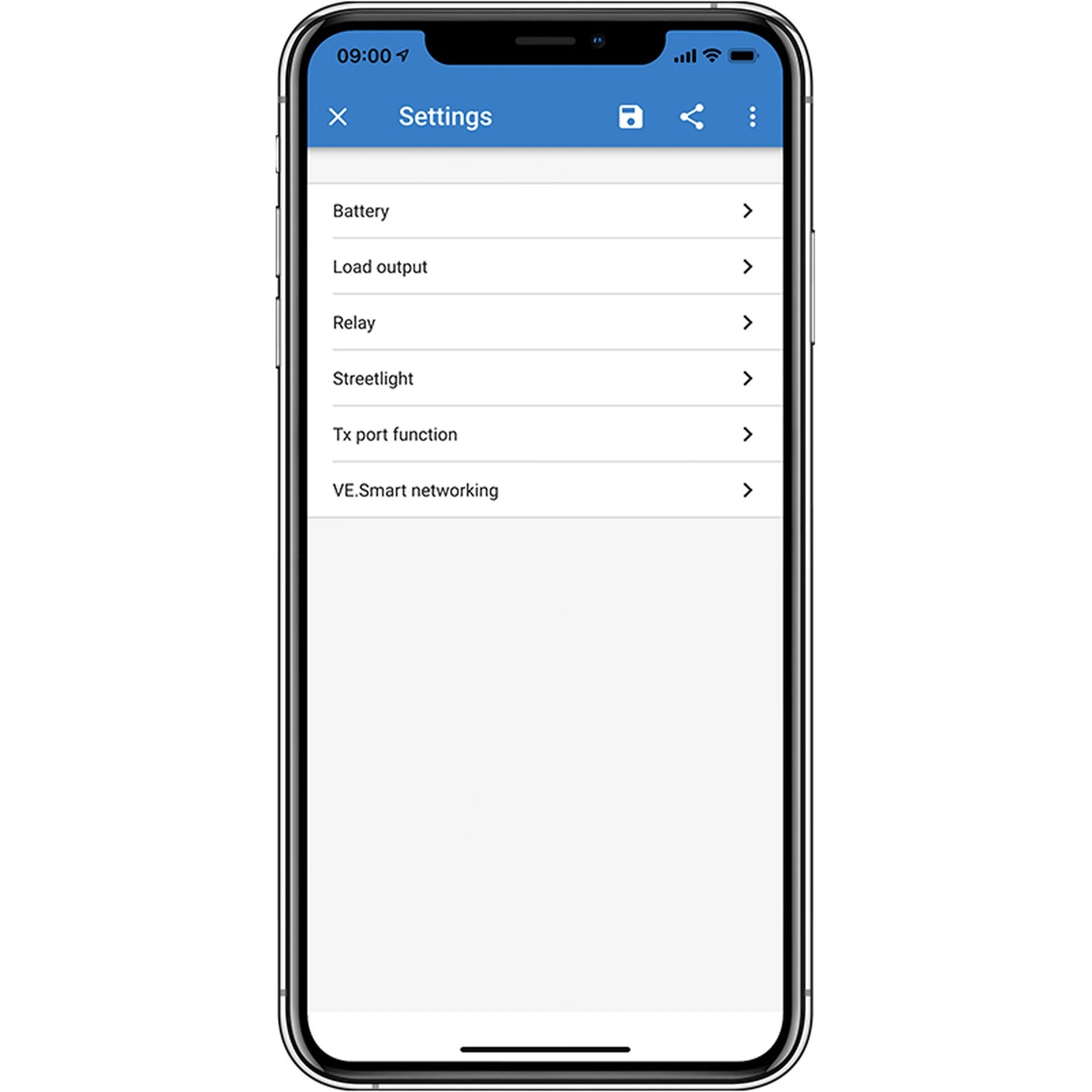

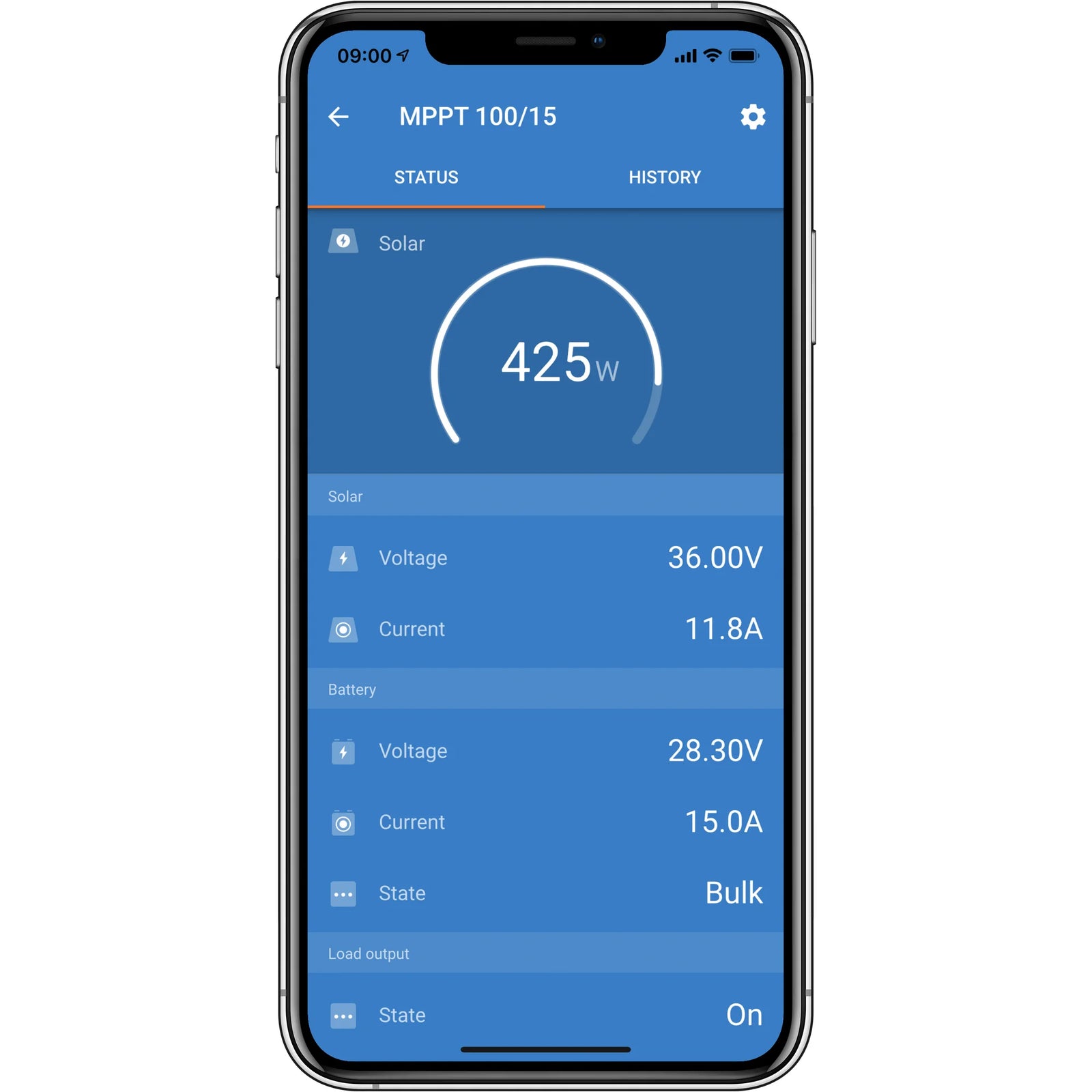

- Bluetooth enabled for remote monitoring
- Maximum efficiency of 98%
- Supports 12V and 24V battery systems
- IP43 protection for outdoor use
- Multi-stage adaptive charge algorithm
Specifications
| Brand | Victron |
| EAN | 8719076040804 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| PV connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Load connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Battery connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Protection Category | IP43 (electronic components) |
| Colour | Blue (RAL 5012) |
| Item Height | 100 mm |
| Item Depth | 40 mm |
| Weight | 0.5 kg |
| Item Width | 113 mm |
| Safety | UL 1741,CSA C22.2,EN-IEC 62109-1 |
| Data Stored | Battery voltage,Battery current,Battery temperature,Load output Current,PV voltage,PV current |
| Data Retention Period | 46 d |
| Charge voltage absorption | 14.4V / 28.8V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Bluetooth | True |
| Battery voltage | 12V / 24V ( |
| Charge voltage float | 13.8V / 27.6V (adjustable) |
| Rated Charge Current | 15 A |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 12V | -16 mV/°C |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Self-consumption - load on | 12V: 19mA / 24V: 16mA |
| Self-consumption - load off | 12V: 10mA / 24 V: 8mA |
| Protections | Automatic load disconnect,Excessive temperature,Output short-circuit,PV reverse polarity |
| Operating temperature range | [-30, 60] °C |
| Number of trackers | 1 |
| Nominal PV power at 24 V | 440 W |
| Nominal PV power at 12 V | 220 W |
| Maximum PV short circuit current per tracker | 15 A |
| Maximum PV Open Circuit Voltage | 75 V |
| Maximum humidity (non-condensing) | 95 % |
| Maximum efficiency | 98 % |
| Max Continuous Load Current at 24V | 15 A |
| Max Continuous Load Current at 12V | 15 A |
| Low Voltage Load Reconnect | 13.1V / 26.2V or 14V / 28V or Battery Life algorithm |
| Low Voltage Load Disconnect | 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm |
| Data Communication | Bluetooth,VE.Direct |
| Manufacturer Part Number (MPN) | SCC075015060R |
