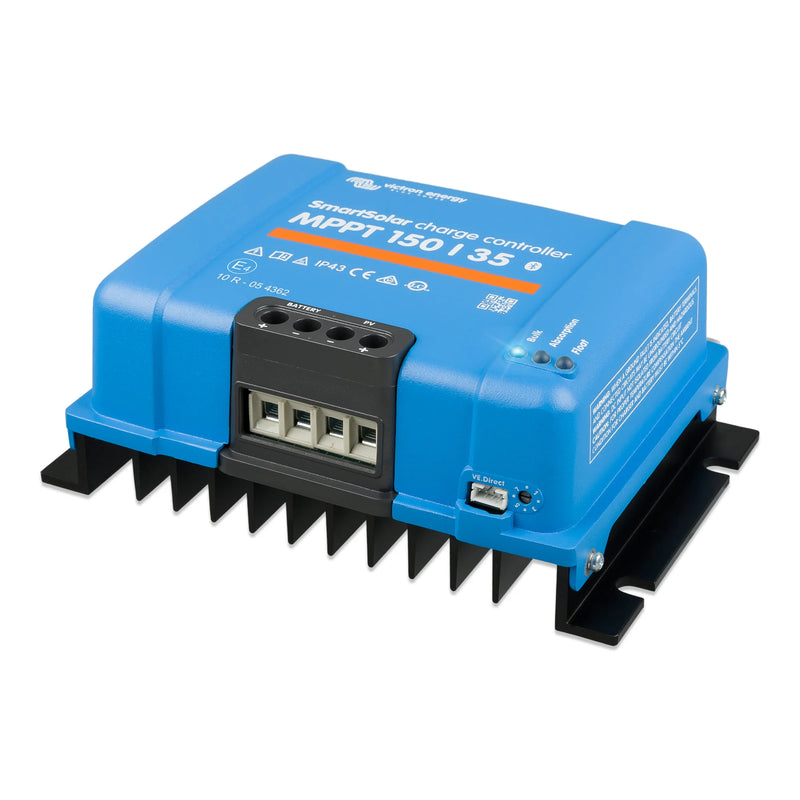

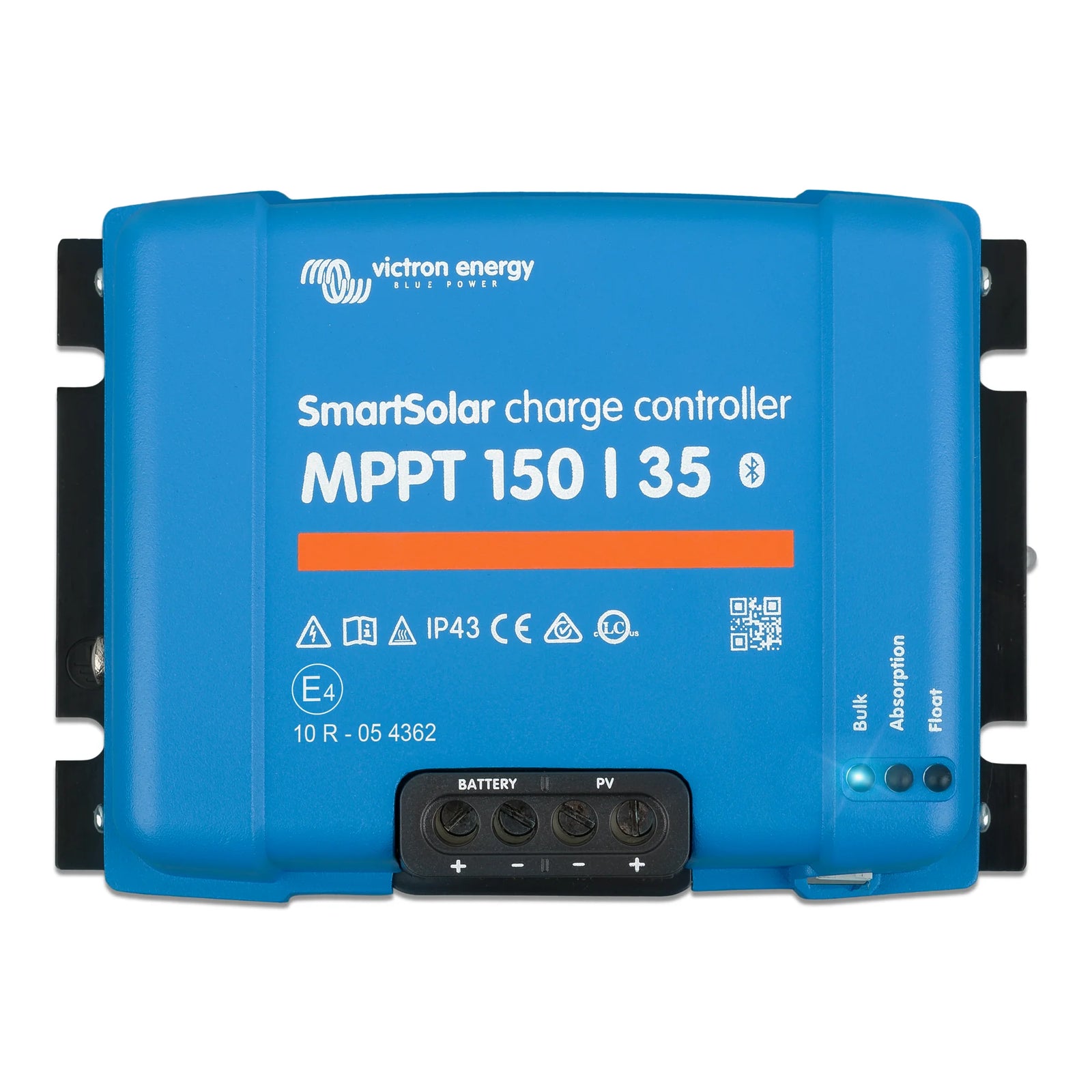

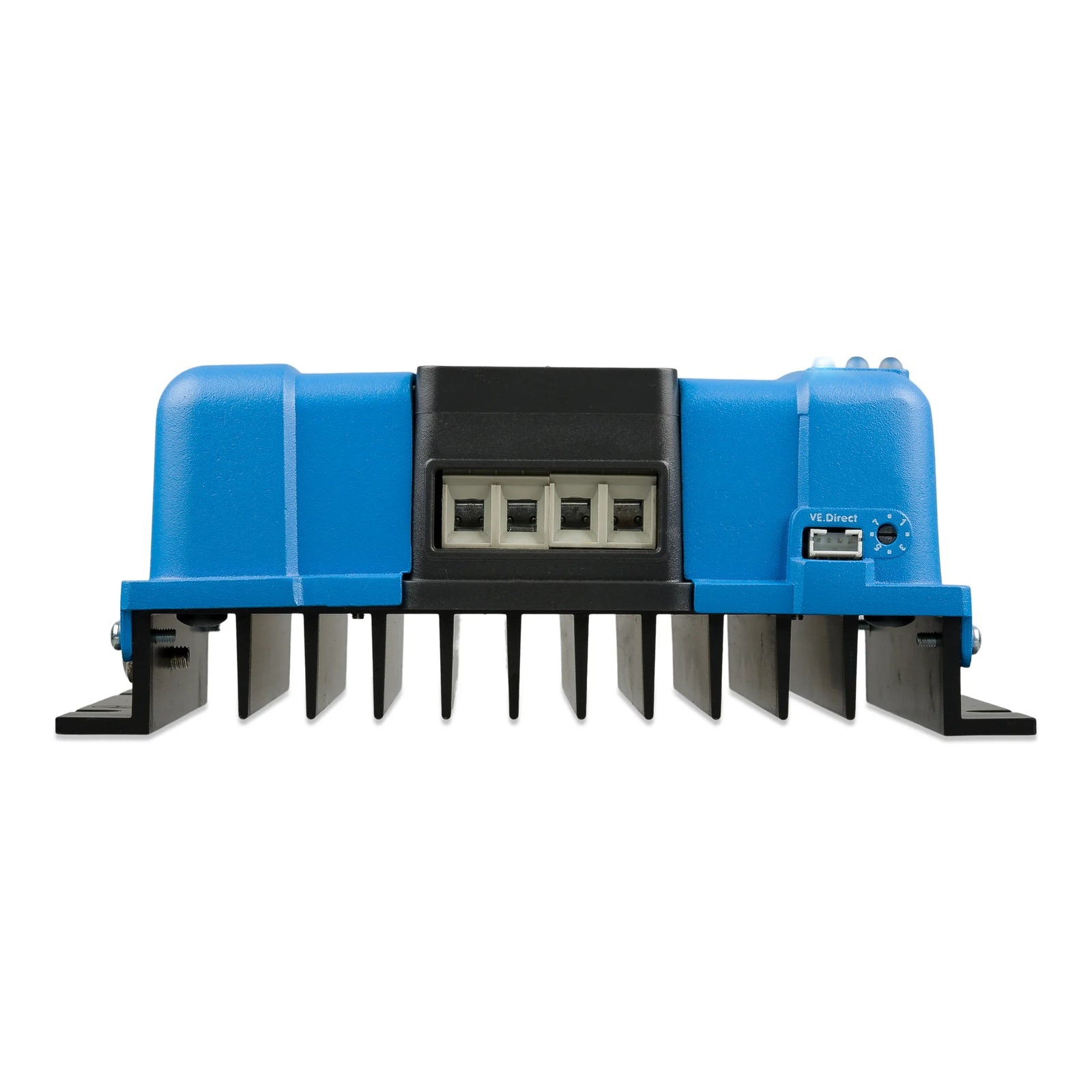

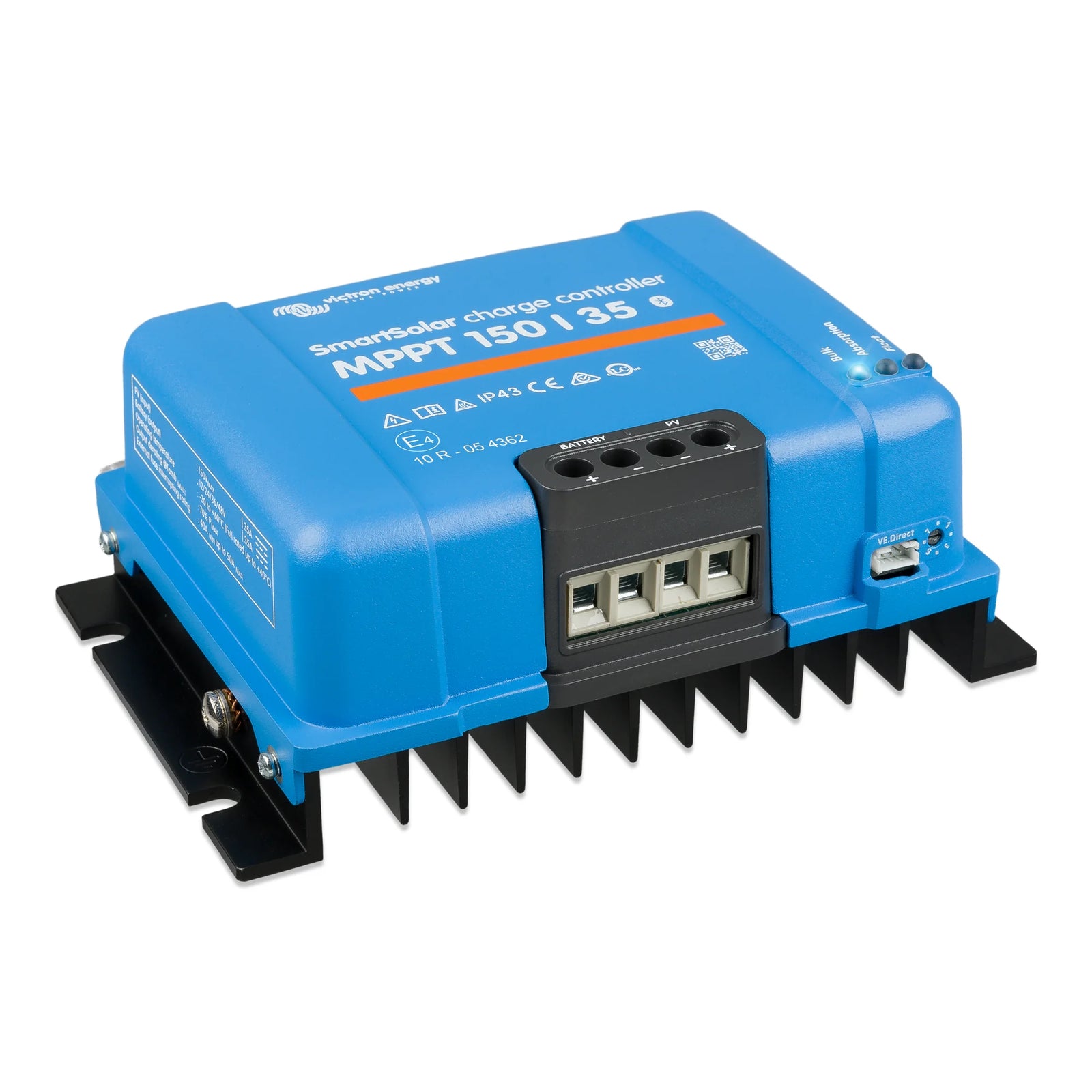

Victron SmartSolar MPPT 150/35 Solar Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron SmartSolar MPPT 150/35 is designed to maximize energy harvest from solar panels, intelligently directing it to achieve a full charge in the shortest possible time. It features a Bluetooth interface for easy monitoring and configuration.
With a rated charge current of 35 A and a maximum PV open circuit voltage of 150 V, this controller is suitable for various battery voltages (12V, 24V, 48V) and is equipped with multiple protections including output short-circuit and excessive temperature.
It has a compact design with dimensions of 186 mm width, 70 mm depth, and 130 mm height, making it easy to install in various setups. The unit is built to withstand harsh conditions with an operating temperature range of -30 to 60 °C and a protection category of IP43 for electronic components.
Key Features
- Bluetooth connectivity for monitoring and configuration
- Rated charge current of 35 A
- Maximum efficiency of 98%
- Multiple battery voltage options: 12V, 24V, 48V
- Compact dimensions: 186 mm x 70 mm x 130 mm
- High protection rating: IP43 for electronic components
Specifications
| Brand | Victron |
| EAN | 8719076040187 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Protection Category | IP43 (electronic components),IP22 (connection area) |
| Weight | 1.25 kg |
| Item Width | 186 mm |
| Item Depth | 70 mm |
| Item Height | 130 mm |
| Colour | Blue (RAL 5012) |
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
| Data Retention Period | 46 d |
| Data Stored | Battery voltage,Battery current,Battery temperature,PV voltage,PV current,Load output Current |
| Battery voltage | 12V / 24V / 48V (Auto Select) |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Bluetooth | True |
| Nominal PV power at 36V | 1,500 W |
| Temperature Compensation at 12V | -16 mV/°C |
| Nominal PV power at 48 V | 2,000 W |
| Number of trackers | 1 |
| Operating temperature range | [-30, 60] °C |
| Nominal PV power at 24 V | 1,000 W |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Nominal PV power at 12 V | 500 W |
| Rated Charge Current | 35 A |
| Maximum PV short circuit current per tracker | 40 A |
| Maximum PV Open Circuit Voltage | 150 V |
| Self-consumption | 12V: 20mA, 24V: 15mA, 48V: 10mA |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Sensor | Internal |
| Maximum humidity (non-condensing) | 95 % |
| Maximum efficiency | 98 % |
| Data Communication | Bluetooth,VE.Direct |
| Manufacturer Part Number (MPN) | SCC115035210 |
