Description
Maximize the energy-harvest, driving it intelligently to achieve full charge in the shortest possible time using the SmartSolar MPPT 100/50. This solar charge controller features Bluetooth connectivity for easy monitoring and control.
It has a rated charge current of 50 A and supports both 12V and 24V battery systems. The controller is designed to operate efficiently with a maximum efficiency of 98% and is capable of handling a maximum PV open circuit voltage of 100 V.
With a compact size of 186 mm width, 130 mm height, and 70 mm depth, it is built to withstand harsh conditions with a protection category of IP22 for the connection area and IP43 for electronic components.
Data stored includes battery voltage, current, temperature, and more, with a data retention period of 46 days, making it a reliable choice for solar energy management.
Key Features

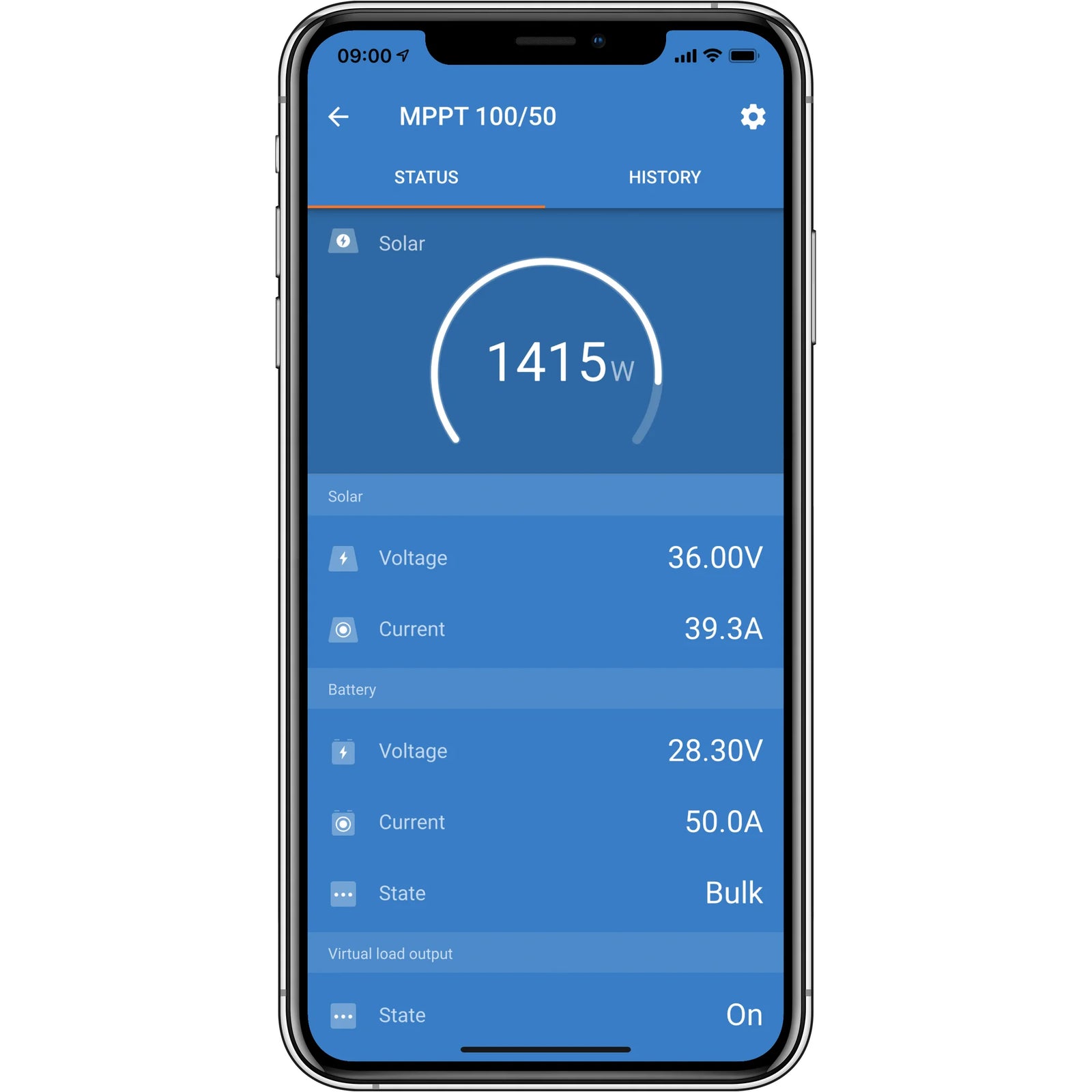

- Bluetooth connectivity for real-time monitoring
- Rated charge current of 50 A
- Supports 12V and 24V battery systems
- Maximum efficiency of 98%
- Compact design with IP43 protection
- Data retention for 46 days
Specifications
| Brand | Victron |
| EAN | 8719076040194 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Item Width | 186 mm |
| Weight | 1.3 kg |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Item Height | 130 mm |
| Item Depth | 70 mm |
| Colour | Blue (RAL 5012) |
| Safety | UL 1741,CSA C22.2,EN-IEC 62109-1 |
| Data Stored | Battery voltage,Battery current,Battery temperature,Starter battery voltage,Load output Current,PV voltage |
| Data Retention Period | 46 d |
| Maximum efficiency | 98 % |
| Maximum humidity (non-condensing) | 95 % |
| Maximum PV Open Circuit Voltage | 100 V |
| Maximum PV short circuit current per tracker | 60 A |
| Nominal PV power at 12 V | 700 W |
| Nominal PV power at 24 V | 1,400 W |
| Number of trackers | 1 |
| Operating temperature range | [-30, 60] °C |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Rated Charge Current | 50 A |
| Self-consumption | 12V: 30mA / 24V: 20mA |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Battery voltage | 12V / 24V ( |
| Bluetooth | True |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V (adjustable) |
| Charge voltage float | 13.8V / 27.6V (adjustable) |
| Data Communication | Bluetooth,VE.Direct |
| Manufacturer Part Number (MPN) | SCC110050210 |
