Victron SmartSolar MPPT 100/20 Solar Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Maximize the energy-harvest, driving it intelligently to achieve full charge in the shortest possible time using the SmartSolar MPPT 100/20. This solar charge controller is designed for 12V, 24V, and 48V battery systems, ensuring optimal performance and efficiency.
The controller features a rated charge current of 20A, with a maximum efficiency of 98%. It supports various battery voltages and has Bluetooth connectivity for easy monitoring and control.
With a compact design, the dimensions are 131 mm in width, 100 mm in height, and 60 mm in depth, making it suitable for various installations. It also has a robust protection category of IP22 for the connection area and IP43 for the electronic components, ensuring durability in various environments.
Additional features include automatic load disconnect, output short-circuit protection, and a data retention period of 46 days, making it a reliable choice for solar energy management.
Key Features
- Rated Charge Current: 20A

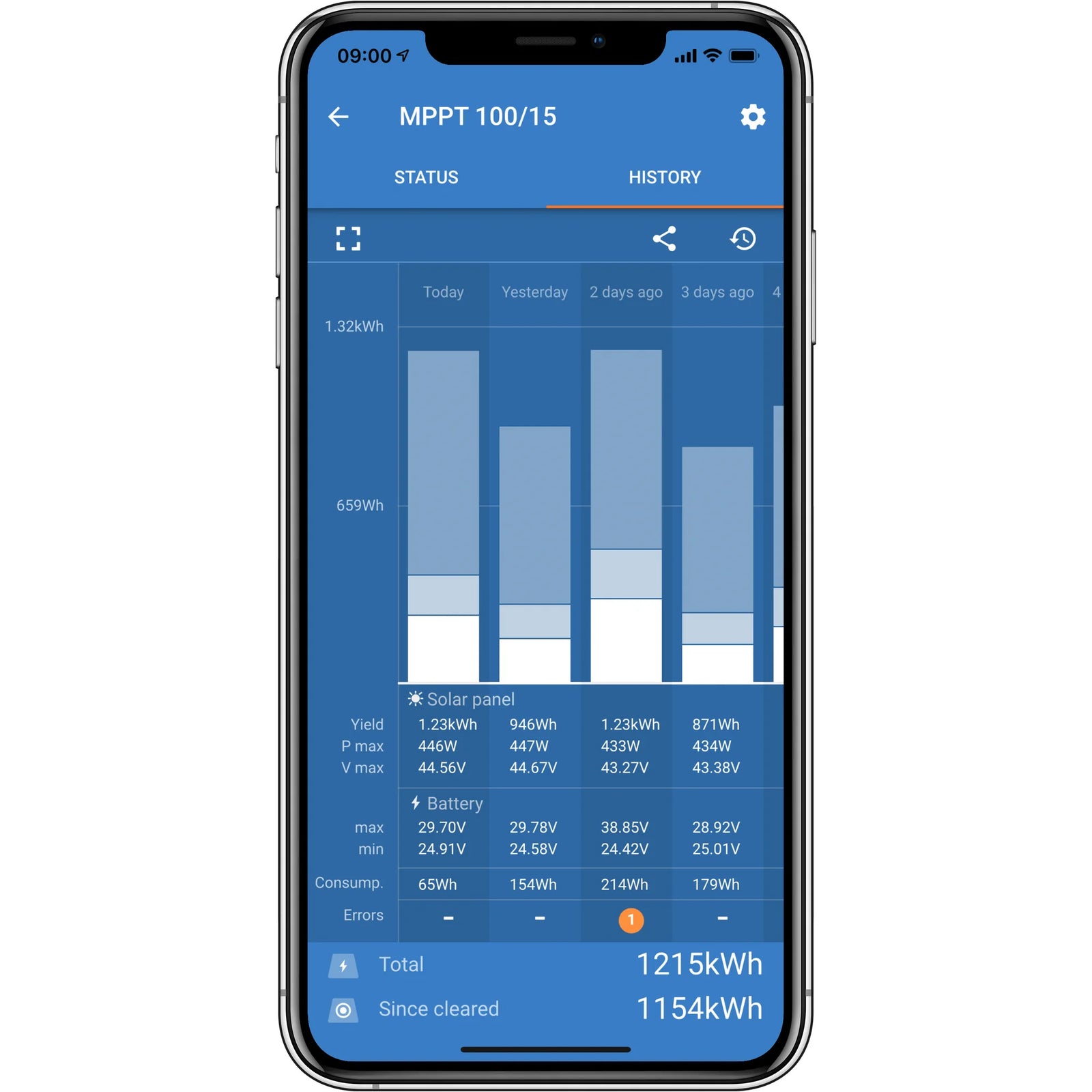

- Bluetooth connectivity for easy monitoring
- Maximum efficiency of 98%
- Supports 12V, 24V, and 48V battery systems
- Compact dimensions: 131mm x 100mm x 60mm
- IP22/IP43 protection for durability
Specifications
| Brand | Victron |
| EAN | 8719076043027 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Load connection terminal type | Screw terminals 6 mm² (10 AWG) |
| PV connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Battery connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Colour | Blue (RAL 5012) |
| Item Width | 131 mm |
| Item Height | 100 mm |
| Item Depth | 60 mm |
| Weight | 0.65 kg |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Safety | UL 1741,CSA C22.2,EN-IEC 62109-1 |
| Data Stored | Battery voltage,Battery current,Battery temperature,Load output Current,PV voltage,PV current |
| Data Retention Period | 46 d |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Nominal PV power at 48 V | 1,160 W |
| Number of trackers | 1 |
| Operating temperature range | [-30, 60] °C |
| Protections | Automatic load disconnect,Output short-circuit,Excessive temperature,PV reverse polarity |
| Rated Charge Current | 20 A |
| Self-consumption - load off | 12V: 10mA / 24 V: 8mA / 48V: 7mA |
| Self-consumption - load on | 12V: 26mA / 24V: 20mA / 48V: 19mA |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Maximum efficiency | 98 % |
| Low Voltage Load Disconnect | 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm |
| Low Voltage Load Reconnect | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm |
| Max Continuous Load Current at 12V | 20 A |
| Max Continuous Load Current at 24V | 20 A |
| Data Communication | Bluetooth,VE.Direct |
| Max Continuous Load Current at 48V | 1 A |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Bluetooth | True |
| Battery voltage | 12V / 24V / 48V (Auto Select) |
| Maximum humidity (non-condensing) | 95 % |
| Maximum PV Open Circuit Voltage | 100 V |
| Maximum PV short circuit current per tracker | 20 A |
| Nominal PV power at 12 V | 290 W |
| Nominal PV power at 24 V | 580 W |
| Manufacturer Part Number (MPN) | SCC110020160R |
