Description

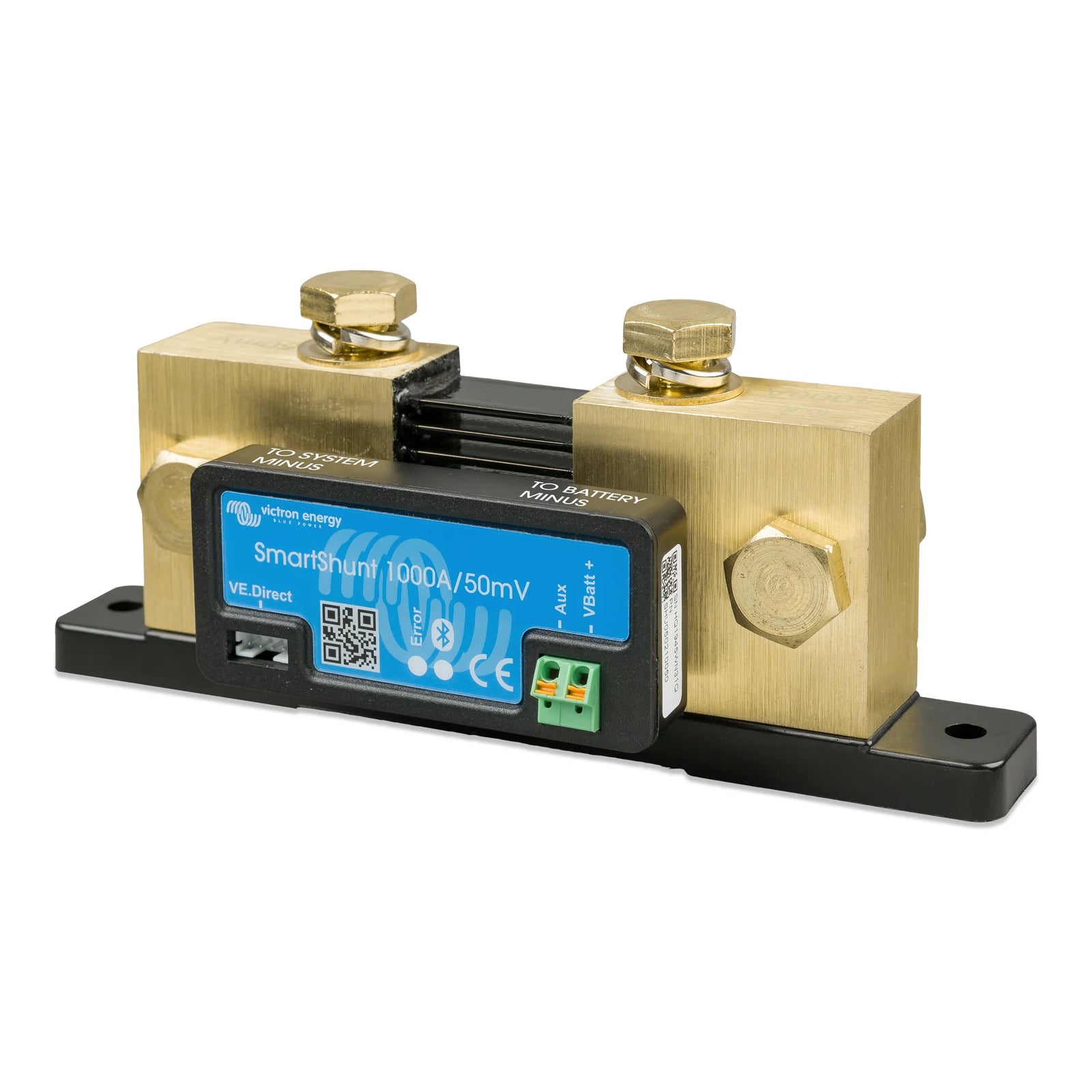

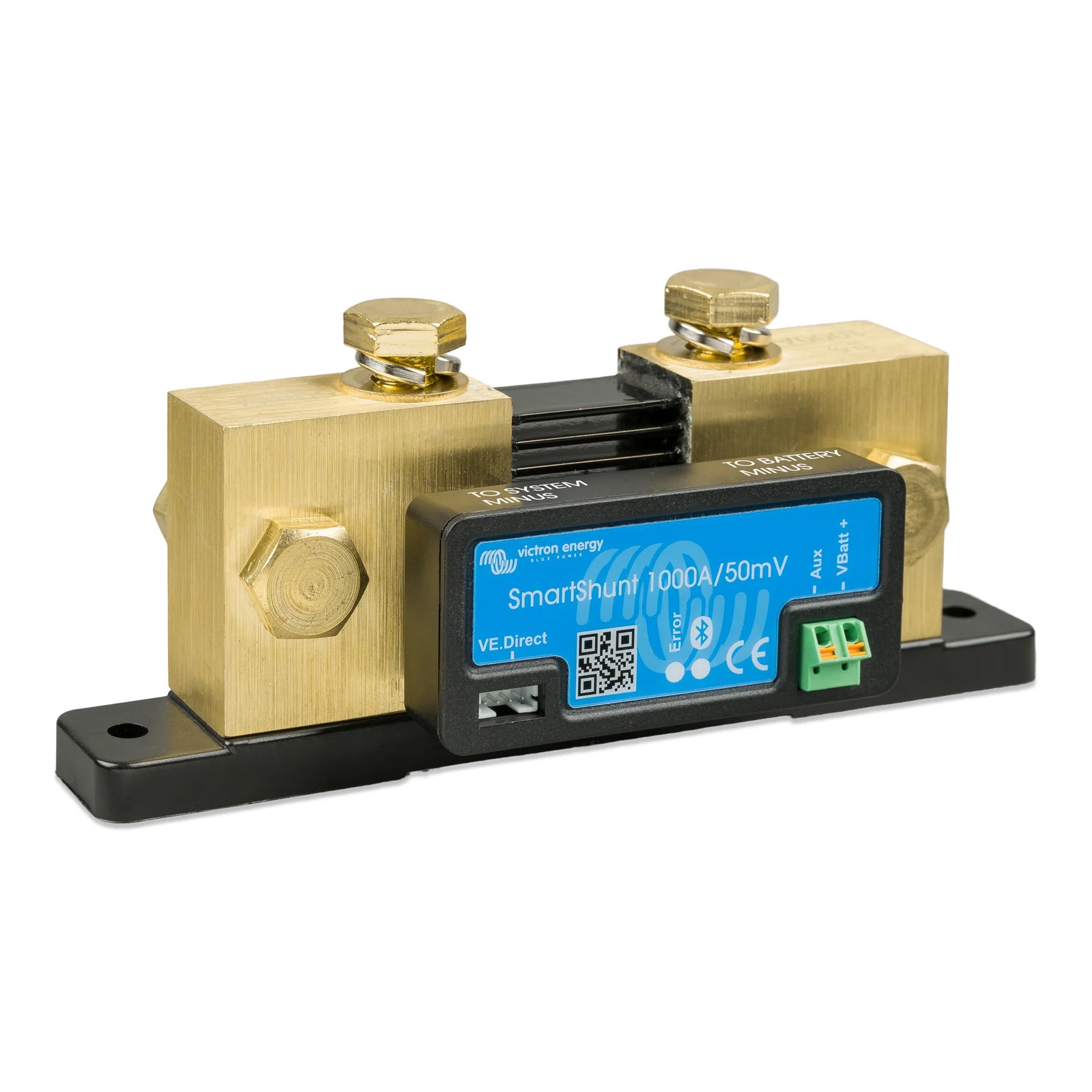

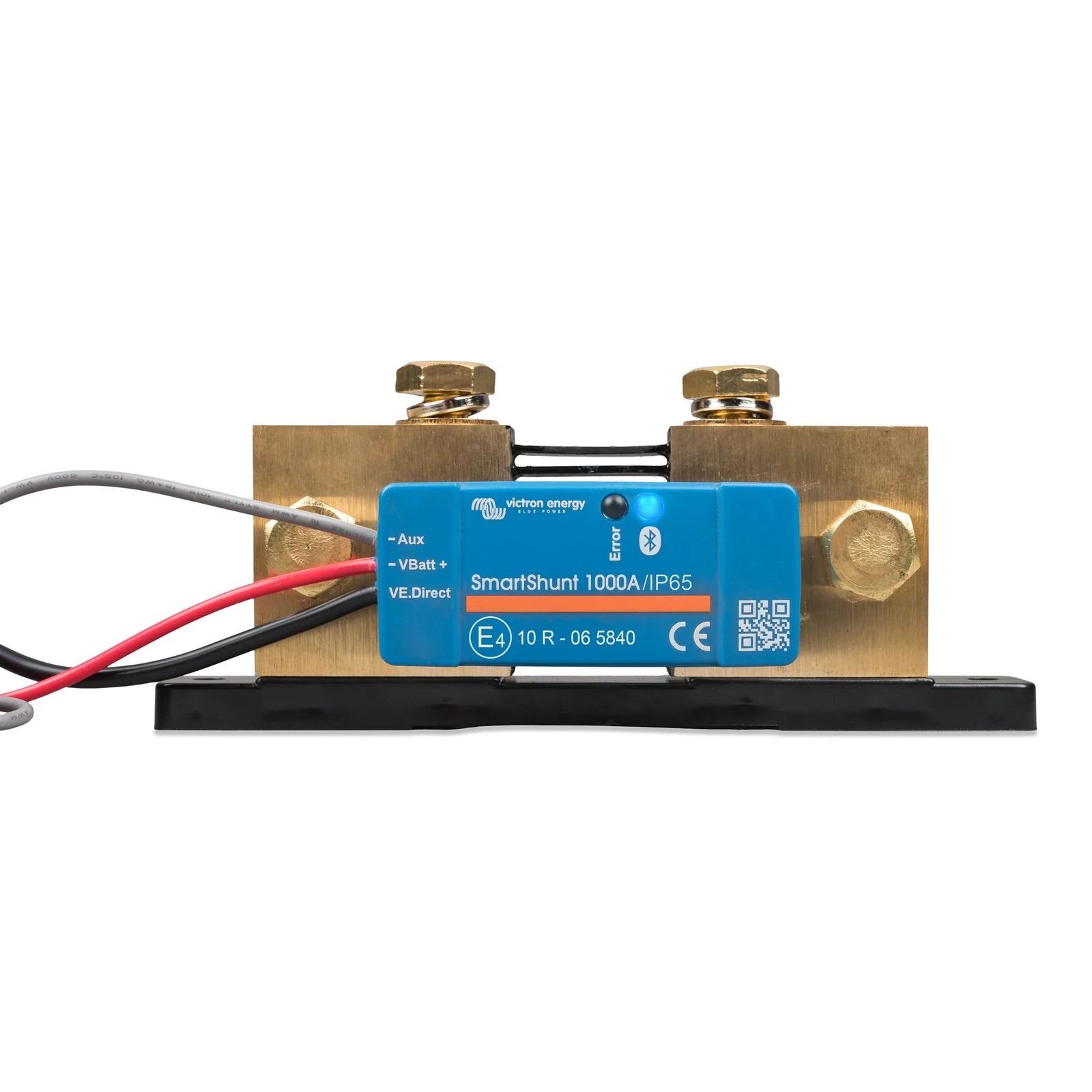

The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt can be connected and be read by a GX device.
Connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

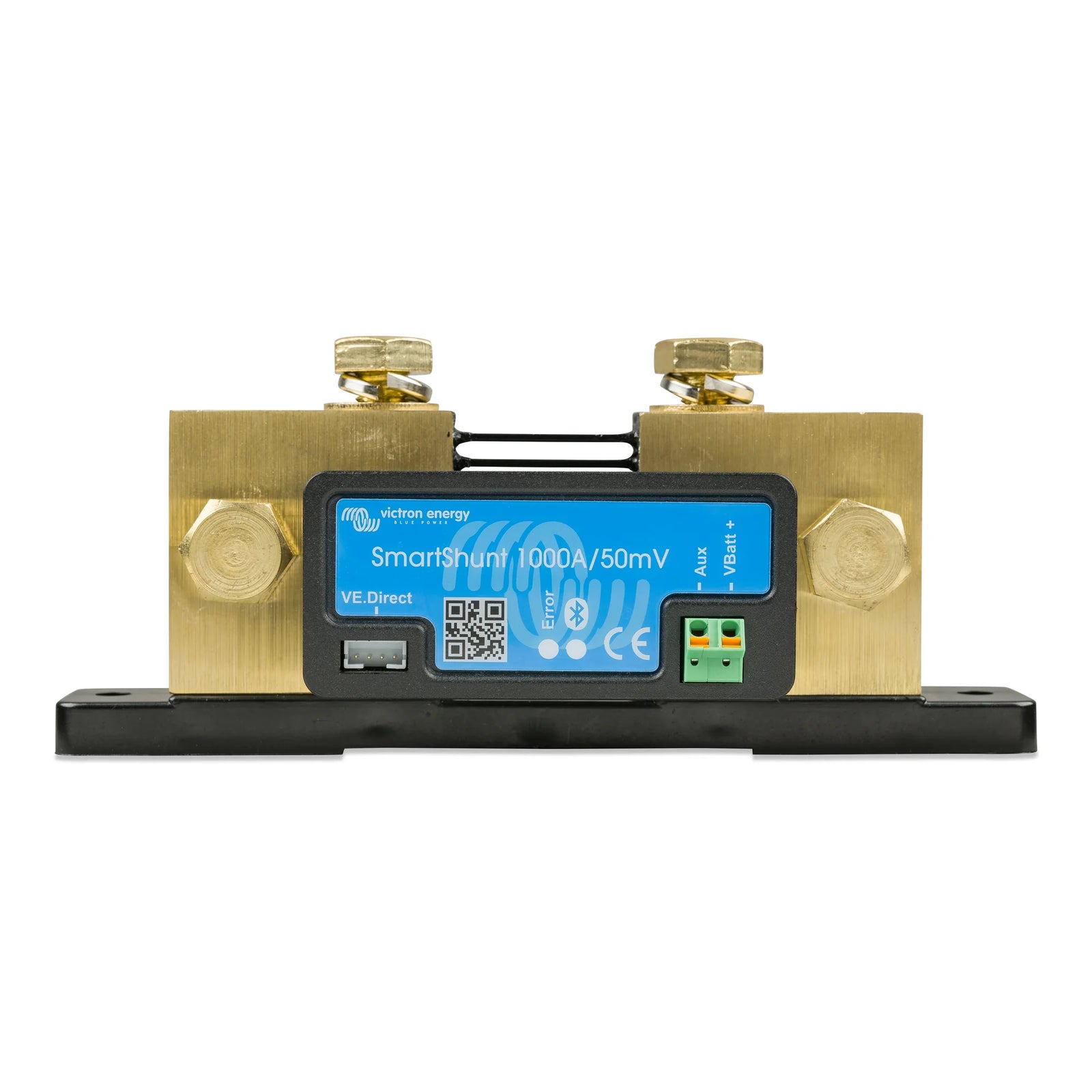

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for monitoring a second battery, midpoint monitoring or a temperature sensor.
Specifications
| Brand | Victron |
| EAN | 8719076065708 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |

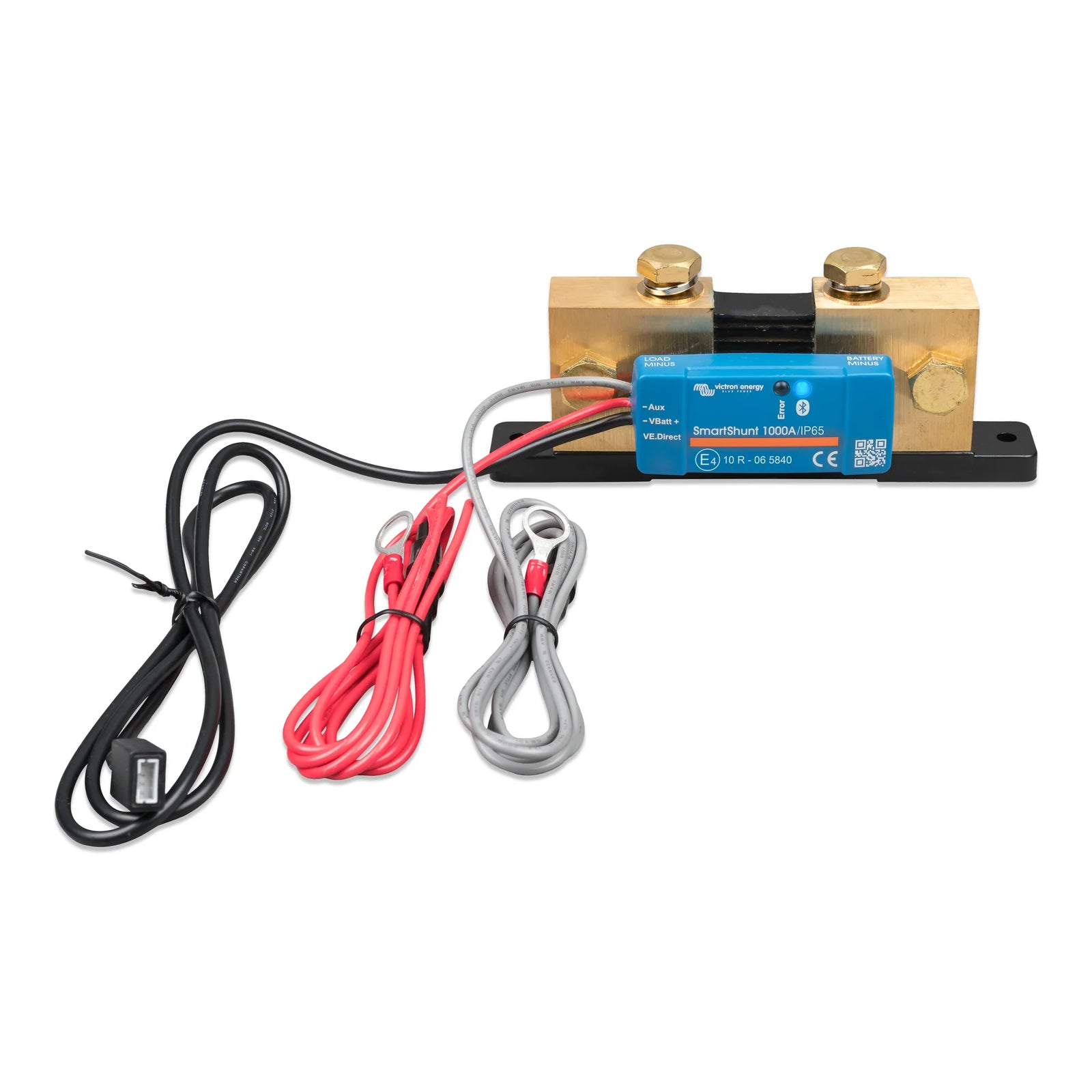

| Positive Cable | 1.5m cable with 1A fuse |

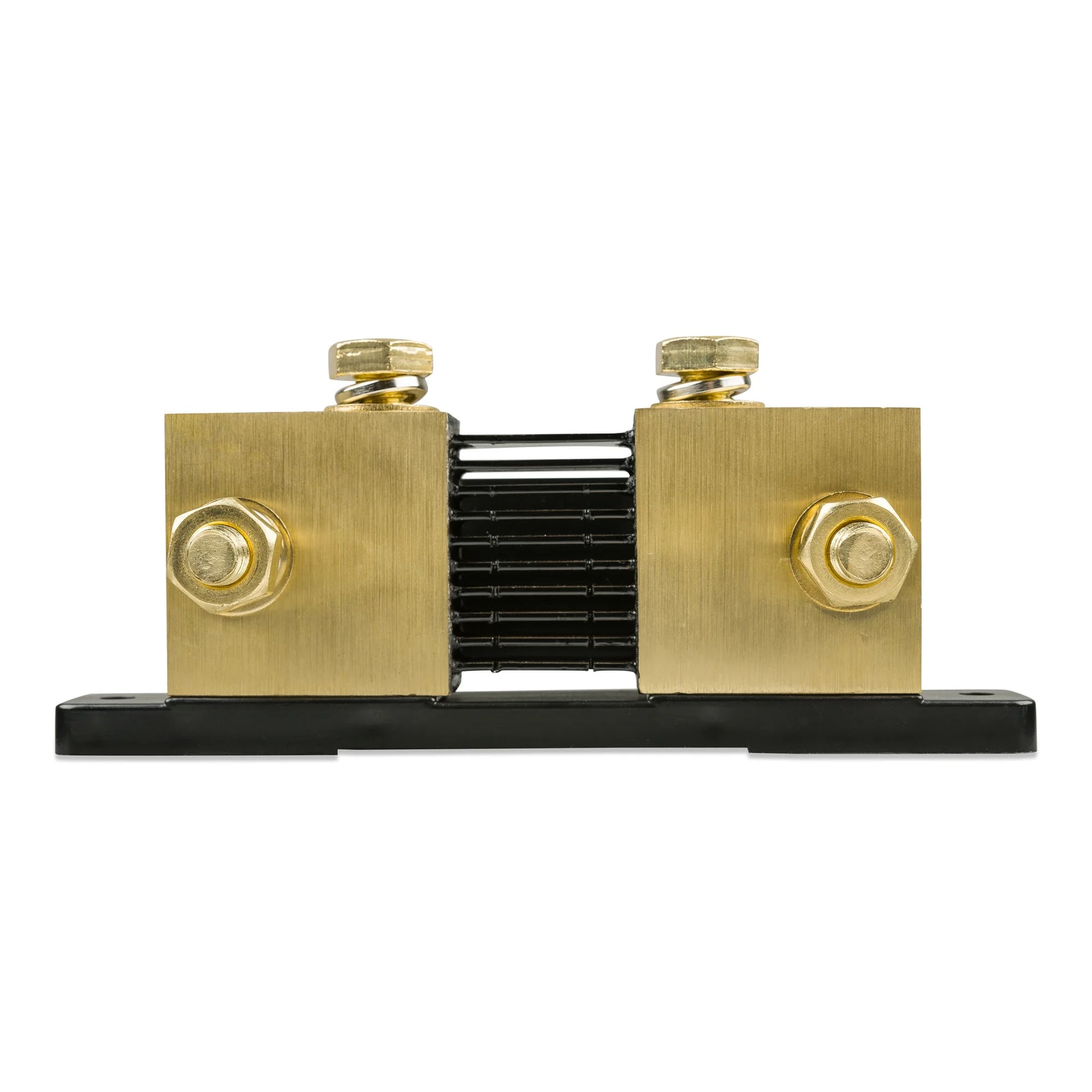

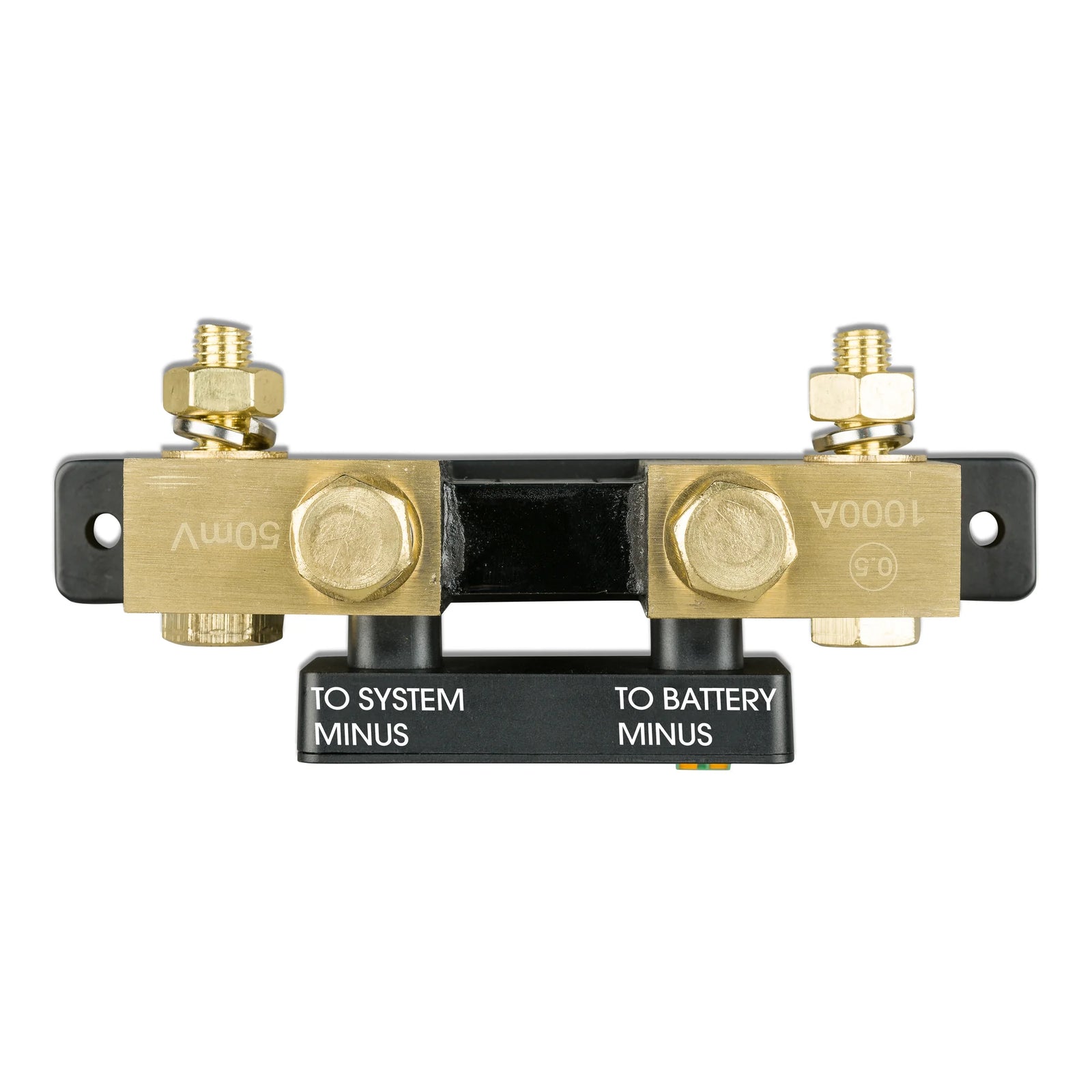

| Shunt connection terminals | M8 bolts |
| Aux Cable | 1.5m cable with 1A fuse |
| Protection category | IP21 |
| Weight | 0.24 kg |
| Item Width | 120 mm |
| Item Height | 44 mm |
| Front diameter | 63 mm |
| Item Depth | 44 mm |
| Body depth | 31 mm |
| Colour | Black |
| Body Diameter | 52 mm |
| Measurement Accuracy | 0.4 % |
| State of charge measurement resolution | 0.1 % |
| Capacity measurement resolution | 0.1 Ah |
| Current measurement accuracy | 0.4 % |
| Current measurement offset | 10 mA |
| Current measurement resolution | 0.01 A |
| Time to go measurement resolution | 1 min |
| Temperature Resolution (in the 0 to 50°C range) | 1 °C |
| Voltage measurement accuracy | 0.3 % |
| Voltage measurement resolution | 0.01 V |
| Automotive Directive | EN 50498 |
| Safety | EN 60335-1 |
| Emission / Immunity | EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Data Stored | Battery voltage,Battery current,Battery temperature,Battery state of charge percentage,Battery midpoint deviation,Starter battery voltage |
| Data Retention Period | 46 d |
| Operating temperature range | [-40, 50] °C |
| Input voltage measurement range auxiliary battery | [6.5, 70] VDC |
| Current rating | 300 A |
| Current draw | 1 mA |
| Communication Port | VE.Direct |
| Bluetooth | True |
| Battery capacity measurement range | [1, 9,999] Ah |
| Aux input for auxiliary battery voltage, midpoint voltage or temperature (optional temeperature sensor needed) | True |
| Supply voltage range | [6.5, 70] VDC |
| Temperature measurement range | [-20, 50] °C |
| Temperature Sensor | Optional (ASS000100000 - Temp. sensor for BMV) |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | SHU050130050 |
