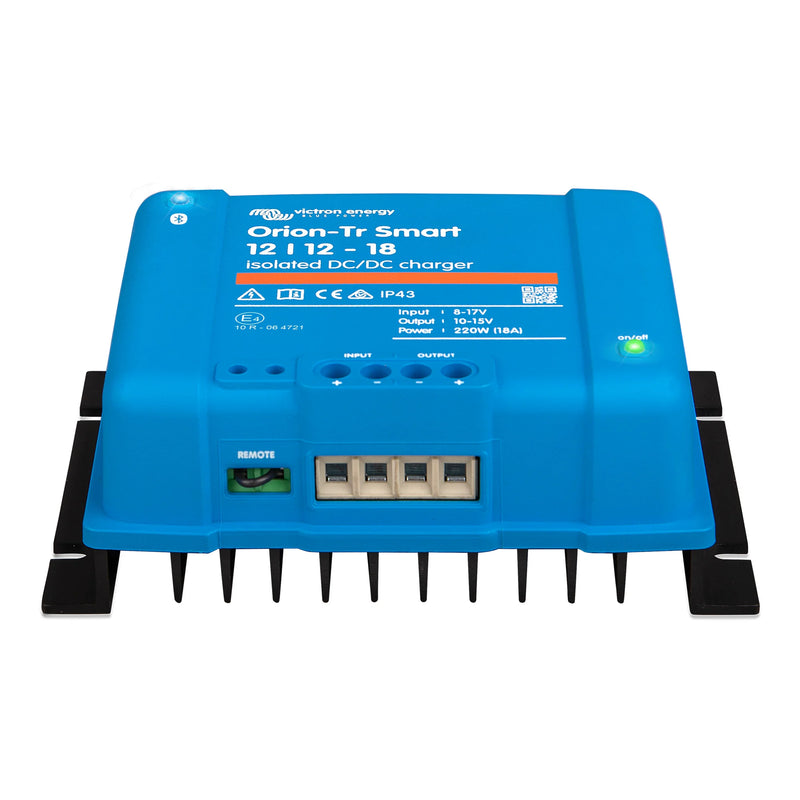

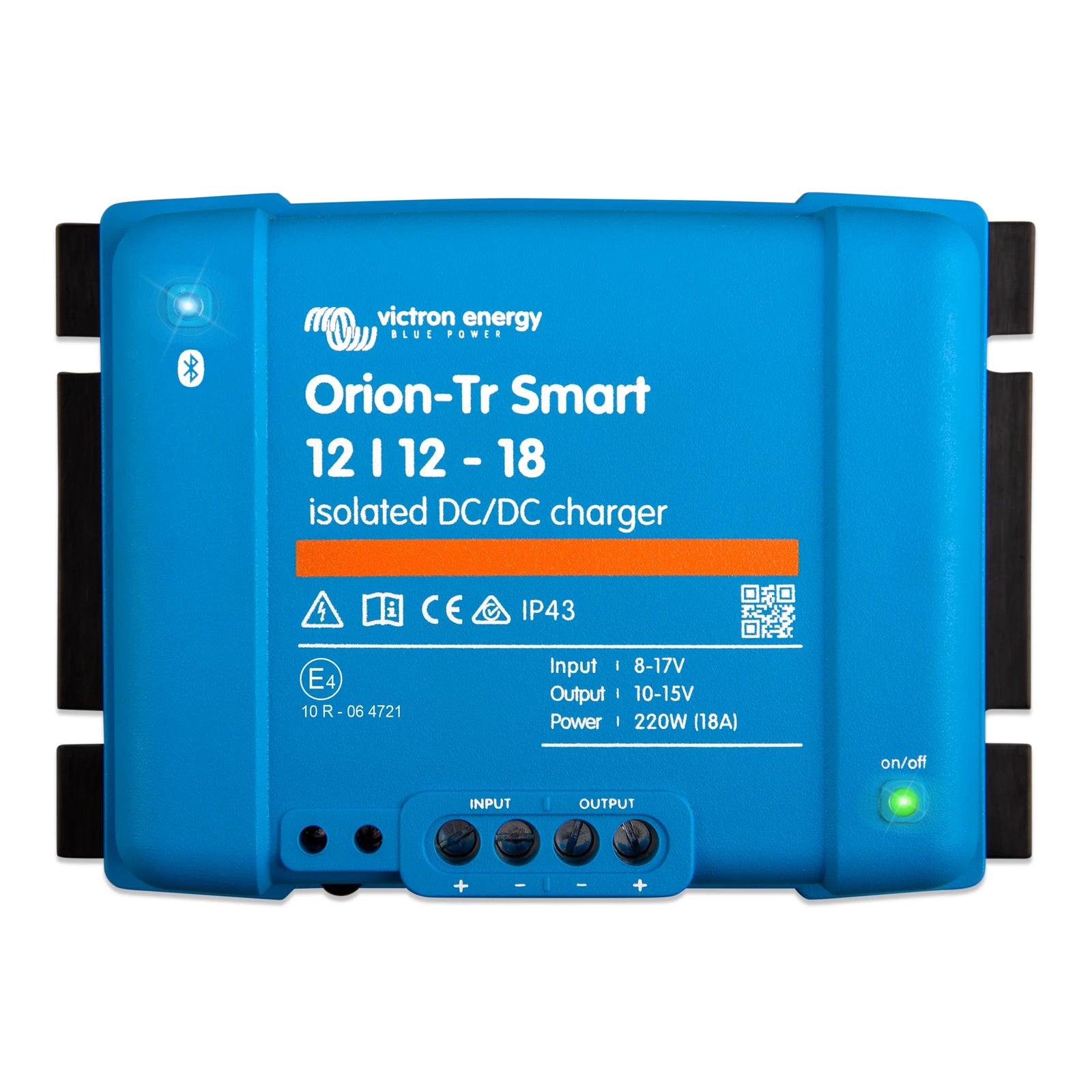

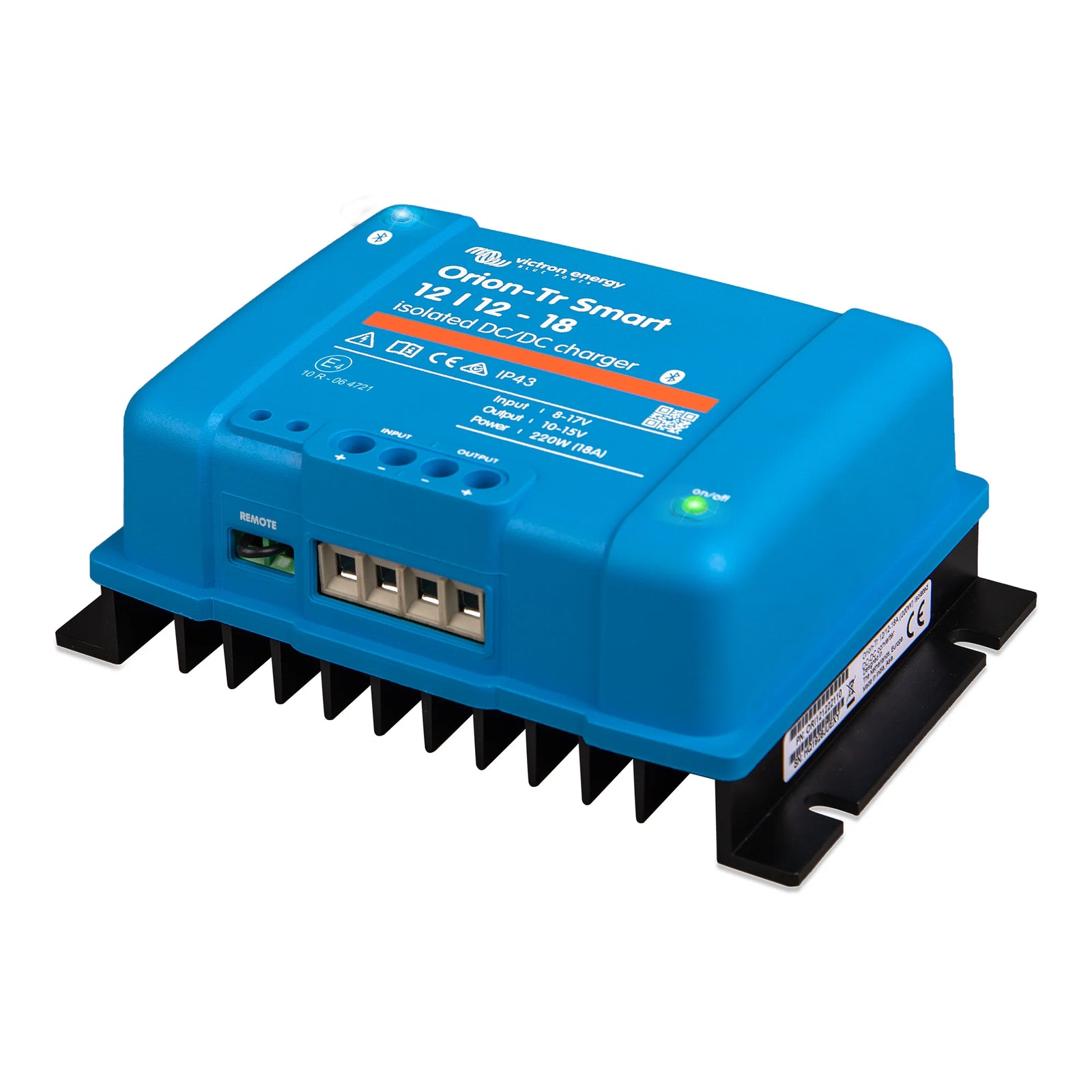

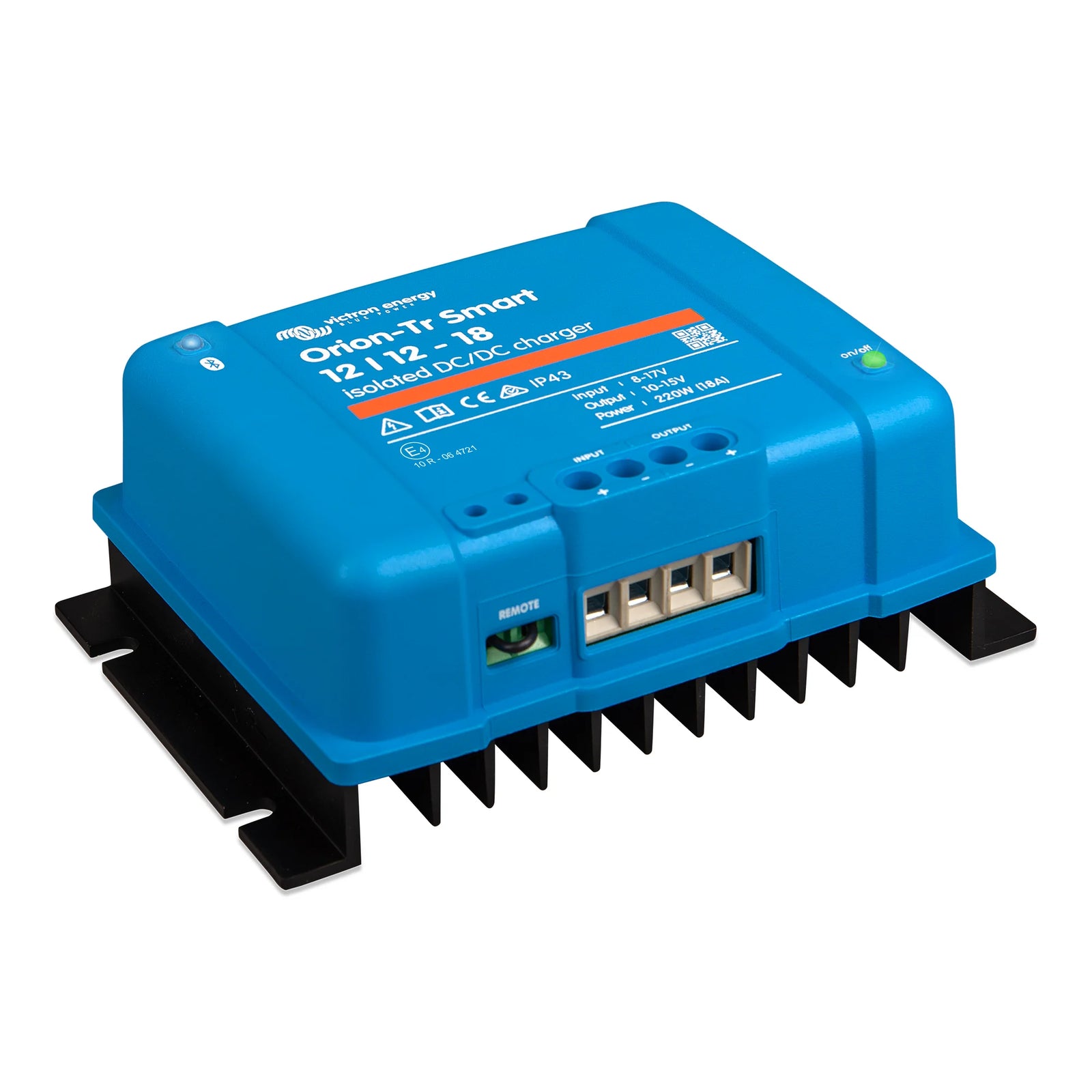

Victron Orion-Tr Smart 12/12-18A Isolated DC-DC Charger
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" comes from its built-in Bluetooth connection, where the charger can be monitored and configured via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
This isolated model allows the input and output to have separate chassis grounds. The Orion-Tr Smart charger can be used in 12V, 24V or 48V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Key Features
- Adaptive 3-stage charging: bulk, absorption, float
- Bluetooth connectivity for monitoring and configuration
- Remote on/off control with engine running detection
- Isolated input and output for separate chassis grounds
- Suitable for 12V, 24V, or 48V systems
- High temperature tolerance up to 55°C
Specifications
| Brand | Victron |
| EAN | 8719076046066 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| Remote On Off Terminal Connection | Screw terminal two pole |
| DC connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Item Height | 130 mm |
| Item Depth | 70 mm |
| Colour | Blue (RAL 5012) |
| Item Width | 186 mm |
| Weight | 1.3 kg |
| Automotive directive | ECE R10-5 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Safety | EN 60950 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Maximum humidity (non-condensing) | 95 % |
| Output Voltage Tolerance | 200 mVrms |
| Output voltage range | [10, 15] V |
| Output Voltage Noise | 2 mVrms |
| Output voltage | 12.2 V |
| Output derating above 40°C per °C | 3 % |
| Operating temperature rang | [-20, 55] °C |
| No-load current consumption | 80 mA |
| Maximum continuous short-circuit current | 40 A |
| Maximum output current | 25 A |
| Parallelable | True |
| Maximum efficiency | 87 % |
| Isolation | 200 VDC |
| Input voltage range | [8, 17] V |
| Galvanic isolation | True |
| Continuous output current rating up to 40°C | 18 A |
| Continuous output power at 40°C | 220 W |
| Continuous output power at 25°C | 280 W |
| Bluetooth | True |
| VictronConnect app | True |
| Under voltage shutdown | 7 V |
| Under voltage restart | 7.5 V |
| Standby current Consumption | 1 mA |
| Remote on/off terminal | True |
| Programable | True |
| Can be used as power supply | True |
| Manufacturer Part Number (MPN) | ORI121222120 |
