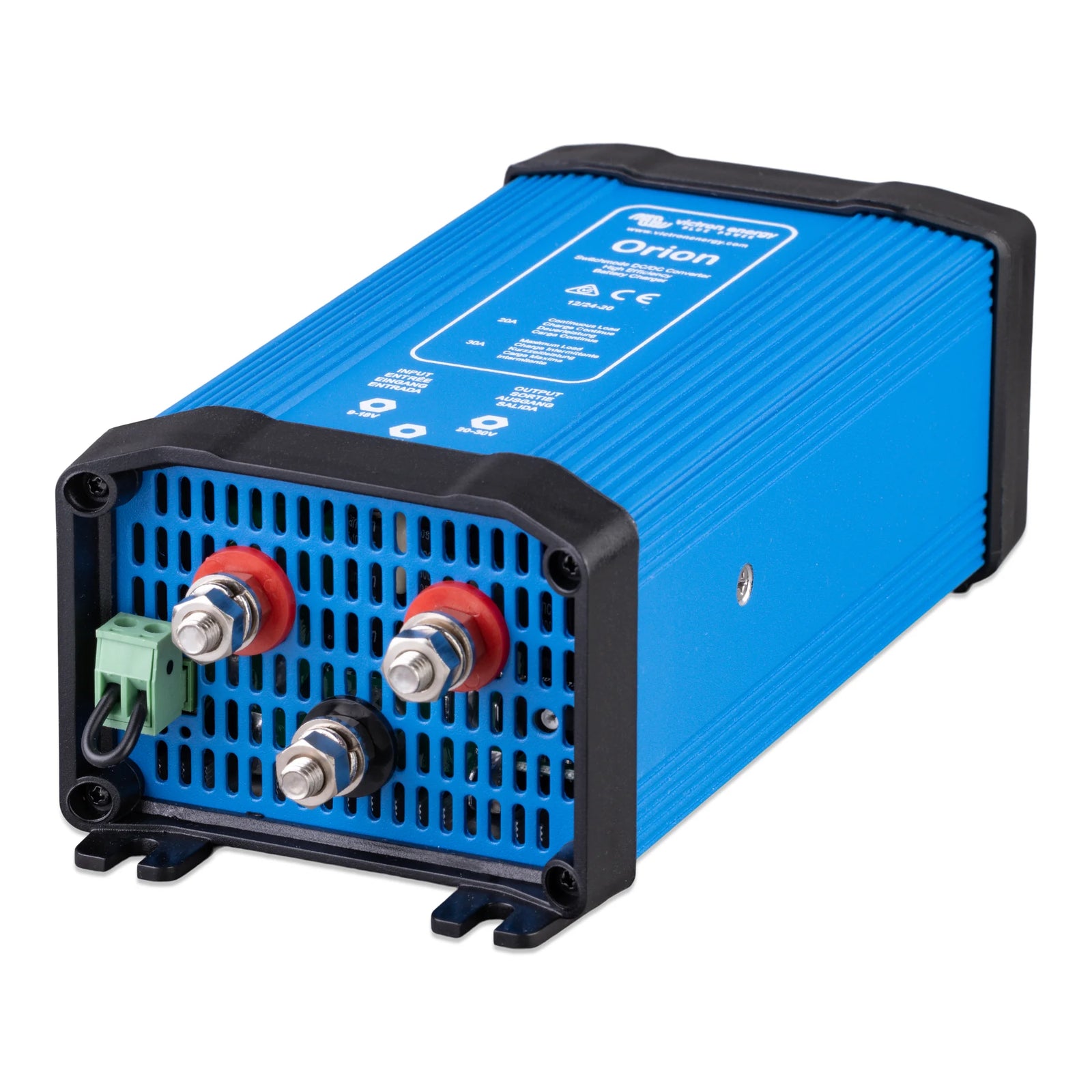

Victron Orion 24/12-80 DC-DC Converter 80A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron Orion 24/12-80 DC-DC converter is designed to provide a reliable power source for your devices. It eliminates the need for a high current switch in the input wiring with its remote on/off connector, making it a convenient choice for various applications.
With a continuous output current of 80 A, this converter is capable of handling significant loads. It features a robust aluminium construction and is protected to IP20 standards, ensuring durability in various environments.
Key specifications include an input voltage range of 18 to 35 V, an output voltage range of 10 to 15 V, and a maximum efficiency of 92%. The converter also includes fan-assisted cooling and is parallelable for increased capacity.
Key Features
- Continuous output current: 80 A
- Input voltage range: 18-35 V
- Output voltage range: 10-15 V
- Maximum efficiency: 92%
- Remote on/off terminal for convenient operation
- Fan-assisted cooling for optimal performance
Specifications
| Brand | Victron |
| EAN | 8719076069614 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| DC connection terminal type | M6 bolts |
| Remote On Off Terminal Connection | Removable multi-connector with screw terminals |
| Weight | 0.9 kg |
| Colour | Blue (RAL 5012) |
| Item Depth | 195 mm |
| Item Height | 65 mm |
| Material | Aluminium |
| Protection Category | IP20 |
| Item Width | 88 mm |
| Emission | EN-IEC 61000-6-3,EN 55014-1 |
| Safety | EN 60950 |
| Immunity | EN-IEC 61000-6-2,EN-IEC 61000-6-1,EN 55014-2 |
| Suitable to buffer-charge a battery | True |
| Fan assisted cooling | True |
| Continuous output current | 80 A |
| Input voltage range | [18, 35] V |
| Maximum efficiency | 92 % |
| Off load current | 20 mA |
| Operating temperature rang | [-20, 55] °C |
| Output derating above 40°C per °C | 3 % |
| Output voltage range | [10, 15] V |
| Parallelable | True |
| Remote on/off terminal | True |
| Under voltage restart | 18 V |
| Under voltage shutdown | 14 V |
| Application | Electrical |
| Manufacturer Part Number (MPN) | ORI241280020 |
