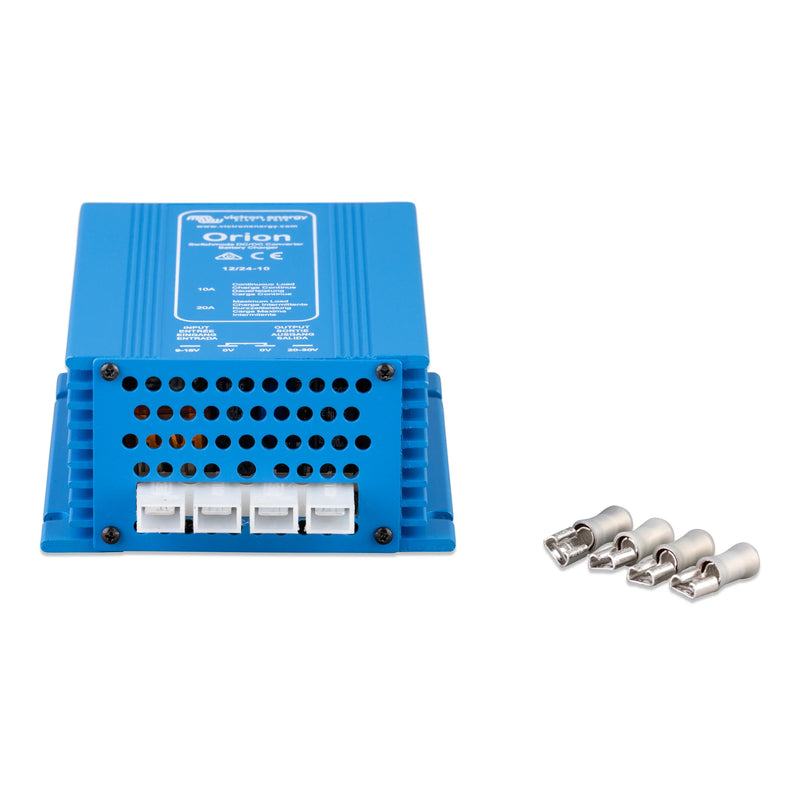

Victron Orion 12/24-20 DC-DC Converter 20A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron Orion 12/24-20 DC-DC Converter is designed to provide a reliable power solution for your DC systems. This model features a remote on/off connector, eliminating the need for a high current switch in the input wiring.
With a maximum output current of 20A at 40°C, it operates efficiently within an input voltage range of 9 to 18V and an output voltage of 26.4V. The unit is built from durable aluminium and is designed to withstand a wide operating temperature range of -20 to 50°C.
Additional features include fan-assisted cooling, under voltage shutdown, and the ability to buffer-charge a battery, making it an ideal choice for various applications.
Key Features
- Input voltage range: 9-18V
- Output voltage: 26.4V
- Continuous output current: 20A at 40°C
- Remote on/off terminal for easy control
- High efficiency of up to 93%
- Durable aluminium construction
Specifications
| Brand | Victron |
| EAN | 8719076022763 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Remote On Off Terminal Connection | Screw terminal two pole |
| DC connection terminal type | M6 bolts |
| Item Depth | 195 mm |
| Item Height | 65 mm |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Item Width | 88 mm |
| Weight | 0.9 kg |
| Automotive directive | ECE R10-4 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | EN 60950 |
| No-load current consumption | 30 mA |
| Maximum efficiency | 93 |
| Input voltage range | [9, 18] V |
| Fan assisted cooling | True |
| Under voltage shutdown | 8 V |
| Under voltage restart | 10 V |
| Remote on/off terminal | True |
| Parallelable | True |
| Output voltage range | [20, 30] V |
| Output voltage | 26.4 V |
| Operating temperature rang | [-20, 50] °C |
| Continuous output current rating up to 40°C | 20 A |
| Suitable to buffer-charge a battery | True |
| Application | Electrical |
| Manufacturer Part Number (MPN) | ORI122420020 |
