Description

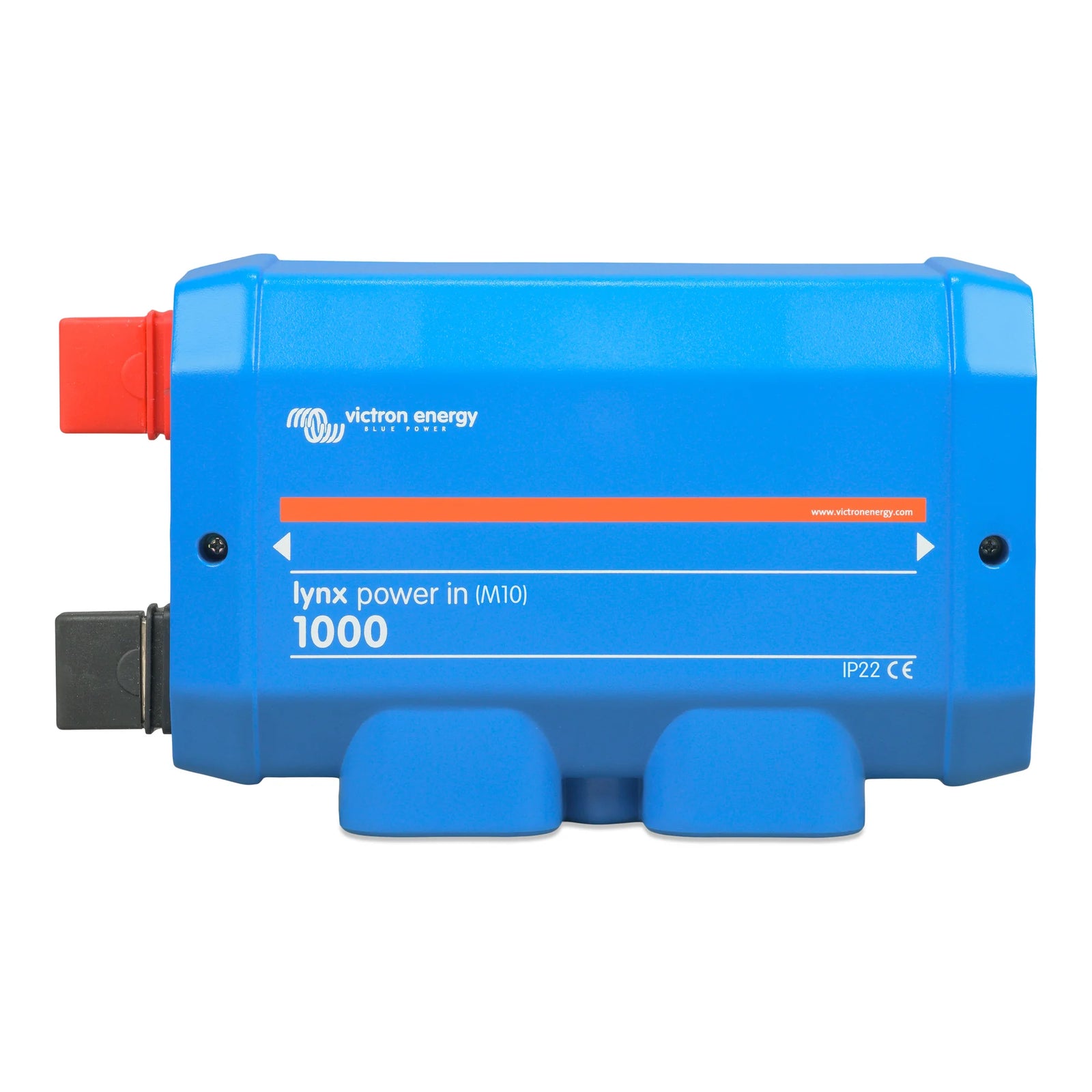

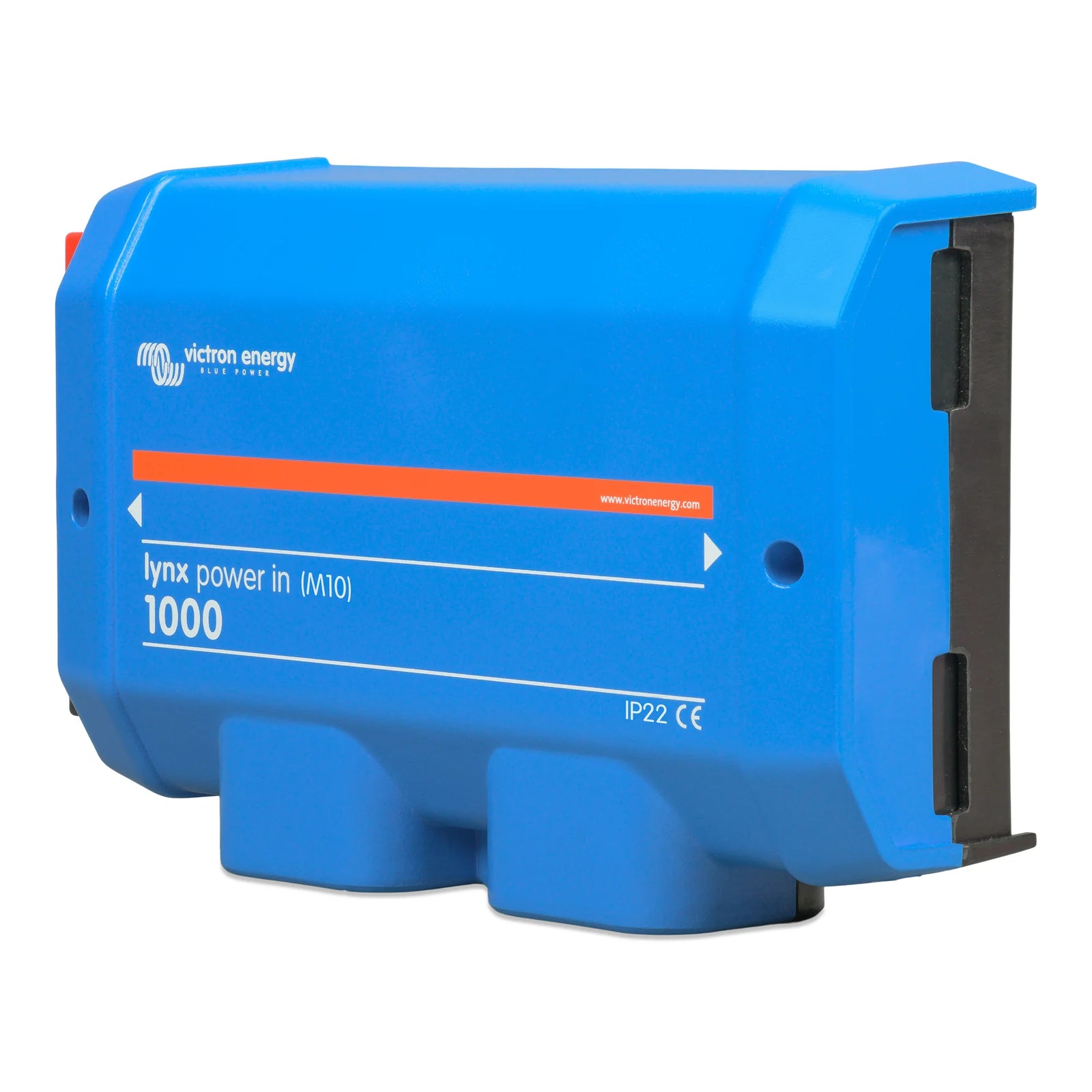

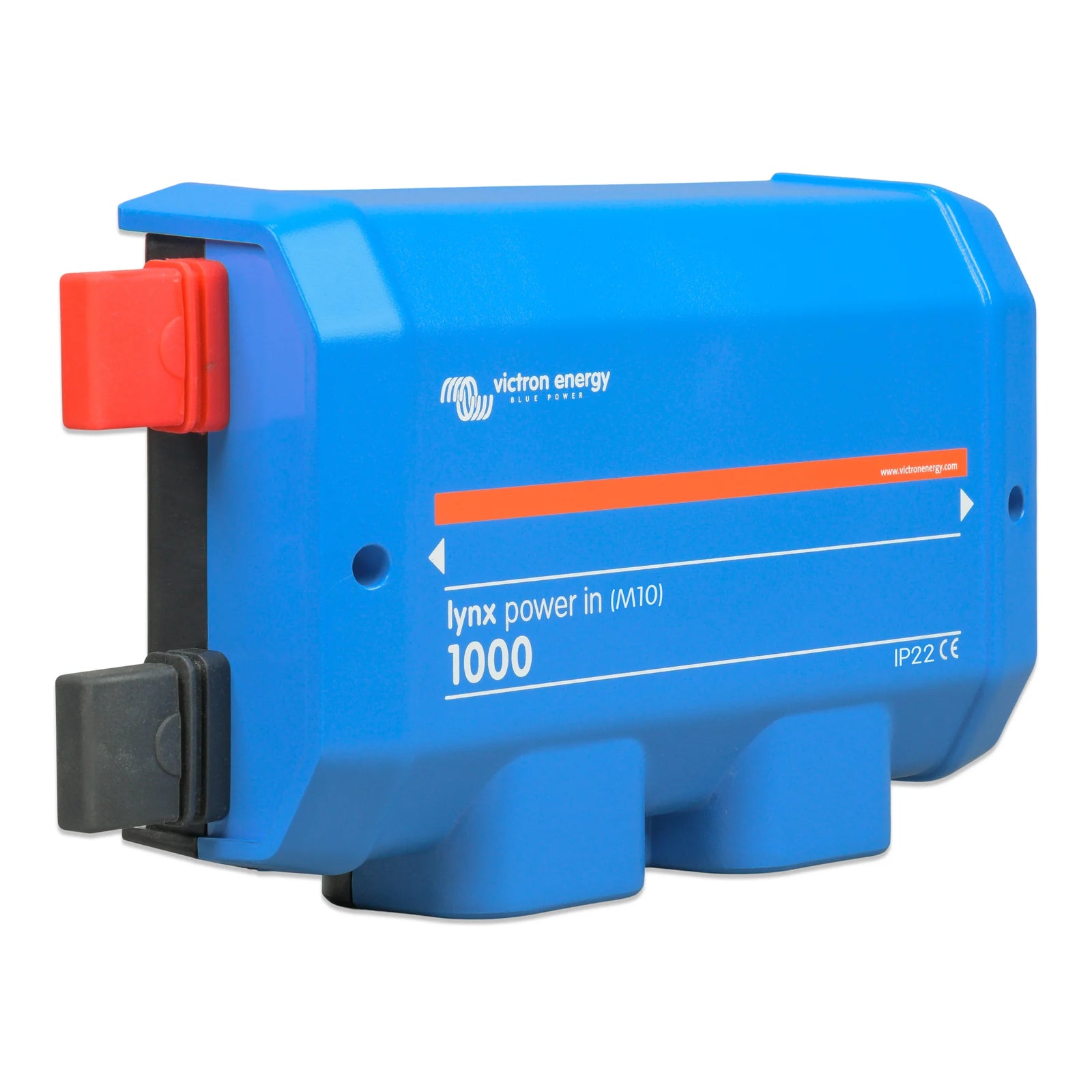

Connect batteries to the Lynx DC distribution system with the Lynx Power In, a modular DC busbar. This product is designed to facilitate efficient battery connections and ensure reliable performance.
Specifications include busbar connections of M10, a width of 290 mm, and a weight of 2.1 kg. The protection category is IP22, ensuring durability in various conditions.
The Lynx Power In is constructed from ABS material, with dimensions of 170 mm in height and 80 mm in depth. It features a striking blue colour (RAL 5012) and operates within a DC voltage range of 9 to 60 V.

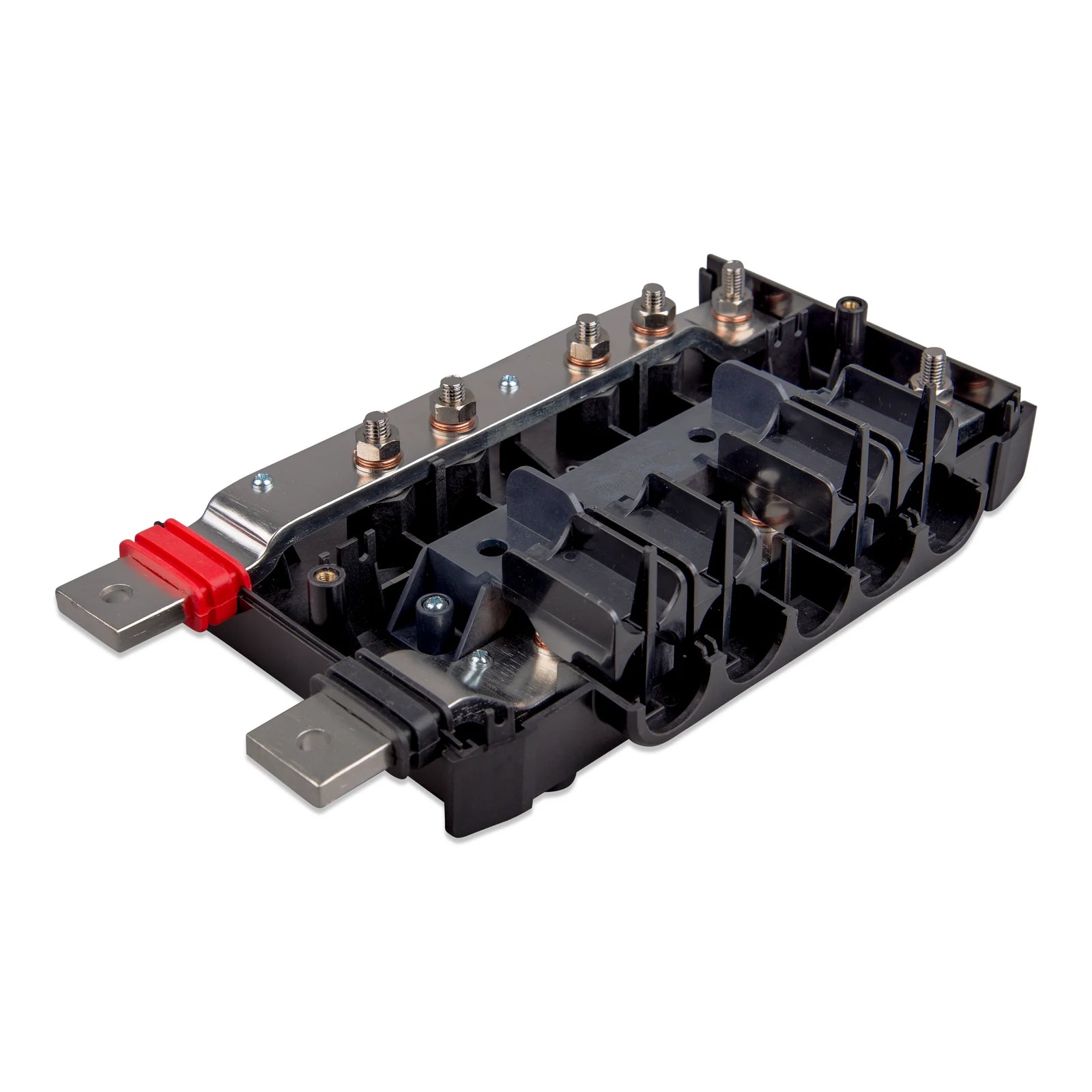

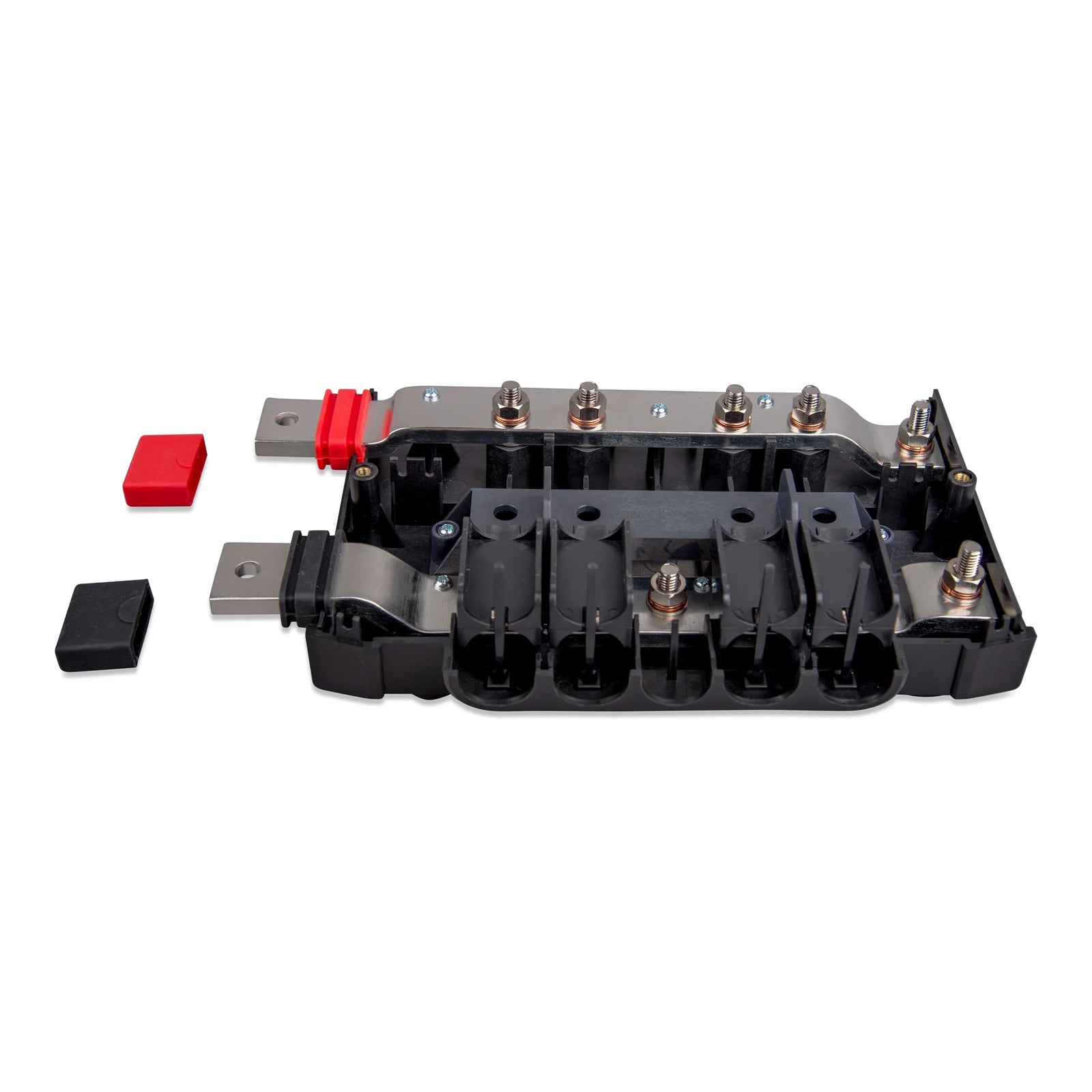

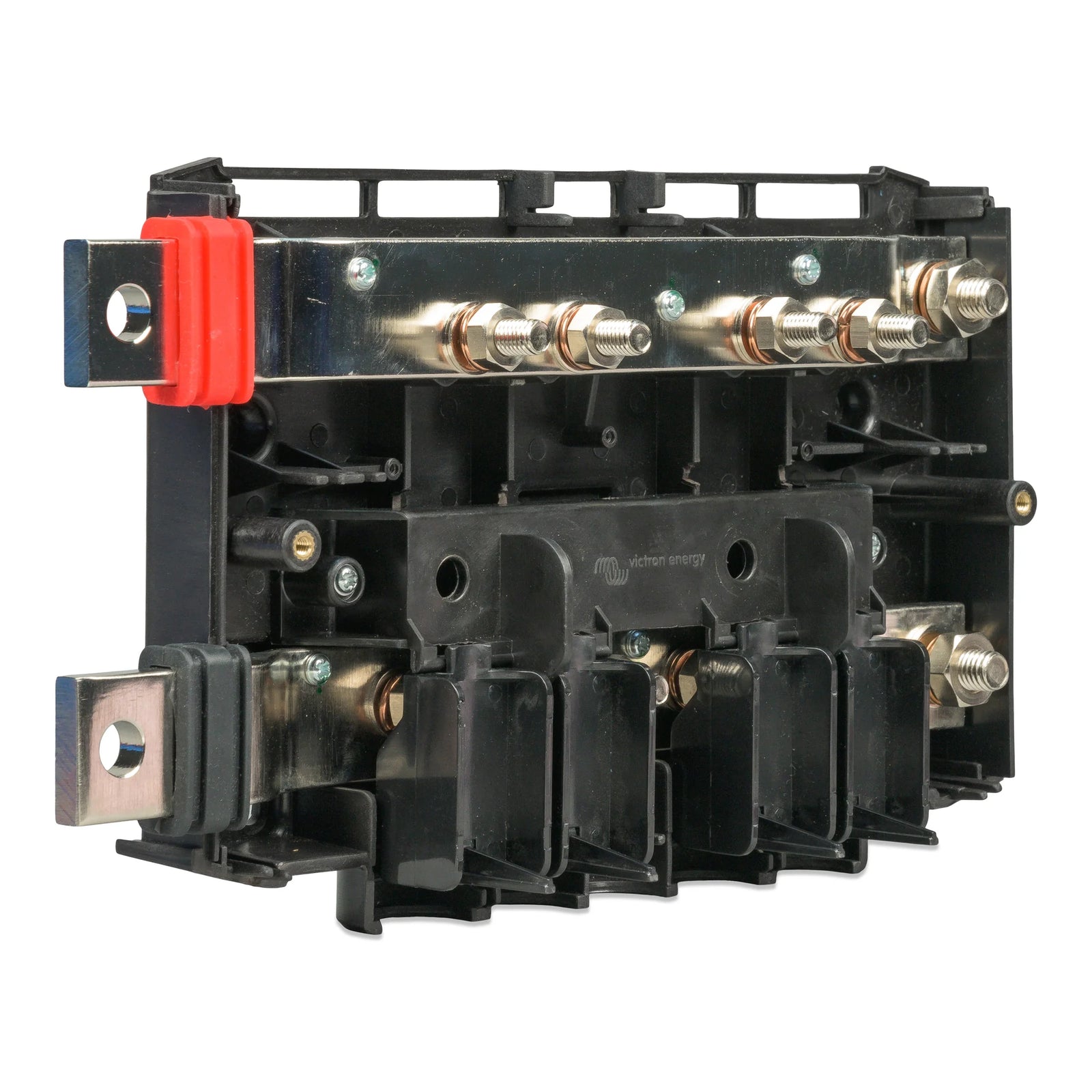

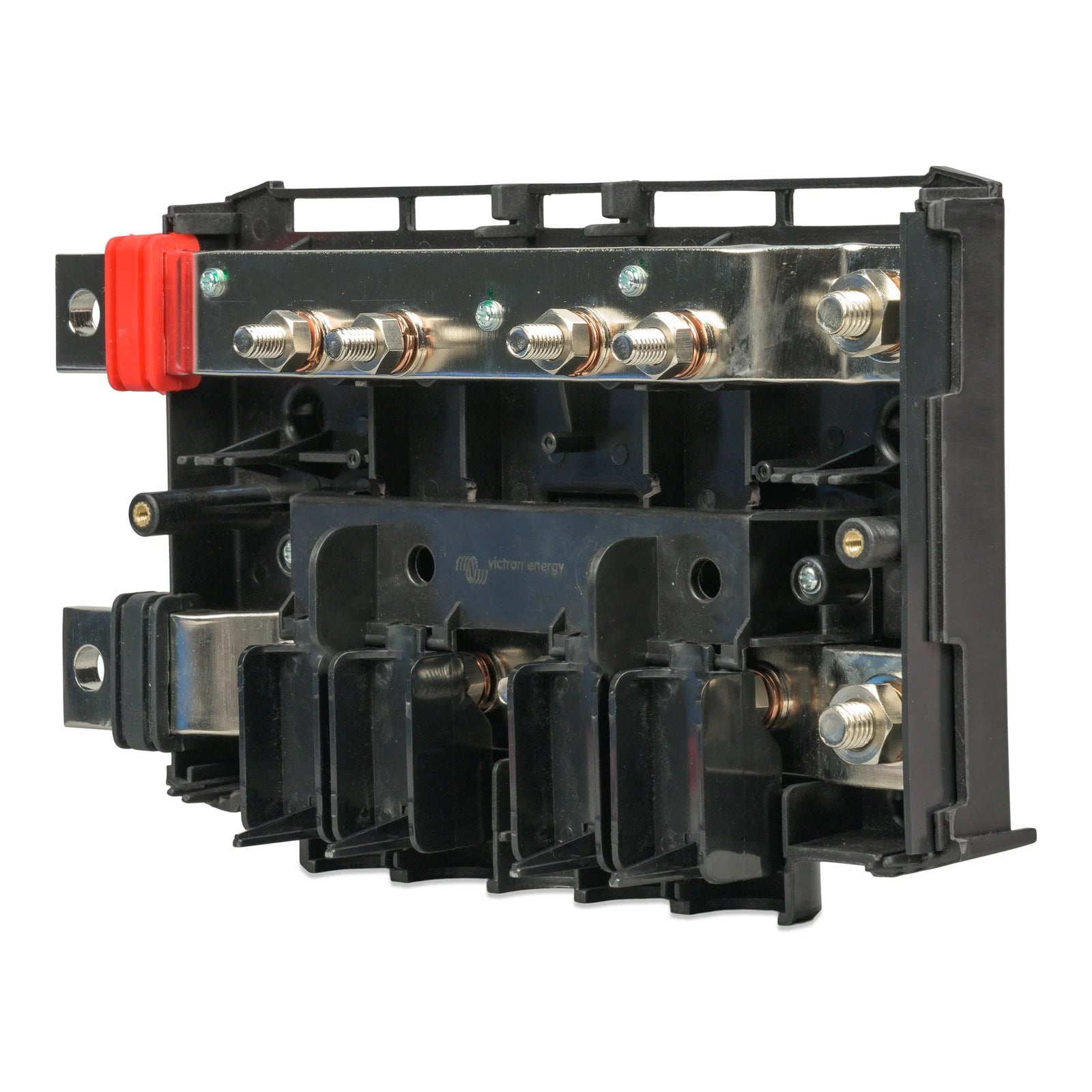

It can withstand storage and operating temperatures ranging from -40 to 60 °C and has a maximum humidity tolerance of 95% (non-condensing). The continuous current rating is 1,000 A, and the busbar material is made of tinned copper with dimensions of 8mm x 30mm.
Key Features
- Modular DC busbar for easy battery connections
- Current rating of 1,000 A for robust performance
- IP22 protection for reliable use in various environments
- Constructed from durable ABS material
- Compact dimensions: 290 mm width, 170 mm height, 80 mm depth
- Operates in a wide voltage range of 9 to 60 V
Specifications
| Brand | Victron |
| EAN | 8719076057581 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Busbar connections | M10 |
| Item Width | 290 mm |
| Weight | 2.1 kg |
| Protection category | IP22 |
| Material | ABS |
| Item Height | 170 mm |
| Item Depth | 80 mm |
| Colour | Blue (RAL 5012) |
| Operational DC voltage range | [9, 60] V |
| Storage temperature range | [-40, 60] °C |
| Operating temperature range | [-40, 60] °C |
| Maximum humidity (non-condensing) | 95 % |
| Current rating (continuous) | 1,000 A |
| Busbar material | Tinned copper |
| Busbar Dimensions | 8mm x 30mm |
| Thread Size | M10 |
| Manufacturer Part Number (MPN) | LYN020102010 |
