Description
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
This Victron Inverter 24/250 is designed for efficiency and reliability, featuring a continuous inverter AC output power of 200 W and a peak power rating of 400 W. It operates within a DC input voltage range of [18.4, 34] V and is fully programmable for various applications.

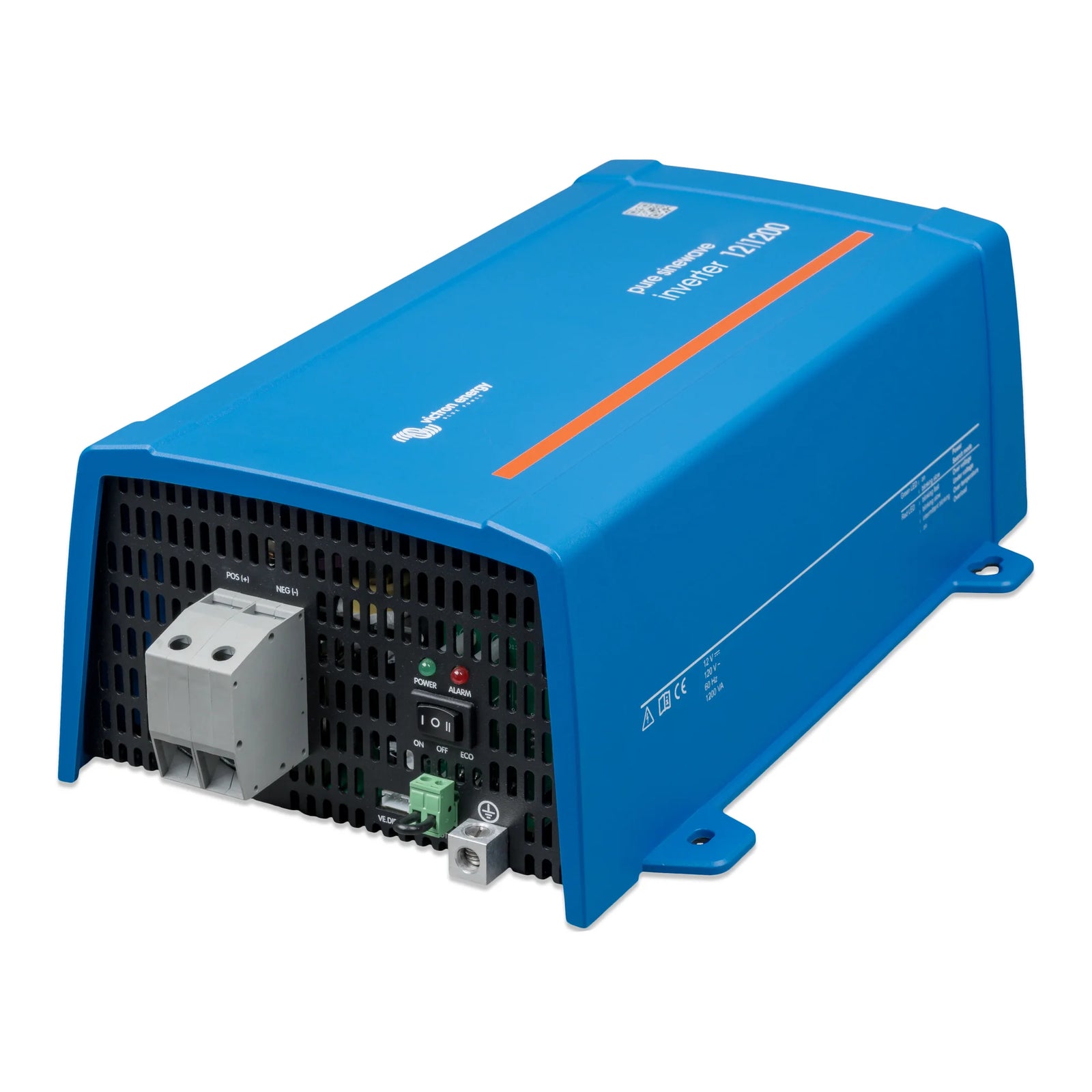

The inverter is housed in a robust steel chassis with a plastic cover, ensuring durability. It has a compact design with dimensions of 86 mm in height, 165 mm in width, and 260 mm in depth, making it suitable for various installations.
Safety features include protections against excessive DC ripple, high battery voltage, low battery voltage, output short-circuit, over temperature, overcurrent, and overvoltage. Additionally, it has an IP21 protection category and operates efficiently in temperatures ranging from -40 to 65 °C.
Key Features
- Continuous power output of 200 W and peak power of 400 W
- Compact dimensions: 86 mm (H) x 165 mm (W) x 260 mm (D)
- Fully programmable with adjustable settings for low shutdown and ECO mode
- Safety features including multiple protections for reliable operation
- Communication port for VE.Direct connectivity
Specifications
| Brand | Victron |
| EAN | 8719076055952 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Remote Terminal | Screw terminal two pole |
| AC outlet socket | UK (BS 1363) |
| Battery connection terminal type | Screw terminals 10 mm² (8 AWG) |
| Item Height | 86 mm |
| Weight | 2.4 kg |
| Protection Category | IP21 |
| Material | Steel chassis and plastic cover |
| Item Width | 165 mm |
| Item Depth | 260 mm |
| Colour | Blue (RAL 5012) |
| EMC | EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Automotive directive | ECE R10-4 |
| Safety | EN-IEC 60335-1,EN-IEC 62109-1 |
| DC low shut down (adjustable) | 18.6 V |
| Dynamic (load dependent) low DC shutdown (configurable) | True |
| Continuous power at 25°C (Nonlinear load, crest factor 3:1) | 250 VA |
| Continuous inverter AC output power at 25°C | 200 W |
| DC input voltage range | [18.4, 34] V |
| Continuous power at 40°C | 175 W |
| DC low restart and alarm (adjustable) | 21.8 V |
| Power deration above 40°C | 1.25 % |
| Eco mode stop and start power setting | Adjustable |
| Frequency ±0.1% (adjustable) | 50 Hz |
| Fully programable | True |
| Maximum efficiency | 88 % |
| Maximum humidity (non-condensing) | 95 % |
| Operating temperature range (fan assisted cooling) | [-40, 65] °C |
| Peak power rating | 400 W |
| ECO mode retry interval (adjustable) | 2.5 s |
| Protections | Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overcurrent,Overvoltage |
| Remote on/off terminal | True |
| Zero-load power | 5.2 W |
| Zero Load Power in ECO Mode (adjustable) | 1.3 W |
| Batery voltage nominal | 24 V |
| Battery charged detection voltage (adjustable) | 28 V |
| AC output voltage ±3% (adjustable) | 230 V |
| Communication Port | VE.Direct |
| Voltage | 230V |
| Power Source | Mains |
| Application | Automotive |
| Manufacturer Part Number (MPN) | PIN241251400 |
