Victron EV Charging Station NS 22kW AC
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

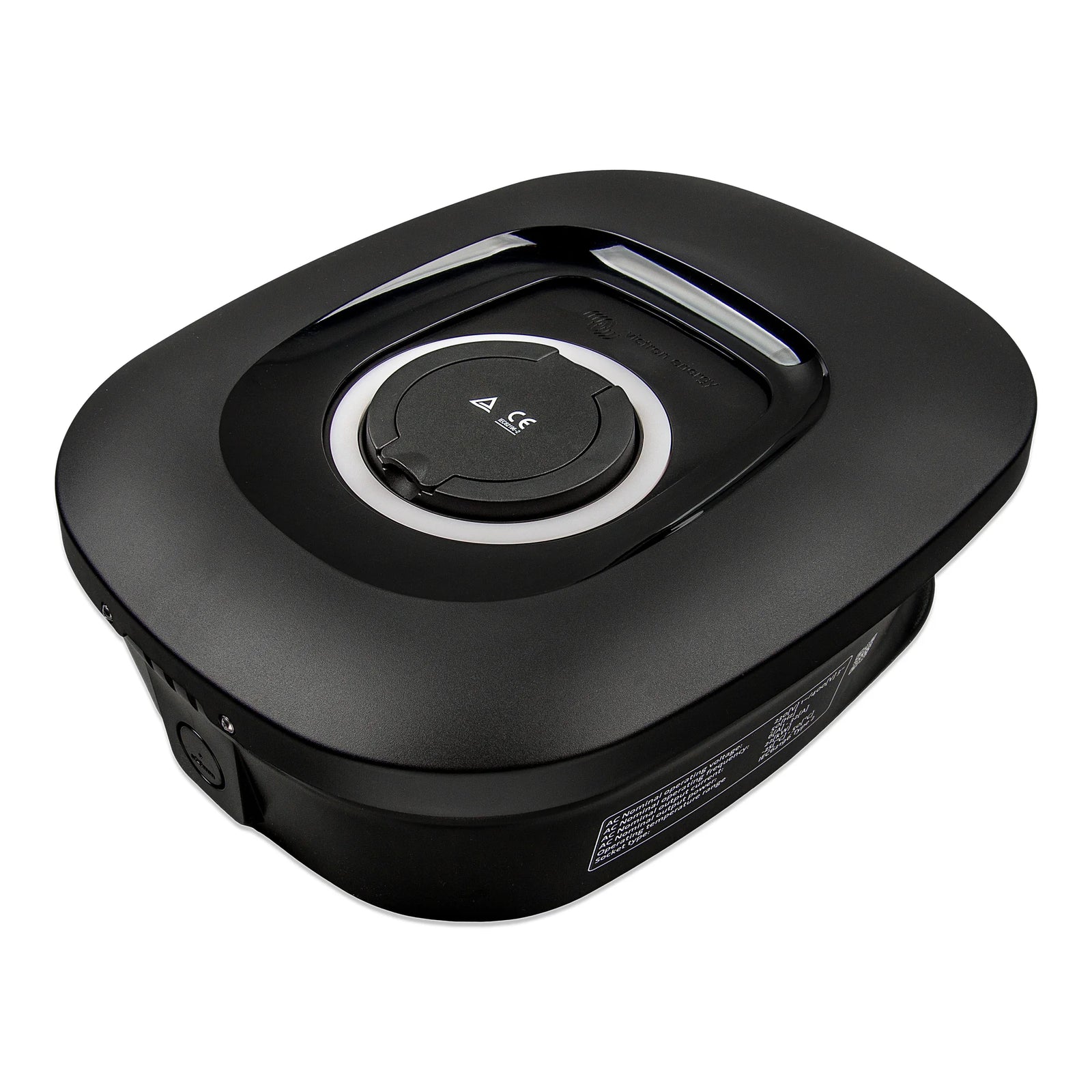

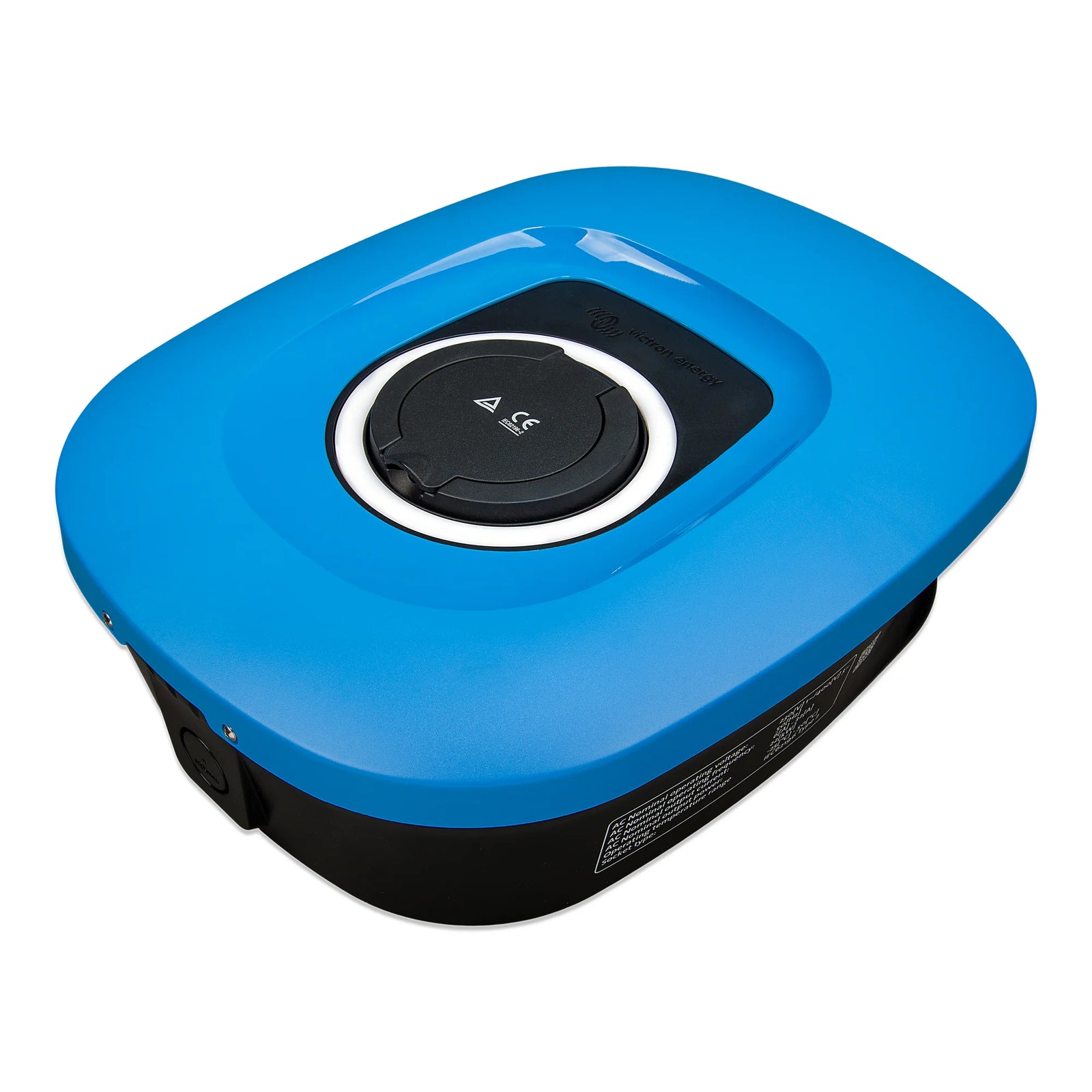

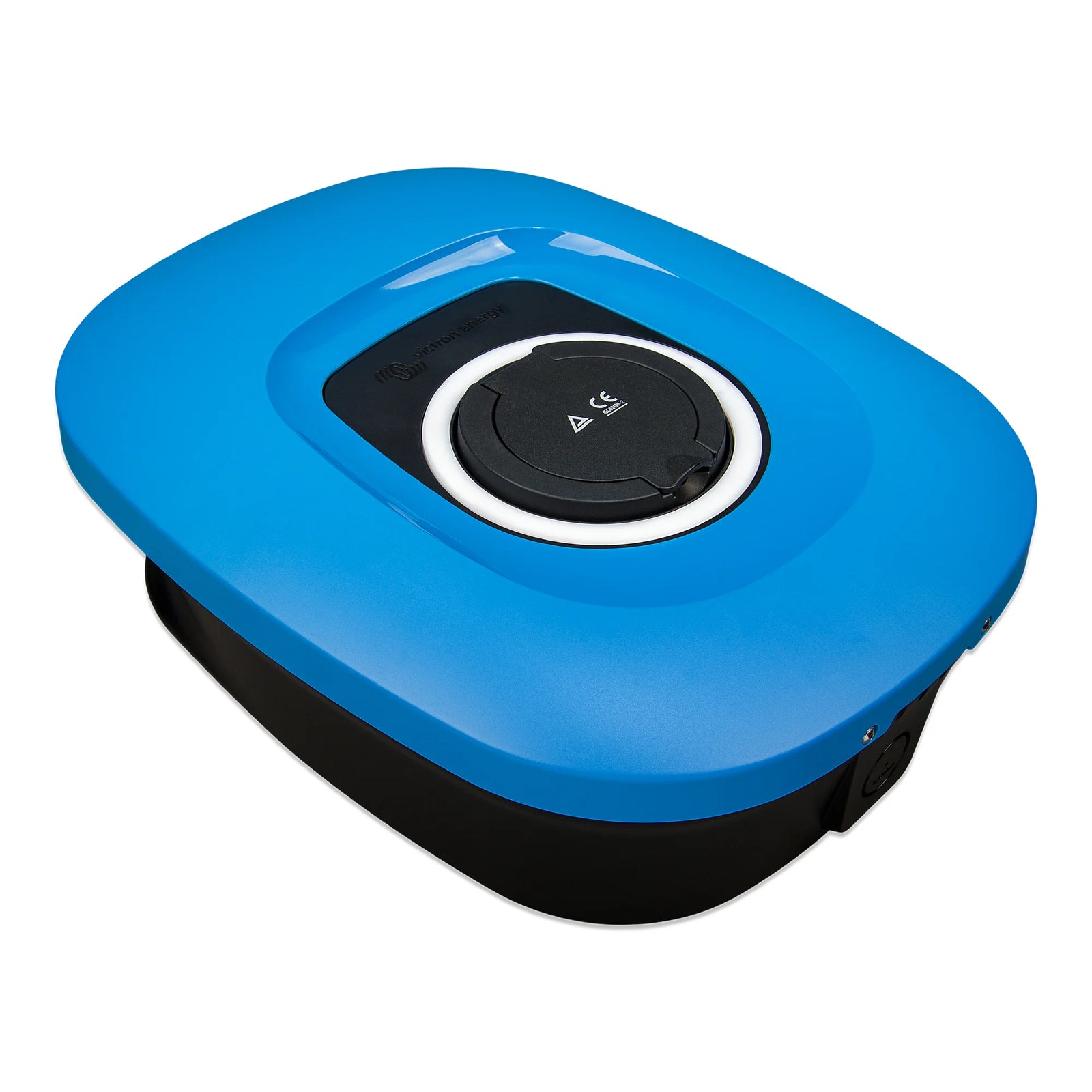

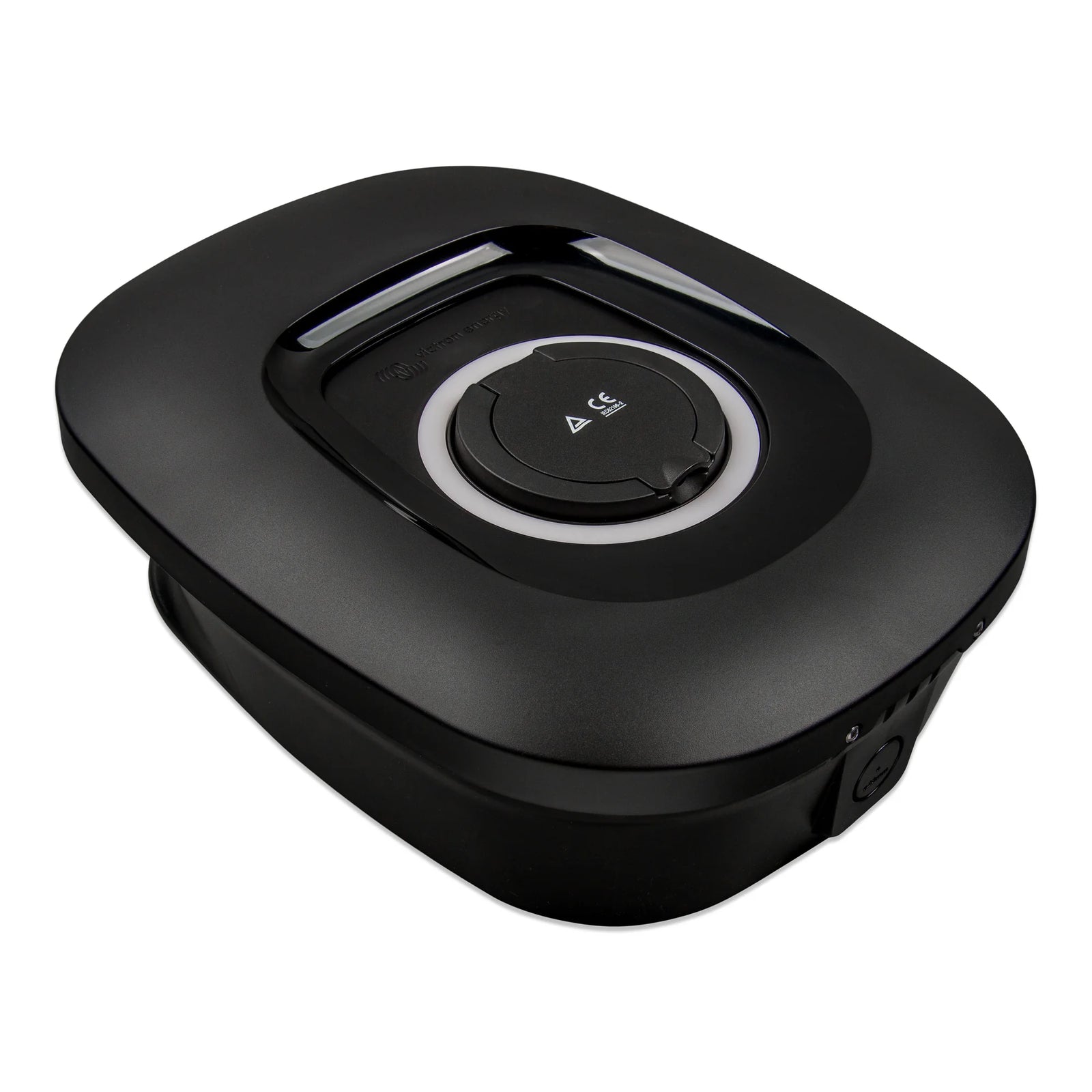

The EV Charging Station NS has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode. The device is technically identical to the EV Charging Station, but with a new, modern design available in 3 colours and without the built-in LCD screen.
Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN. The charger can be fully integrated with and remotely controlled via a Victron Energy GX Device and VRM.
Not only does this EV Charging Station NS fully integrate with a Victron Energy GX device and VRM, if you have solar (within the Victron ecosystem), it can also be set up to allow excess energy from the sun to directly charge your vehicle.

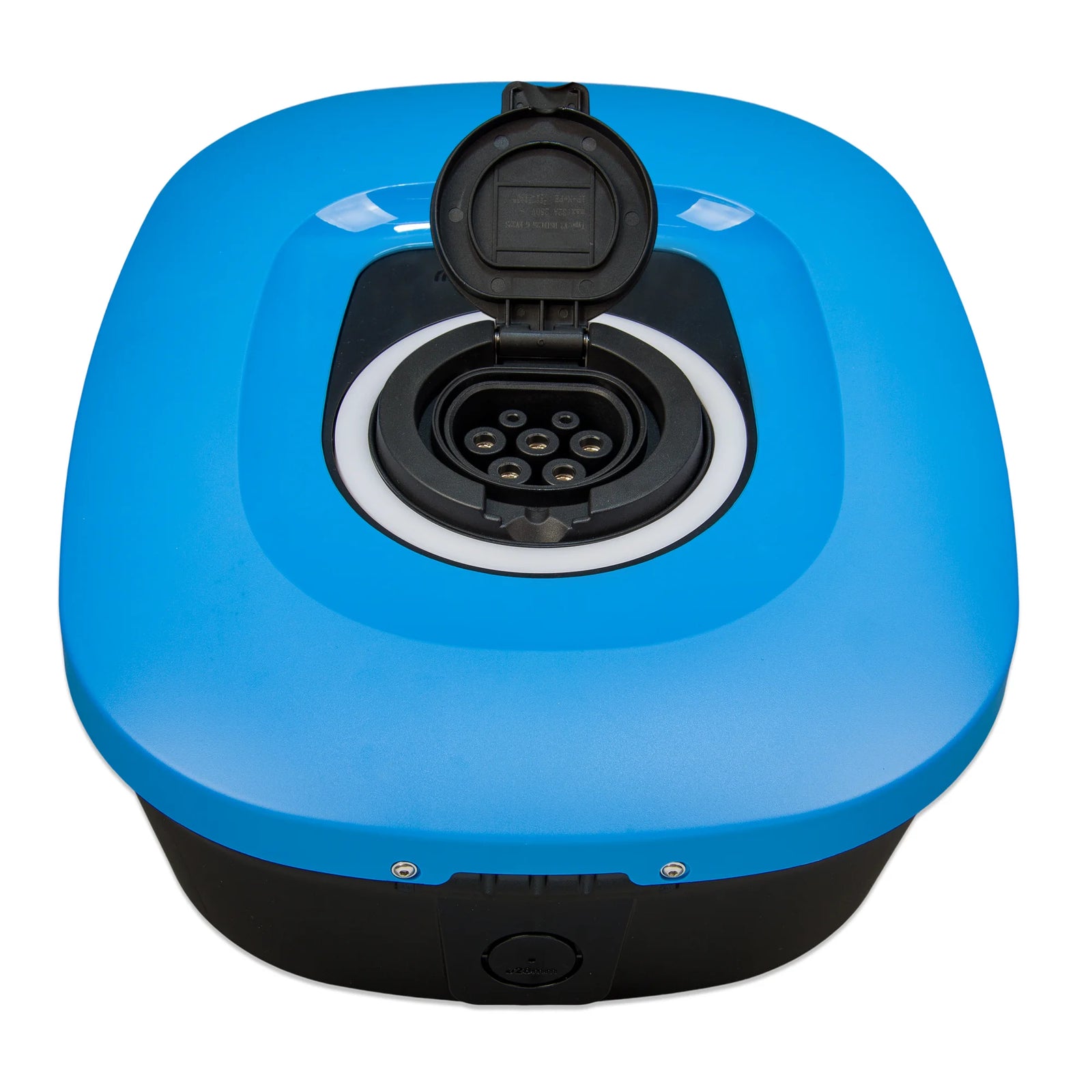

Manual and scheduled modes offer even more flexibility to respond to the needs of the EV depending on the system. It has a fully programmable RGB light ring around the charging port that displays different light effects depending on the current status (disconnected, charging, charged, etc.) to quickly determine the device status.
Key Features
- Three-phase and single-phase charging capabilities
- Maximum output of 22kW AC or 7.3kW single-phase
- Bluetooth and WiFi connectivity for easy setup and monitoring
- Fully programmable RGB light ring for status indication
- Integration with Victron Energy GX devices and VRM
- Supports solar energy charging when within the Victron ecosystem
Specifications
| Brand | Victron |
| EAN | 8719076058502 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Manufacturer Part Number (MPN) | EVC200300410 |
