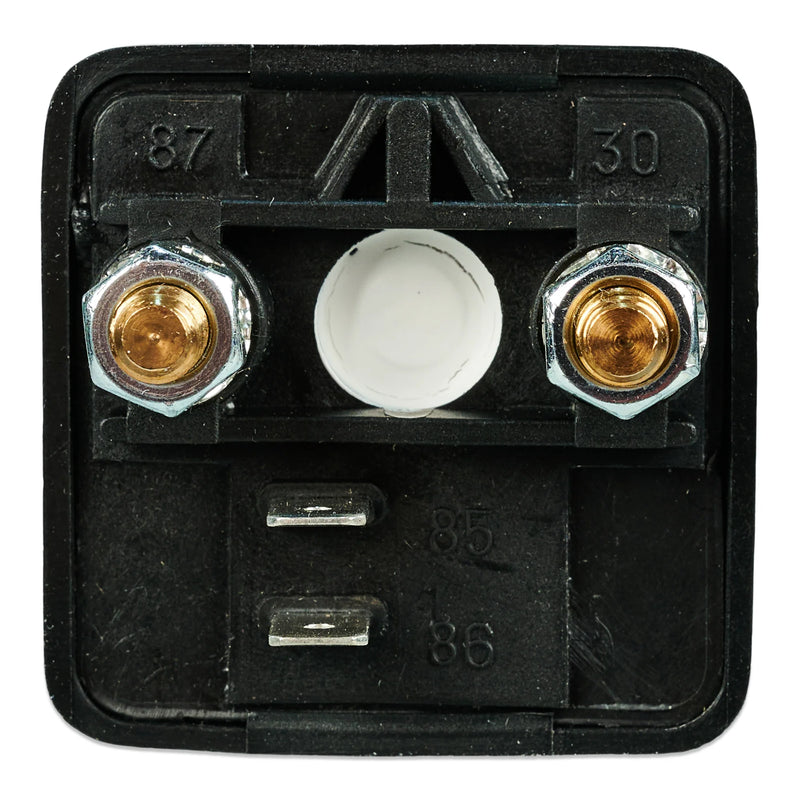

Victron Cyrix-Li-load 12/24V-120A Intelligent Load Relay
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Automatically connect batteries in parallel when one of them has reached a pre-set voltage using the Cyrix Battery Combiners. This intelligent load relay is designed for both 12V and 24V systems, ensuring efficient battery management.
With a compact design, the relay measures 46 mm in height, 80 mm in depth, and 46 mm in width, making it easy to integrate into your existing setup. The Cyrix engages when the control input is high (approximately battery voltage) and disengages when the control input is left free floating or pulled low.
The Cyrix-Li-load relay features a continuous current and breaking capacity of 120 A at both 12V and 24V, with a low current consumption of just 4 mA when open. It also has a protection category of IP54, ensuring durability and reliability in various environments.
Key Features
- Intelligent load relay for automatic battery connection
- Supports both 12V and 24V systems
- Continuous current capacity of 120 A
- Low current consumption of 4 mA when open
- Compact dimensions: 46 mm x 80 mm x 46 mm
- IP54 protection for durability
Specifications
| Brand | Victron |
| EAN | 8719076022190 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Item Height | 46 mm |
| Item Depth | 80 mm |
| Item Width | 46 mm |
| Weight | 0.11 kg |
| Protection Category | IP54 |
| Control input | The Cyrix engages when the control input is high (appr. Battery voltage) The Cyrix disengages when the control input is left free floating or pulled low |
| Nominal Battery Voltage | 12V or 24V |
| Current Consumption when Open | 4 mA |
| Continuous current and breaking capacity at 12 or 24V | 120 A |
| Connect/disconnect profiles | See our website |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | CYR010120450 |
