Description

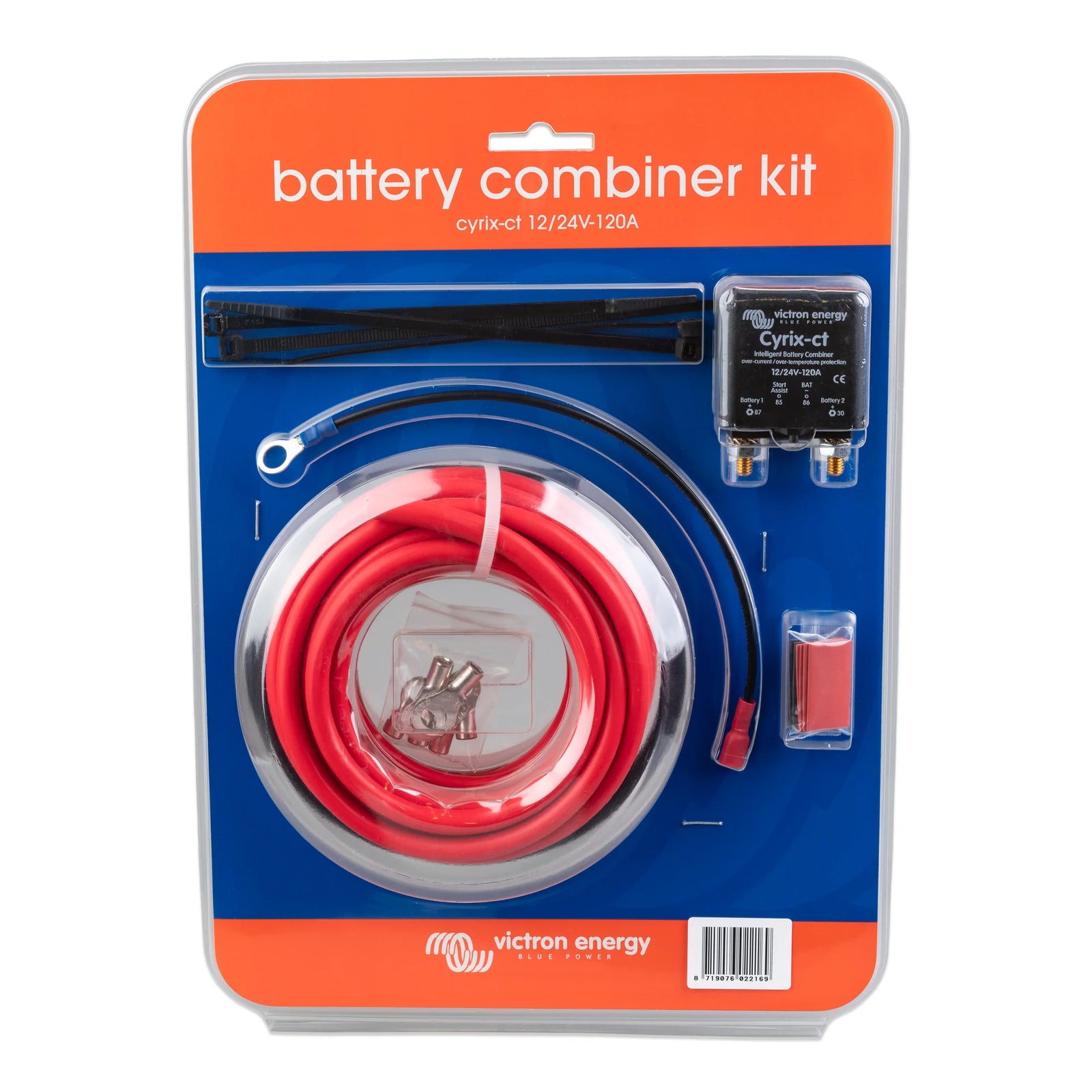

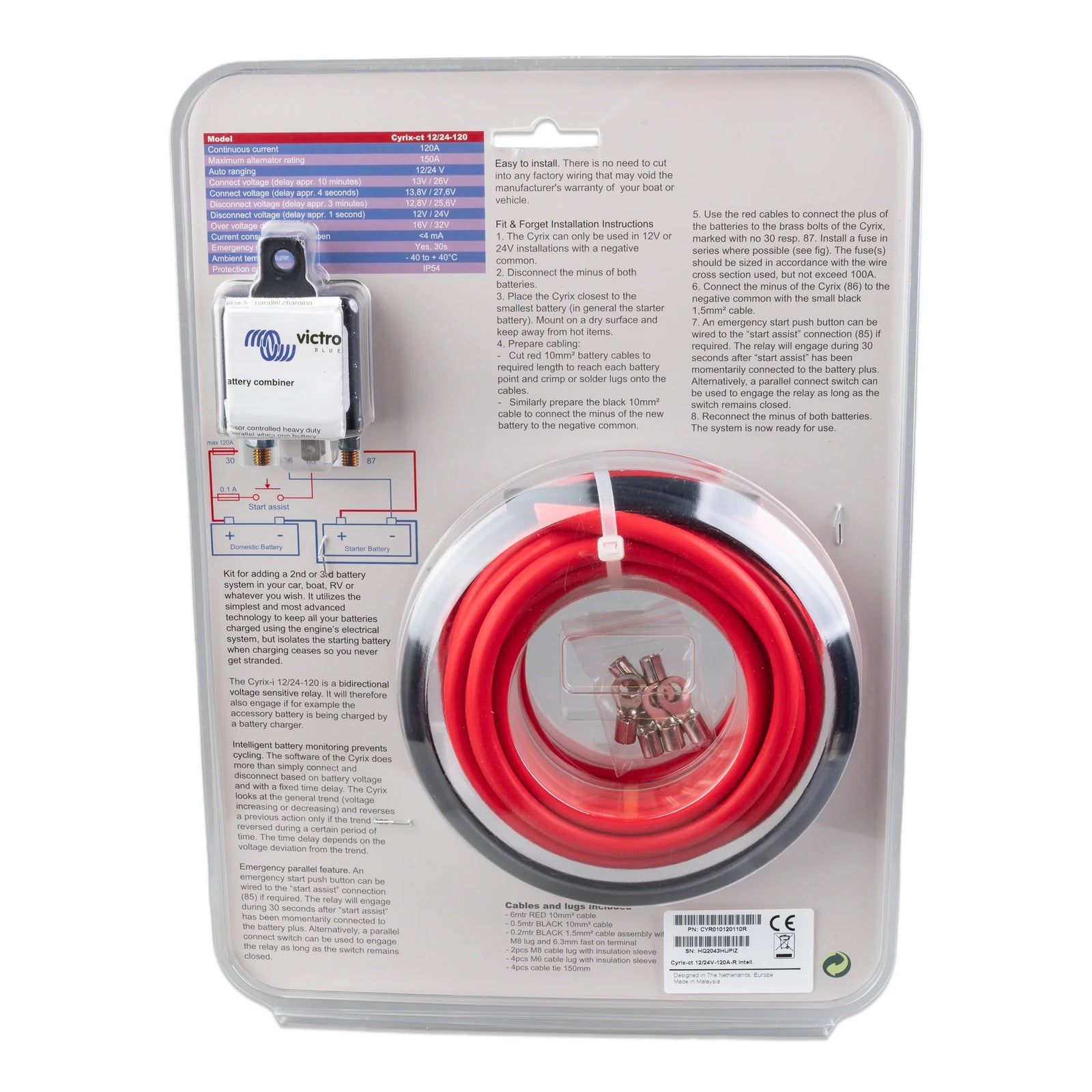

Add a 2nd or 3rd battery system in your car, boat, RV or any other vehicle, using the Cyrix-ct Battery Combiner Kit. This kit is designed for seamless integration and reliable performance.
The Cyrix-ct features M6 bolt battery terminals and includes all necessary cables and lugs for easy installation. It operates with a nominal battery voltage of 12V or 24V and provides a continuous current of 120 A.
With a compact design measuring 46 mm in width, 46 mm in height, and 89 mm in depth, this battery combiner is both lightweight and efficient, weighing only 0.1 kg. It also has a protection category of IP54, ensuring durability in various conditions.
The Cyrix-ct includes intelligent trend detection for disconnect and connect voltages, enhancing its functionality and reliability.
Key Features
- Nominal Battery Voltage: 12V or 24V
- Continuous Current: 120 A
- Cranking Current Rating: 180 A (for 5 seconds)
- Includes cables and lugs for easy installation
- IP54 protection category for durability
- Intelligent trend detection for voltage management
Specifications
| Brand | Victron |
| EAN | 8719076022169 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Battery Terminals | M6 bolts |
| Cables and lugs included | True |
| batteryNegativeTerminal | Faston tab 6.3 mm |
| Start Assist Terminal | Faston tab 6.3 mm |
| Item Width | 46 mm |
| Weight | 0.1 kg |
| Protection Category | IP54 |
| Item Height | 46 mm |
| Item Depth | 89 mm |
| Current Consumption when Open | 4 mA |
| Disconnect Voltage | From 11 to 1.8V and 22 to 25.7V with intelligent trend detection |
| Current Consumption when Closed at 24V | 120 mA |
| Nominal Battery Voltage | 12V or 24V |
| Current Consumption when Closed at 12V | 220 mA |
| Start Assist | Yes (Cyrix remains engaged during 30 seconds) |
| Cranking Current Rating (5 seconds) | 180 A |
| Continuous Current | 120 A |
| Connect Voltage | From 13 to 13.8V and 26 to 27.6V with intelligent trend detection |
| Voltage | 24V |
| Power Source | Battery |
| Application | Automotive |
| Manufacturer Part Number (MPN) | CYR010120110R |
