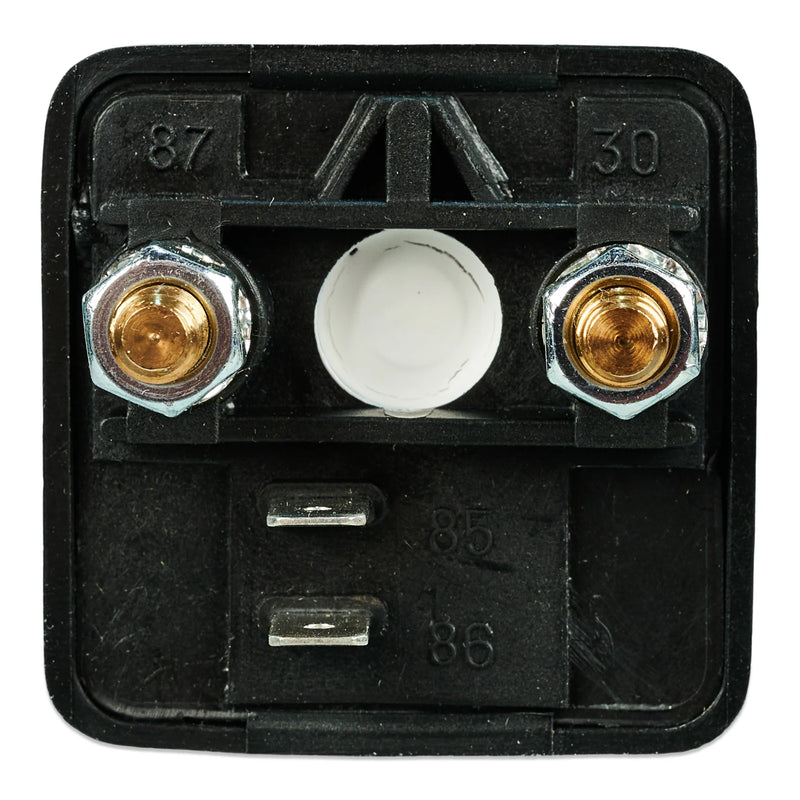

Victron Cyrix-ct 12/24V-230A Battery Combiner
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron Cyrix-ct 12/24V-230A is an intelligent battery combiner designed to automatically connect batteries in parallel when one reaches a pre-set voltage. This device is perfect for leisure applications, ensuring optimal battery performance.
It features a two pole connector for the start assist terminal and includes a 1m control cable. The battery terminals are equipped with M8 bolts for secure connections. With a compact design, the dimensions are 100 mm in width, 65 mm in height, and 50 mm in depth, making it easy to install in various setups.
The Cyrix-ct is rated for a continuous current of 230A and can handle cranking currents up to 500A for short durations. It automatically detects nominal battery voltages of either 12V or 24V, ensuring compatibility with different systems.
With an IP54 protection rating, this battery combiner is suitable for use in various environments, providing reliable performance under different conditions.
Key Features
- Intelligent battery combiner for 12V or 24V systems
- Continuous current rating of 230A
- Cranking current rating of 500A for 5 seconds
- Includes 1m control cable
- IP54 protection rating for durability
- Compact dimensions: 100mm x 65mm x 50mm
Specifications
| Brand | Victron |
| EAN | 8719076022213 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Start Assist Terminal | Two pole connector |
| Control Cable Included (1m) | True |
| Battery Terminals | M8 bolts |
| batteryNegativeTerminal | Two pole connector |
| Item Width | 100 mm |
| Weight | 0.27 kg |
| Protection Category | IP54 |
| Item Height | 65 mm |
| Item Depth | 50 mm |
| Start Assist | Yes (Cyrix remains engaged during 30 seconds) |
| Nominal Battery Voltage | 12V or 24V (automatic detection) |
| Disconnect Voltage | From 11 to 1.8V and 22 to 25.7V with |
| Current Consumption when Open | 4 mA |
| Current Consumption when Closed at 24V | 180 mA |
| Current Consumption when Closed at 12V | 230 mA |
| Cranking Current Rating (5 seconds) | 500 A |
| Continuous Current | 230 A |
| Connect Voltage | From 13 to 13.8V and 26 to 27.6V with intelligent trend detection |
| Voltage | 24V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | CYR010230010R |
