Description
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. The Victron busbar is designed to handle a maximum current of 250 A and a maximum DC voltage of 70 V, making it ideal for various applications in power distribution.

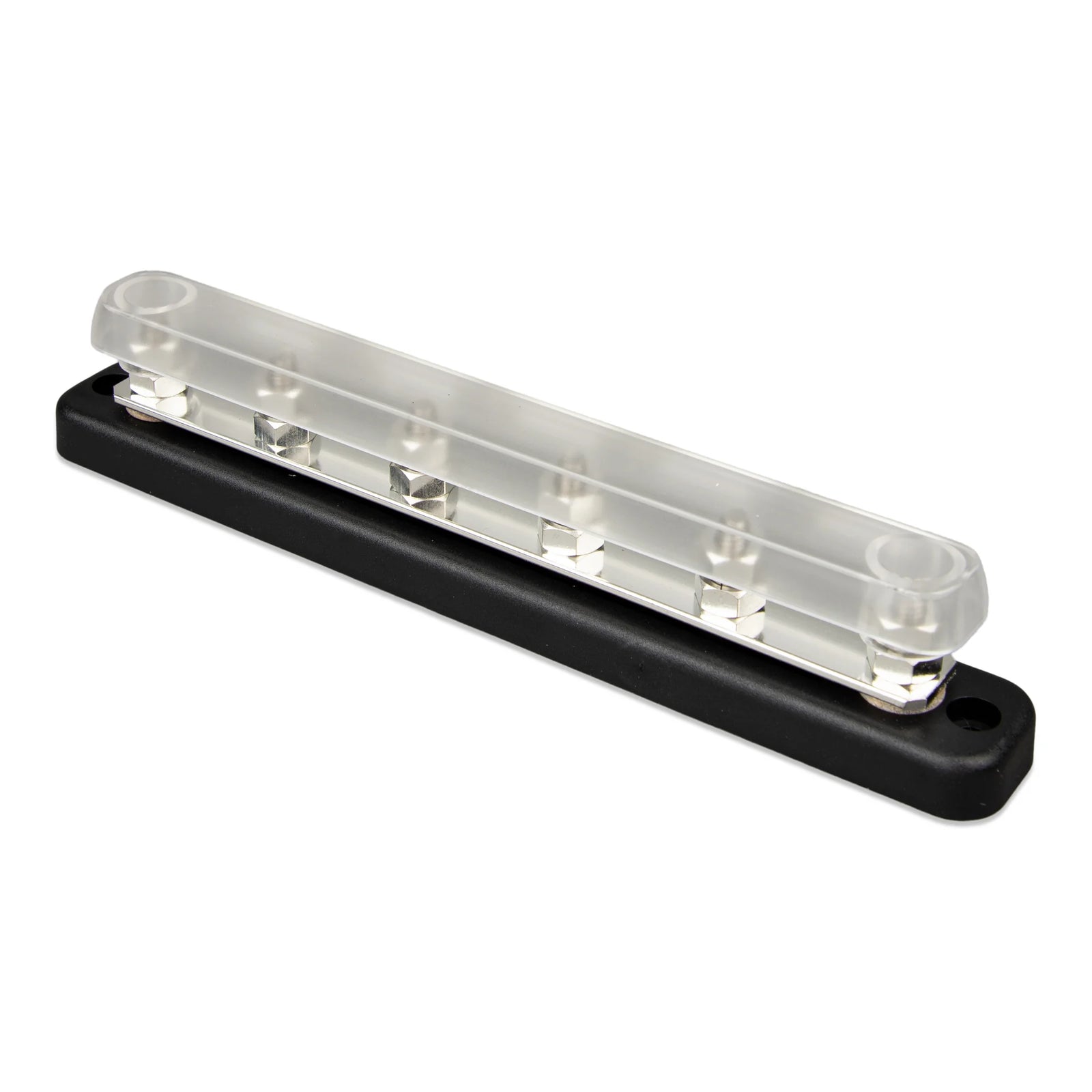

This model features 6 high current connections and comes equipped with a removable protection cover for safety. The busbar is made from tin plated copper, ensuring excellent conductivity and durability.
Specifications include a terminal diameter of 8 mm and a terminal height of 17 mm, with stainless steel terminals for added strength. The base and cover are constructed from ABS material, with a fire rating of UL 94 V-0 for the base and UL 94 V-2 for the cover.
Key Features
- Maximum current capacity of 250 A
- 6 high current connection terminals
- Removable protection cover included
- Constructed from durable tin plated copper
- Fire rated ABS material for safety
- Compact dimensions: 237 mm x 70 mm x 48 mm
Specifications
| Brand | Victron |
| EAN | 8719076056416 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Hex nut material | Tin plated copper |
| Terminal diameter | 8 mm |
| Terminal height | 17 mm |
| Terminal material | Stainless steel |
| Base colour | Black (RAL 9017) |
| Base fire rating | UL 94 V-0 |
| Base material | ABS |
| Item Width | 237 mm |
| Weight | 0.43 kg |
| Item Height | 48 mm |
| Item Depth | 70 mm |
| Cover Material | ABS |
| Cover fire rating | UL 94 V-2 |
| Cover colour | Black (RAL 9017) |
| Busbar Dimensions | 19mm x 24mm |
| maximumDC voltage | 70 V |
| Maximum current | 250 A |
| Busbar material | Tin plated copper |
| Manufacturer Part Number (MPN) | VBB125060020 |
