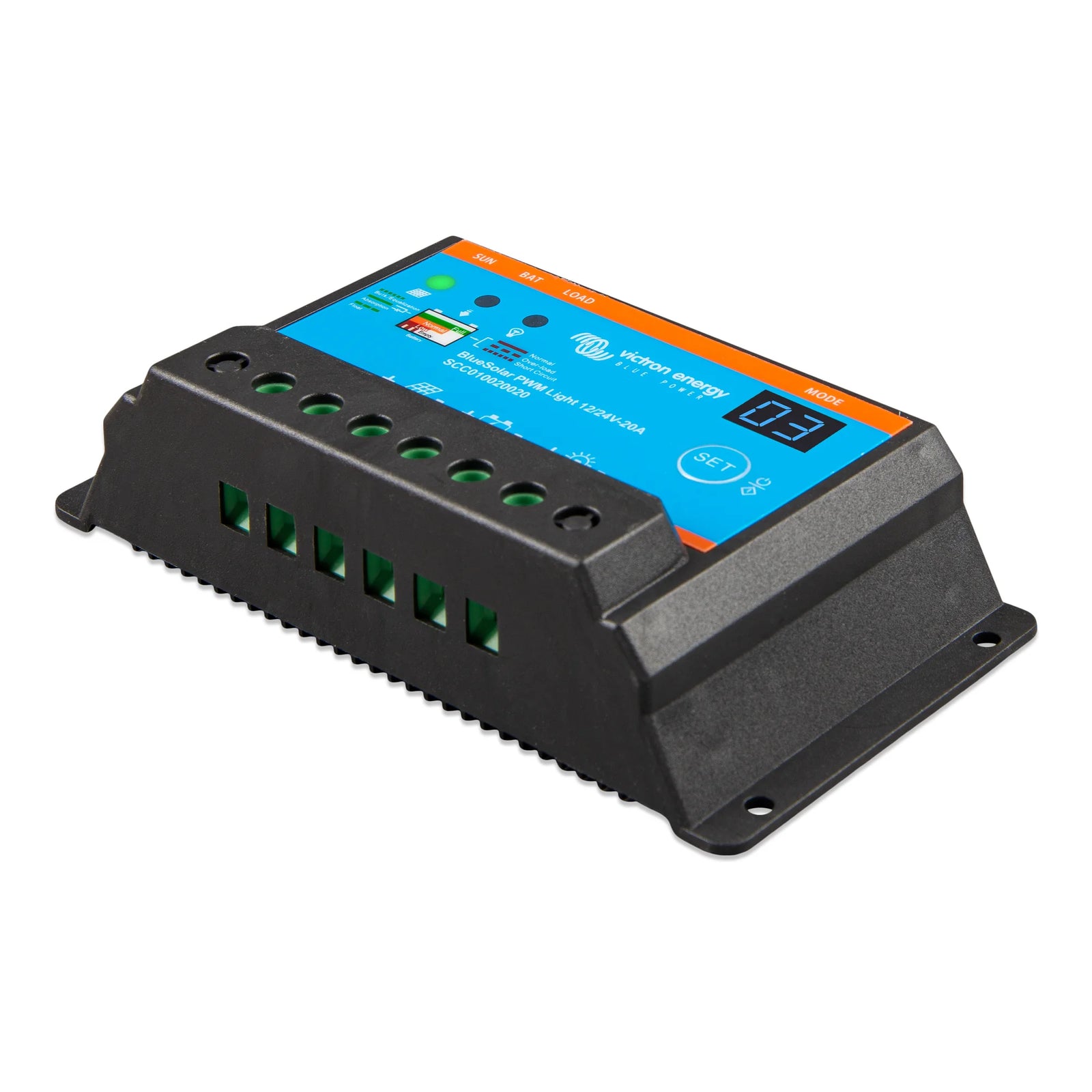

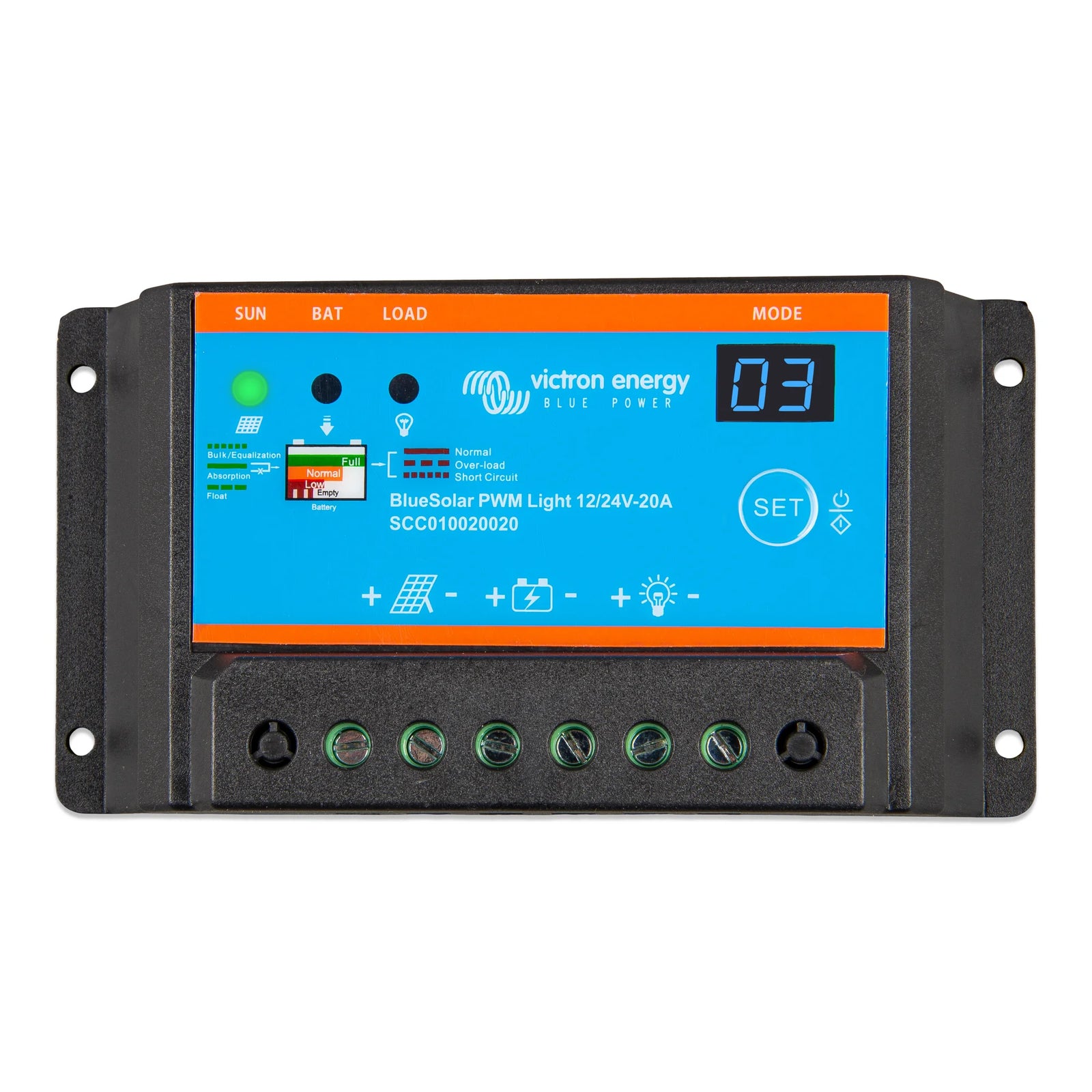

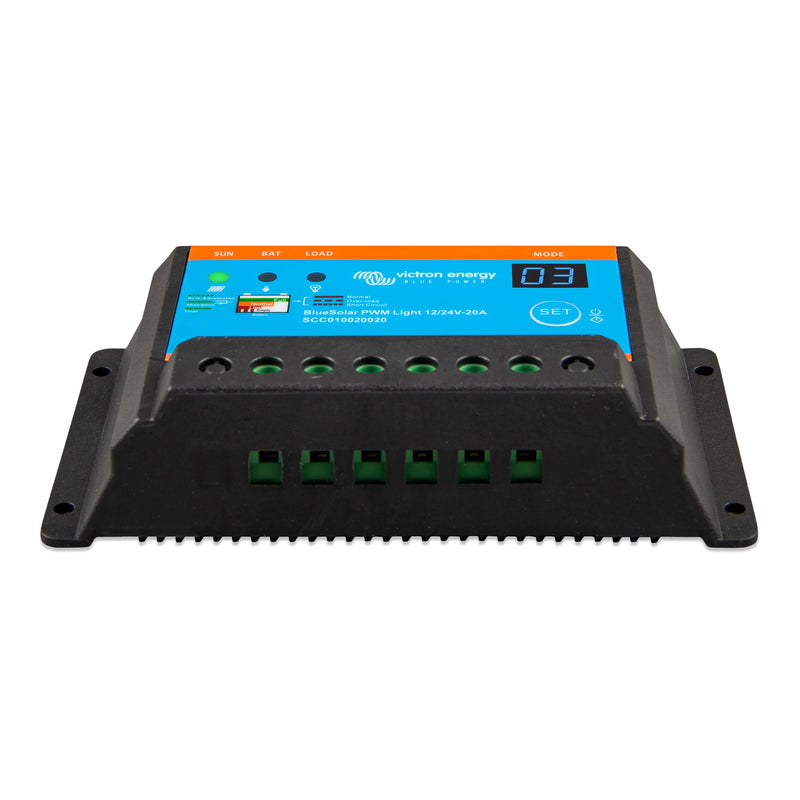

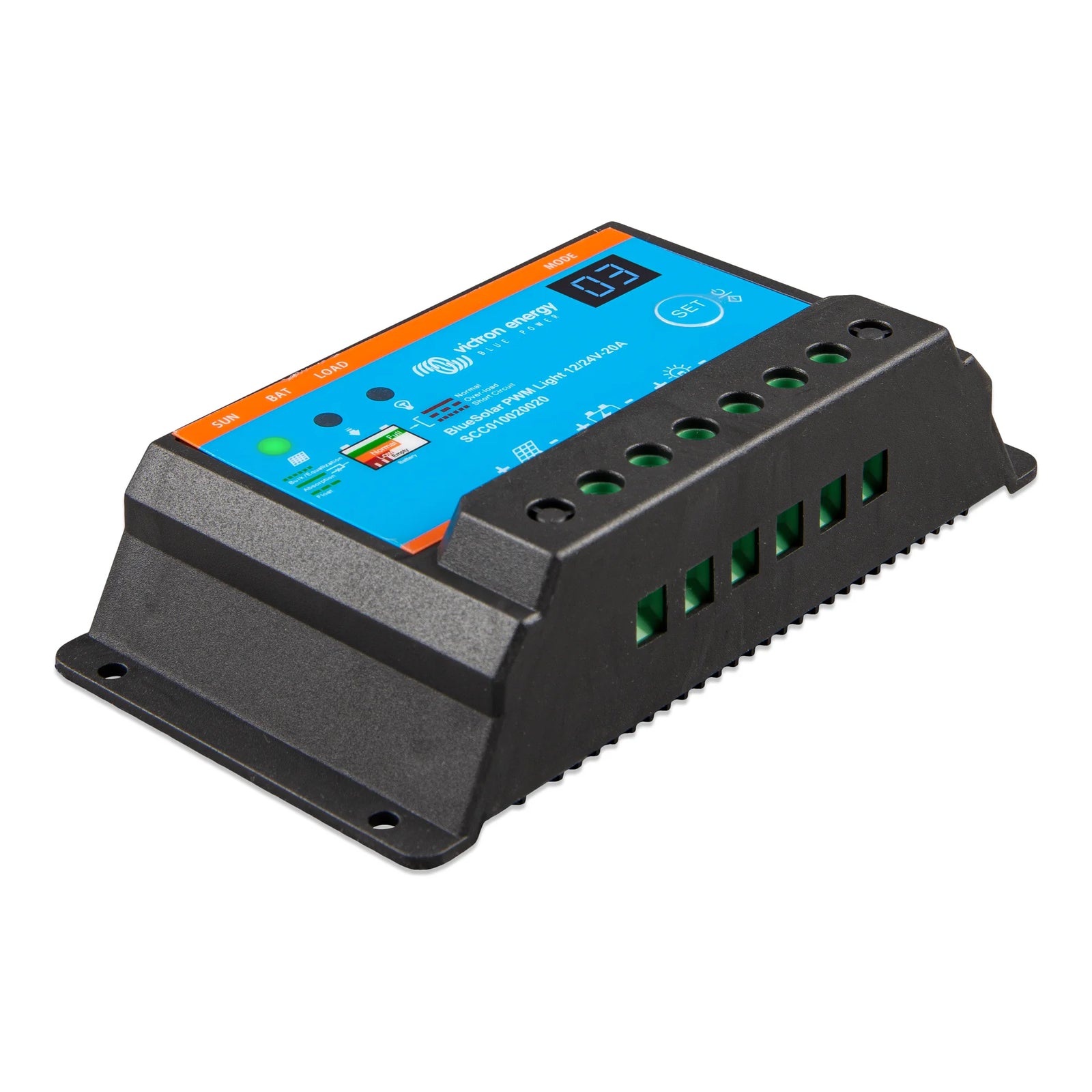

Victron BlueSolar PWM-Light Charge Controller 12/24V 20A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron BlueSolar PWM-Light Charge Controller is designed to charge batteries in three phases while providing protection against overload and short-circuiting. This controller is suitable for both 12V and 24V systems with automatic detection.
It features screw terminals for easy connection of solar panels and batteries, ensuring a reliable setup. The controller has a compact design with dimensions of 133 mm width, 70 mm height, and 33.5 mm depth, making it easy to install in various locations.
With a rated charge current of 20 A and a maximum solar voltage of 28V / 55V, this charge controller is capable of handling a variety of solar panel configurations, including those with 36 or 72 cells. The device also includes multiple protection features to safeguard your system.
Key Features
- Automatic detection for 12V/24V battery systems
- Rated charge current of 20 A
- Compact design with IP20 protection category
- Multiple protection features including overload and short-circuit protection
- High maximum humidity tolerance (up to 95% non-condensing)
- Easy installation with screw terminal connections
Specifications
| Brand | Victron |
| EAN | 8719076025351 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| PV connection terminal type | Screw terminals 5 mm² (10 AWG) |
| Load connection terminal type | Screw terminals 5 mm² (10 AWG) |
| Battery connection terminal type | Screw terminals 5 mm² (10 AWG) |
| Item Depth | 33.5 mm |
| Colour | Black |
| Item Height | 70 mm |
| Item Width | 133 mm |
| Weight | 0.15 kg |
| Protection Category | IP20 |
| Safety | EN-IEC 62109-1 |
| Emission | EN-IEC 61000-6-1,ISO 7637-2,EN-IEC 61000-6-3 |
| automatic Load Disconnect | True |
| Battery voltage | 12V / 24V (automatic detection) |
| Charge voltage absorption | 14.2V / 28.4V |
| Charge voltage float | 13.8V / 27.6V |
| grounding | Common positive |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| Load Output | Manual control + low voltage disconnect |
| Low Voltage Load Disconnect | 11.2V / 22.4V |
| Low Voltage Load Reconnect | 12.6V / 25.2V (manual) 13.1V / 26.2V (automatic) |
| Maximum humidity (non-condensing) | 95 % |
| Maximum Solar voltage | 28V / 55V |
| Operating temperature range | [-20, 50] °C |
| Overload Protection at 130% load | Shutdown after 60 seconds |
| Overload Protection at 160% load | Shutdown after 5 seconds |
| Overload Protection Short Circuit | Immediate shutdown |
| PV array 12V | Solar panel with 36 cells |
| PV array 24V | Solar panel with 72 cells,Two solar panles with 36 cells in series |
| Rated Charge Current | 20 A |
| Remote panel | No |
| Self-consumption | 10 mA |
| Temperature Compensation | No |
| Temperature Sensor | No |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | SCC010020020 |
