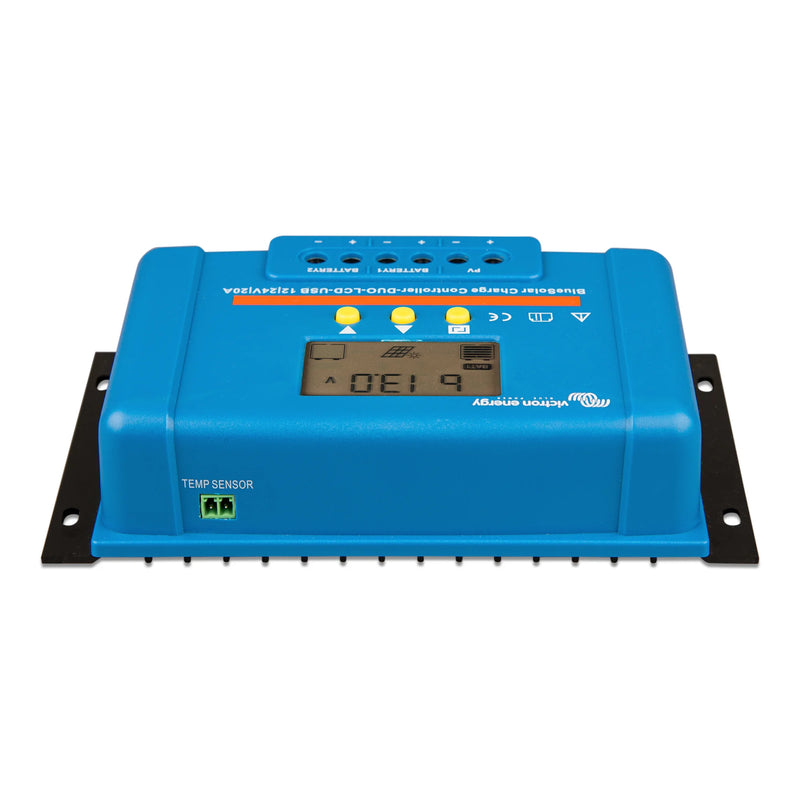

Victron BlueSolar PWM-LCD&USB 12/24V 5A Solar Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron BlueSolar PWM-LCD&USB is a versatile solar charge controller designed for 12V and 24V systems, automatically detecting battery voltage. It features a liquid crystal display for easy monitoring and includes two 5V USB outputs for charging devices.
This model supports three-stage battery charging (bulk, absorption, float) and offers programmable load output with low voltage and manual disconnect. It is protected against overload, short circuits, and reverse polarity connections of solar panels and/or batteries.
With a rated charge current of 5 A, it can handle various solar panel configurations, making it suitable for both 12V and 24V systems. The controller operates efficiently within a temperature range of -35 to 60 °C and is designed for high humidity environments.
Key Features
- Automatic battery voltage detection for 12V/24V systems
- Two USB ports with 2 A output each for device charging
- Three-stage battery charging for optimal performance
- Overload and short circuit protection for safety
- Programmable load output with low voltage disconnect
- Compact design with IP20 protection rating
Specifications
| Brand | Victron |
| EAN | 8719076046172 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Battery connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Load connection terminal type | Screw terminals 6 mm² (10 AWG) |
| PV connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Item Depth | 36 mm |
| Item Height | 96 mm |
| Colour | Blue (RAL 5012) |
| Protection Category | IP20 |
| Item Width | 169 mm |
| Weight | 0.15 kg |
| Safety | EN-IEC 60335-1,EN-IEC 62109-1 |
| Emission | EN-IEC 61000-6-1,EN-IEC 61000-6-3,ISO 7637-2 |
| Load Output | Manual control + low voltage disconnect +timer |
| Low Voltage Load Disconnect | 11.2V / 22.4V |
| Operating temperature range | [-35, 60] °C |
| Maximum humidity (non-condensing) | 95 % |
| Low Voltage Load Reconnect | 12.6V / 25.2V |
| Charge voltage float | 13.7V / 27.4V |
| Battery voltage | 12V / 24V (automatic detection) |
| automatic Load Disconnect | True |
| Charge voltage absorption | 14.4V / 28.8V |
| grounding | Common positive |
| Rated Charge Current | 5 A |
| PV array 48V | Four solar panels with 36 cells in series,Two solar panels with 72 cells in series |
| PV array 24V | Solar panel with 72 cells,Two solar panels with 36 cells in series |
| USB current per port | 2 A |
| USB Voltage | 5 V |
| Temperature Compensation | No |
| Self-consumption | 10 mA |
| Remote panel | No |
| Overload Protection at 130% load | Shutdown after 60 seconds |
| Temperature Sensor | No |
| Number Of USB Ports | 2 |
| Maximum Solar voltage | 28V / 55V |
| PV array 12V | Solar panel with 36 cells |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| Overload Protection Short Circuit | Immediate shutdown |
| Overload Protection at 160% load | Shutdown after 5 seconds |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | SCC010005050 |
