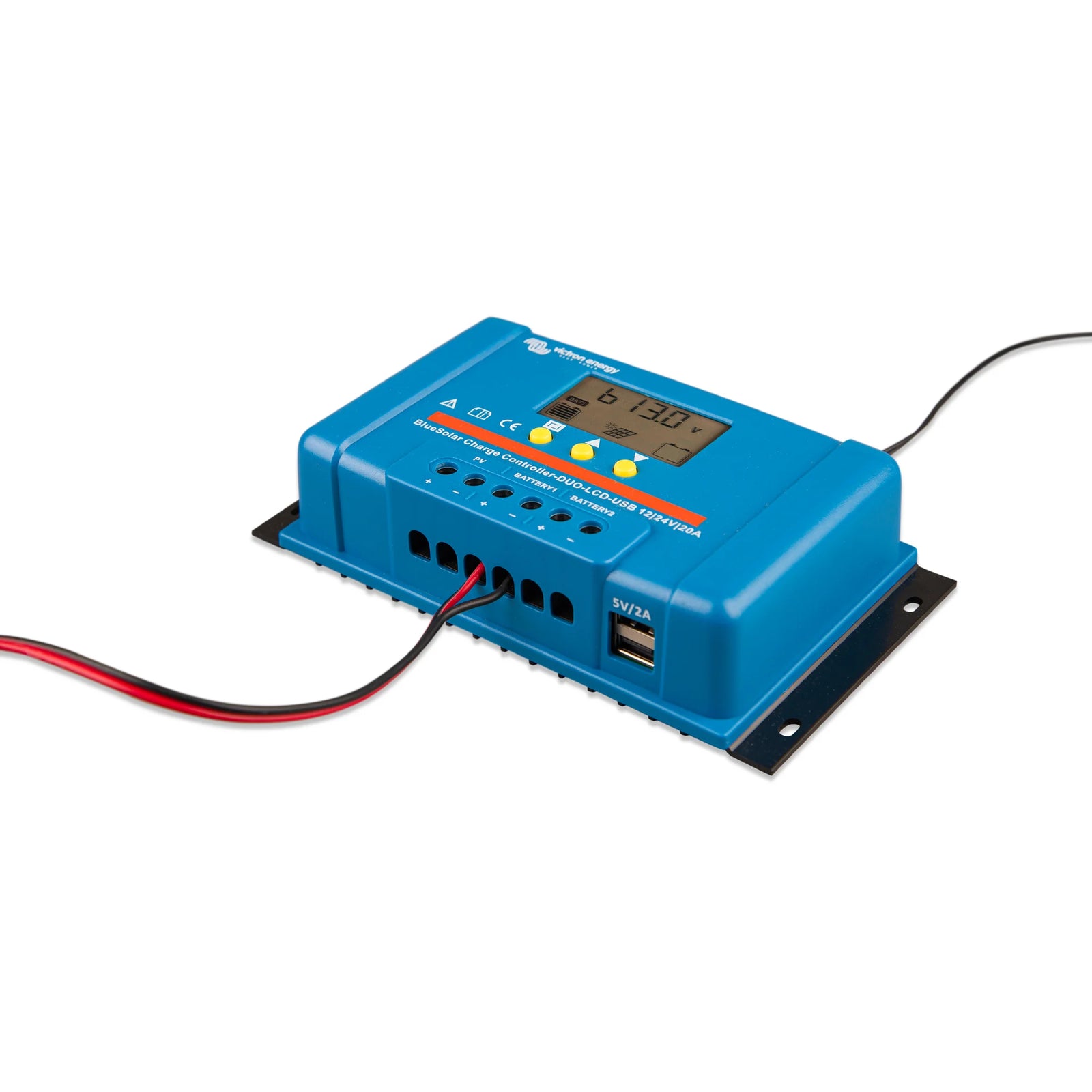

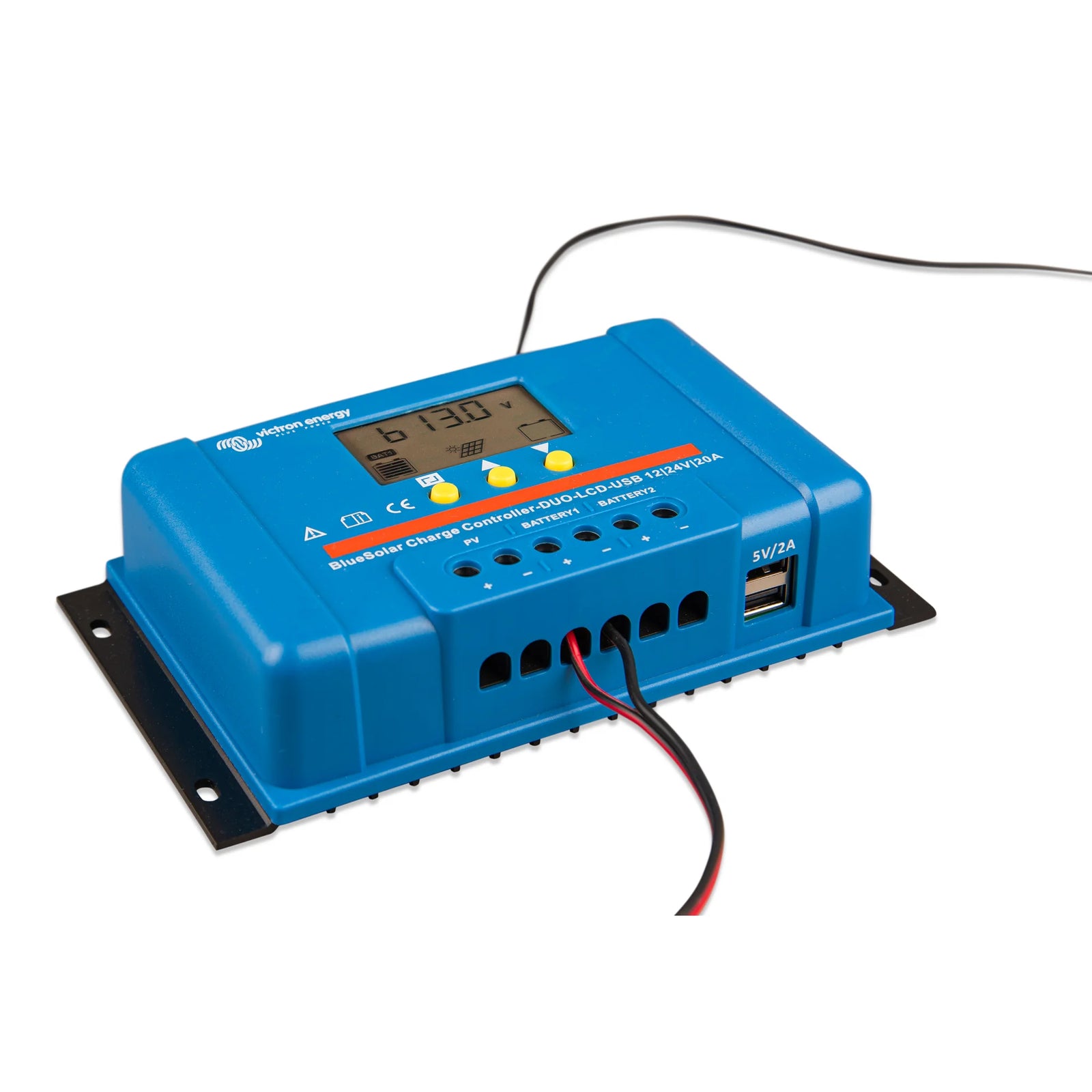

Victron BlueSolar PWM-LCD&USB 12/24V-30A Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron BlueSolar PWM-LCD&USB is a versatile solar charge controller designed for 12V and 24V systems with an automatic detection feature. It comes equipped with a liquid crystal display that provides real-time information and settings adjustments.
This charge controller features two 5 Volt USB outputs, allowing you to charge multiple devices simultaneously. It supports three-stage battery charging (bulk, absorption, float) and includes a programmable load output with low voltage disconnect and manual control options.
With a rated charge current of 30 A, it can handle solar panels with 36 cells for 12V and 72 cells for 24V configurations. The device is protected against overload and short circuits, ensuring safe operation.
Designed for durability, the BlueSolar PWM-LCD&USB operates effectively in a wide temperature range from -35°C to 60°C and has a maximum humidity tolerance of 95% (non-condensing).
Key Features
- Automatic detection for 12V and 24V battery systems
- Two USB ports with 2 A output each
- Three-stage battery charging for optimal performance
- Programmable load output with low voltage disconnect
- Robust protection against overload and short circuits
- Wide operating temperature range from -35°C to 60°C
Specifications
| Brand | Victron |
| EAN | 8719076046226 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Load connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Item Height | 101 mm |
| Item Width | 184 mm |
| Weight | 0.3 kg |
| Protection Category | IP20 |
| Item Depth | 47 mm |
| Colour | Blue (RAL 5012) |
| Emission | EN-IEC 61000-6-1,EN-IEC 61000-6-3,ISO 7637-2 |
| Safety | EN-IEC 60335-1,EN-IEC 62109-1 |
| Overload Protection at 160% load | Shutdown after 5 seconds |
| automatic Load Disconnect | True |
| Battery voltage | 12V / 24V (automatic detection) |
| Charge voltage absorption | 14.4V / 28.8V |
| Charge voltage float | 13.7V / 27.4V |
| grounding | Common positive |
| Load Output | Manual control + low voltage disconnect +timer |
| Low Voltage Load Disconnect | 11.2V / 22.4V |
| Low Voltage Load Reconnect | 12.6V / 25.2V |
| Maximum humidity (non-condensing) | 95 % |
| Maximum Solar voltage | 28V / 55V |
| Number Of USB Ports | 2 |
| Operating temperature range | [-35, 60] °C |
| Overload Protection at 130% load | Shutdown after 60 seconds |
| Overload Protection Short Circuit | Immediate shutdown |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| PV array 12V | Solar panel with 36 cells |
| PV array 24V | Solar panel with 72 cells,Two solar panels with 36 cells in series |
| PV array 48V | Two solar panels with 72 cells in series,Four solar panels with 36 cells in series |
| Rated Charge Current | 30 A |
| Remote panel | No |
| Self-consumption | 10 mA |
| Temperature Compensation | No |
| Temperature Sensor | No |
| USB current per port | 2 A |
| USB Voltage | 5 V |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | SCC010030050 |
