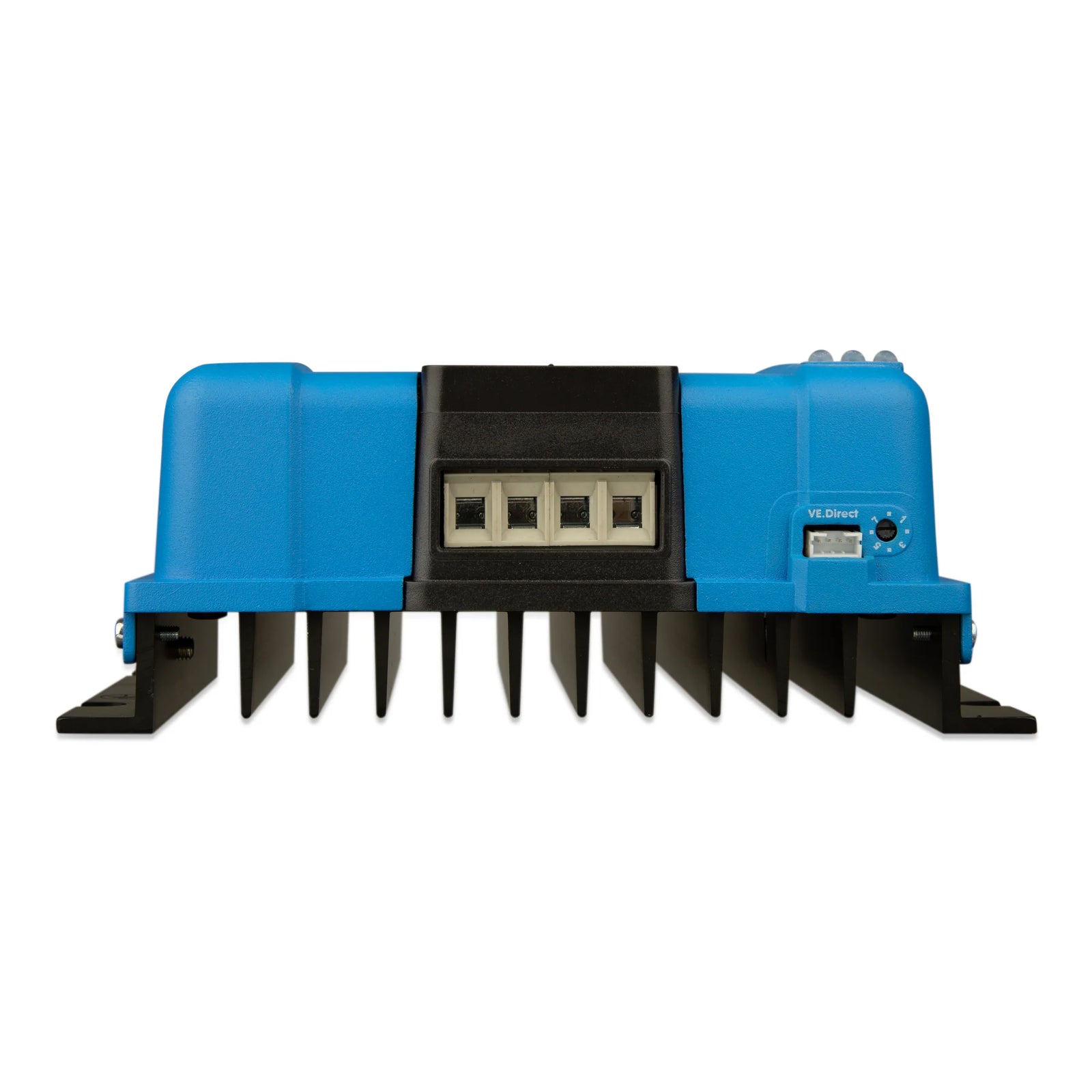

Victron BlueSolar MPPT 150/35 Solar Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Maximize the energy-harvest, driving it intelligently to achieve full charge in the shortest possible time using the BlueSolar MPPT 150/35 up to 250/100. This solar charge controller is designed for optimal performance and reliability.
Specifications include a PV connection terminal type of screw terminals 16 mm² (6 AWG) and a battery connection terminal type also of screw terminals 16 mm² (6 AWG). The dimensions are 186 mm in width, 130 mm in height, and a depth of 70 mm, with a weight of 1.25 kg. The controller is finished in a striking blue (RAL 5012).
The protection category is IP22 for the connection area and IP43 for the electronic components, ensuring durability and safety under various conditions. It meets safety standards including CSA C22.2, EN-IEC 62109-1, and UL 1741.
With a rated charge current of 35 A and one tracker, it features temperature compensation and operates efficiently across a temperature range of -30 to 60 °C. The maximum efficiency of the controller is 98%.
Key Features
- Rated charge current of 35A
- Maximum PV open circuit voltage of 150V
- Multi-stage adaptive charge algorithm
- Internal temperature sensor for efficient operation
- Protection against PV reverse polarity and output short-circuit
Specifications
| Brand | Victron |
| EAN | 8719076025559 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Item Depth | 70 mm |
| Weight | 1.25 kg |
| Item Width | 186 mm |
| Item Height | 130 mm |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
| Rated Charge Current | 35 A |
| Number of trackers | 1 |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 12V | -16 mV/°C |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Self-consumption | 12V: 20mA, 24V: 15mA, 48V: 10mA |
| Protections | PV reverse polarity,Output short-circuit,Excessive temperature |
| Operating temperature range | [-30, 60] °C |
| Temperature Sensor | Internal |
| Nominal PV power at 48 V | 2,000 W |
| Nominal PV power at 36V | 1,500 W |
| Nominal PV power at 24 V | 1,000 W |
| Nominal PV power at 12 V | 500 W |
| Maximum PV short circuit current per tracker | 40 A |
| Maximum PV Open Circuit Voltage | 150 V |
| Maximum humidity (non-condensing) | 95 % |
| Maximum efficiency | 98 % |
| Data Communication | VE.Direct |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Battery voltage | 12V / 24V / 48V (Auto Select) |
| Manufacturer Part Number (MPN) | SCC020035000 |
