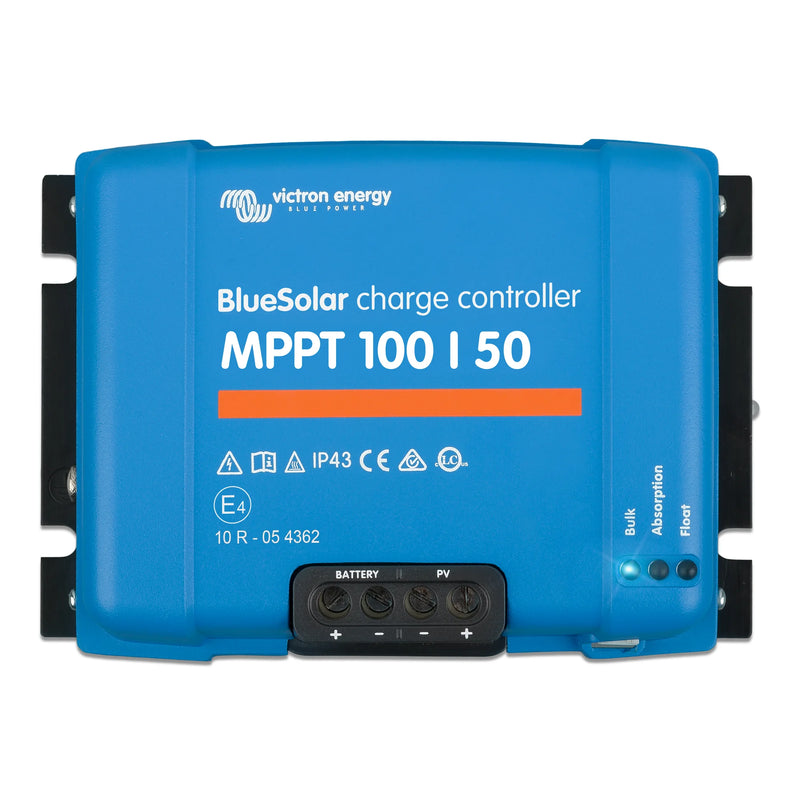

Victron BlueSolar MPPT 100/50 Solar Charge Controller 50A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Maximize the energy-harvest, driving it intelligently to achieve full charge in the shortest possible time using the BlueSolar MPPT 100/30 & 100/50.
This solar charge controller features screw terminals for both PV and battery connections, accommodating cables up to 16 mm² (6 AWG). With a compact design, it measures 186 mm in width, 130 mm in height, and 70 mm in depth.
The BlueSolar MPPT 100/50 is designed for durability with an IP22 protection category for the connection area and IP43 for electronic components. It operates efficiently in a wide temperature range from -30°C to 60°C and can handle a maximum PV open circuit voltage of 100V.
With a rated charge current of 50A, it supports nominal PV power of 700W at 12V and 1400W at 24V. The controller also features a multi-stage adaptive charge algorithm, adjustable charge voltage absorption and float settings, and a maximum efficiency of 98%.
Key Features
- Rated charge current: 50A
- Nominal PV power: 700W (12V) / 1400W (24V)
- Maximum efficiency: 98%
- IP22/IP43 protection for durability
- Wide operating temperature range: -30°C to 60°C
- Data communication via VE.Direct
Specifications
| Brand | Victron |
| EAN | 8719076025566 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Colour | Blue (RAL 5012) |
| Item Depth | 70 mm |
| Item Height | 130 mm |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Weight | 1.3 kg |
| Item Width | 186 mm |
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
| Maximum humidity (non-condensing) | 95 % |
| Maximum PV Open Circuit Voltage | 100 V |
| Maximum PV short circuit current per tracker | 60 A |
| Nominal PV power at 12 V | 700 W |
| Nominal PV power at 24 V | 1,400 W |
| Number of trackers | 1 |
| Operating temperature range | [-30, 60] °C |
| Protections | Excessive temperature,PV reverse polarity |
| Rated Charge Current | 50 A |
| Self-consumption | 12V: 30mA, 24V: 20mA |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Maximum efficiency | 98 % |
| Battery voltage | 12V / 24V ( |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V (adjustable) |
| Charge voltage float | 13.8V / 27.6V (adjustable) |
| Data Communication | VE.Direct |
| Manufacturer Part Number (MPN) | SCC020050200 |
