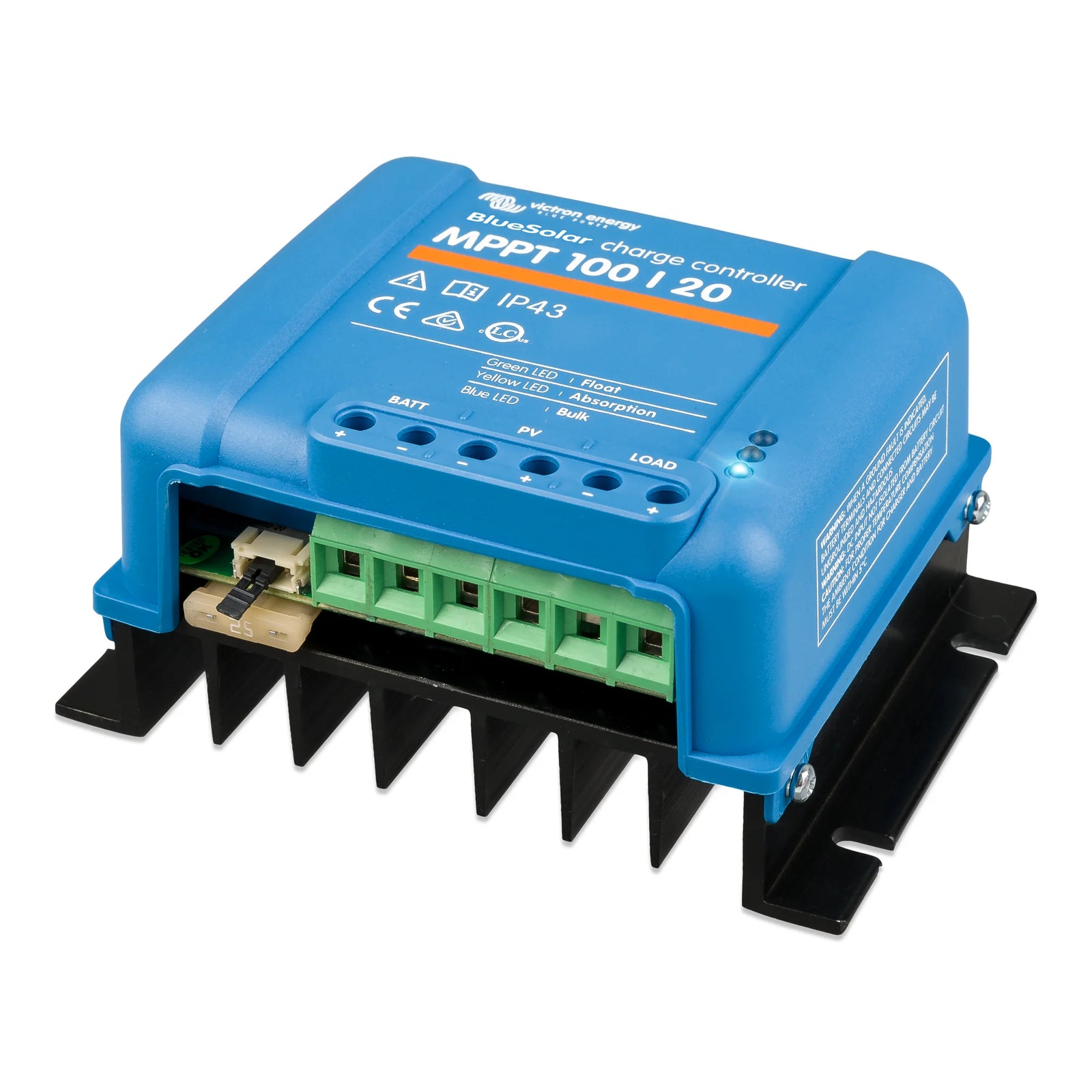

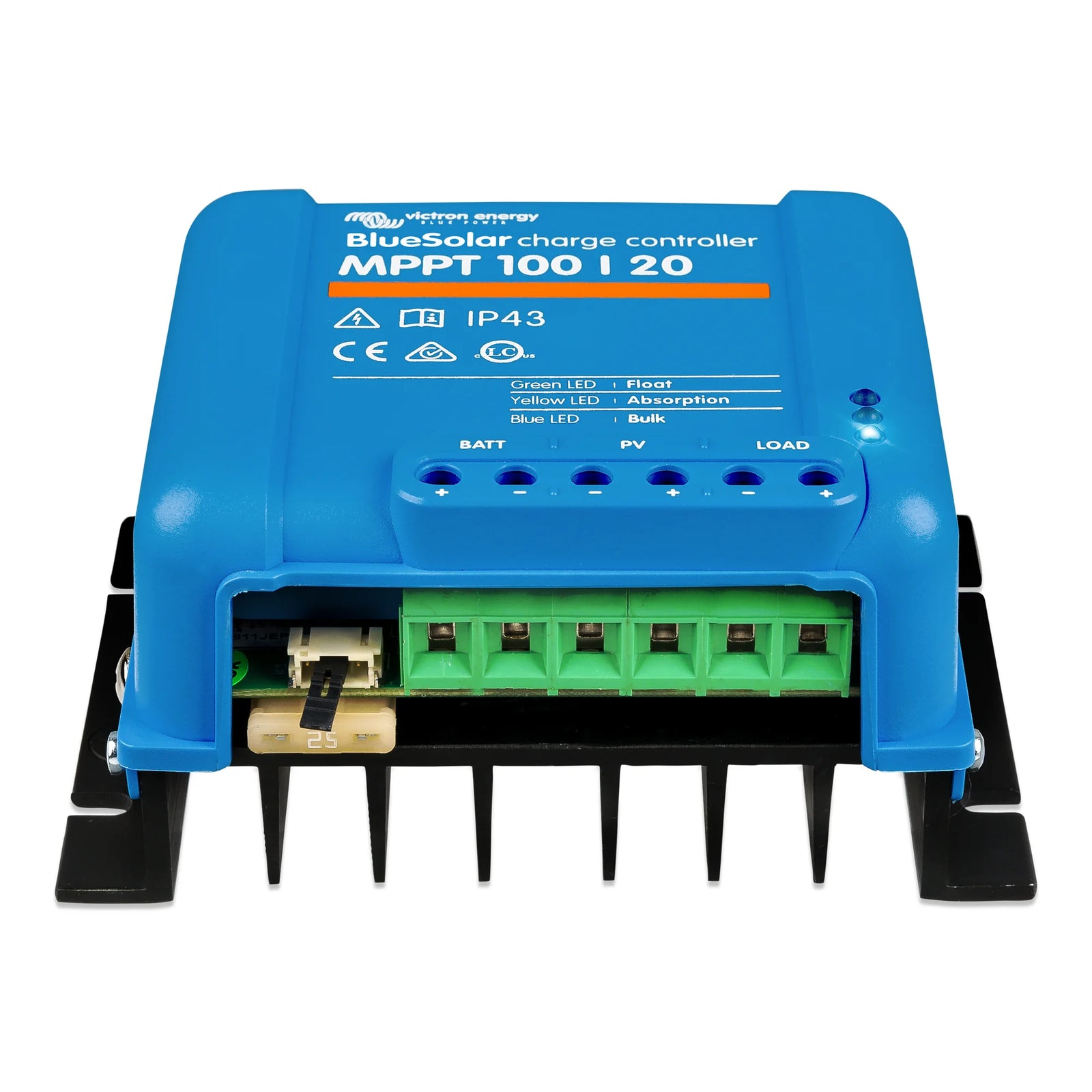

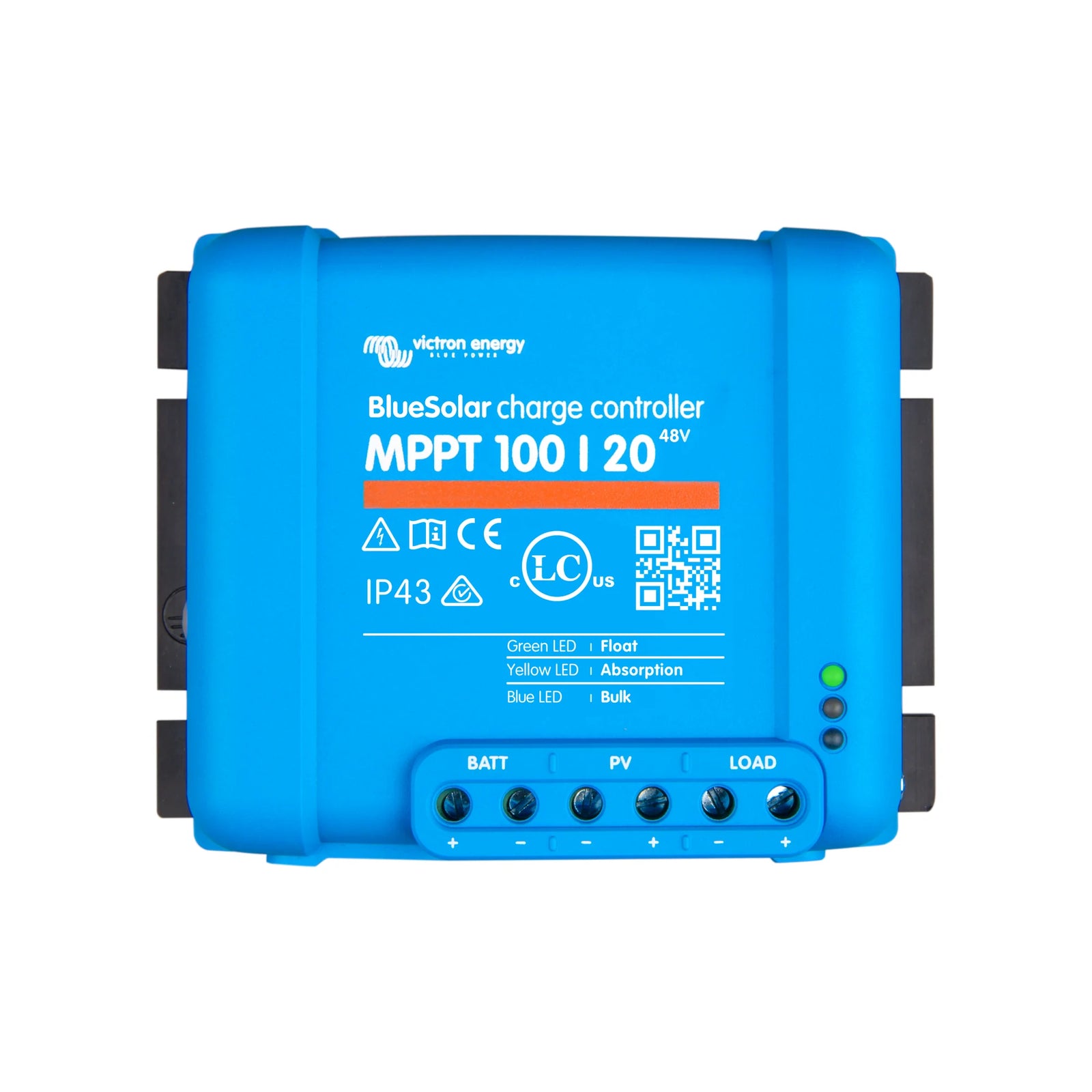

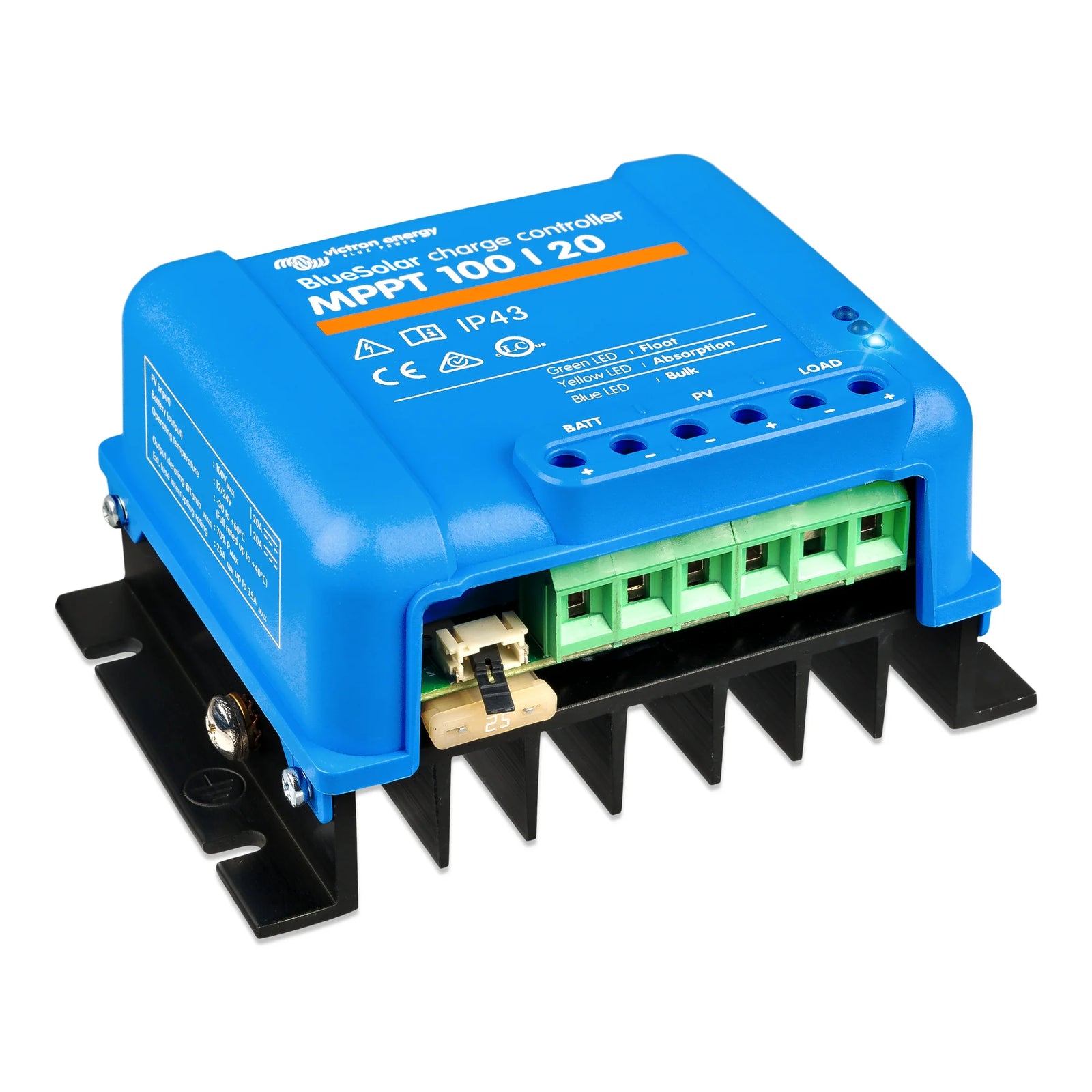

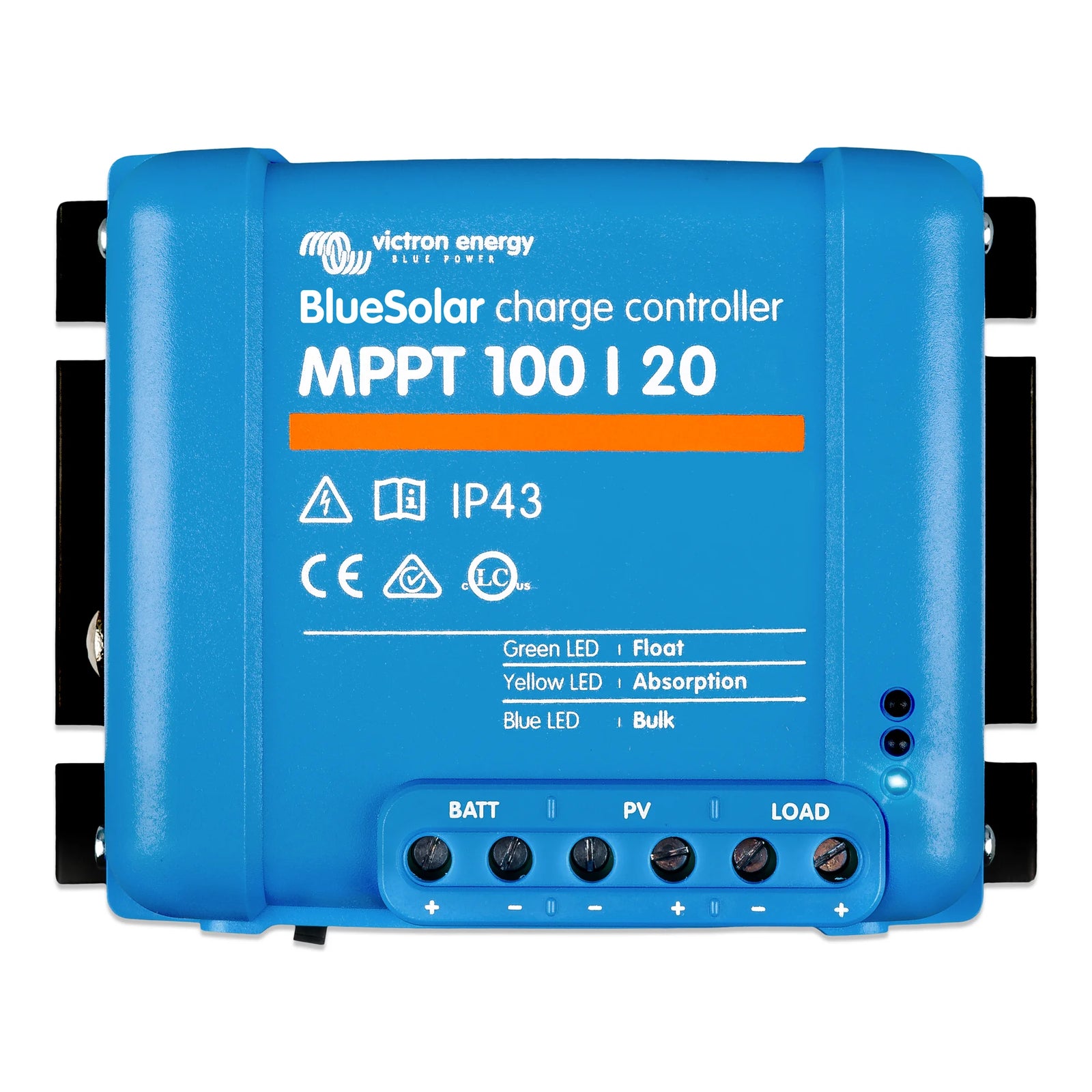

Victron BlueSolar MPPT 100/20 Solar Charge Controller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Maximize the energy-harvest, driving it intelligently to achieve full charge in the shortest possible time using the BlueSolar MPPT 100/20. This controller is designed for solar energy systems and supports various battery voltages including 12V, 24V, and 48V with automatic selection.

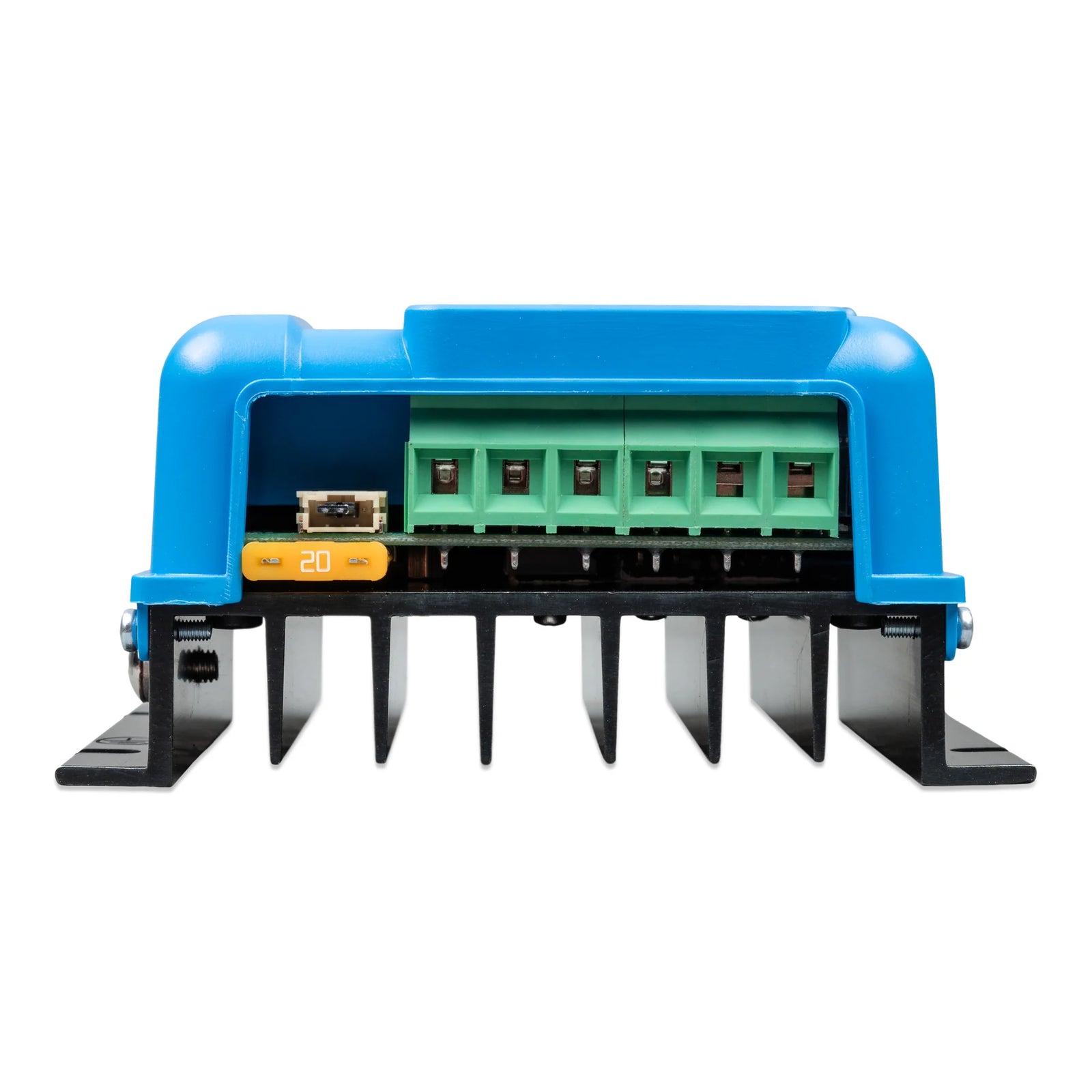

It features screw terminals for PV, load, and battery connections, ensuring secure and reliable connections. The unit is compact with dimensions of 131 mm in width, 60 mm in depth, and 100 mm in height, weighing only 0.65 kg.
The BlueSolar MPPT 100/20 has a maximum efficiency of 98% and provides protections against output short-circuit, excessive temperature, and PV reverse polarity. It operates efficiently in a wide temperature range from -30°C to 60°C.
Key Features
- Rated Charge Current: 20 A
- Nominal PV Power: Up to 1,160 W at 48 V
- Maximum PV Open Circuit Voltage: 100 V
- Protection Category: IP22 (connection area), IP43 (electronic components)
- Multi-stage adaptive charge algorithm
- Self-consumption: Low power usage when load is on or off
Specifications
| Brand | Victron |
| EAN | 8719076049845 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| PV connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Load connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Battery connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Item Width | 131 mm |
| Colour | Blue (RAL 5012) |
| Item Depth | 60 mm |
| Item Height | 100 mm |
| Weight | 0.65 kg |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
| Nominal PV power at 12 V | 290 W |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 12V | -16 mV/°C |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Self-consumption - load on | 12V: 26 mA / 24V: 20 mA / 48V: 19 mA |
| Self-consumption - load off | 12V: 10 mA / 24V: 8 mA / 48V: 7 mA |
| Rated Charge Current | 20 A |
| Protections | Automatic load disconnect,Output short-circuit,Excessive temperature,PV reverse polarity |
| Programable relay | empty |
| Operating temperature range | [-30, 60] °C |
| Number of trackers | 1 |
| Nominal PV power at 48 V | 1,160 W |
| Nominal PV power at 24 V | 580 W |
| Battery voltage | 12V / 24V / 48V (Auto Select) |
| Maximum PV short circuit current per tracker | 20 A |
| Maximum PV Open Circuit Voltage | 100 V |
| Maximum humidity (non-condensing) | 95 % |
| Maximum efficiency | 98 % |
| Max Continuous Load Current at 48V | 1 A |
| Max Continuous Load Current at 24V | 20 A |
| Max Continuous Load Current at 12V | 20 A |
| Low Voltage Load Reconnect | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm |
| Low Voltage Load Disconnect | 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm |
| Data Communication | VE.Direct |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Manufacturer Part Number (MPN) | SCC110020170R |
