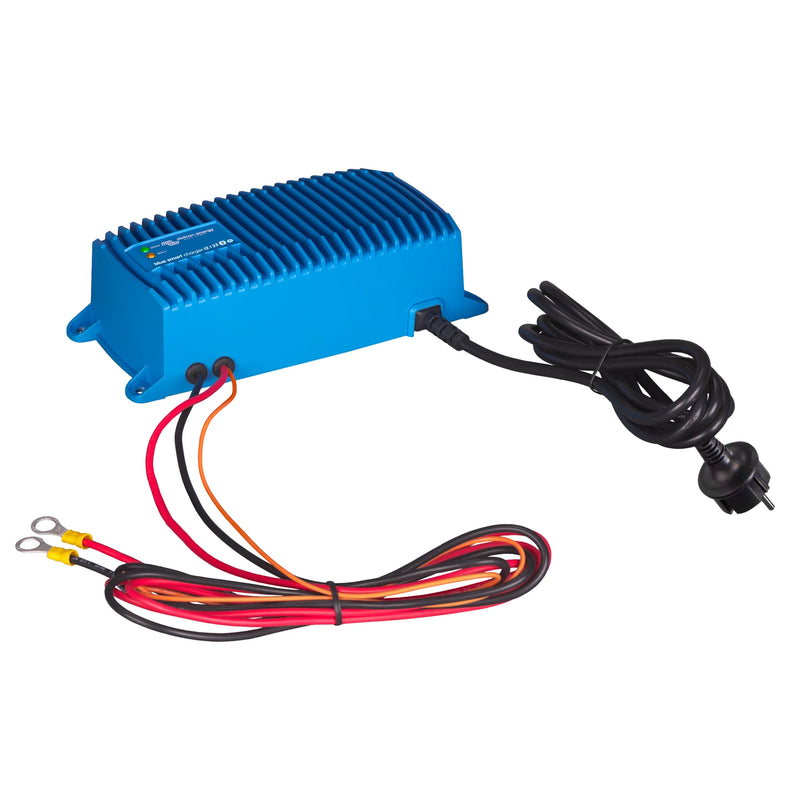

Victron Blue Smart IP67 Charger 24V 8A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. It features a cable of 1.8 meters (6 feet) with a US NEMA 5-15 plug for AC connection and a red and black 1.5 meter cable with M8 eyelets for battery connection.
This charger has a nominal battery voltage of 24V and can output a charge current of up to 8A, with a low mode charge current of 3A. It is designed to operate efficiently with an efficiency rating of 96% and is lithium compatible.
With a protection category of IP67, this charger is waterproof and can operate in temperatures ranging from -30 to 60 °C. It also features Bluetooth communication ports, allowing for easy monitoring and control.
Key Features
- Bluetooth connectivity for easy monitoring
- Waterproof design with IP67 protection
- Nominal battery voltage of 24V
- Charge current of 8A with low mode option
- High efficiency rating of 96%
- Compatible with lithium batteries
Specifications
| Brand | Victron |
| EAN | 8719076044864 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| AC connection terminal type | Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug |
| Battery connection terminal type | Red and black 1.5 meter cable with M8 eyelets |
| Item Width | 219 mm |
| Weight | 12.4 kg |
| Colour | Blue (RAL 5012) |
| Item Depth | 65 mm |
| Item Height | 99 mm |
| Protection category | IP67 |
| Material | Aluminium |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | CSA C22.2,EN-IEC 60335-1,EN-IEC 60335-2-29,UL 1236 |
| Operating temperature range | [-30, 60] °C |
| Derating per °C above 40°C | 3 % |
| Efficiency | 96 % |
| Lithium compatible | True |
| Maximum humidity (non-condensing) | 100 % |
| No-load power consumption | 0.5 W |
| Number of charge outputs | 1 |
| Communication Ports | Bluetooth |
| Ouput fully rated up to | 40 °C |
| Programable | True |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| Start interrupt option (Si) | No |
| Charge Current Low Mode | 3 A |
| AC input frequency range | [45, 65] Hz |
| AC input voltage Bucket | 120 V |
| AC input voltage range | [100, 135] VAC |
| Nominal battery voltage | 24 V |
| Bluetooth | True |
| Can be used as power supply | True |
| Charge algorithm | Adaptive, 5-stage |
| Charge Current Normal Mode (Nominal Value) | 8 A |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | BPC240815106 |
Downloads
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 17A 12V 25A 24V 8A 24V 12A (
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 7A 12V 13A 24V 5A (3D)
- Blue Smart Ip67 Chargers (1+Si) 2022 07 04
- 181363 Blue Smart Charger Pdf En
- Datasheet Blue Smart Ip67 Charger 120Vac En
- Datasheet Blue Smart Ip67 Charger 230Vac En
