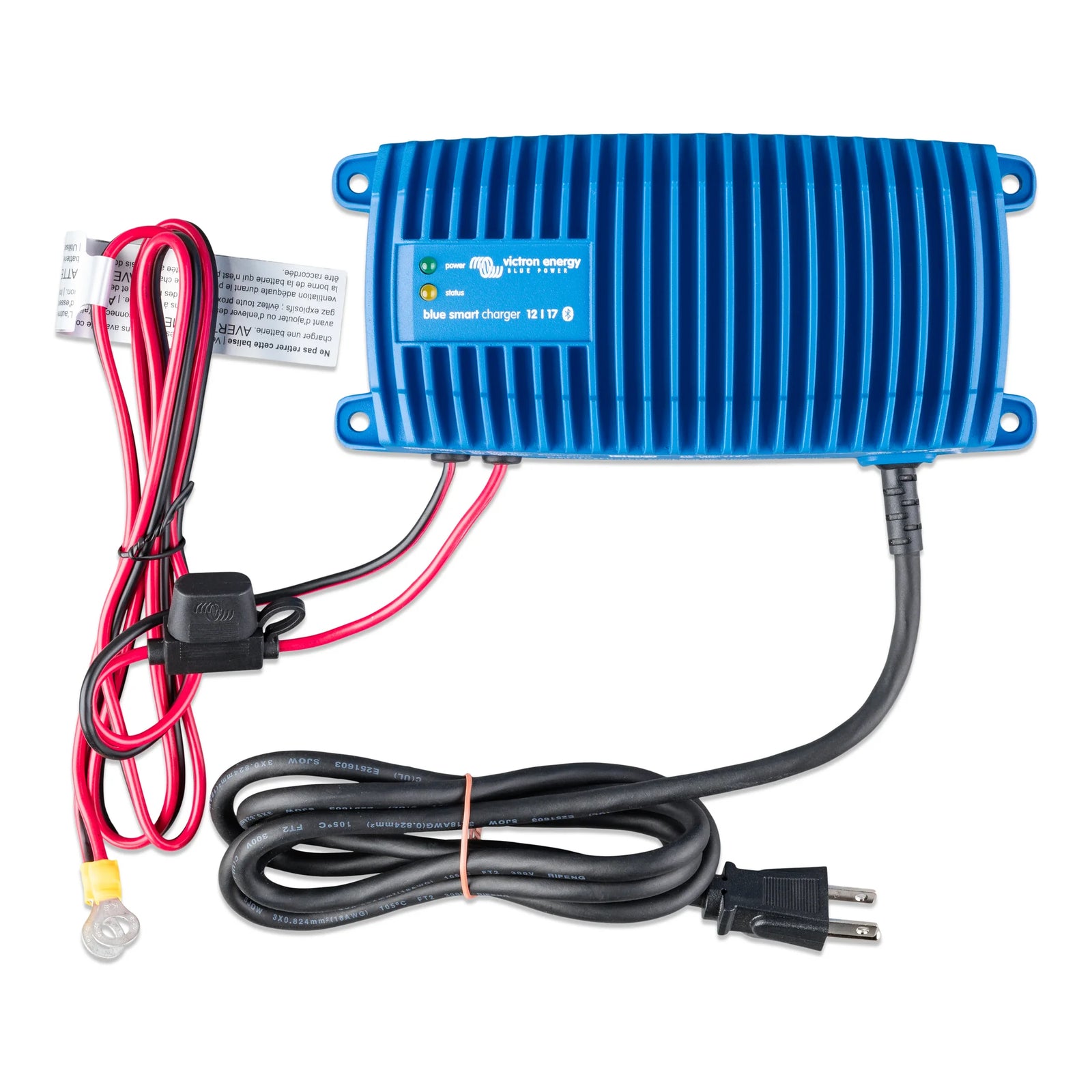

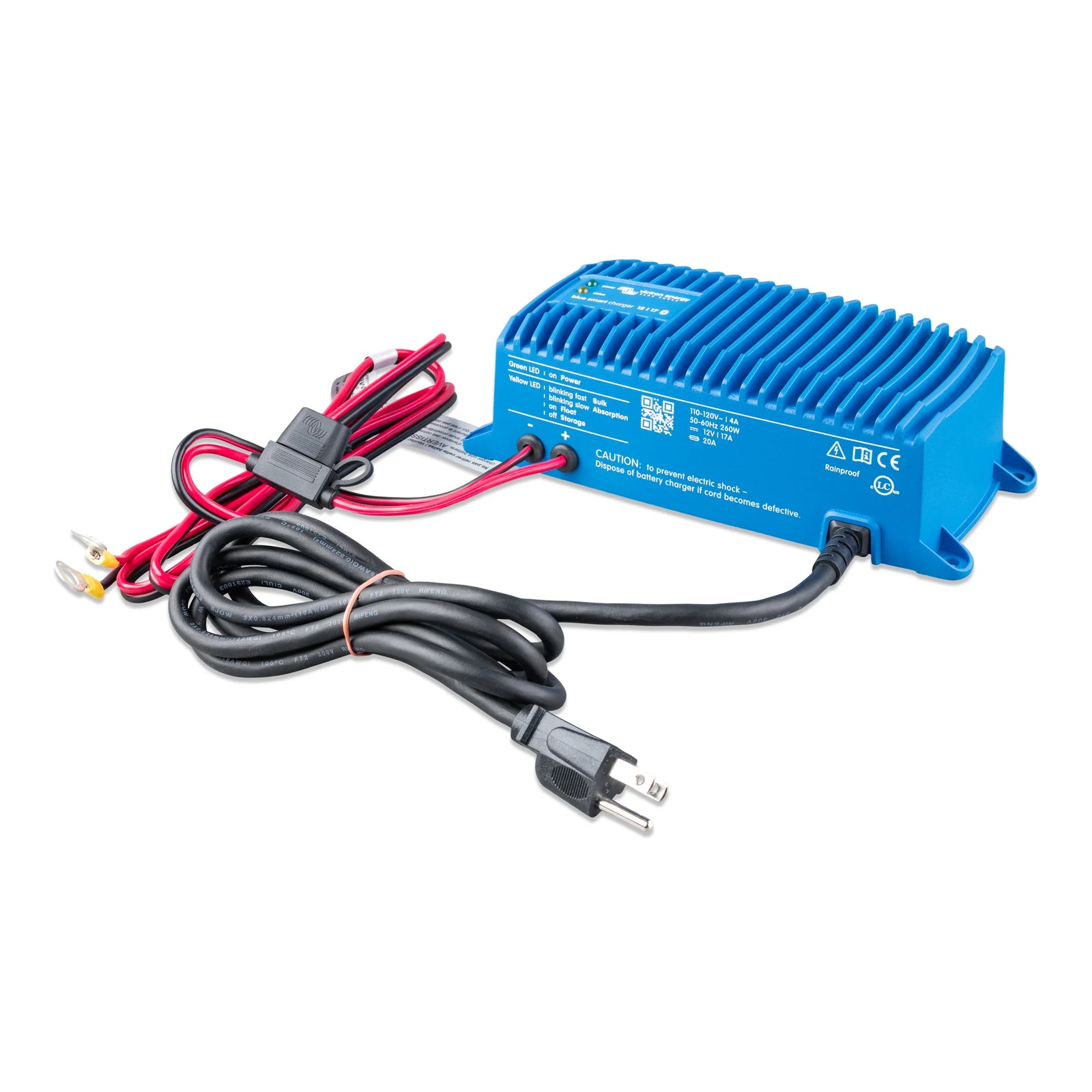

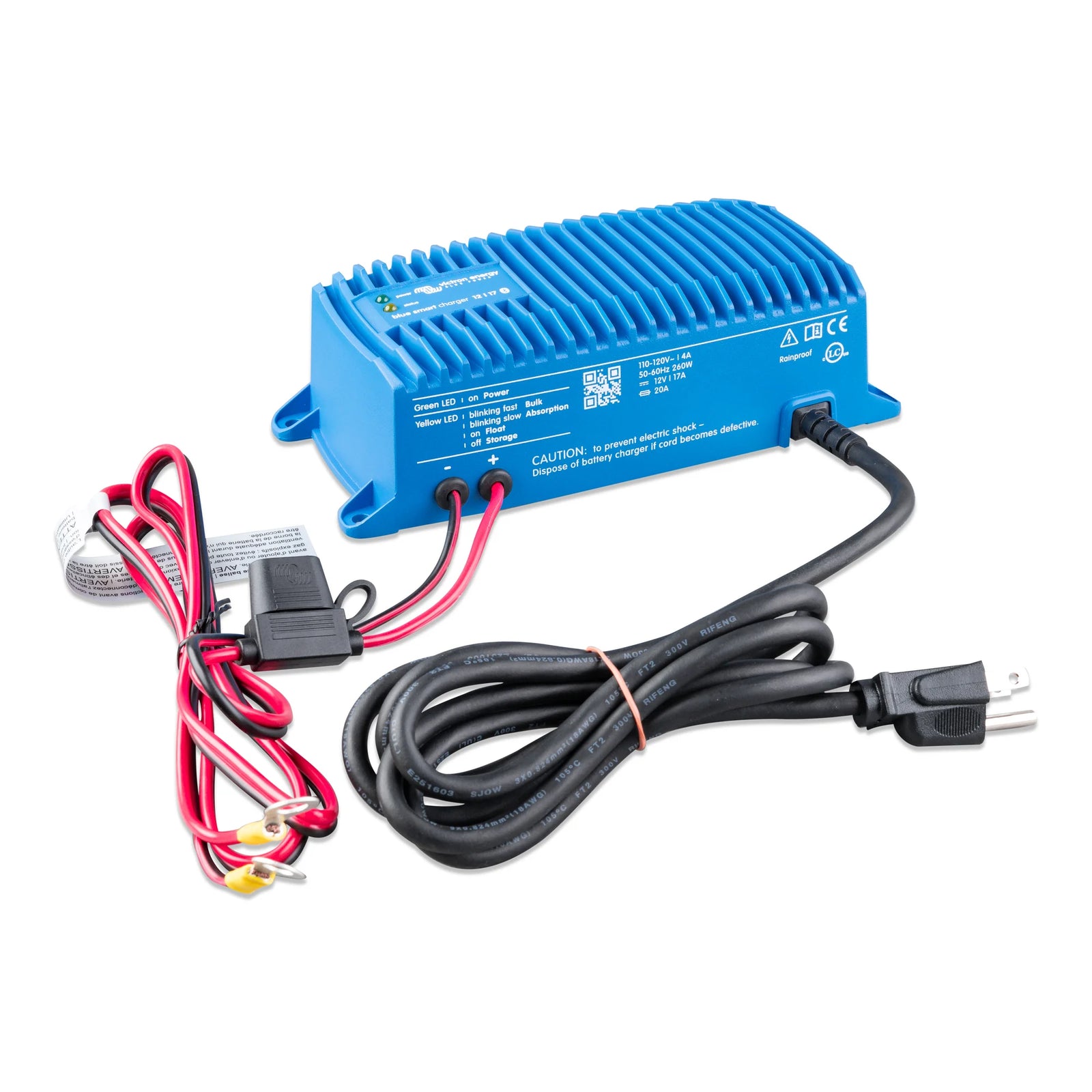

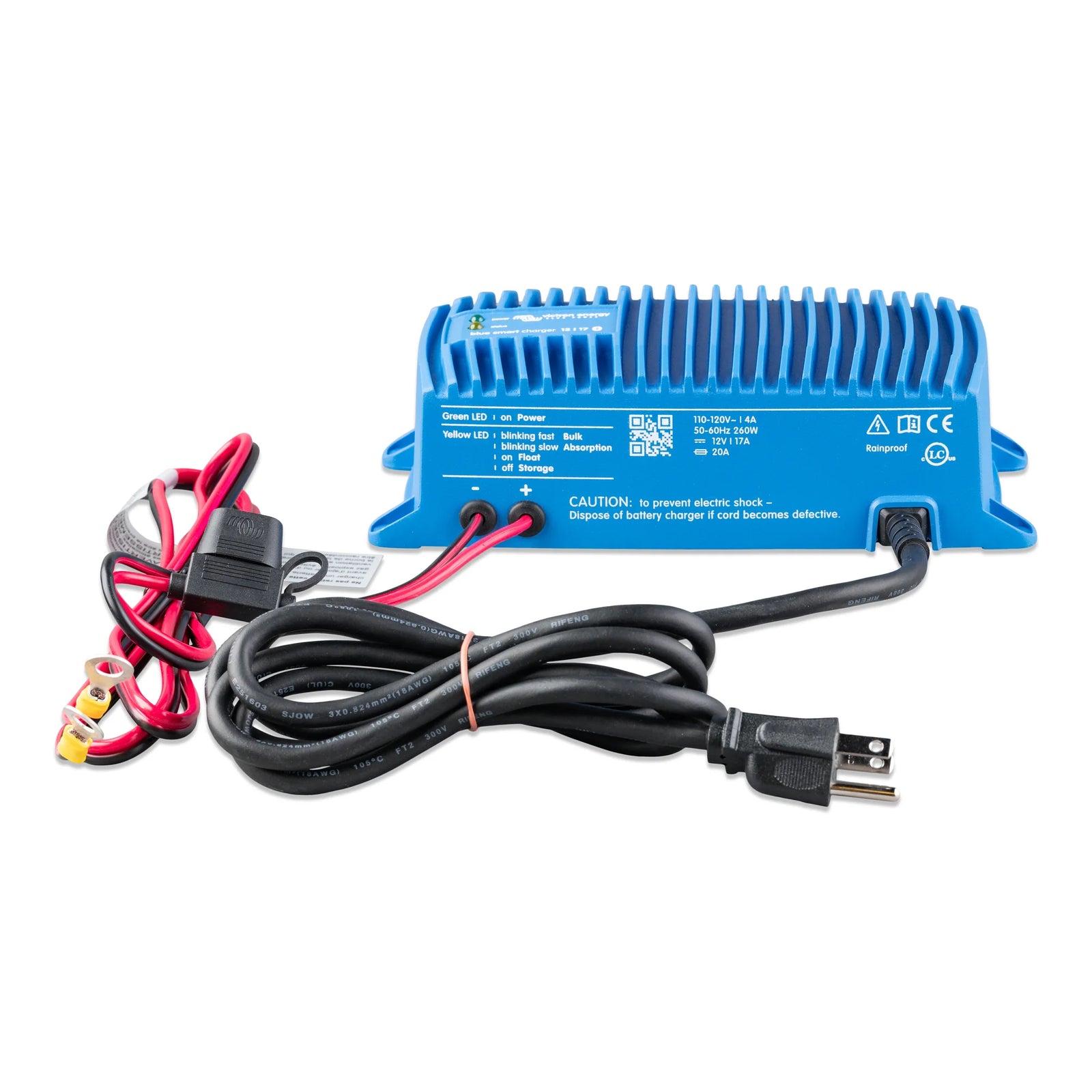

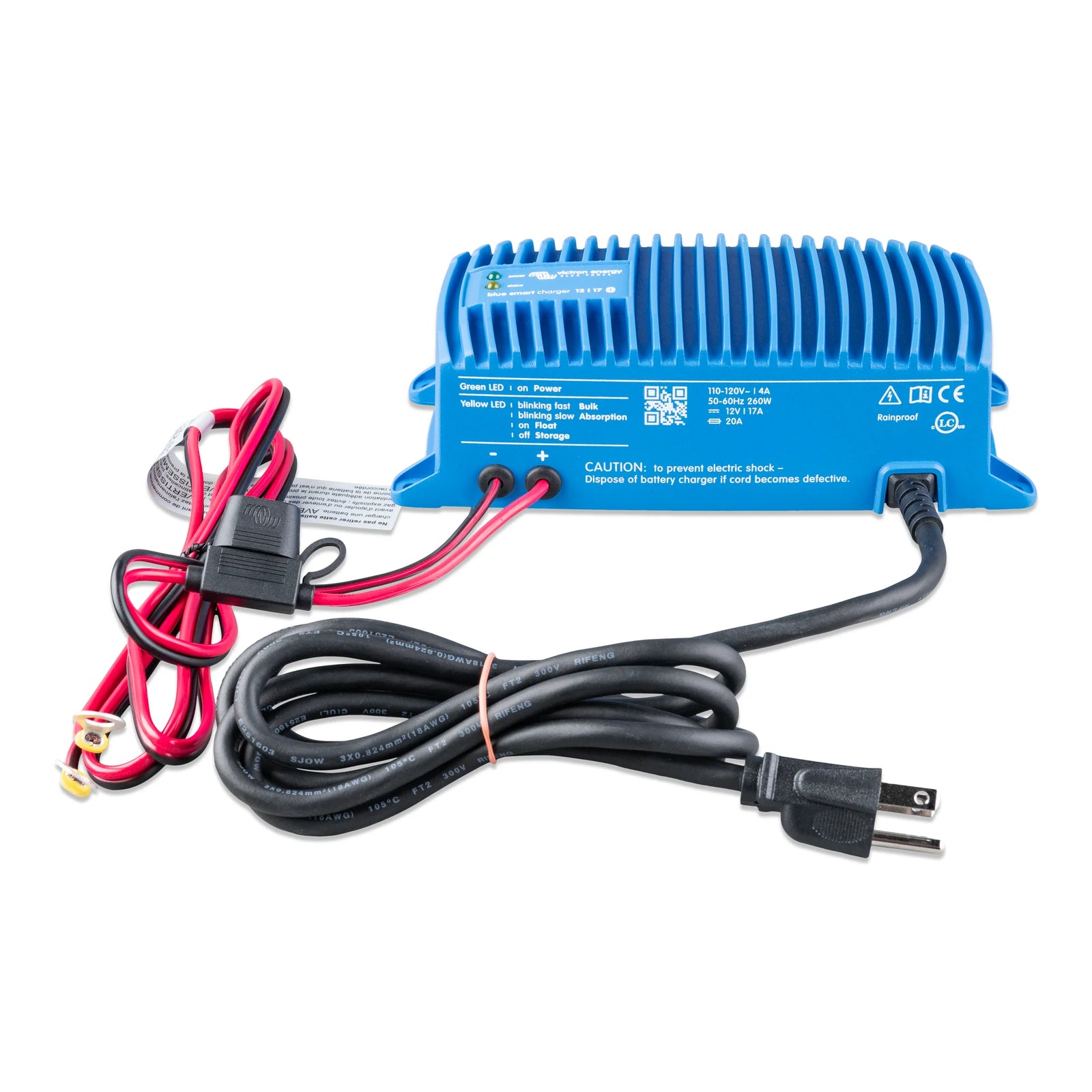

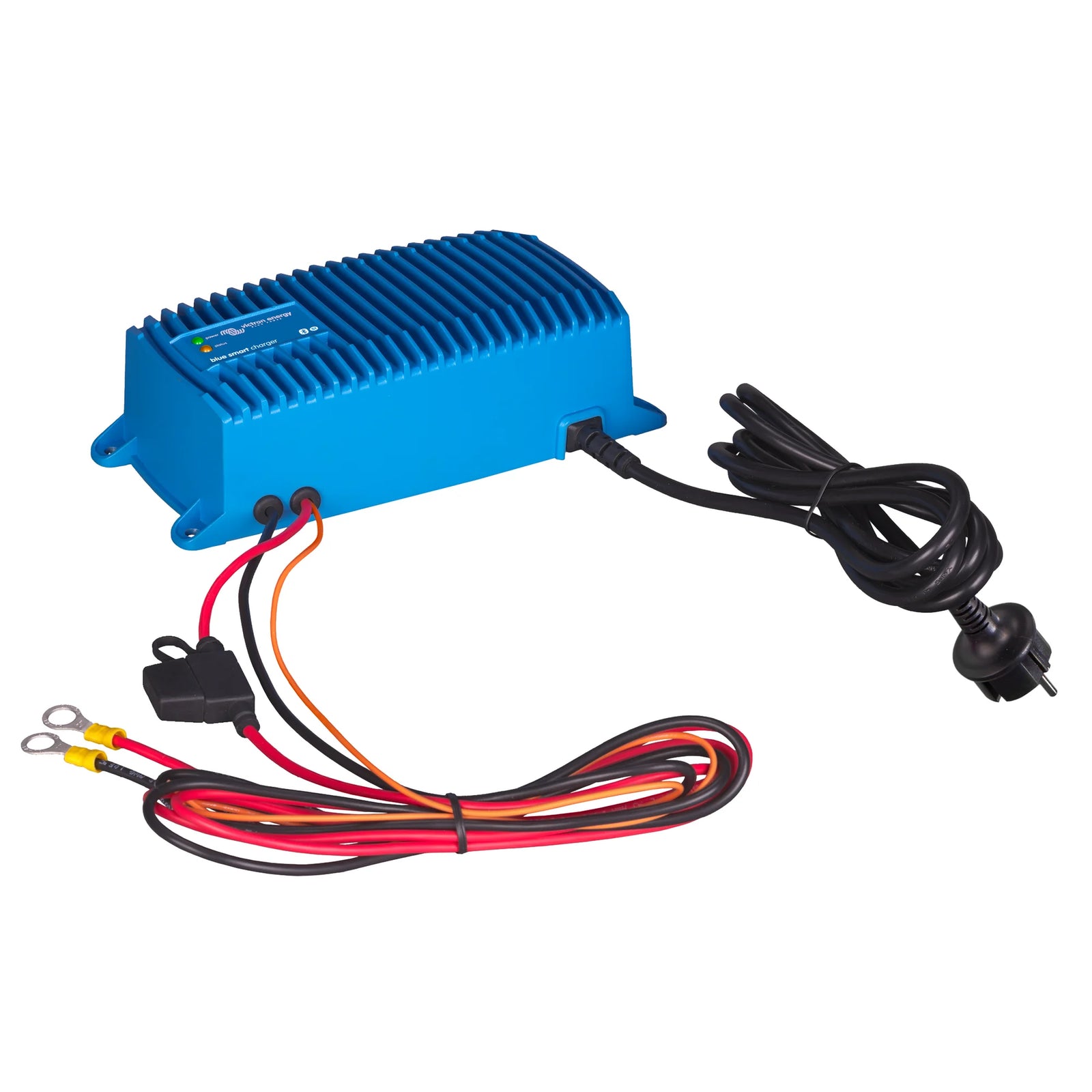

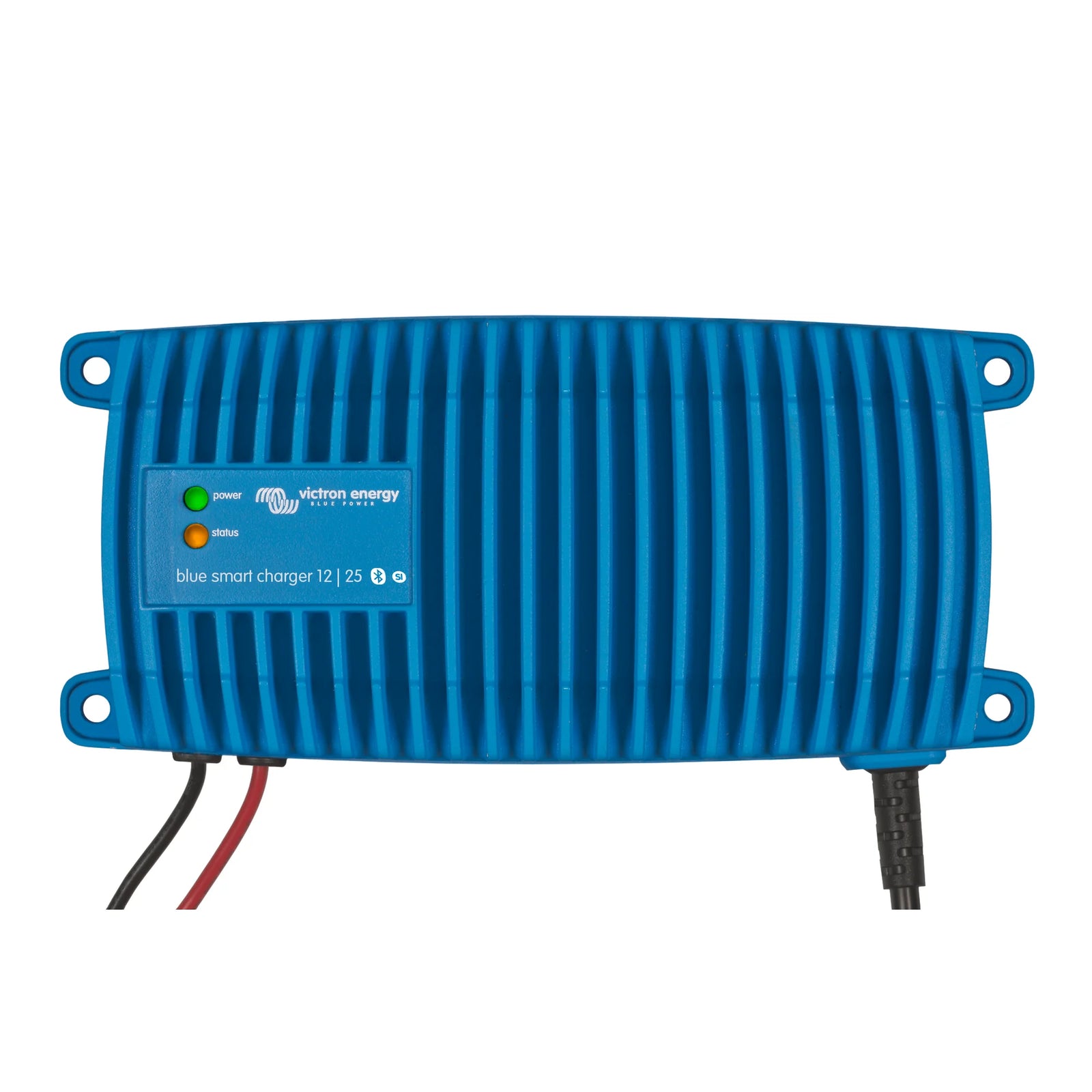

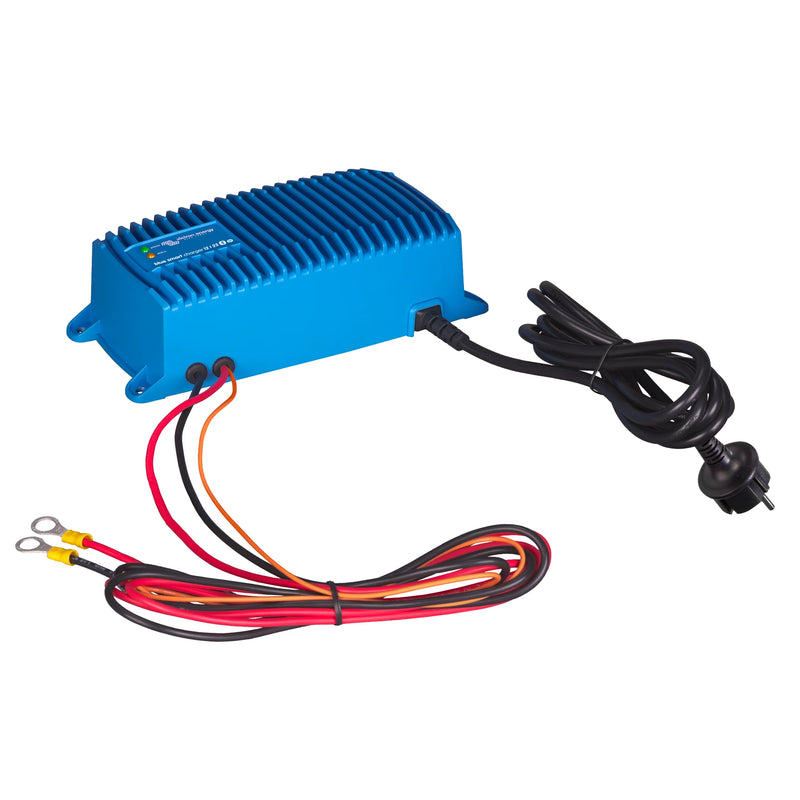

Victron Blue Smart IP67 Charger 24V 8A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. This charger is designed for 24V batteries and features a robust aluminium construction, ensuring durability and reliability in various environments.
It comes with a 1.5 meter red and black cable with M8 eyelets for battery connection and a 1.5 meter cable with a BS 1363 plug for AC connection. The charger operates efficiently with a charge current of 8A in normal mode and is programmable to suit your specific charging needs.
With an IP67 protection category, this charger is waterproof and can withstand harsh conditions. It also features multiple safety protections including battery reverse polarity, output short-circuit, and over-temperature safeguards.
Key Features
- Bluetooth connectivity for easy monitoring and control
- IP67 waterproof rating for outdoor use
- Adaptive 5-stage charge algorithm for optimal battery care
- Programmable settings for customized charging
- Compatible with lithium batteries
- High efficiency rating of 96%
Specifications
| Brand | Victron |
| EAN | 8719076038276 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| Battery connection terminal type | Red and black 1.5 meter cable with M8 eyelets |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Colour | Blue (RAL 5012) |
| Item Depth | 65 mm |
| Item Height | 99 mm |
| Material | Aluminium |
| Protection category | IP67 |
| Weight | 2.4 kg |
| Item Width | 219 mm |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Communication Ports | Bluetooth |
| Derating per °C above 40°C | 3 % |
| Efficiency | 96 % |
| Lithium compatible | True |
| Maximum humidity (non-condensing) | 100 % |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| No-load power consumption | 0.5 W |
| Number of charge outputs | 1 |
| Operating temperature range | [-30, 60] °C |
| Ouput fully rated up to | 40 °C |
| Programable | True |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| AC input voltage Bucket | 230 V |
| AC input frequency range | [45, 65] Hz |
| AC input voltage range | [180, 265] VAC |
| Nominal battery voltage | 24 V |
| Bluetooth | True |
| Can be used as power supply | True |
| Charge algorithm | Adaptive, 5-stage |
| Charge Current Low Mode | 3 A |
| Charge Current Normal Mode (Nominal Value) | 8 A |
| Start interrupt option (Si) | No |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | BPC240813006 |
Downloads
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 17A 12V 25A 24V 8A 24V 12A (
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 7A 12V 13A 24V 5A (3D)
- Blue Smart Ip67 Chargers (1+Si) 2022 07 04
- 181363 Blue Smart Charger Pdf En
- Datasheet Blue Smart Ip67 Charger 120Vac En
- Datasheet Blue Smart Ip67 Charger 230Vac En
