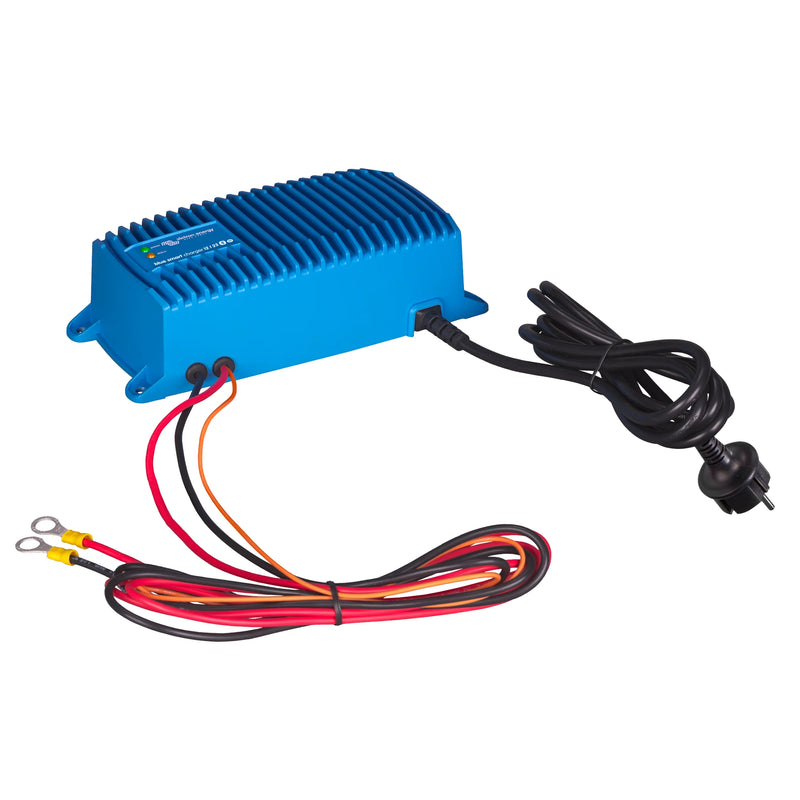

Victron Blue Smart IP67 Charger 24V 12A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. This charger is designed for 24V batteries and features a robust IP67 protection rating, making it suitable for outdoor use.
It includes a 1.5 meter cable with a BS 1363 plug (UK) for AC connection and a 1.5 meter red and black cable with M8 eyelets for battery connection. The charger has a width of 219 mm, a height of 99 mm, and a depth of 65 mm, weighing 2.4 kg.
With an efficiency of 96%, this charger is equipped with an adaptive 5-stage charge algorithm and can be used as a power supply. It is also lithium compatible and features Bluetooth communication for easy monitoring.
Key Features
- IP67 waterproof rating for outdoor durability
- Bluetooth connectivity for remote monitoring
- Adaptive 5-stage charging algorithm
- Compatible with lithium batteries
- High efficiency of 96%
- Operating temperature range from -30°C to 60°C
Specifications
| Brand | Victron |
| EAN | 8719076052449 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Battery connection terminal type | Red and black 1.5 meter cable with M8 eyelets |
| Item Width | 219 mm |
| Weight | 2.4 kg |
| Colour | Blue (RAL 5012) |
| Protection category | IP67 |
| Item Height | 99 mm |
| Material | Aluminium |
| Item Depth | 65 mm |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Nominal battery voltage | 24 V |
| No-load power consumption | 0.5 W |
| Maximum humidity (non-condensing) | 100 % |
| Lithium compatible | True |
| AC input frequency range | [45, 65] Hz |
| AC input voltage Bucket | 230 V |
| AC input voltage range | [180, 265] VAC |
| Efficiency | 96 % |
| Bluetooth | True |
| Can be used as power supply | True |
| Charge algorithm | Adaptive, 5-stage |
| Derating per °C above 40°C | 3 % |
| Charge Current Low Mode | 4 A |
| Charge Current Normal Mode (Nominal Value) | 12 A |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| Communication Ports | Bluetooth |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Programable | True |
| Start interrupt option (Si) | No |
| Protections | AC voltage on inverter output,Output short-circuit,Over temperature |
| Ouput fully rated up to | 40 °C |
| Operating temperature range | [-30, 60] °C |
| Number of charge outputs | 1 |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | BPC241247006 |
