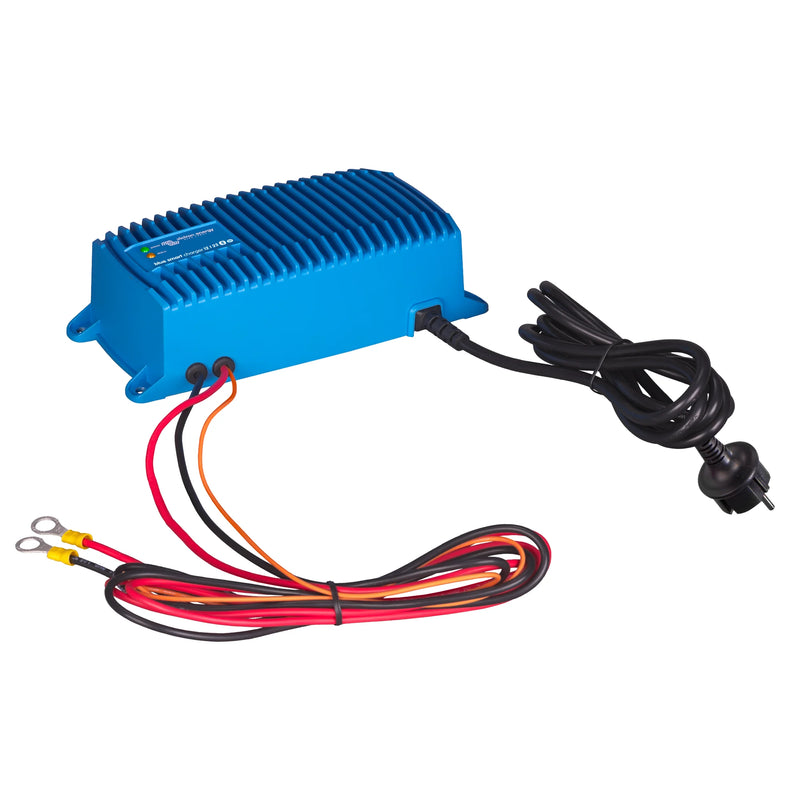

Victron Blue Smart IP67 Charger 12V 25A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in bluetooth. It is designed for charging 12V batteries efficiently and safely.
This charger features a robust aluminium casing, ensuring durability and protection against water and dust with an IP67 rating. It includes a 1.5-meter cable with a BS 1363 plug for easy connection to AC power.
With a charge current of 25A in normal mode and a low mode of 10A, it is programmable and supports a variety of charging voltages for different battery types, including lithium. The charger operates efficiently with a 95% efficiency rating and is capable of functioning in a wide temperature range.
Key Features
- Bluetooth connectivity for easy monitoring and control.
- IP67 waterproof and dustproof rating for outdoor use.
- Adaptive 5-stage charge algorithm for optimal battery care.
- Programmable settings to customize charging preferences.
- Compatible with lithium batteries.
- Multiple protections including reverse polarity and short-circuit protection.
Specifications
| Brand | Victron |
| EAN | 8719076041313 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Battery connection terminal type | Red and black 1.5 meter cable with M8 eyelets |
| Material | Aluminium |
| Item Width | 219 mm |
| Weight | 2.4 kg |
| Protection category | IP67 |
| Item Height | 99 mm |
| Item Depth | 65 mm |
| Colour | Blue (RAL 5012) |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Lithium compatible | True |
| Maximum humidity (non-condensing) | 100 % |
| No-load power consumption | 0.5 W |
| Number of charge outputs | 1 |
| Operating temperature range | [-30, 60] °C |
| Ouput fully rated up to | 40 °C |
| Programable | True |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| Start interrupt option (Si) | Short circuit proof, 1V below main output, 0.5A current limit |
| Efficiency | 95 % |
| AC input voltage range | [180, 265] VAC |
| AC input frequency range | [45, 65] Hz |
| AC input voltage Bucket | 230 V |
| Nominal battery voltage | 12 V |
| Bluetooth | True |
| Can be used as power supply | True |
| Charge algorithm | Adaptive, 5-stage |
| Charge Current Low Mode | 10 A |
| Charge Current Normal Mode (Nominal Value) | 25 A |
| Charge voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge voltage float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge voltage storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Communication Ports | Bluetooth |
| Derating per °C above 40°C | 3 % |
| Voltage | 12V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BPC122514006 |
Downloads
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 17A 12V 25A 24V 8A 24V 12A (
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 7A 12V 13A 24V 5A (3D)
- Blue Smart Ip67 Chargers (1+Si) 2022 07 04
- 181363 Blue Smart Charger Pdf En
- Datasheet Blue Smart Ip67 Charger 120Vac En
- Datasheet Blue Smart Ip67 Charger 230Vac En
