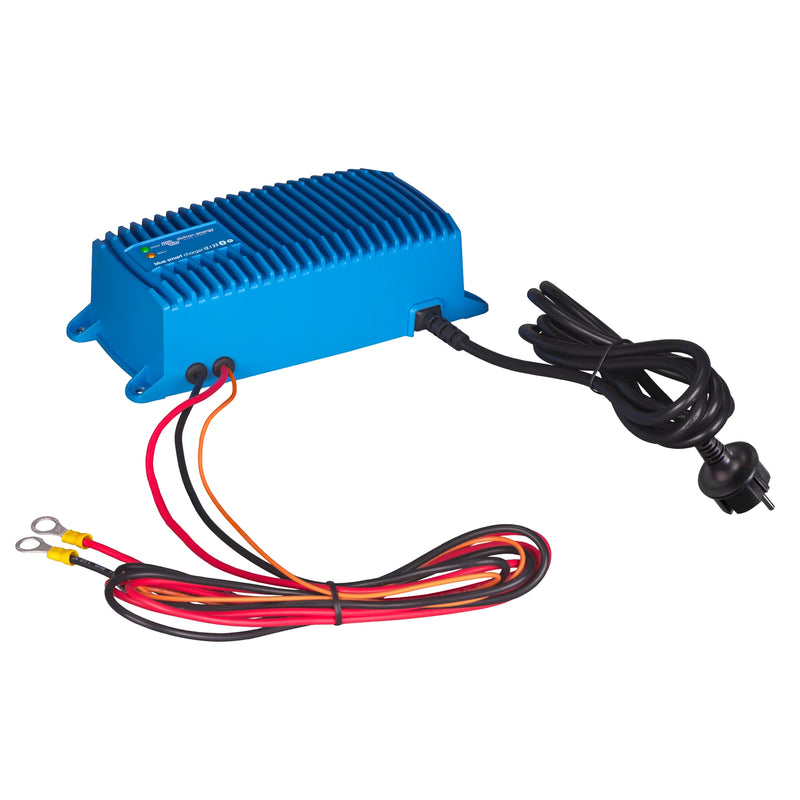

Victron Blue Smart IP67 Charger 12V 25A 230V UK
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. It is designed to efficiently charge and maintain your batteries, ensuring optimal performance.
This charger features a 1.5 meter red and black cable with M8 eyelets for battery connection and a 1.5 meter cable for AC connection. With a compact size of 219 mm width, 99 mm height, and 65 mm depth, it is easy to install in various locations.
Constructed from durable aluminium, the charger is rated IP67 for protection against dust and water, making it suitable for outdoor use. It operates efficiently within a temperature range of -30 to 60 °C and is compatible with lithium batteries.
Key Features
- Bluetooth connectivity for easy monitoring and control
- Adaptive 5-stage charge algorithm for optimal battery care
- IP67 rated for waterproof and dustproof performance
- Compatible with lithium batteries
- High efficiency of 95%
- Multiple safety protections including short-circuit and over-temperature
Specifications
| Brand | Victron |
| EAN | 8719076055334 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| Battery connection terminal type | Red and black 1.5 meter cable with M8 eyelets |
| AC connection terminal type | Cable of 1,5 meter with |
| Item Width | 219 mm |
| Weight | 2.4 kg |
| Protection category | IP67 |
| Material | Aluminium |
| Item Height | 99 mm |
| Item Depth | 65 mm |
| Colour | Blue (RAL 5012) |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Ouput fully rated up to | 40 °C |
| Programable | True |
| Protections | AC voltage on inverter output,Output short-circuit,Over temperature |
| Start interrupt option (Si) | No |
| Operating temperature range | [-30, 60] °C |
| Charge Current Low Mode | 10 A |
| AC input frequency range | [45, 65] Hz |
| AC input voltage Bucket | 230 V |
| AC input voltage range | [180, 265] VAC |
| Nominal battery voltage | 12 V |
| Bluetooth | True |
| Can be used as power supply | True |
| Charge algorithm | Adaptive, 5-stage |
| Charge Current Normal Mode (Nominal Value) | 25 A |
| Charge voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge voltage float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge voltage storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Communication Ports | Bluetooth |
| Derating per °C above 40°C | 3 % |
| Efficiency | 95 % |
| Lithium compatible | True |
| Maximum humidity (non-condensing) | 100 % |
| No-load power consumption | 0.5 W |
| Number of charge outputs | 1 |
| Voltage | 12V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BPC122547026 |
Downloads
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 17A 12V 25A 24V 8A 24V 12A (
- Blue Smart Ip67 Charger Blue Power Ip67 Charger 12V 7A 12V 13A 24V 5A (3D)
- Blue Smart Ip67 Chargers (1+Si) 2022 07 04
- 181363 Blue Smart Charger Pdf En
- Datasheet Blue Smart Ip67 Charger 120Vac En
- Datasheet Blue Smart Ip67 Charger 230Vac En
