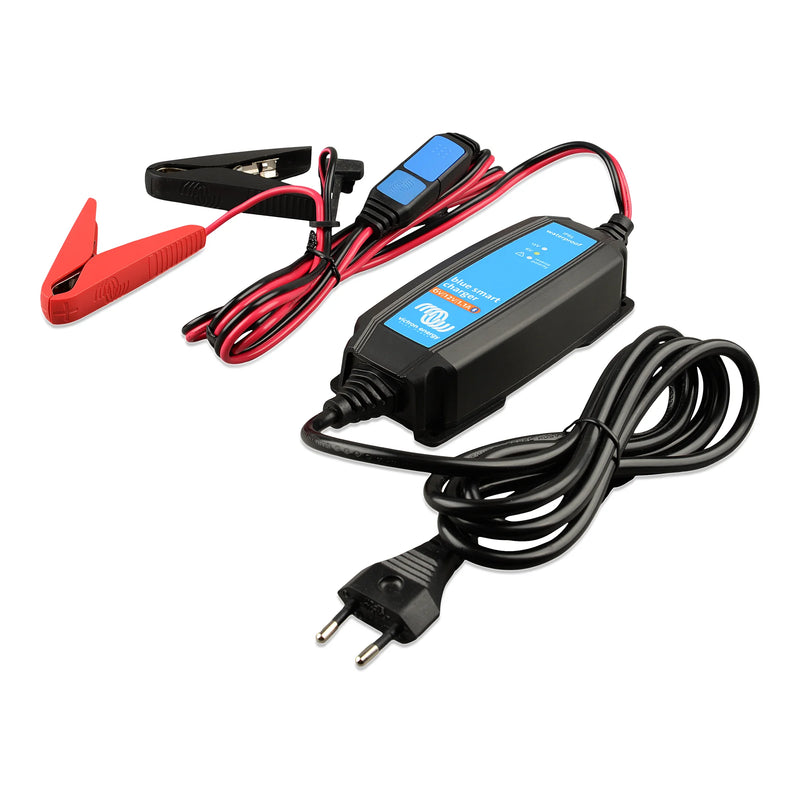

Victron Blue Smart IP65 Charger 24V 8A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. It is designed for 24V batteries and features a range of advanced specifications to ensure efficient charging.
Battery connection is facilitated through a red and black 1.5 meter cable with plugable M8 eyelets or clamps, while the AC connection uses a 1.5 meter cable with a BS 1363 plug (UK). The charger is protected with an IP65 rating, making it suitable for various environments.
Weighing only 0.9 kg, the charger measures 105 mm in width, 190 mm in depth, and 60 mm in height. It complies with safety standards EN-IEC 60335-1 and EN-IEC 60335-2-29, ensuring reliable operation.
With an adaptive 7-stage charge algorithm, this charger is not only efficient but also compatible with lithium batteries. It features Bluetooth connectivity for monitoring and control from your smartphone.
Key Features
- Bluetooth connectivity for easy monitoring
- Adaptive 7-stage charging algorithm
- IP65 protection for durability
- Compatible with lithium batteries
- Lightweight and compact design
- Multiple safety protections including reverse polarity
Specifications
| Brand | Victron |
| EAN | 8719076040699 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| Battery connection terminal type | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Protection category | IP65 |
| Weight | 0.9 kg |
| Item Width | 105 mm |
| Item Depth | 190 mm |
| Item Height | 60 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| AC input frequency range | [45, 65] Hz |
| Charge algorithm | Adaptive, 7-stage |
| Bluetooth | Yes, -4dBm, 2402 – 2480 MHz |
| Nominal battery voltage | 24 V |
| Back current drain per month | 0.7 Ah/mo |
| Back current drain | 1 mA |
| AC input voltage range | [180, 265] VAC |
| AC input voltage Bucket | 230 V |
| Programable | True |
| Power supply mode | True |
| Ouput fully rated up to | 30 °C |
| Operating temperature range | [-40, 60] °C |
| Number of charge outputs | 1 |
| Maximum humidity (non-condensing) | 95 % |
| Lithium compatible | True |
| Protections | Battery reverse polarity,Output short-circuit,Over temperature |
| Efficiency | 95 % |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| Charge Current Normal Mode (Nominal Value) | 8 A |
| Temperature compensation (adjustable) | -32 mV/°C |
| Standby power consumption | 0.5 W |
| Charge Current Low Mode | 3 A |
| Voltage | 24V |
| Colour | Blue |
| Manufacturer Part Number (MPN) | BPC240831024R |
