Victron Blue Smart IP65 Charger 24V 13A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

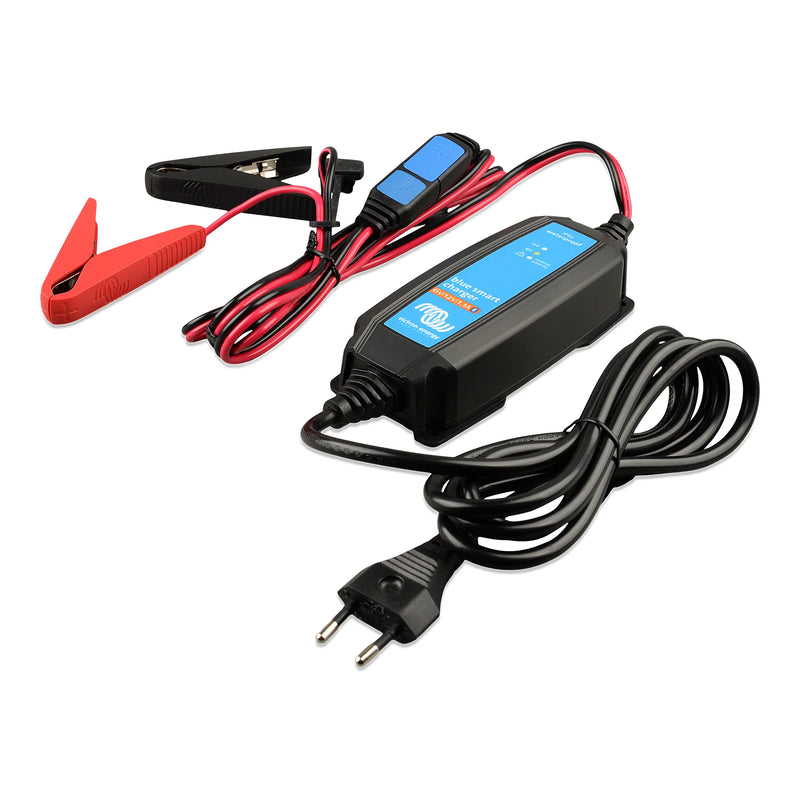

The Blue Smart IP65 Charger is the new professional battery charger with built-in bluetooth. It features a robust design and is suitable for various battery types, including lithium batteries.
With a charge current of 13 A in normal mode and 4 A in low mode, this charger is designed to efficiently charge your batteries while maintaining safety and performance. The charger operates within a temperature range of -40 to 60 °C and has a protection category of IP65, making it resistant to dust and water.
It includes a 1.5 meter cable with a BS 1363 plug for AC connection and comes with red and black 1.5 meter cables for battery connection, which can be fitted with plugable M8 eyelets or clamps.
The charger is programmable and features an adaptive 7-stage charge algorithm, ensuring optimal charging for your batteries.
Key Features
- Bluetooth connectivity for easy monitoring and control
- IP65 protection category for water and dust resistance
- Adaptive 7-stage charge algorithm for efficient battery charging
- Compatible with lithium batteries
- Operating temperature range from -40 to 60 °C
- Includes 1.5 meter AC and battery connection cables
Specifications
| Brand | Victron |
| EAN | 8719076051589 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Battery connection terminal type | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
| Item Depth | 240 mm |
| Item Height | 75 mm |
| Protection category | IP65 |
| Weight | 1.9 kg |
| Item Width | 104 mm |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Temperature compensation (adjustable) | -32 mV/°C |
| Standby power consumption | 0.5 W |
| Protections | Battery reverse polarity,Output short-circuit,Over temperature |
| Programable | True |
| Power supply mode | True |
| Back current drain per month | 0.7 Ah/mo |
| Back current drain | 1 mA |
| AC input voltage range | [180, 265] VAC |
| AC input voltage Bucket | 230 V |
| AC input frequency range | [45, 65] Hz |
| Nominal battery voltage | 24 V |
| Efficiency | 95 % |
| Ouput fully rated up to | 30 °C |
| Operating temperature range | [-40, 60] °C |
| Number of charge outputs | 1 |
| Maximum humidity (non-condensing) | 95 % |
| Lithium compatible | True |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| Charge Current Normal Mode (Nominal Value) | 13 A |
| Charge Current Low Mode | 4 A |
| Charge algorithm | Adaptive, 7-stage |
| Bluetooth | Yes, -4dBm, 2402 – 2480 MHz |
| Voltage | 24V |
| Colour | Blue |
| Manufacturer Part Number (MPN) | BPC241331024 |
