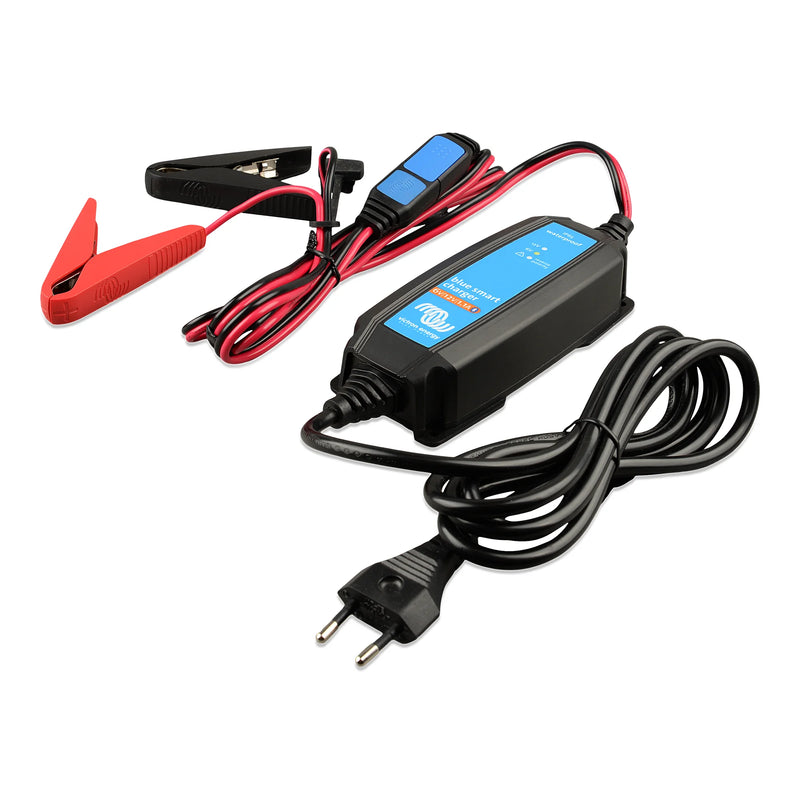

Victron Blue Smart IP65 Charger 12V 5A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. It is designed for charging 12V batteries and features a robust IP65 protection category, making it suitable for outdoor use.
This charger includes a 1.5 meter cable with a BS 1363 plug for AC connection and a red and black 1.5 meter cable with plugable M8 eyelets or clamps for battery connection. The charger operates efficiently with a charge current of 5A and is compatible with lithium batteries.
With an adaptive 7-stage charge algorithm, it ensures optimal battery charging and maintenance. The charger also features programmable settings and temperature compensation for improved performance in varying conditions.
Key Features
- Bluetooth connectivity for remote monitoring
- IP65 rated for dust and water resistance
- Adaptive 7-stage charging algorithm
- Compatible with lithium batteries
- Programmable settings for user customization
- Temperature compensation for optimal charging
Specifications
| Brand | Victron |
| EAN | 8719076041214 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Battery connection terminal type | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
| Item Width | 81 mm |
| Weight | 0.9 kg |
| Protection category | IP65 |
| Item Height | 45 mm |
| Item Depth | 95 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Back current drain | 1 mA |
| Back current drain per month | 0.7 Ah/mo |
| Nominal battery voltage | 12 V |
| Bluetooth | Yes, -4dBm, 2402 – 2480 MHz |
| Charge algorithm | Adaptive, 7-stage |
| Charge Current Low Mode | 2 A |
| AC input frequency range | [45, 65] Hz |
| AC input voltage Bucket | 230 V |
| AC input voltage range | [180, 265] VAC |
| Efficiency | 94 % |
| Lithium compatible | True |
| Maximum humidity (non-condensing) | 95 % |
| Number of charge outputs | 1 |
| Charge voltage float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge Current Normal Mode (Nominal Value) | 5 A |
| Charge voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge voltage storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Standby power consumption | 0.5 W |
| Temperature compensation (adjustable) | -16 mV/°C |
| Operating temperature range | [-40, 60] °C |
| Ouput fully rated up to | 30 °C |
| Power supply mode | True |
| Programable | True |
| Protections | Battery reverse polarity,Output short-circuit,Over temperature |
| Voltage | 12V |
| Colour | Blue |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BPC120533024R |
