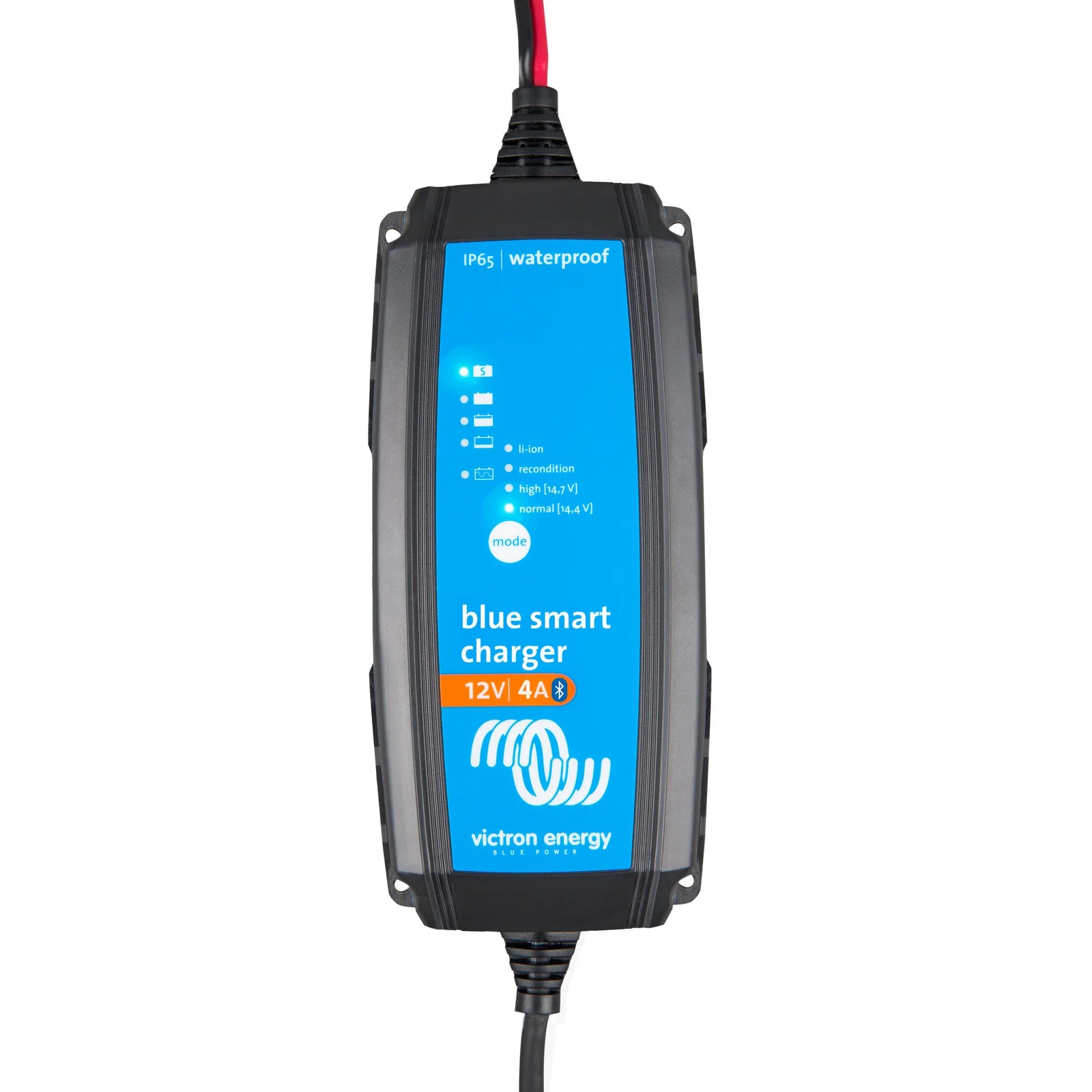

Victron Blue Smart IP65 Charger 12V 4A Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

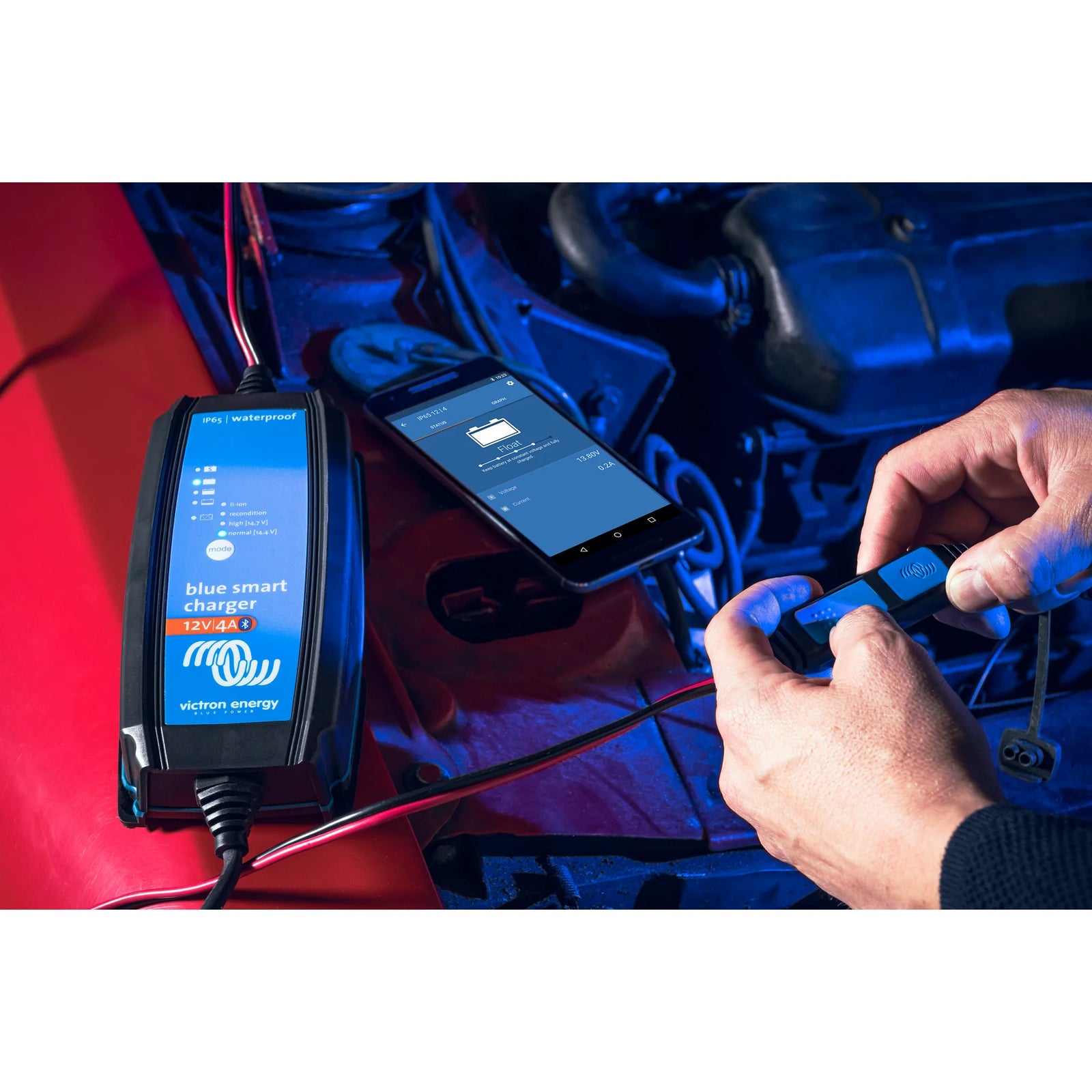

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. It is designed for charging 12V batteries efficiently and safely.

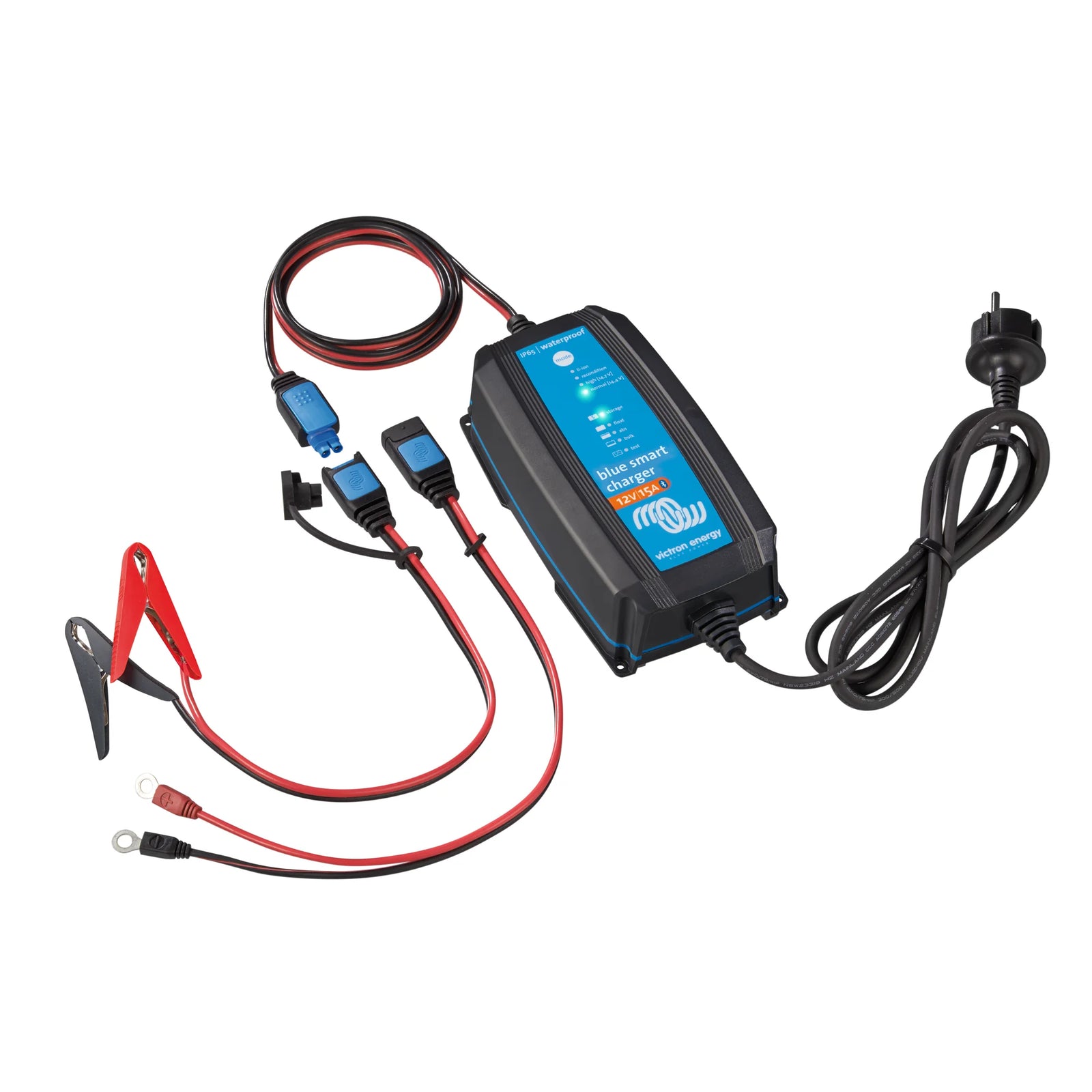

This charger features a 1.5 meter cable with a CEE 7/16 plug for AC connection and a red and black 1.5 meter cable with plugable M8 eyelets or clamps for battery connection.
With a compact size of 182 mm in depth, 45 mm in height, and 81 mm in width, it is easy to install in various locations. The charger is IP65 rated, ensuring protection against dust and water.
Additionally, it includes advanced safety features such as reverse polarity protection, output short-circuit protection, and over-temperature protection. The charger is also programmable and supports lithium batteries.
Key Features
- Bluetooth connectivity for easy monitoring and control
- Compact size: 182 mm x 45 mm x 81 mm
- IP65 rated for dust and water resistance
- Adaptive 7-stage charge algorithm for optimal battery charging
- Safety features: reverse polarity, short-circuit, and over-temperature protection
- Compatible with lithium batteries
Specifications
| Brand | Victron |
| EAN | 8719076045793 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| Battery connection terminal type | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
| AC connection terminal type | Cable of 1.5 meter with CEE 7/16 plug |
| Item Depth | 182 mm |
| Item Height | 45 mm |
| Protection category | IP65 |
| Weight | 0.9 kg |
| Item Width | 81 mm |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| AC input voltage range | [180, 1,265] VAC |
| Power supply mode | True |
| Programable | True |
| Protections | Battery reverse polarity,Output short-circuit,Over temperature |
| Standby power consumption | 0.5 W |
| Temperature compensation (adjustable) | -16 mV/°C |
| Ouput fully rated up to | 30 °C |
| Back current drain per month | 0.7 Ah/mo |
| Nominal battery voltage | 12 V |
| Bluetooth | Yes, -4dBm, 2402 – 2480 MHz |
| Charge algorithm | Adaptive, 7-stage |
| Charge Current Low Mode | 2 A |
| AC input frequency range | [45, 65] Hz |
| AC input voltage Bucket | 230 V |
| Back current drain | 1 mA |
| Maximum humidity (non-condensing) | 95 % |
| Lithium compatible | True |
| Number of charge outputs | 1 |
| Operating temperature range | [-40, 60] °C |
| Efficiency | 94 % |
| Charge Current Normal Mode (Nominal Value) | 4 A |
| Charge voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge voltage float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge voltage storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Voltage | 12V |
| Colour | Blue |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BPC120433034R |
