Victron Blue Smart IP65 Charger 12V 10A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

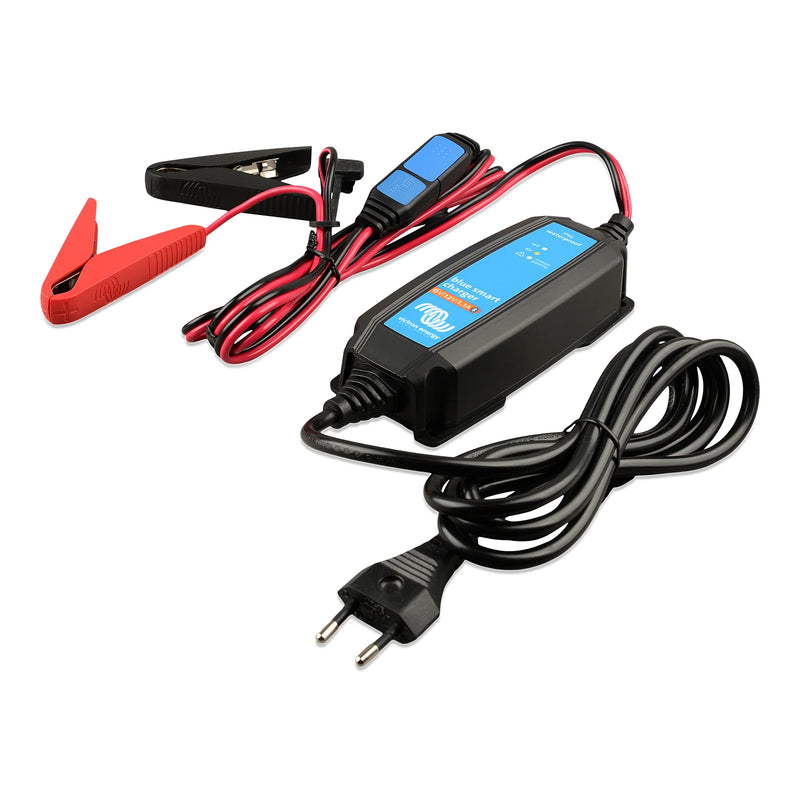

The Blue Smart IP65 Charger is the new professional battery charger with built-in bluetooth. This charger is designed to efficiently charge 12V batteries and features a robust IP65 protection rating, making it suitable for outdoor and challenging environments.
It comes with a 1.5 meter red and black cable with plugable M8 eyelets or clamps for battery connection, and a 1.5 meter cable with a BS 1363 plug (UK) for AC connection. The charger has a compact size with dimensions of 190 mm depth, 60 mm height, and 105 mm width, weighing only 0.9 kg.
With advanced features including an adaptive 7-stage charge algorithm, Bluetooth connectivity, and compatibility with lithium batteries, this charger ensures optimal battery performance. It also includes safety features such as battery reverse polarity protection, over temperature protection, and output short-circuit protection.
Key Features
- Bluetooth connectivity for easy monitoring and control
- IP65 rated for dust and water resistance
- Adaptive 7-stage charge algorithm for efficient charging
- Compatible with lithium batteries
- Multiple safety protections included
- Compact and lightweight design
Specifications
| Brand | Victron |
| EAN | 8719076039754 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| Battery connection terminal type | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
| AC connection terminal type | Cable of 1.5 meter with BS 1363 plug (UK) |
| Item Depth | 190 mm |
| Item Height | 60 mm |
| Protection category | IP65 |
| Weight | 0.9 kg |
| Item Width | 105 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Back current drain | 1 mA |
| Charge voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge Current Normal Mode (Nominal Value) | 10 A |
| Charge Current Low Mode | 3 A |
| Charge algorithm | Adaptive, 7-stage |
| Bluetooth | Yes, -4dBm, 2402 – 2480 MHz |
| Nominal battery voltage | 12 V |
| Back current drain per month | 0.7 Ah/mo |
| Charge voltage float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| AC input voltage range | [180, 265] VAC |
| AC input voltage Bucket | 230 V |
| AC input frequency range | [45, 65] Hz |
| Number of charge outputs | 1 |
| Temperature compensation (adjustable) | -16 mV/°C |
| Standby power consumption | 0.5 W |
| Protections | Battery reverse polarity,Over temperature,Output short-circuit |
| Programable | True |
| Power supply mode | True |
| Ouput fully rated up to | 30 °C |
| Operating temperature range | [-40, 60] °C |
| Maximum humidity (non-condensing) | 95 % |
| Lithium compatible | True |
| Efficiency | 94 % |
| Charge voltage storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Voltage | 12V |
| Colour | Blue |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BPC121031024R |
