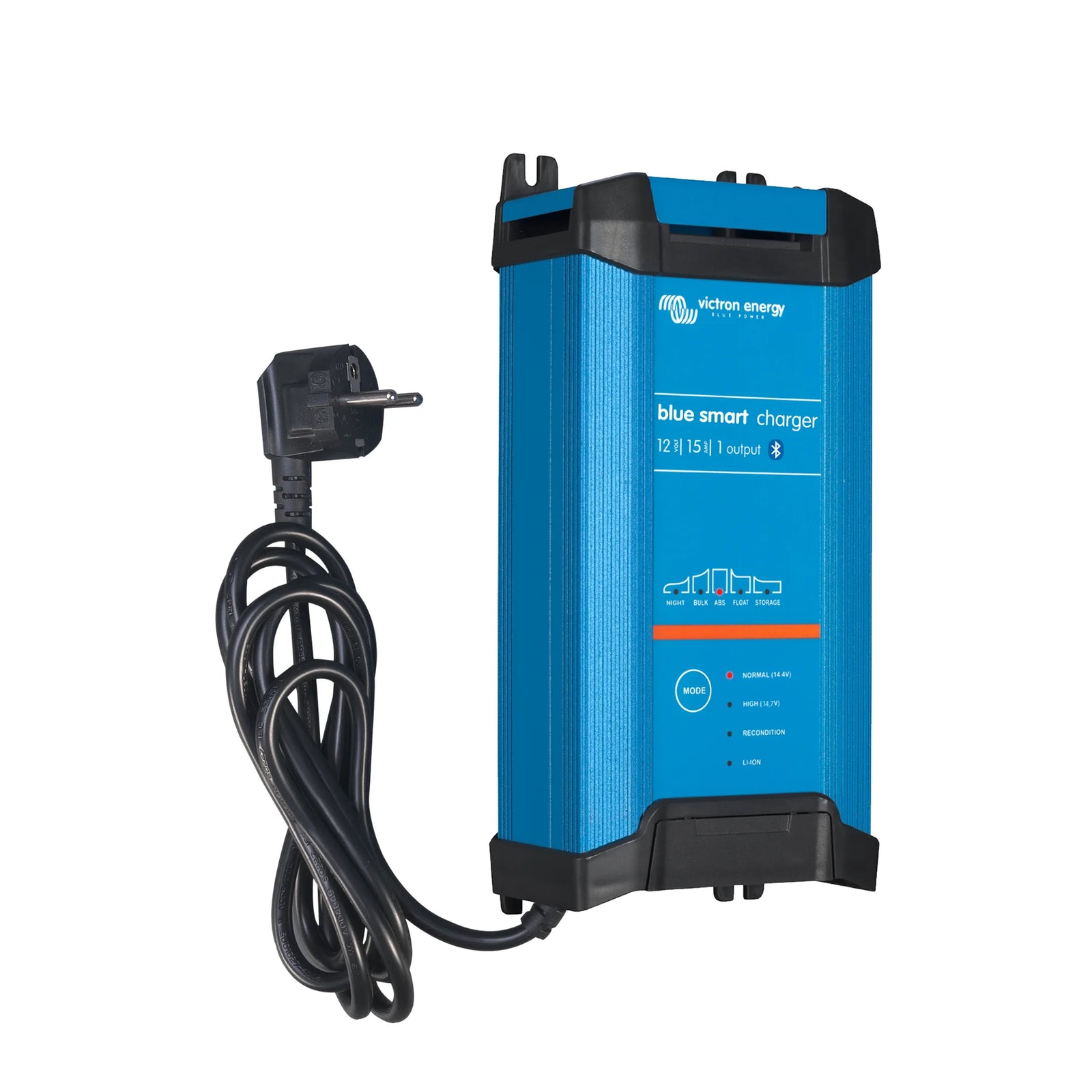

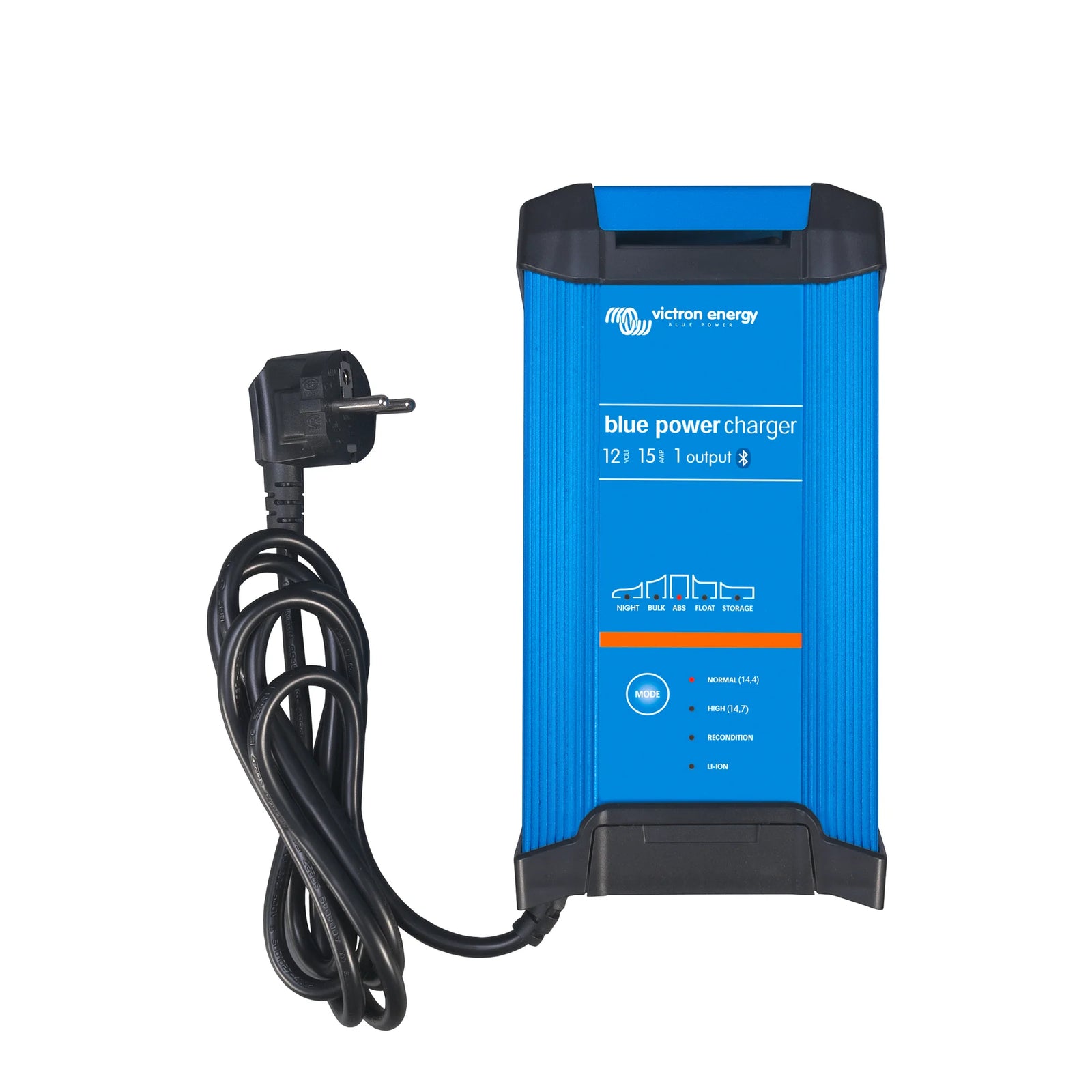

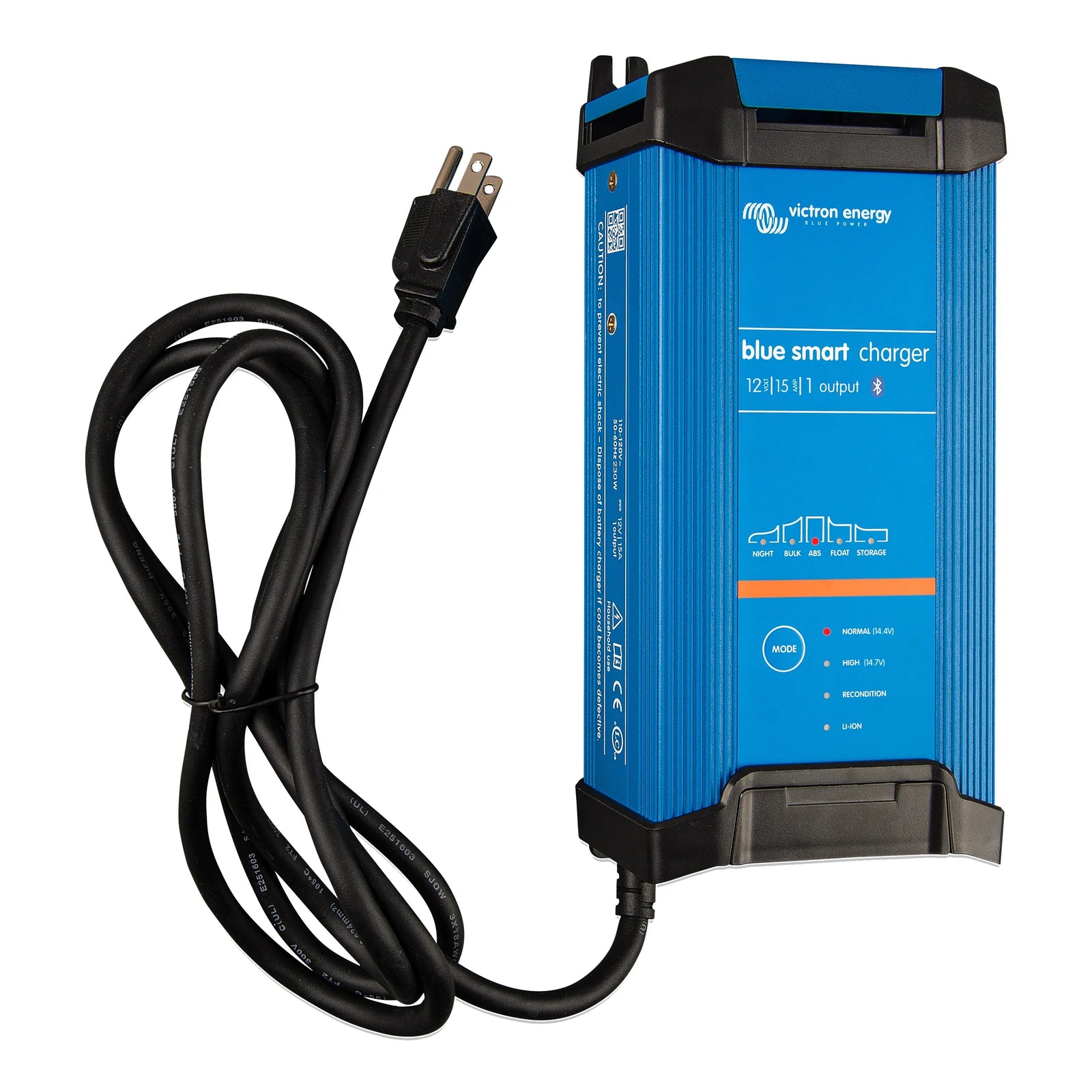

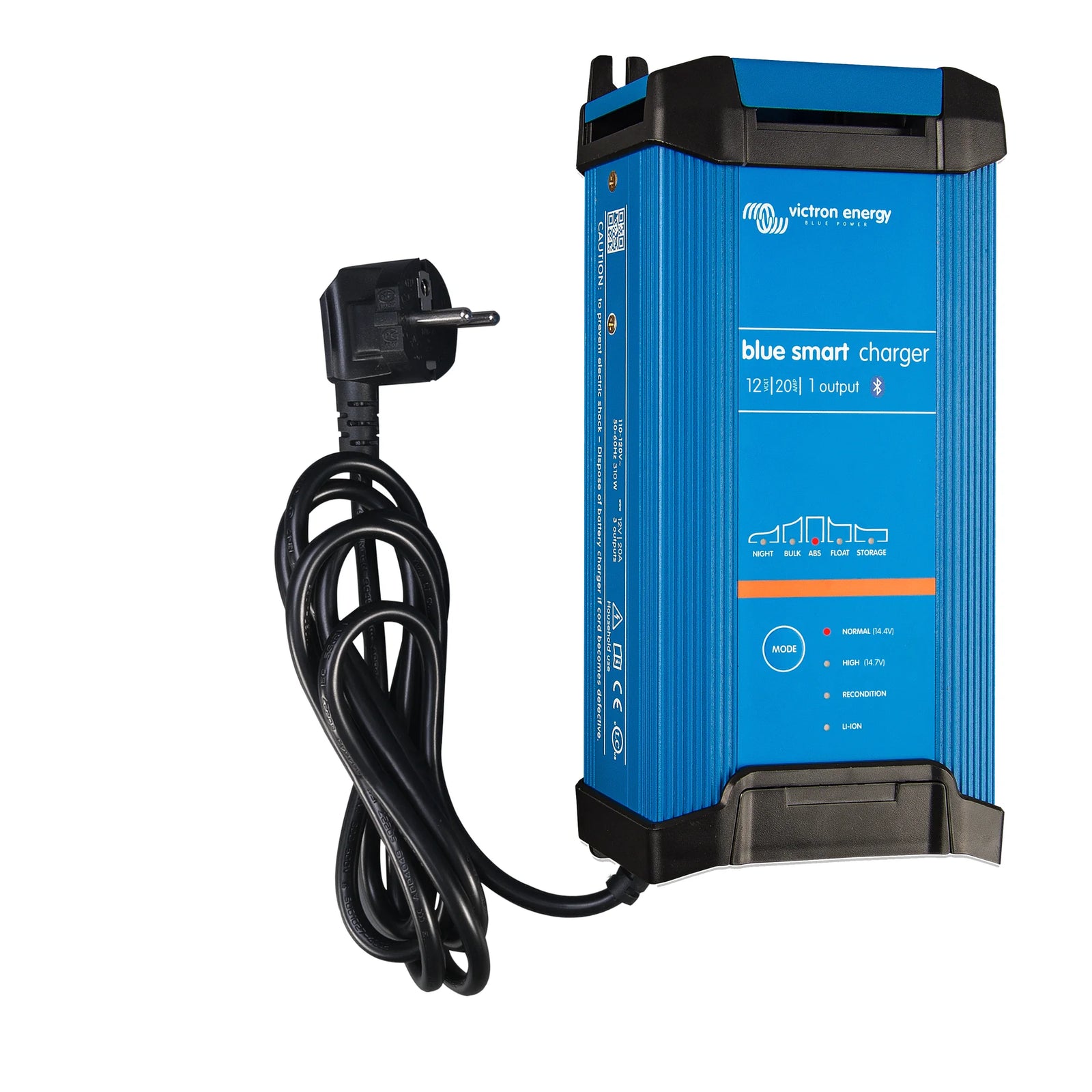

Victron Blue Smart IP22 Charger 24V 8A with Bluetooth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. It is designed to efficiently charge 24V batteries and is equipped with various advanced features.
The charger has a nominal battery voltage of 24V and a charge current of 8A in normal mode. It also includes a 1.5 meter cable with a CEE 7/7 plug for AC connection and screw terminals for battery connection.
Constructed from durable aluminium, it has a compact size with dimensions of 108 mm width, 65 mm depth, and 235 mm height. The charger is also IP22 rated, ensuring protection against dust and water ingress.
With Bluetooth connectivity, users can monitor and control the charger via a mobile device. It is also compatible with lithium batteries and features a programmable adaptive 6-stage charge algorithm.
Key Features
- Bluetooth connectivity for easy monitoring
- Compact design with IP22 protection rating
- Adaptive 6-stage charge algorithm for optimal battery care
- Compatible with lithium batteries
- Includes 1.5m AC connection cable with CEE 7/7 plug
- Operating temperature range of -20 to 50 °C
Specifications
| Brand | Victron |
| EAN | 8719076037491 |
| Type | Battery Charger |
| Sub-Type | charger |
| Custom Bundle | No |
| AC connection terminal type | Cable of 1.5 meter with CEE 7/7 plug |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Material | Aluminium |
| Weight | 1.3 kg |
| Item Width | 108 mm |
| Protection category | IP22 |
| Item Depth | 65 mm |
| Item Height | 235 mm |
| Colour | Blue (RAL 5012) |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Automotive directive | ECE R10-5 |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Temperature Compensation (adjustable) | -32 mV/°C |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Efficiency | 94 % |
| Nominal battery voltage | 24 V |
| Bluetooth | True |
| Can be used as power supply | True |
| Charge algorithm | Adaptive, 6-stage |
| Charge Current Night or Low Mode | 4 A |
| Charge Current Normal Mode (Nominal Value) | 8 A |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Communication Ports | Bluetooth |
| AC input voltage Bucket | 230 V |
| Forced cooling | True |
| Lithium compatible | True |
| Maximum humidity (non-condensing) | 98 % |
| No-load power consumption | 0.5 W |
| Number of charge outputs | 1 |
| Operating temperature range | [-20, 50] °C |
| Programable | True |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| AC input frequency range | [45, 65] Hz |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | BPC240842002 |
