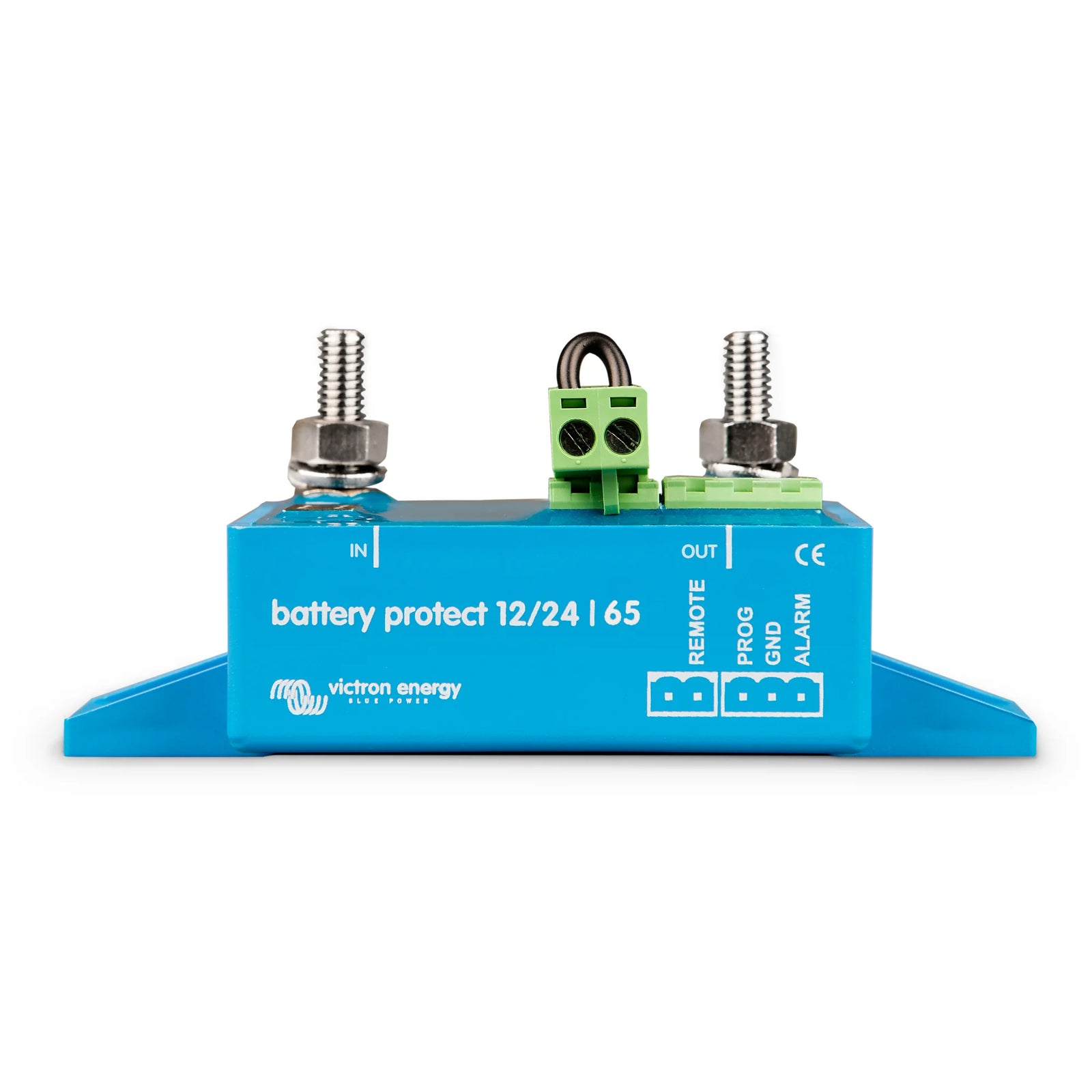

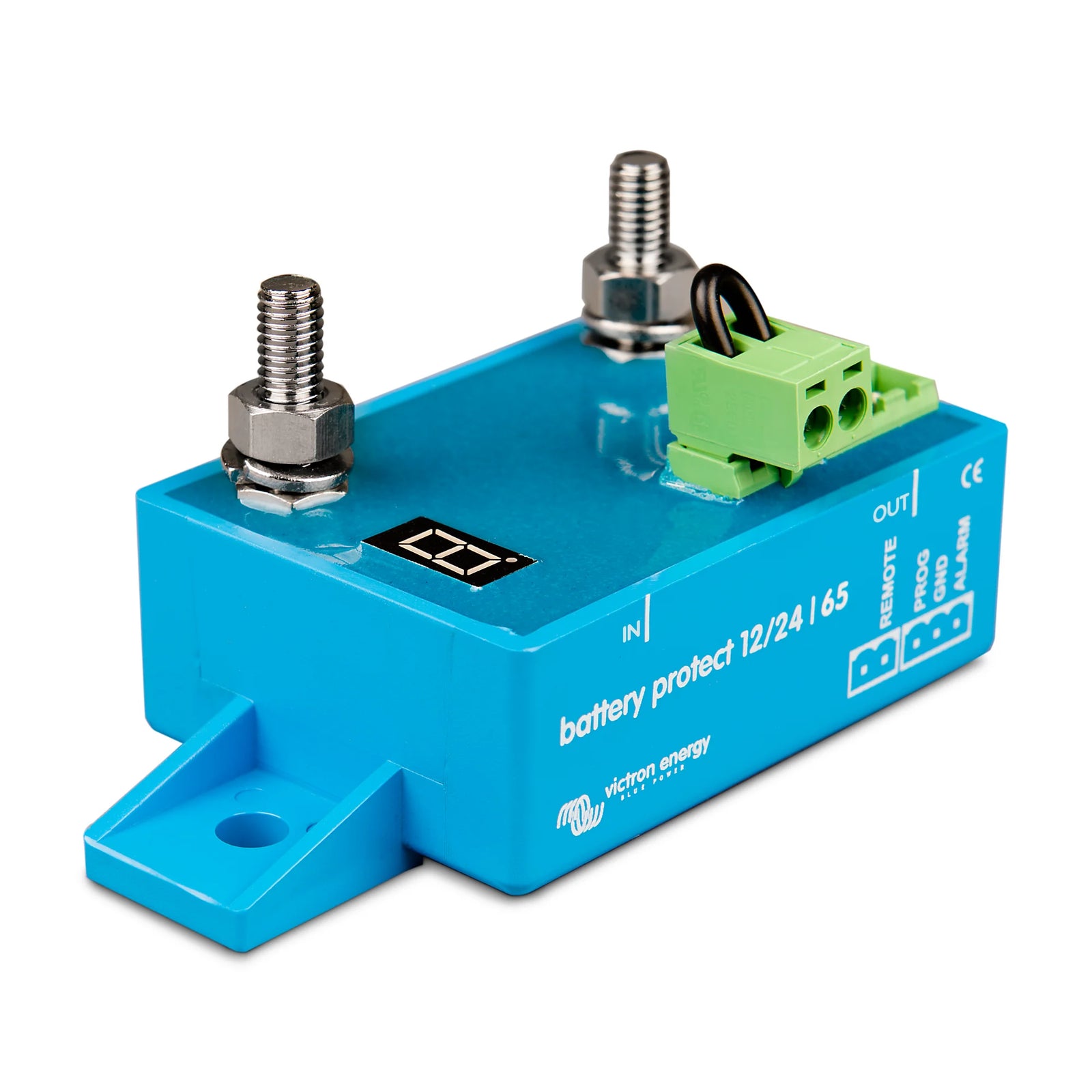

Victron BatteryProtect 12/24V 65A Battery Disconnect Device
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Disconnect the battery from non-essential loads before it is completely discharged with Victron Energy's BatteryProtect. This device is designed to protect your battery by disconnecting loads when the battery voltage drops below a certain threshold.
The BatteryProtect can automatically detect battery voltage at 12V or 24V and features a maximum continuous load current rating of 65A at up to 40°C. It also has an operating temperature range of -40°C to 50°C, making it suitable for various environments.
With an IP67 protection rating for electronic components, this device ensures durability and reliability. The remote on/off terminal allows for easy operation, while the alarm output provides alerts for low voltage conditions.
Key Features
- Automatic battery voltage detection (12V or 24V)
- Maximum continuous load current of 65A at 40°C
- IP67 rated for electronic components
- Remote on/off terminal for convenient control
- Operating temperature range from -40°C to 50°C
Specifications
| Brand | Victron |
| EAN | 8719076034193 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Alarm Terminal | Screw terminal 3-pole |
| Remote Terminal | Screw terminal two pole |
| Battery and Load Terminals | M6 bolts |
| Item Width | 48 mm |
| Protection category electronic components | IP67 |
| Protection category connection area | IP00 |
| Item Depth | 106 mm |
| Item Height | 40 mm |
| Weight | 0.2 kg |
| Alarm output delay | 12 s |
| Default threshold engage at 12V | 12 V |
| Default threshold engage at 24V | 24 V |
| Maximum continuous load current rating up to 40°C | 65 A |
| Load disconnect delay (immediate if triggered by the VE.Bus BMS) | 90 s |
| Load reconnect delay | 30 s |
| Battery voltage nominal | 12V or 24V (automatic detection) |
| Bluetooth | No |
| Current consumption when off or in low volate protection mode | 0.6 mA |
| Current consumption when on | 1.5 mA |
| Default threshold disengage at 12V | 10.5 V |
| Default threshold disengage at 24V | 21 V |
| Protections | Output short-circuit |
| Remote On Off Terminal | True |
| Able to deal with reverse current | No |
| Maximum continuous load current rating up to 60°C | 39 A |
| Maximum load on alarm output | 50 mA |
| Operating temperature range | [-40, 50] °C |
| Operating voltage range | [6, 35] V |
| Peak current rating (30 seconds) | 250 A |
| Voltage | 24V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BPR000065400 |
