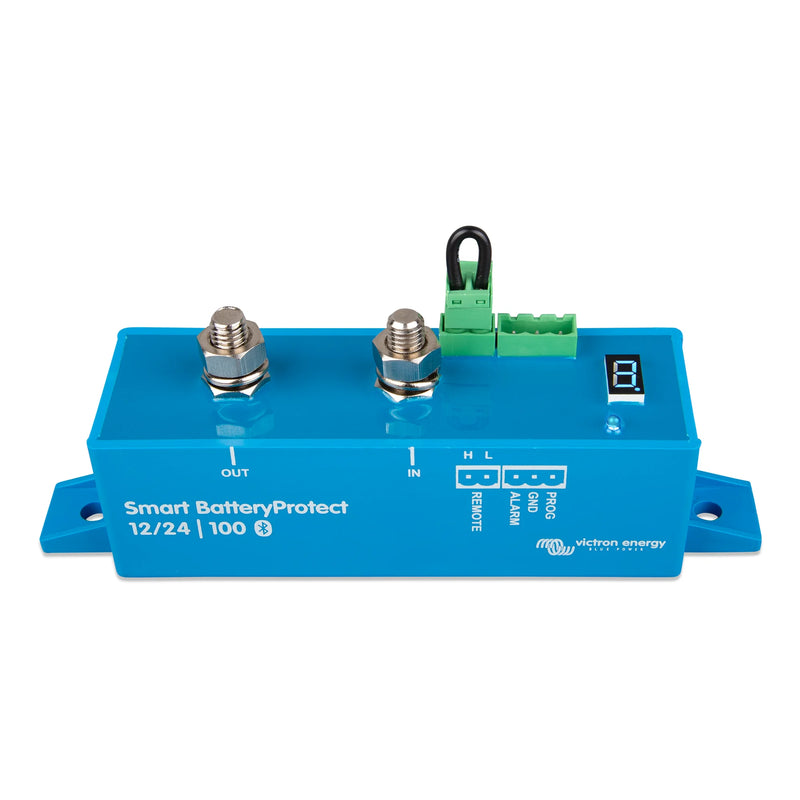

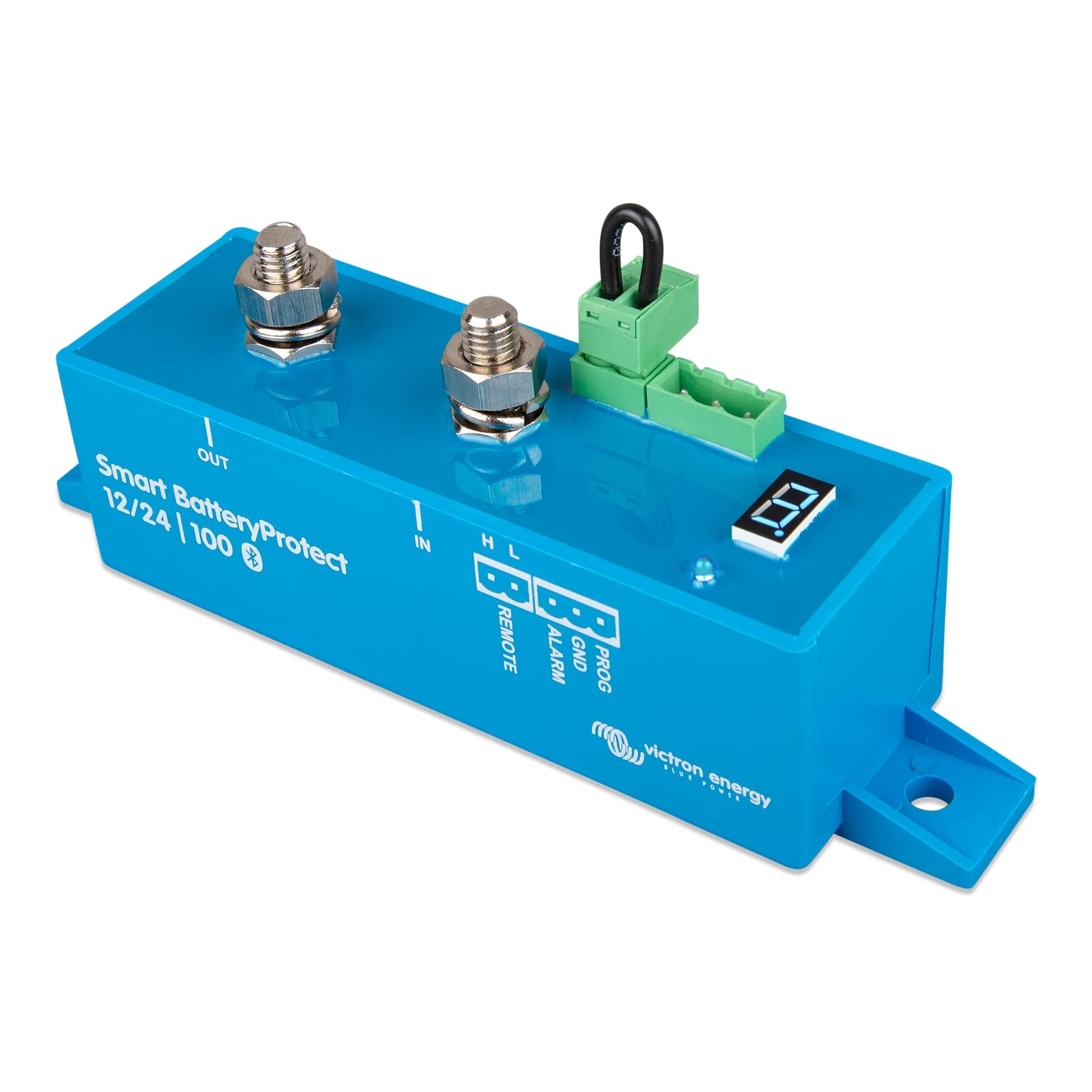

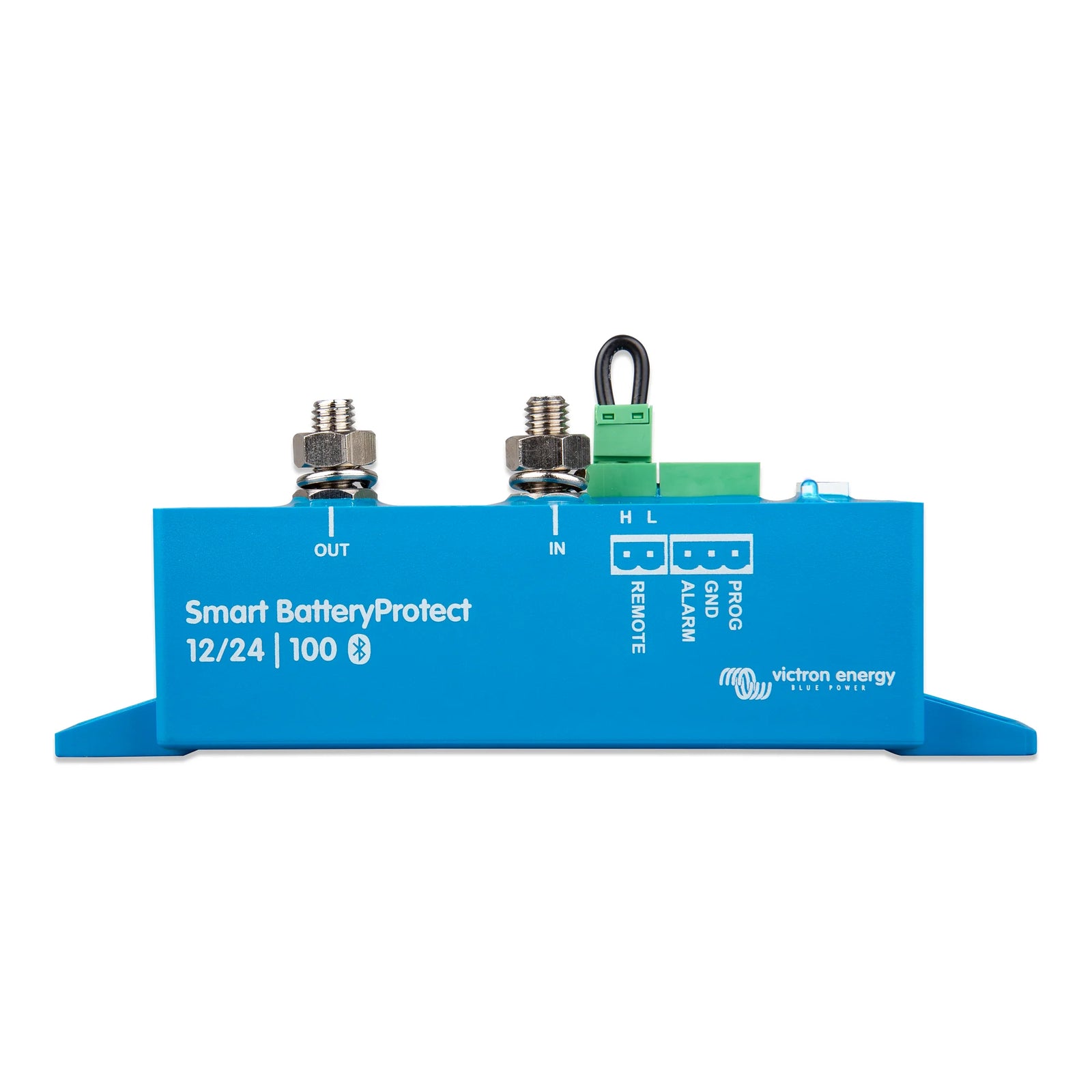

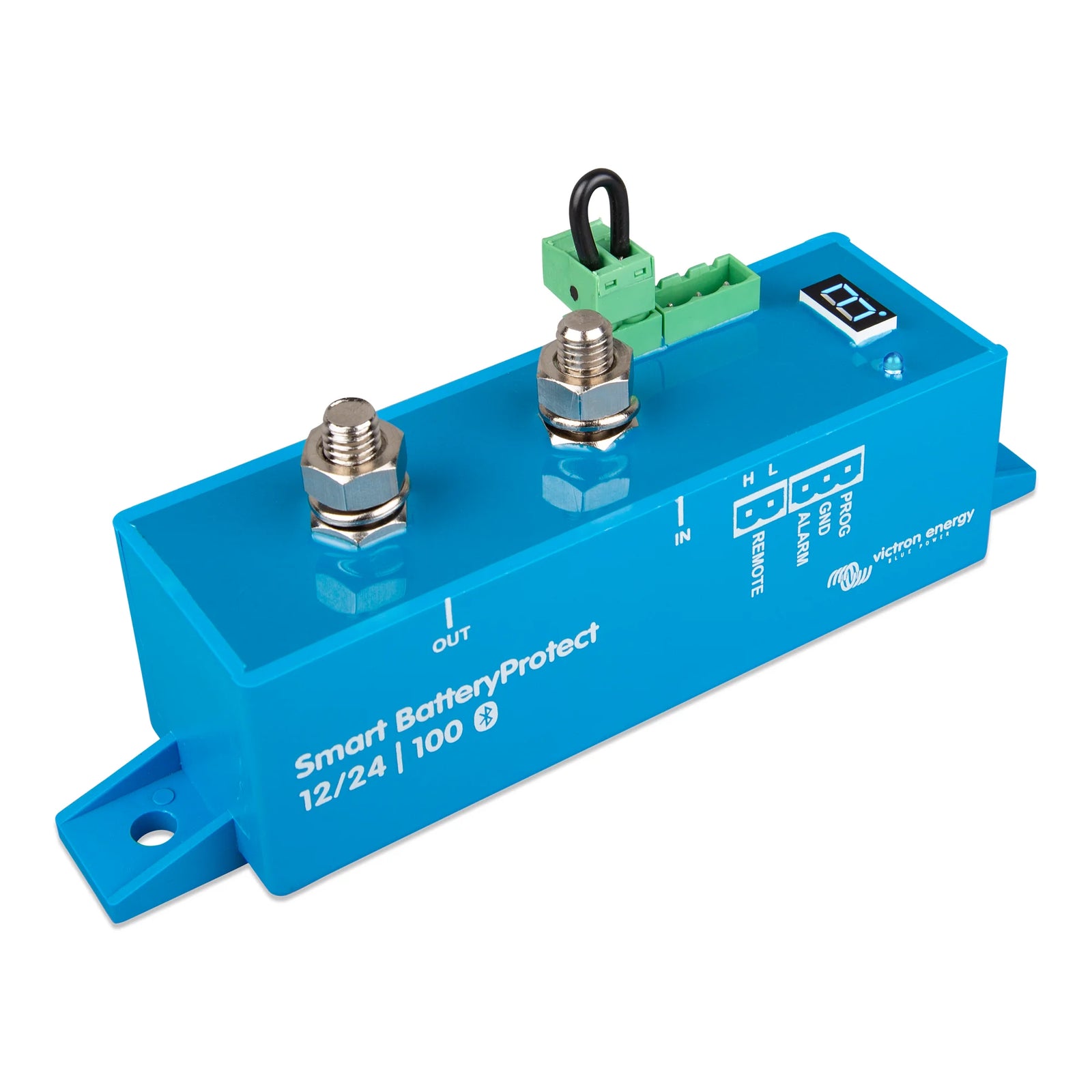

Victron BatteryProtect 12/24V 100A Power Management
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Disconnect the battery from non-essential loads before it is completely discharged with Victron Energy's Smart BatteryProtect.
This device is designed to protect your battery by ensuring that it does not go below a critical voltage level.
It features an operating voltage range of [6, 35] V and can automatically detect whether to operate at 12V or 24V.
The Smart BatteryProtect has a peak current rating of 600 A for 30 seconds and can handle a maximum continuous load current of 100 A at 40°C.
Key Features
- Bluetooth connectivity for easy monitoring
- IP67 rated connection area for water resistance
- Short-circuit proof for enhanced safety
- Lightweight design at only 0.5 kg
- Remote on/off terminal for convenient operation
Specifications
| Brand | Victron |
| EAN | 8719076041245 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Alarm Terminal | Screw terminal 3-pole |
| Battery and Load Terminals | M8 bolts |
| Remote Terminal | Screw terminal two pole |
| Item Depth | 164 mm |
| Item Height | 61 mm |
| Protection category connection area | IP67 |
| Protection category electronic components | IP00 |
| Weight | 0.5 kg |
| Item Width | 41 mm |
| Default threshold engage at 12V | 12 V |
| Peak current rating (30 seconds) | 600 A |
| Operating voltage range | [6, 35] V |
| Operating temperature range | [-40, 50] °C |
| Maximum load on alarm output | 50 mA |
| Maximum continuous load current rating up to 60°C | 60 A |
| Maximum continuous load current rating up to 40°C | 100 A |
| Load reconnect delay | 30 s |
| Load disconnect delay (immediate if triggered by the VE.Bus BMS) | 90 s |
| Default threshold engage at 24V | 24 V |
| Protections | Short-circuit proof |
| Default threshold disengage at 24V | 21 V |
| Default threshold disengage at 12V | 10.5 V |
| Current consumption when on (Bluetooth off) | 1.2 |
| Current consumption when on (Bluetooth on) | 1.4 mA |
| Current consumption when off or in low volate protection mode (Bluetooth off) | 0.7 |
| Current consumption when off or in low volate protection mode (Bluetooth on) | 0.9 mA |
| Bluetooth | Yes |
| Battery voltage nominal | 12V or 24V (automatic detection) |
| Alarm output delay | 12 s |
| Able to deal with reverse current | No |
| Remote On Off Terminal | True |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | BPR110022000 |
