Description

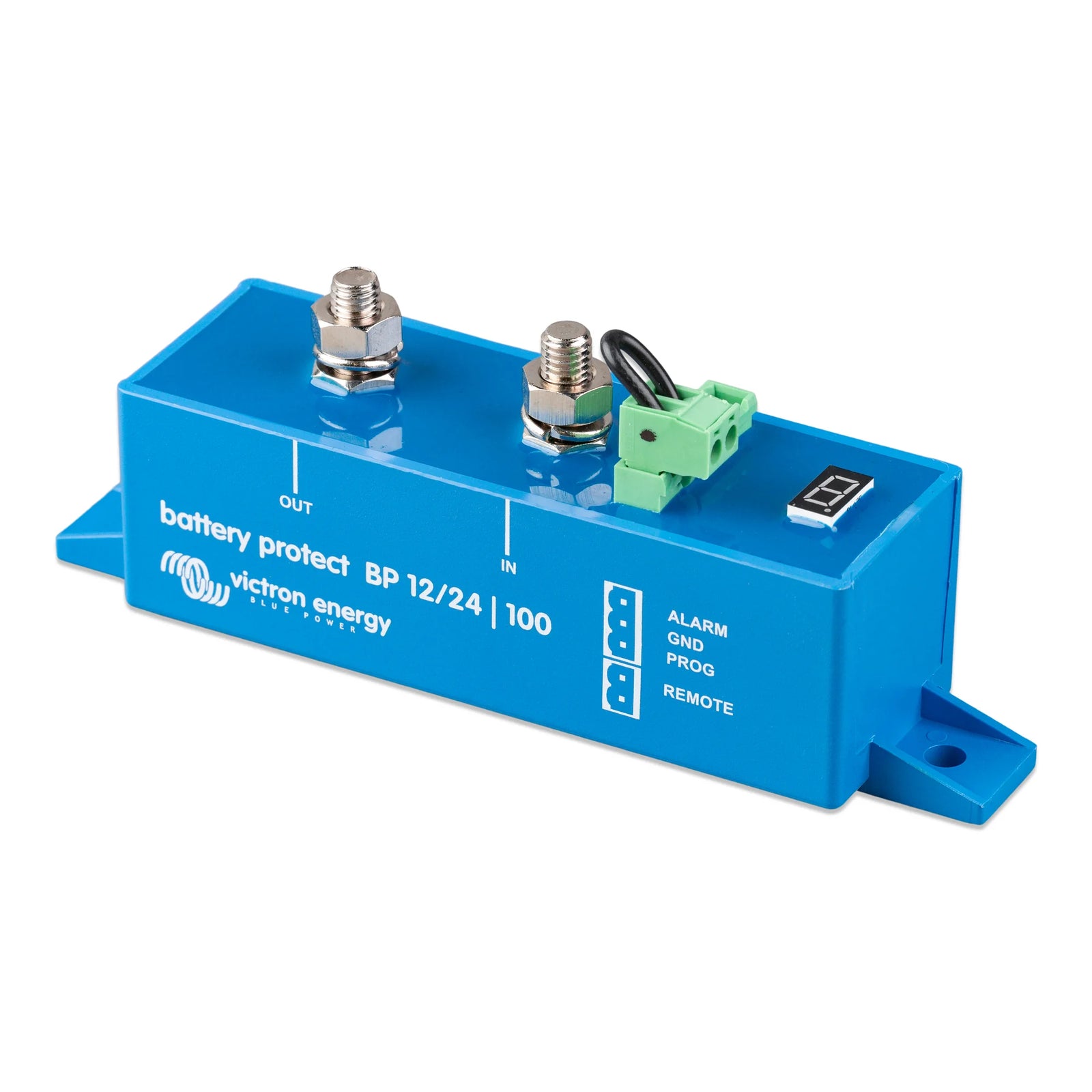

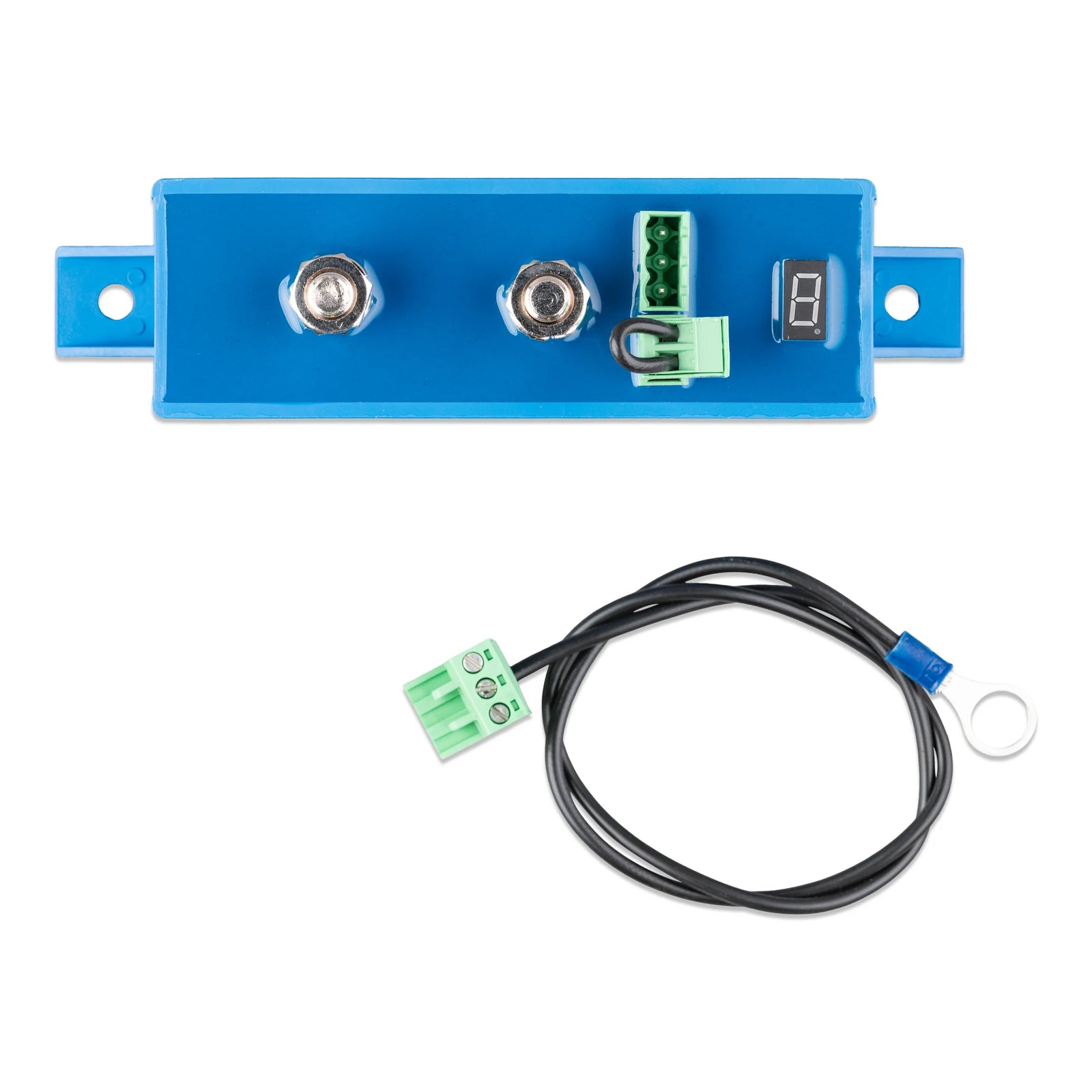

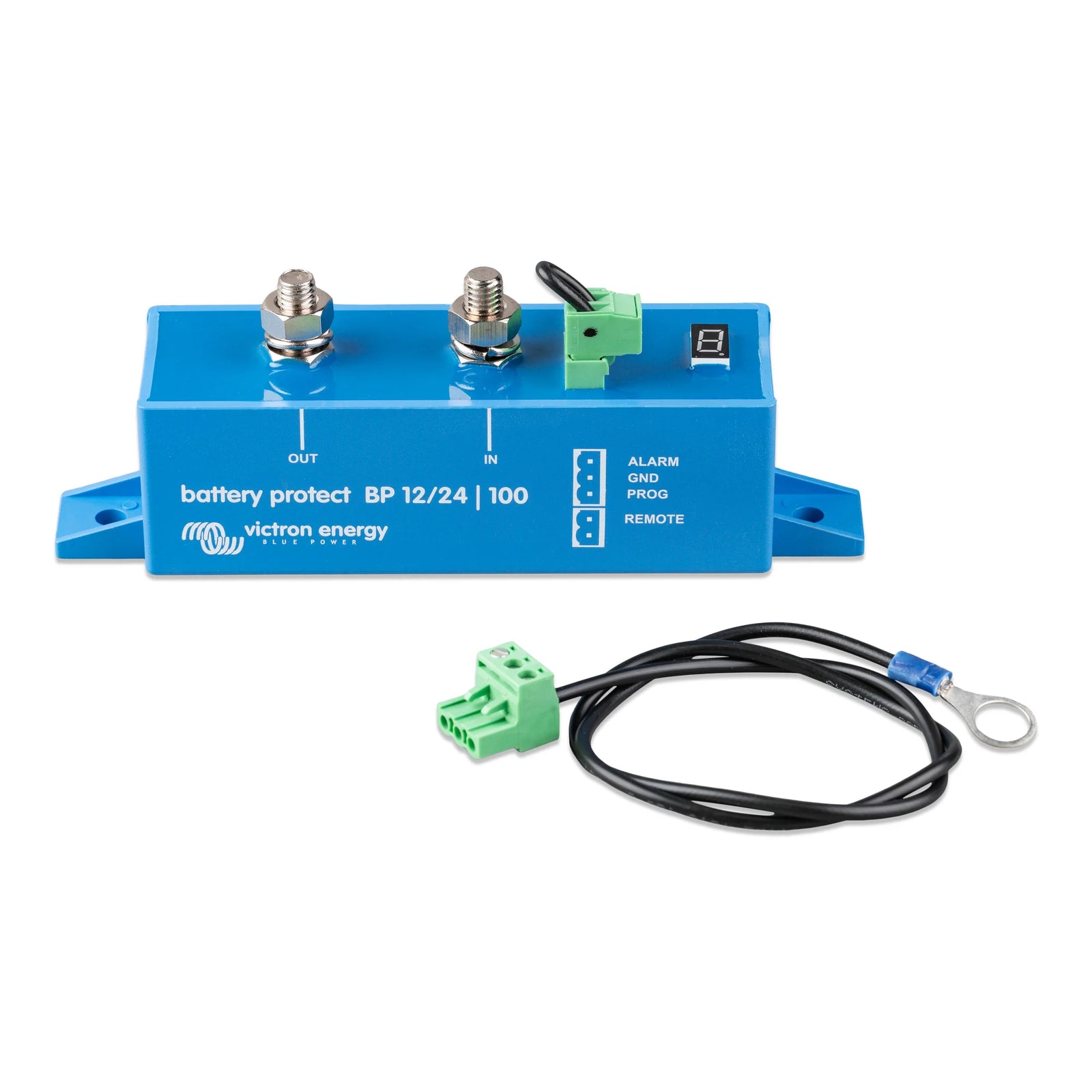

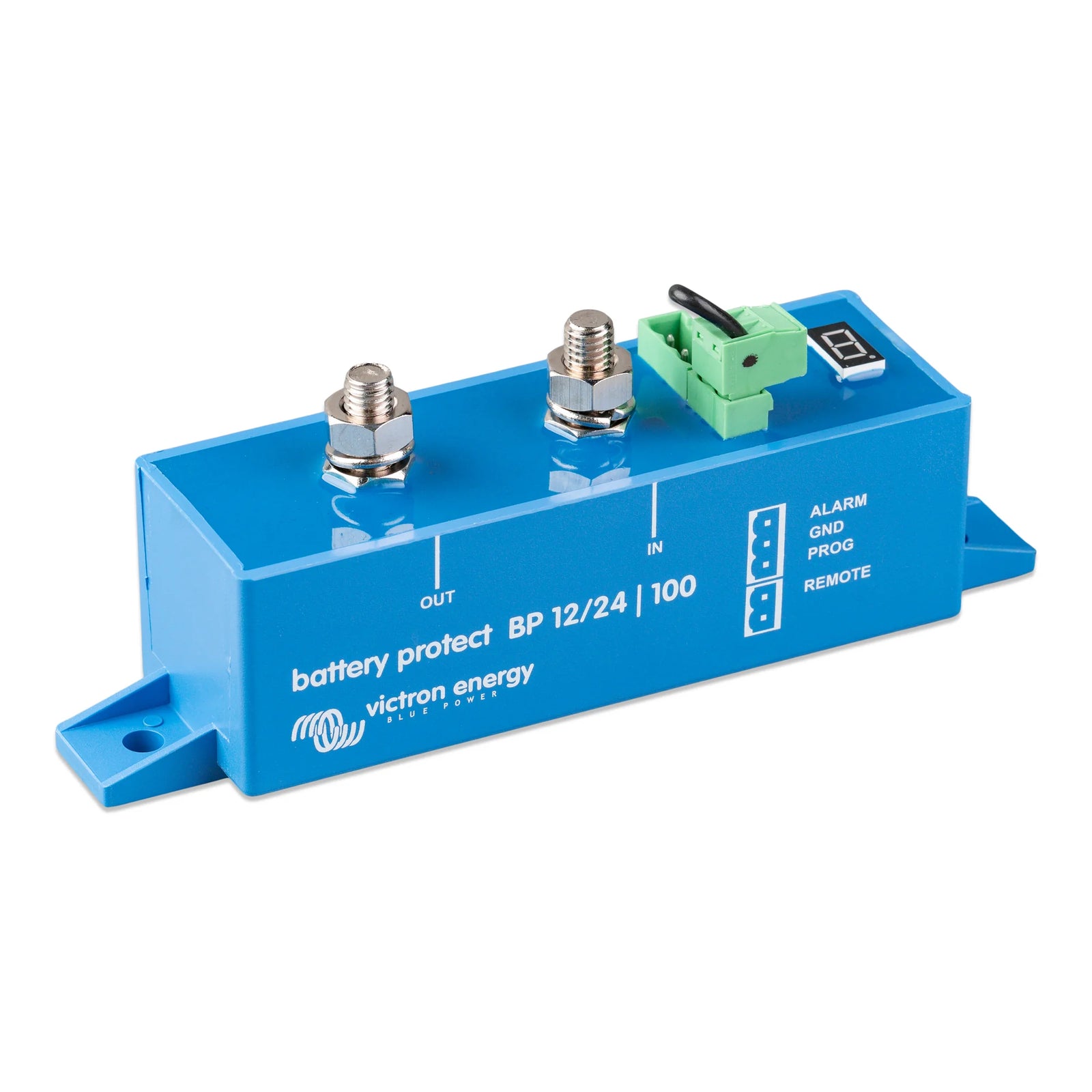

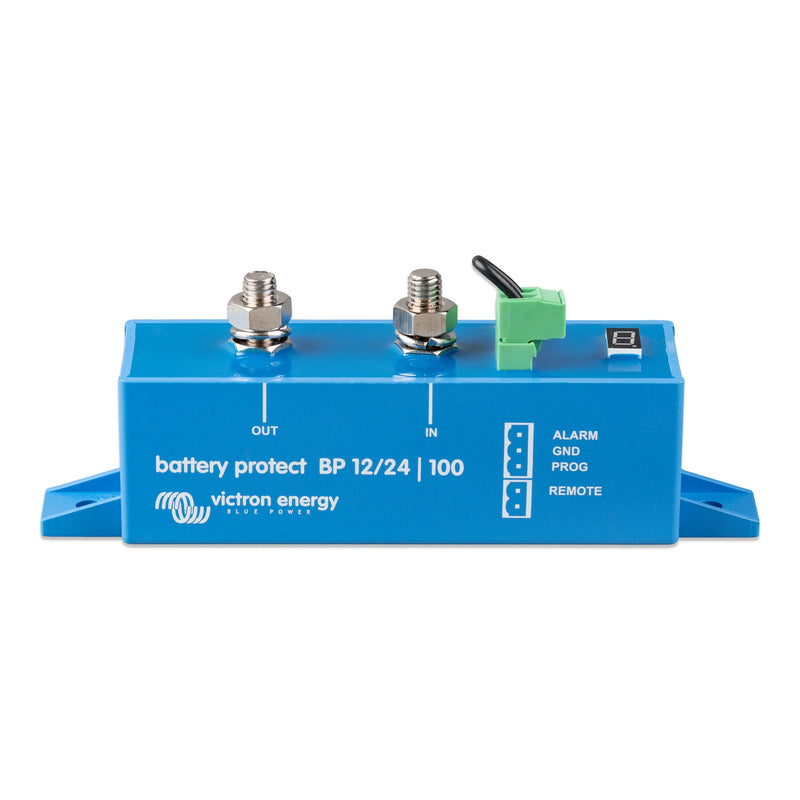

Disconnect the battery from non-essential loads before it is completely discharged with Victron Energy's BatteryProtect. This device is essential for maintaining battery health and longevity.
The BatteryProtect features a robust design with a protection category for electronic components rated at IP67, ensuring durability in various conditions. It operates within a voltage range of 6 to 35 V and can handle extreme temperatures from -40 to 50 °C.
With a maximum continuous load current rating of 100 A at 40 °C, it also includes a remote on/off terminal for added convenience. The device has a peak current rating of 600 A for 30 seconds, making it suitable for high-demand applications.
Key Features
- Alarm terminal with screw terminal 3-pole
- Battery and load terminals with M8 bolts
- Compact dimensions: 115 mm depth, 59 mm height, 42 mm width
- Low current consumption: 1.5 mA when on, 0.6 mA when off
- Automatic detection of battery voltage (12V or 24V)
- Protection against output short-circuit
Specifications
| Brand | Victron |
| EAN | 8719076021438 |
| Type | Power Product |
| Sub-Type | other |
| Custom Bundle | No |
| Alarm Terminal | Screw terminal 3-pole |
| Battery and Load Terminals | M8 bolts |
| Remote Terminal | Screw terminal two pole |
| Item Depth | 115 mm |
| Item Height | 59 mm |
| Protection category connection area | IP00 |
| Protection category electronic components | IP67 |
| Weight | 0.5 kg |
| Item Width | 42 mm |
| Alarm output delay | 12 s |
| Load disconnect delay (immediate if triggered by the VE.Bus BMS) | 90 s |
| Peak current rating (30 seconds) | 600 A |
| Operating voltage range | [6, 35] V |
| Operating temperature range | [-40, 50] °C |
| Maximum load on alarm output | 50 mA |
| Maximum continuous load current rating up to 60°C | 60 A |
| Maximum continuous load current rating up to 40°C | 100 A |
| Load reconnect delay | 30 s |
| Protections | Output short-circuit |
| Default threshold engage at 24V | 24 V |
| Default threshold engage at 12V | 12 V |
| Default threshold disengage at 24V | 21 V |
| Default threshold disengage at 12V | 10.5 V |
| Current consumption when on | 1.5 mA |
| Current consumption when off or in low volate protection mode | 0.6 mA |
| Bluetooth | No |
| Battery voltage nominal | 12V or 24V (automatic detection) |
| Able to deal with reverse current | No |
| Remote On Off Terminal | True |
| Voltage | 24V |
| Manufacturer Part Number (MPN) | BPR000100400 |
