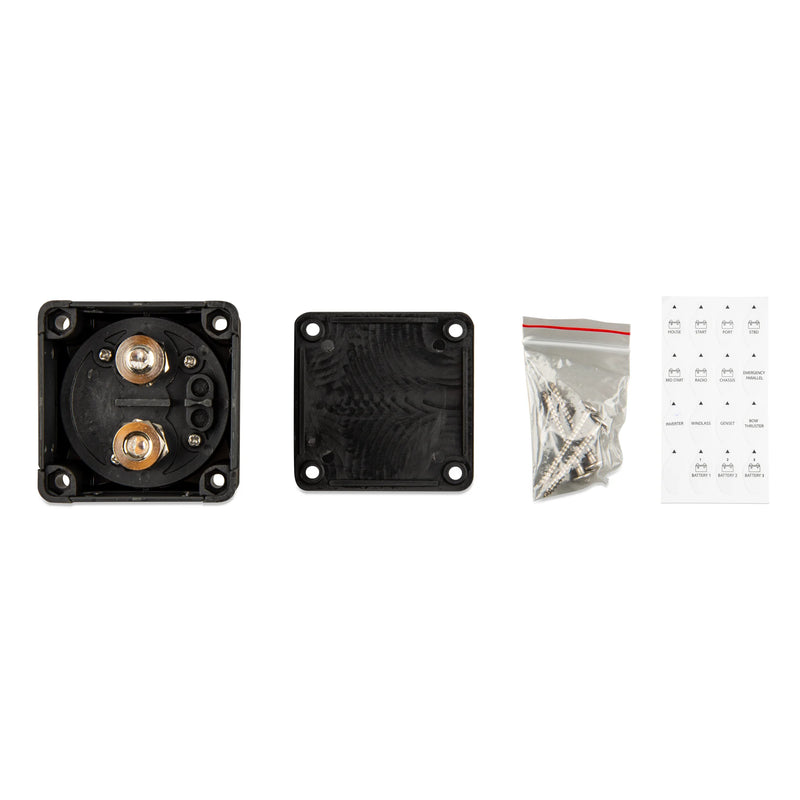

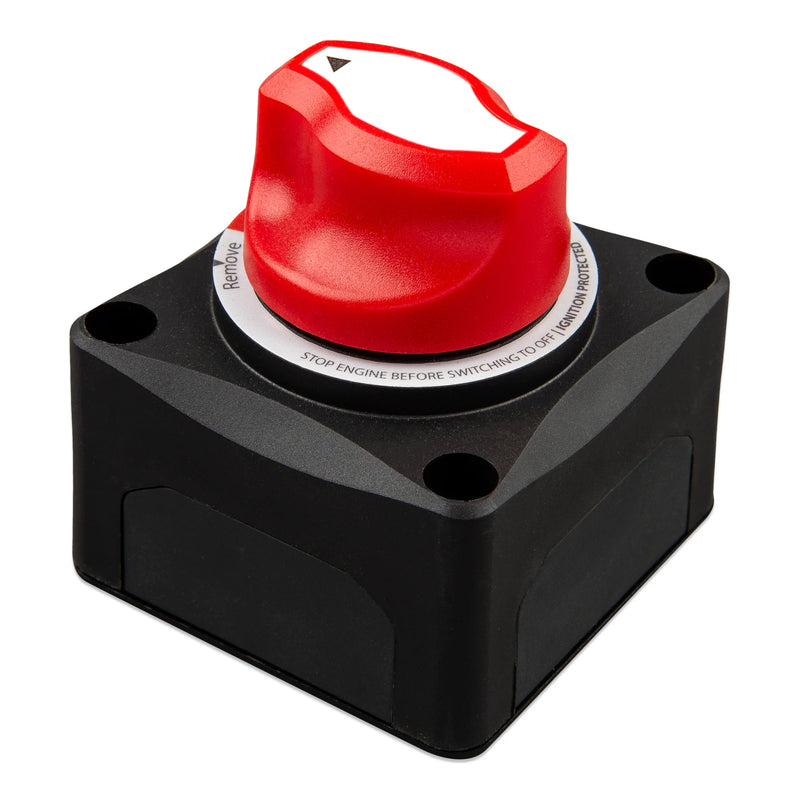

Victron Battery Switch ON/OFF 275A for 48V Systems
Sold out
Original price
£44.99
-
Original price
£44.99
Original price
£44.99
£44.99
-
£44.99
Current price
£44.99
Availability:
Out of stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.
The Battery Switch can be either surface or panel mounted, providing flexibility during installation. This switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.
Key Features
- Maximum continuous current rating: 275 A
- Cranking current rating: 1,250 A
- Mounting method: Surface or rear panel mount
- Ignition protection: ISO 8846, SAE J1171
- Compact dimensions: 70 mm x 70 mm x 76 mm
Specifications
| Brand | Victron |
| EAN | 8719076052258 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Hex nut material | Tin plated copper |
| Terminal diameter | 9.53 mm |
| Terminal material | Tin plated copper |
| Base material | Glass fibre reinforced nylon |
| Item Height | 70 mm |
| Length | 70 mm |
| Mounting method | Surface or rear panel mount |
| Weight | 0.2 kg |
| Item Width | 76 mm |
| Ignition protection | ISO 8846,SAE J1171 |
| Cranking current rating | 1,250 A |
| Current rating (60 seconds) | 455 A |
| Maximum continuous current rating | 275 A |
| Maximum operating voltage | 60 |
| Voltage | 48V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | VBS127010010 |
