Description

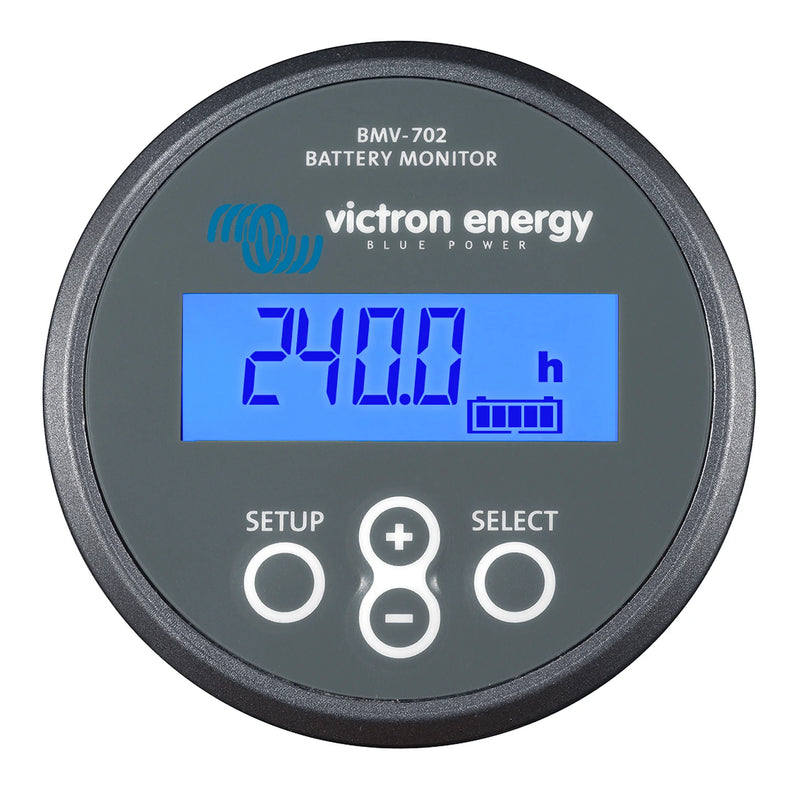

The BMV-702 is a high precision battery monitor designed to calculate ampere hours consumed and the state of charge of a battery. It integrates the current flowing in or out of the battery to provide accurate readings.
Included with the monitor is a 10 metre 6-core UTP display to shunt cable with RJ12 connectors, a 1.5m aux cable with a 1A fuse, and a positive cable of the same length and rating. The shunt connection terminals use M10 bolts for secure installation.
This model features a flush mount installation with a body depth of 31 mm, front diameter of 63 mm, and a front bezel measuring 69 x 69 mm. It has a protection category of IP55, making it suitable for indoor use.
The monitor can measure current with a resolution of 0.01 A and has an accuracy of 0.4%. It also provides voltage measurements with an accuracy of 0.3% and a resolution of 0.01 V. The operating temperature range is from -40 to 50 °C.
Key Features
- High precision battery monitoring with 500A shunt included
- Flush mount installation for easy setup
- IP55 protection, suitable for indoor environments
- Accurate current and voltage measurement with high resolution
- Visual and audible alarms for monitoring alerts
- Aux input for additional battery monitoring options
Specifications
| Brand | Victron |
| EAN | 8719076020103 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Display to shunt cable | 10 metre 6-core UTP with RJ12 connectors |
| Aux Cable | 1.5m cable with 1A fuse |
| Positive Cable | 1.5m cable with 1A fuse |
| Shunt connection terminals | M10 bolts |
| Installation | Flush mount |
| Body depth | 31 mm |
| Front diameter | 63 mm |
| Front bezel | 69 x 69 mm |
| Protection category | IP55 (not for outdoor use) |
| Shunt | 500A / 50mV (included) |
| Colour | Grey |
| Body Diameter | 52 mm |
| Current measurement resolution | 0.01 A |
| Current measurement accuracy | 0.4 % |
| Capacity measurement resolution | 0.1 Ah |
| Measurement Accuracy | 0.4 % |
| State of charge measurement resolution | 0.1 % |
| Temperature Resolution (in the 0 to 50°C range) | 1 °C |
| Time to go measurement resolution | 1 min |
| Voltage measurement accuracy | 0.3 % |
| Voltage measurement resolution | 0.01 V |
| Emission / Immunity | EN 55014-1,EN 55014-2 |
| Safety | EN-IEC 60335-1 |
| Automotive Directive | ECE R10-4,EN 50498 |
| Data Retention Period | 46 d |
| Programmable Relay | Normally open 60V / 1A |
| Supply voltage range | [6.5, 95] VDC |
| Temperature measurement range | [-20, 50] °C |
| Temperature Sensor | Optional (ASS000100000) |
| Visual alarm on device | True |
| Operating temperature range | [-40, 50] °C |
| Input voltage measurement range auxiliary battery | [6.5, 95] VDC |
| Display | True |
| Current rating | 500 A |
| Audible alarm on device | True |
| Current draw | 4 mA |
| Communication Port | VE.Direct |
| Aux input for auxiliary battery voltage, midpoint voltage or temperature (optional temeperature sensor needed) | True |
| Battery capacity measurement range | [1, 9,999] Ah |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BAM010702000R |
