Description
Equalize the state of charge of two series connected 12V batteries using the Battery Balancer. This device is designed to ensure that both batteries are charged evenly, enhancing their lifespan and performance.

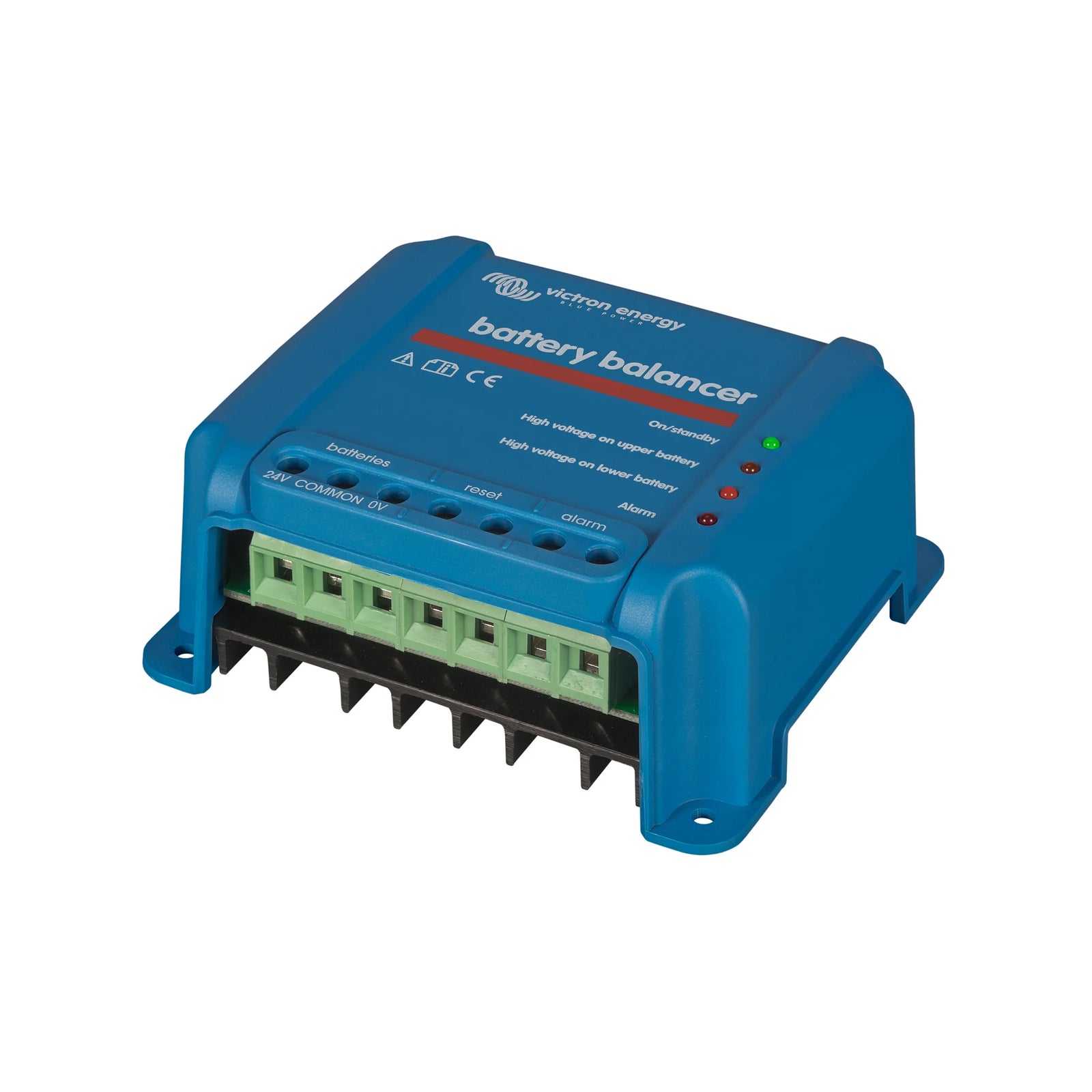

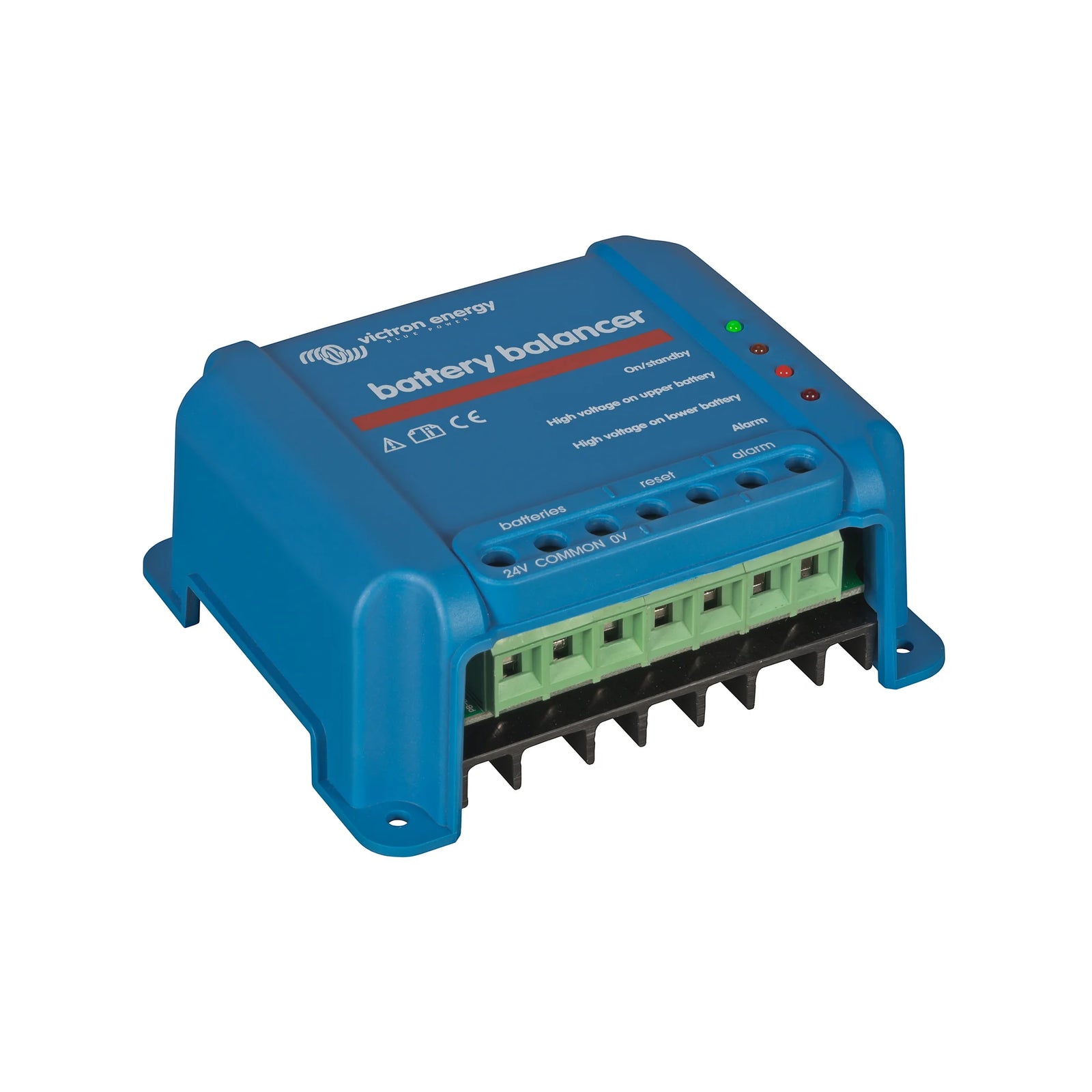

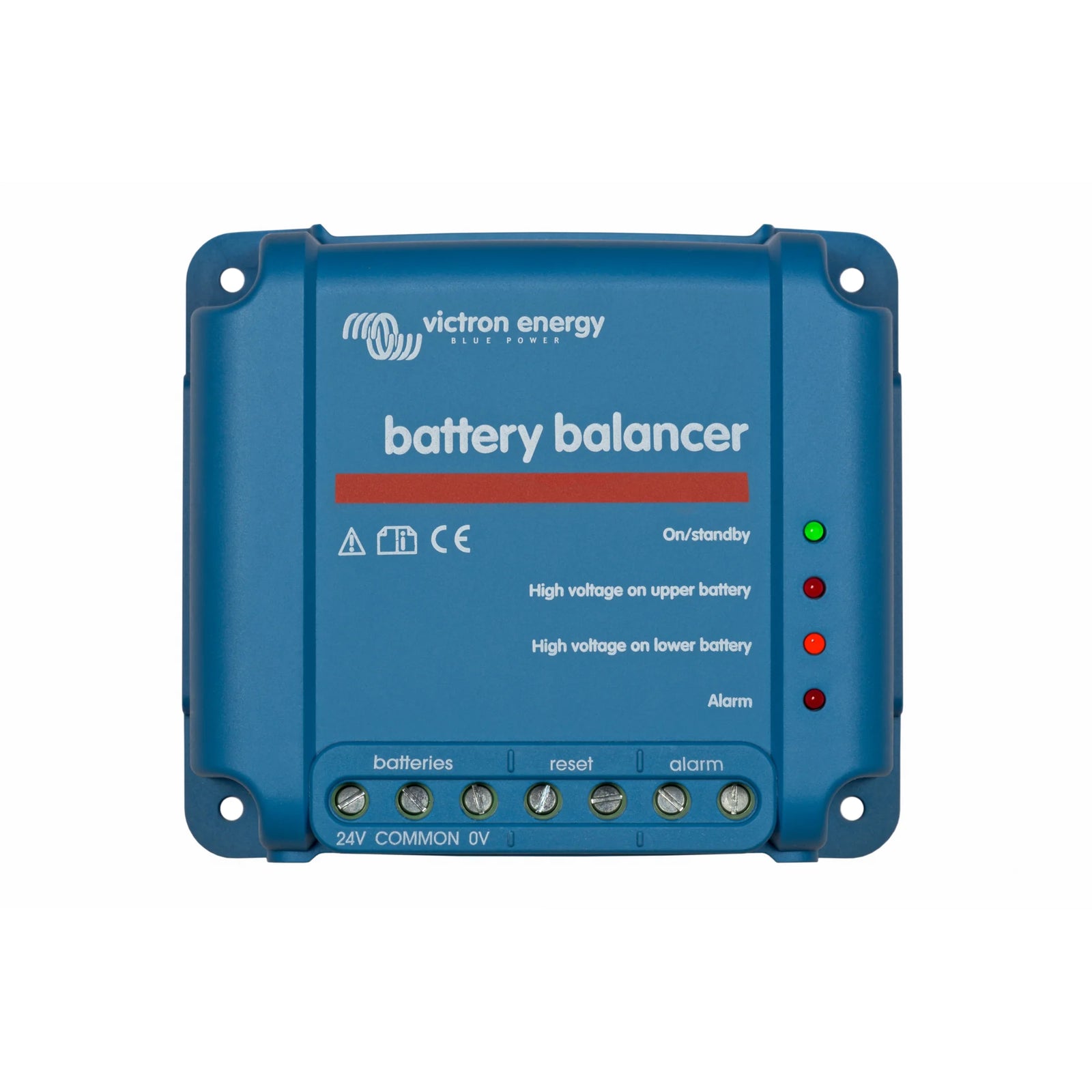

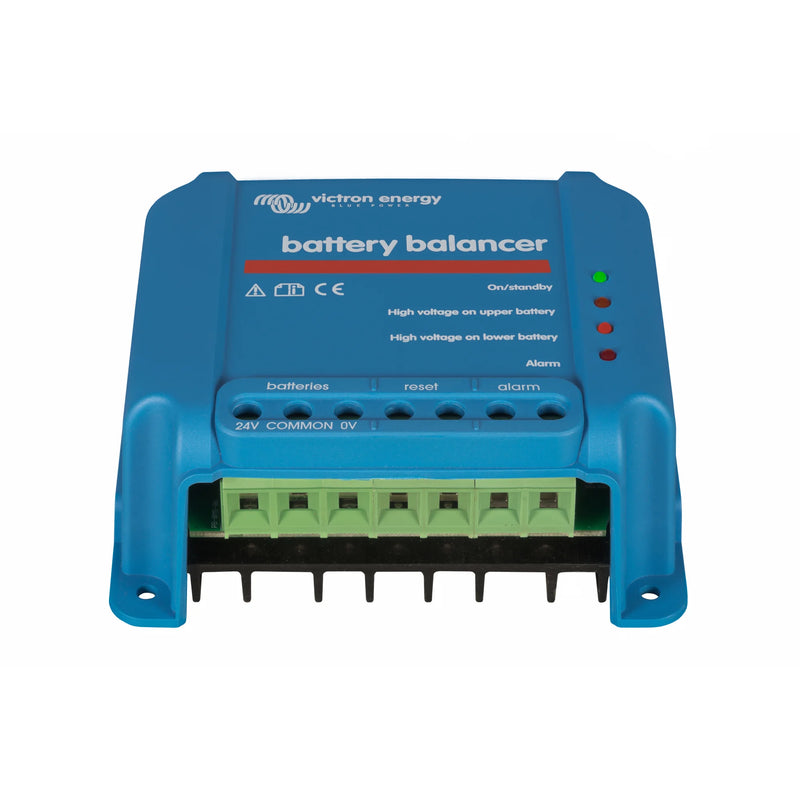

The Victron Battery Balancer features screw terminals for easy connection and is compactly designed with a width of 113 mm, a depth of 47 mm, and a height of 100 mm. It has a robust blue finish (RAL 5012) and is lightweight at 0.4 kg.
With an input voltage range of up to 18V per battery (36V total), it operates efficiently within an extensive temperature range of -30°C to 60°C. The device is equipped with various safety features including excessive temperature protection and complies with several international safety standards.
Key Features
- Compact size: 113 mm width, 47 mm depth, 100 mm height
- IP22 protection rating for durability
- Operates in extreme temperatures from -30°C to 60°C
- Maximum balancing current of 0.7 A for effective charge equalization
- Alarm relay with reset capabilities for enhanced safety
- Easy installation with screw terminals (6 mm²)
Specifications
| Brand | Victron |
| EAN | 8719076020950 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Item Width | 113 mm |
| Weight | 0.4 kg |
| Colour | Blue (RAL 5012) |
| Item Depth | 47 mm |
| Item Height | 100 mm |
| Protection category | IP22 |
| Automotive directive | EN 50498 |
| Emission | EN-IEC 61000-6-3,EN 55014-1 |
| Immunity | EN-IEC 61000-6-2,EN-IEC 61000-6-1,EN 55014-2 |
| Safety | CSA 62368-1,UL 62368-1,EN 60950 |
| Input Voltage Range | Up to 18V per battery, 36V total |
| Turn on voltage level ±1% | 27.3 |
| Turn off voltage level ±1% | 26.6 |
| Protections | Excessive temperature |
| Operating temperature range | [-30, 60] °C |
| Midpoint deviation to start balancing | 50 mV |
| Maximum balancing current (when deviation >100 mV) | 0.7 A |
| Maximum humidity (non-condensing) | 95 % |
| Alarm relay reset terminal to connect a push button | Two terminals to connect a push button |
| Current draw when off | 0.7 |
| Alarm trigger level | 200 mV |
| Alarm reset level | 140 mV |
| Alarm relay type | Normally open 60V / 1A |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | BBA000100100 |
