Description

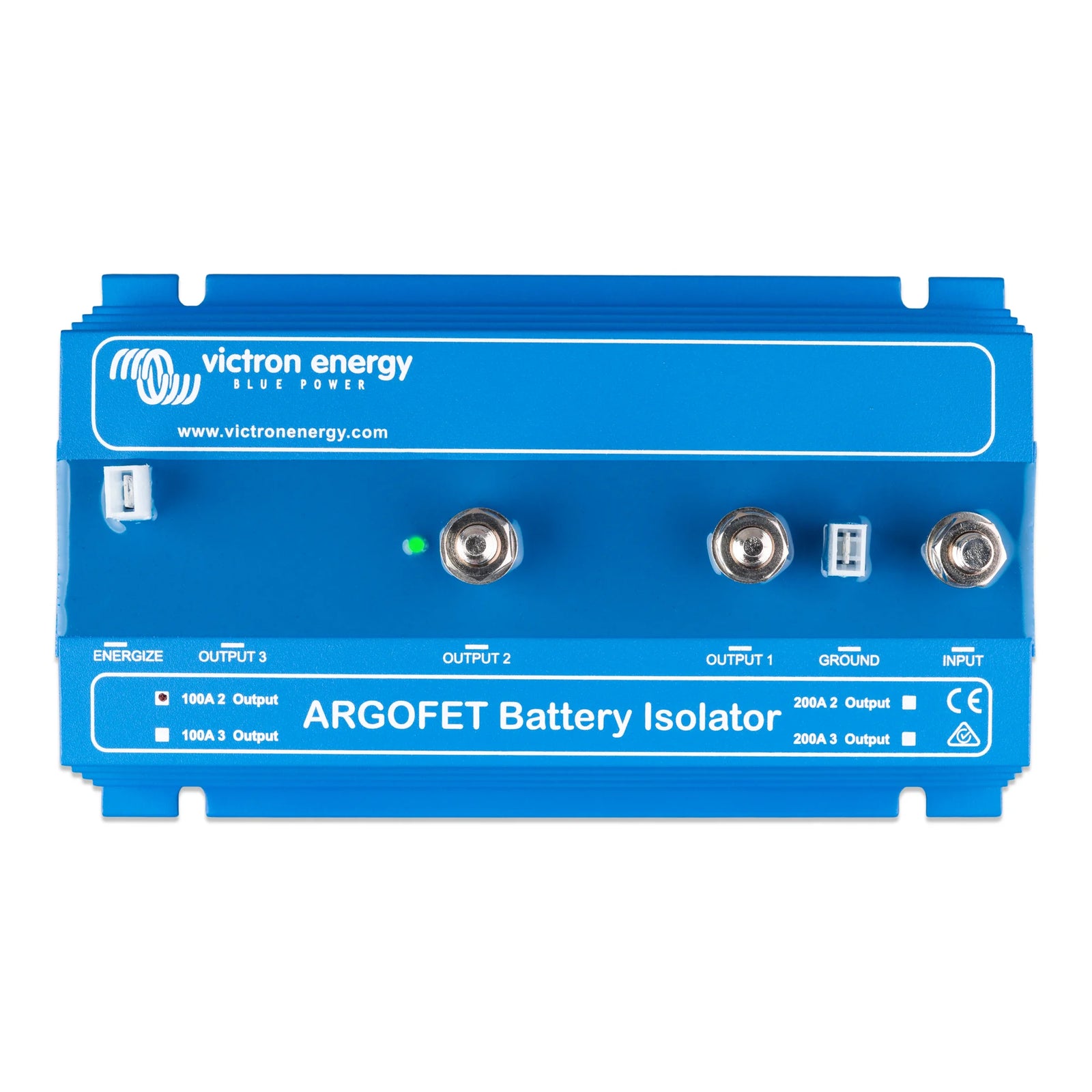

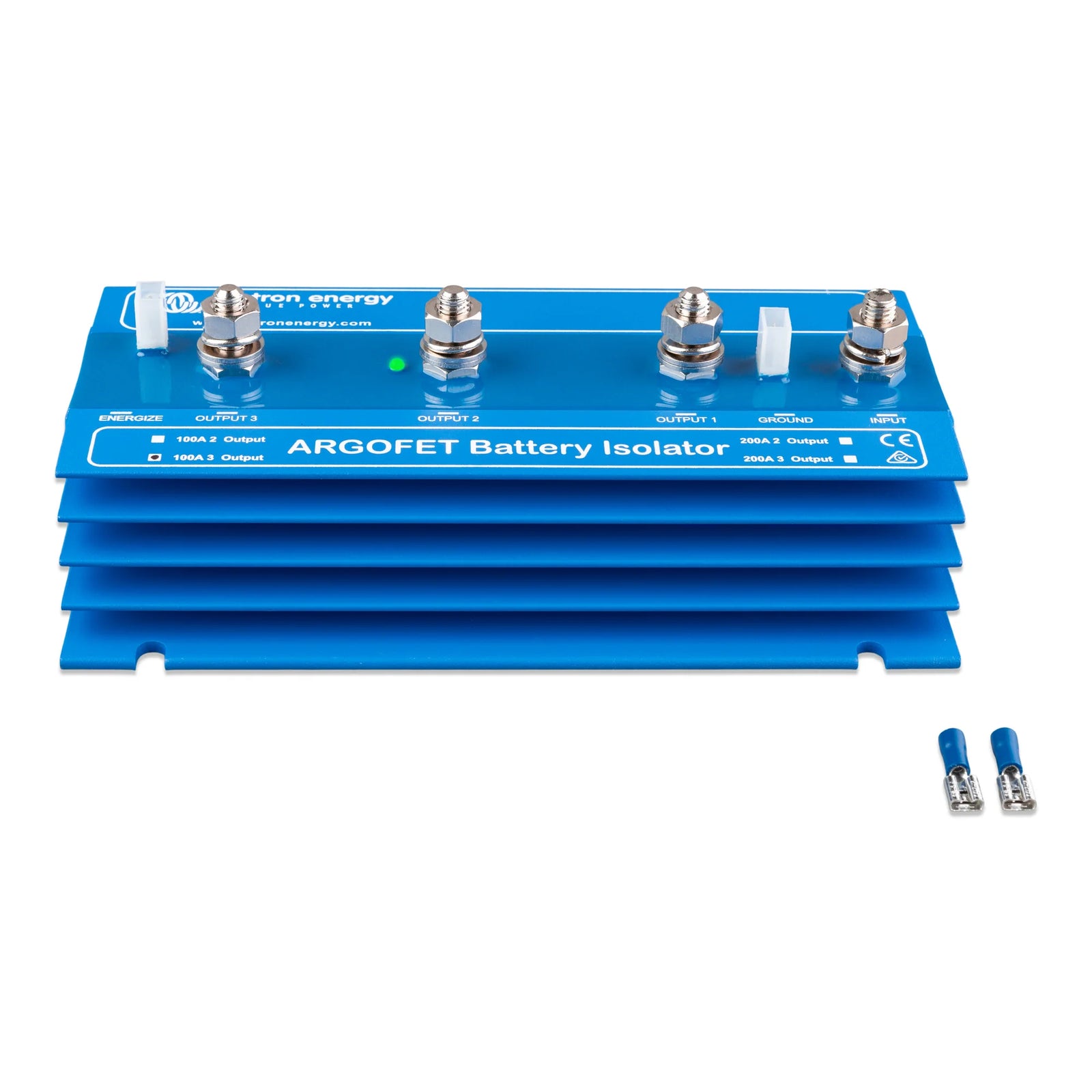

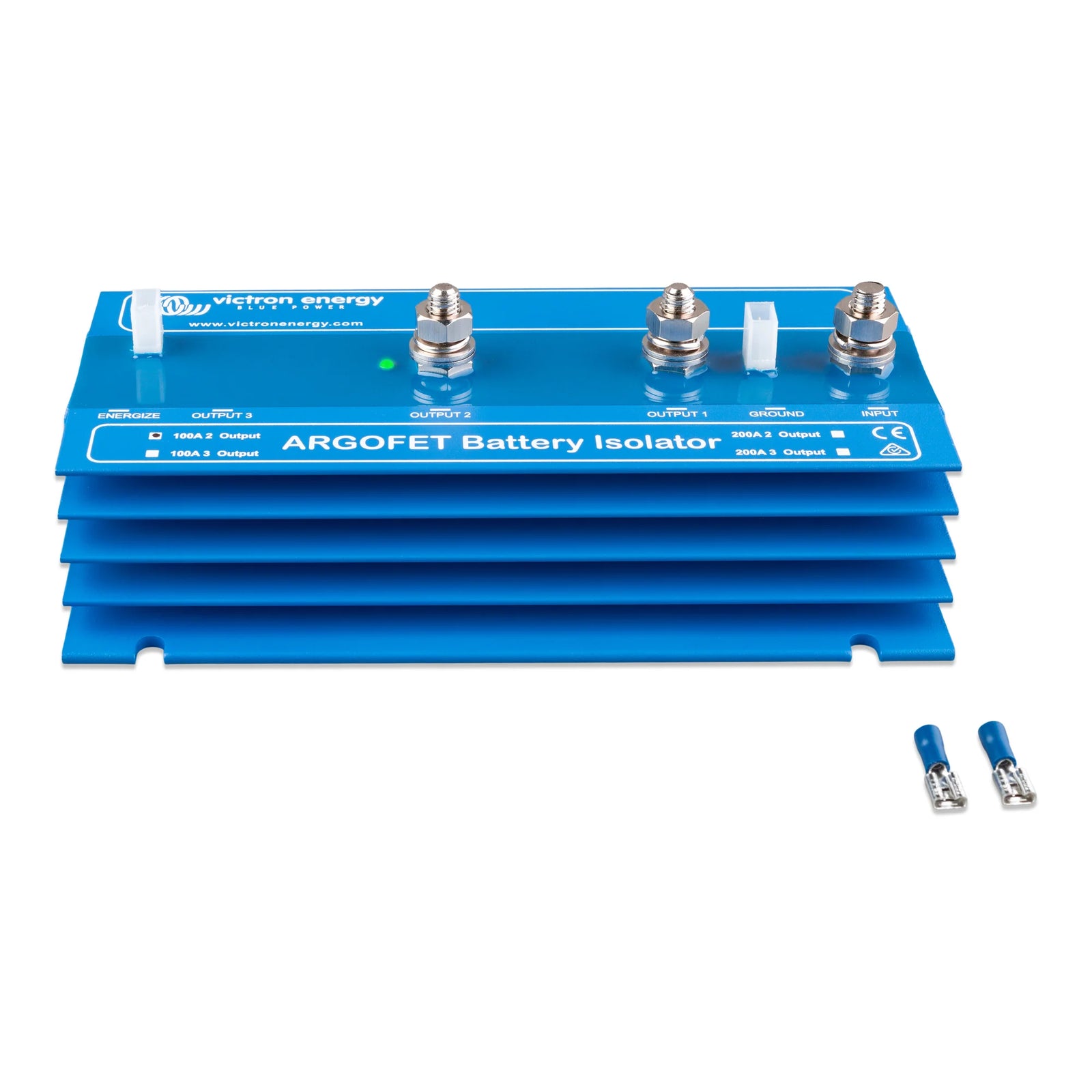

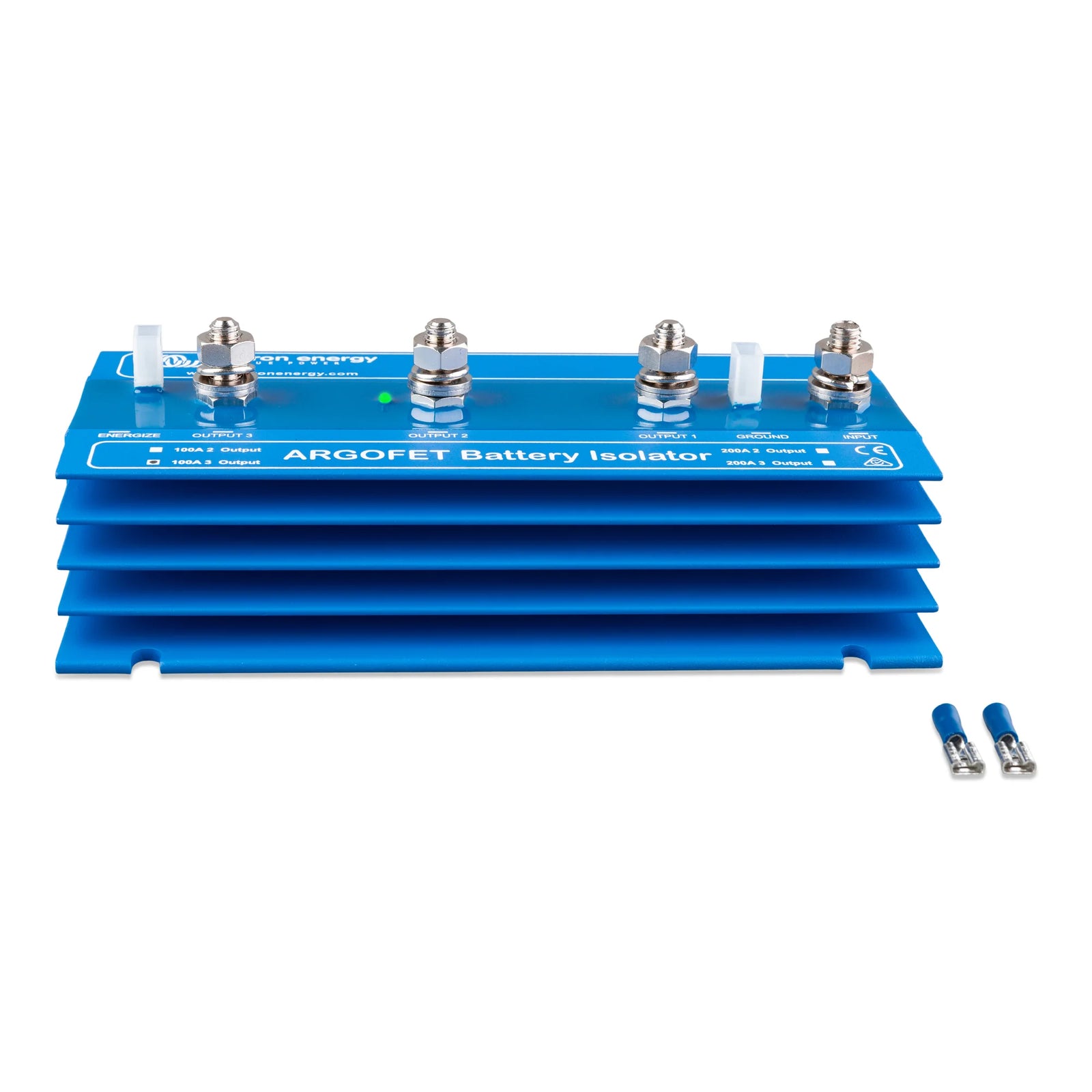

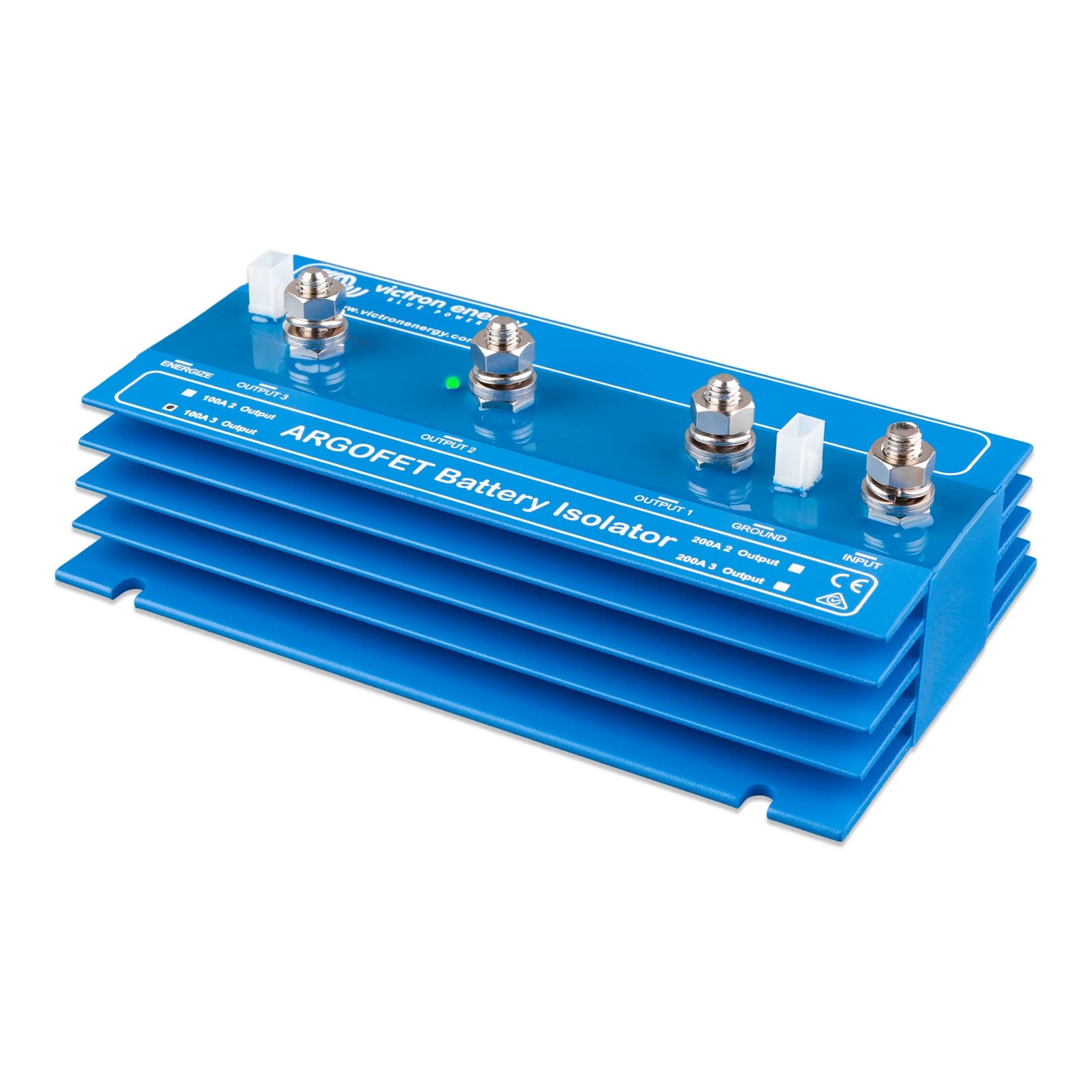

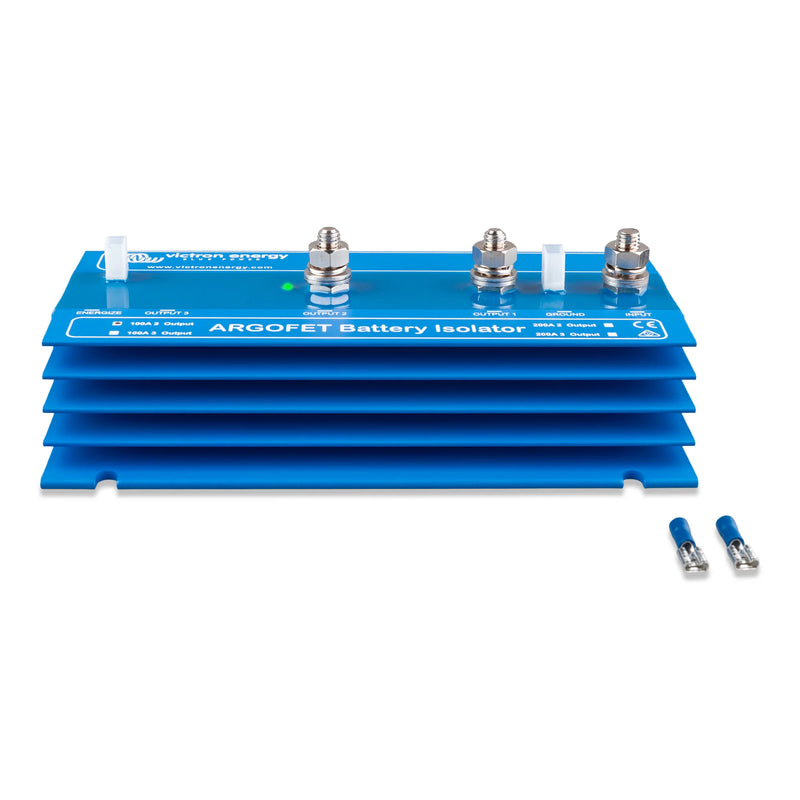

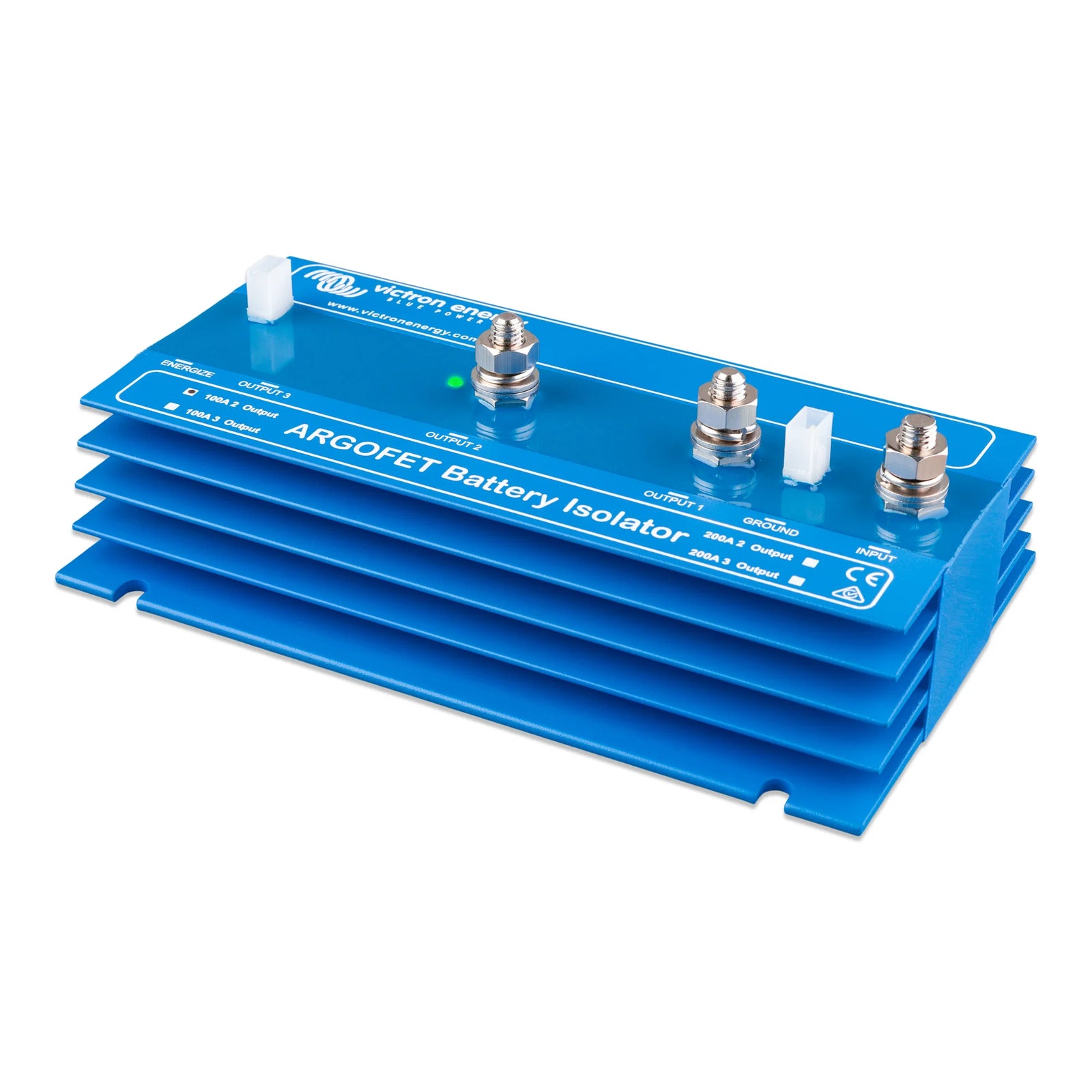

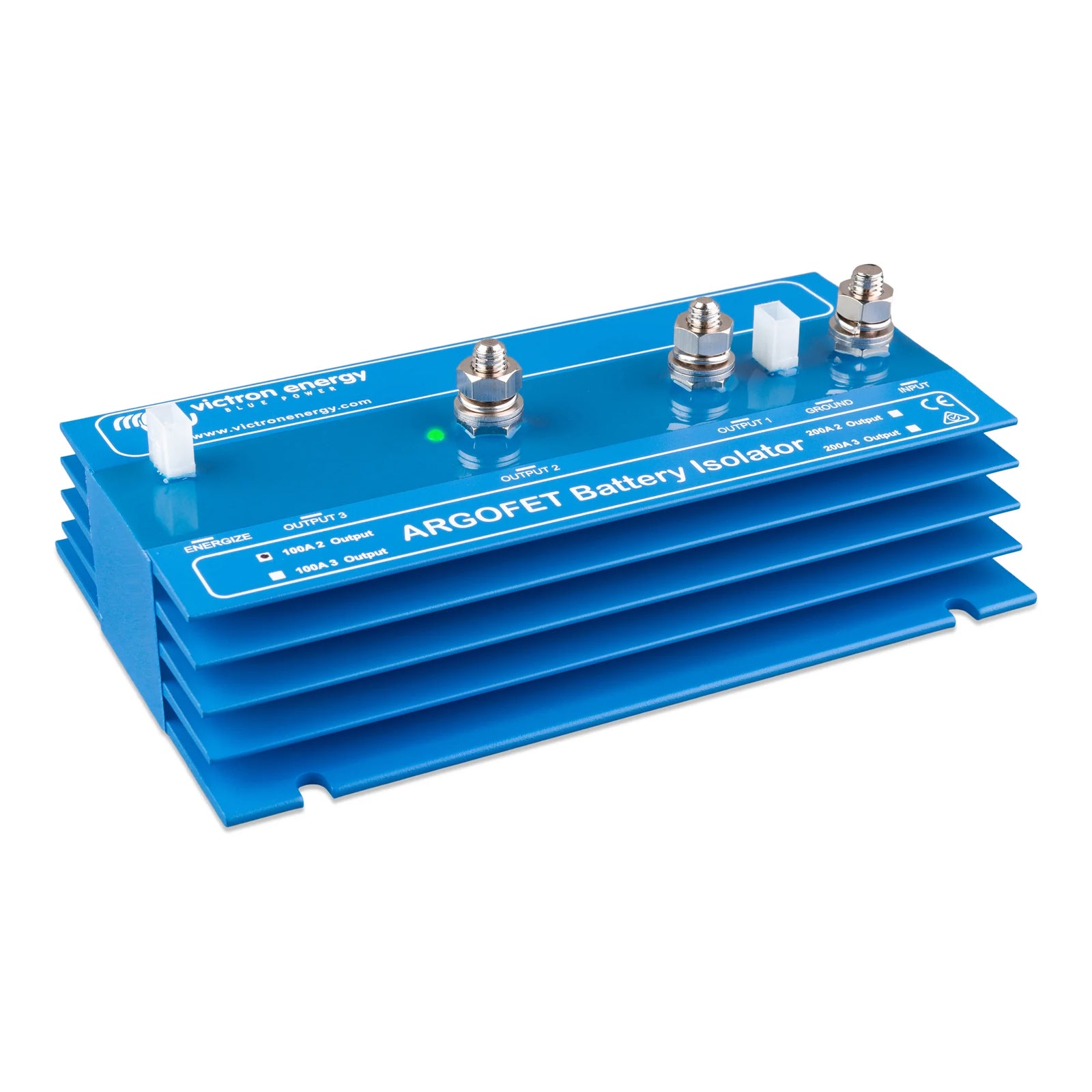

The Victron Argofet 200-3 Battery Isolator enables the simultaneous charging of two or more batteries from a single alternator. This feature is particularly useful for marine applications where multiple battery systems are common.
With a compact design, the isolator measures 65 mm in height, 120 mm in width, and 200 mm in depth, making it easy to fit in various setups. It is designed to handle a maximum charge current of 200 A and a maximum alternator current of 200 A, ensuring efficient power management.
The Argofet Battery Isolator is equipped with Faston 6.3 mm terminals for the ground and energize connections, and M8 bolts for the battery and alternator terminals, providing secure and reliable connections.
Key Features
- Simultaneous charging of up to 3 batteries
- Compact dimensions: 65 mm height, 120 mm width, 200 mm depth
- Maximum charge and alternator current of 200 A
- Faston 6.3 mm and M8 bolt terminals for secure connections
- Compatible with 12V or 24V systems
Specifications
| Brand | Victron |
| EAN | 8719076019169 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Ground Terminal | Faston 6.3 mm |
| Energize Terminal | Faston 6.3 mm |
| Battery Terminals | M8 bolts |
| Alternator Terminal | M8 bolts |
| Item Height | 65 mm |
| Item Width | 120 mm |
| Weight | 1.4 kg |
| Item Depth | 200 mm |
| Number of batteries | 3 |
| Nominal Battery Voltage | 12V or 24V |
| Alternator Energize Input | True |
| Maximum charge current | 200 A |
| Maximum alternator current | 200 A |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | ARG200301020R |
