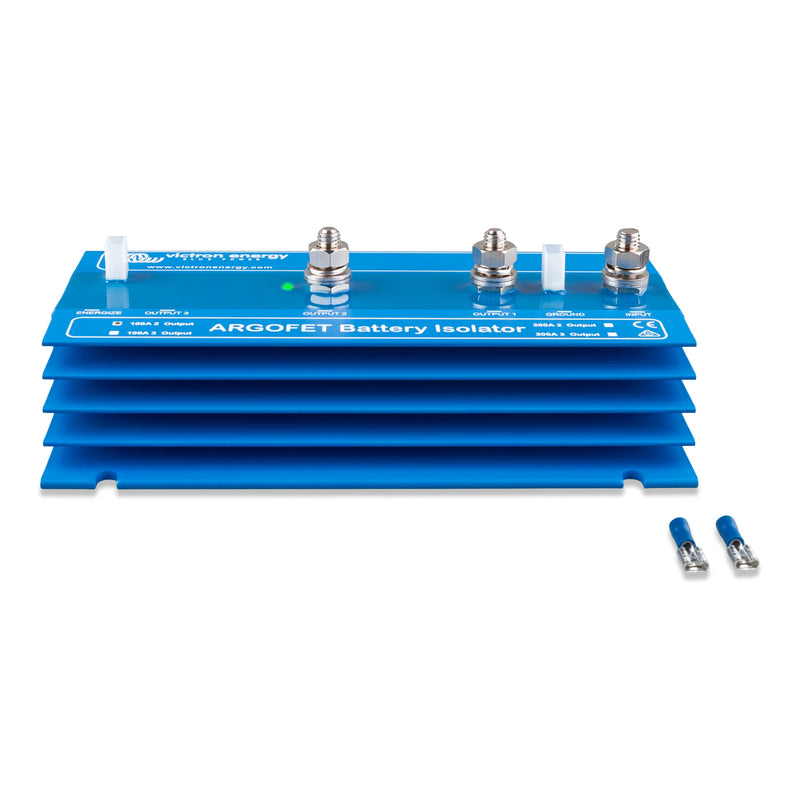

Victron Argofet 200-2 Battery Isolator 200A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron Argofet 200-2 Battery Isolator allows for simultaneous charging of two or more batteries from one alternator. This device is designed to manage battery connections effectively, ensuring optimal performance and longevity of your batteries.
It features M8 bolts for battery terminals and Faston 6.3 mm terminals for both ground and energize connections. The isolator is compact, measuring 65 mm in height, 120 mm in width, and 200 mm in depth, with a weight of just 1.4 kg, making it easy to install in various setups.
This isolator supports a maximum alternator current of 200 A and a maximum charge current of 200 A, with a nominal battery voltage of either 12V or 24V. It is capable of managing two batteries simultaneously, providing flexibility for various applications.
Key Features
- Simultaneous charging of two batteries
- Maximum alternator current: 200 A
- Compact dimensions: 65 mm x 120 mm x 200 mm
- Lightweight design at 1.4 kg
- Supports 12V or 24V nominal battery voltage
Specifications
| Brand | Victron |
| EAN | 8719076019145 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Battery Terminals | M8 bolts |
| Ground Terminal | Faston 6.3 mm |
| Energize Terminal | Faston 6.3 mm |
| Alternator Terminal | M8 bolts |
| Item Height | 65 mm |
| Item Width | 120 mm |
| Item Depth | 200 mm |
| Weight | 1.4 kg |
| Alternator Energize Input | True |
| Maximum alternator current | 200 A |
| Maximum charge current | 200 A |
| Nominal Battery Voltage | 12V or 24V |
| Number of batteries | 2 |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | ARG200201020R |
Downloads
- 1.2Kva Multiplus 230V 2X125Ah Sc Agm Cerbo Gx Touch 50 Argo Fet Mppt 100 30 Bmv
- 3 Phase Ve Bus Bms System 5 Pin With 3Xquattro And 4X200Ah 24V Li Rev C1
- Argo Battery Isolator And Bcd Battery Combiner 2021 12 29
- Argofet 100 2 2 Batteries 100A Isolator
- Argofet 100 3 3 Batteries 100A Isolator
- Argofet 200 2 2 Batteries 200A Isolator
