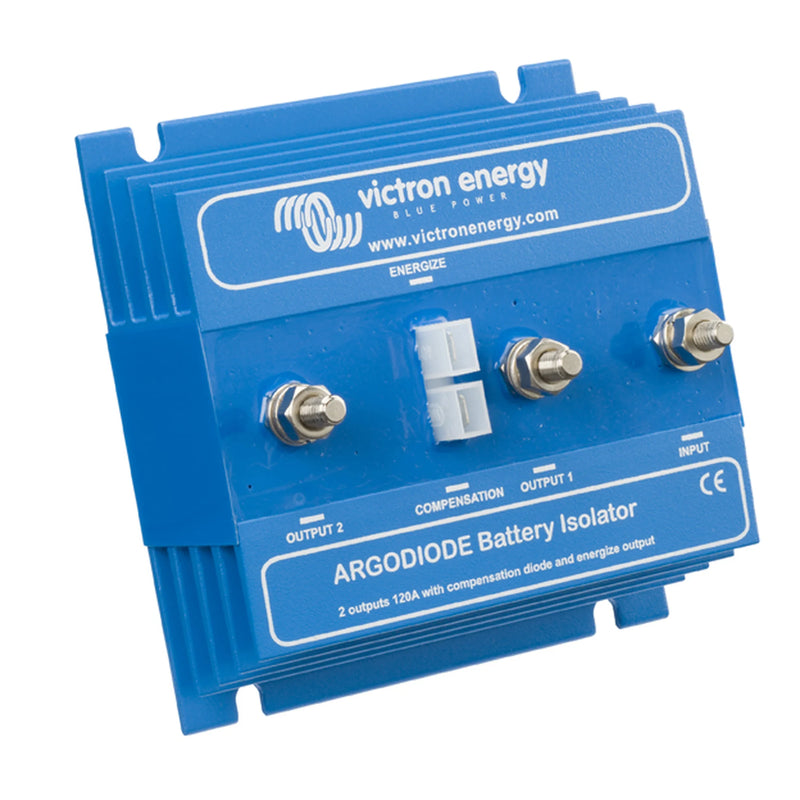

Victron Argodiode Battery Isolator 160A 12V/24V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
The Victron Argodiode Battery Isolator allows for the simultaneous charging of two or more batteries from a single alternator without the need to connect the batteries together. This device is essential for maintaining battery health and ensuring optimal charging performance.
It features a maximum alternator current of 160 A and a maximum charge current of 160 A, making it suitable for both 12V and 24V nominal battery systems. The Argodiode is designed for easy installation and reliable operation.
Key Features
- Simultaneous charging of two batteries
- Maximum alternator current: 160 A
- Compatible with 12V or 24V systems
- Compact dimensions: 150 mm depth, 60 mm height, 120 mm width
- Includes Faston 6.3 mm and M8 bolt terminals for easy connections
Specifications
| Brand | Victron |
| EAN | 8719076019114 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Compensation Diode Terminal | Faston 6.3 mm |
| Battery Terminals | M8 bolts |
| Alternator Terminal | M8 bolts |
| Energize Terminal | Faston 6.3 mm |
| Item Depth | 150 mm |
| Item Height | 60 mm |
| Weight | 1.1 kg |
| Item Width | 120 mm |
| Maximum alternator current | 160 A |
| Maximum charge current | 160 A |
| Nominal Battery Voltage | 12V or 24V |
| Number of batteries | 2 |
| Alternator Energize Input | True |
| Voltage | 12V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | ARG160201020 |
