Description

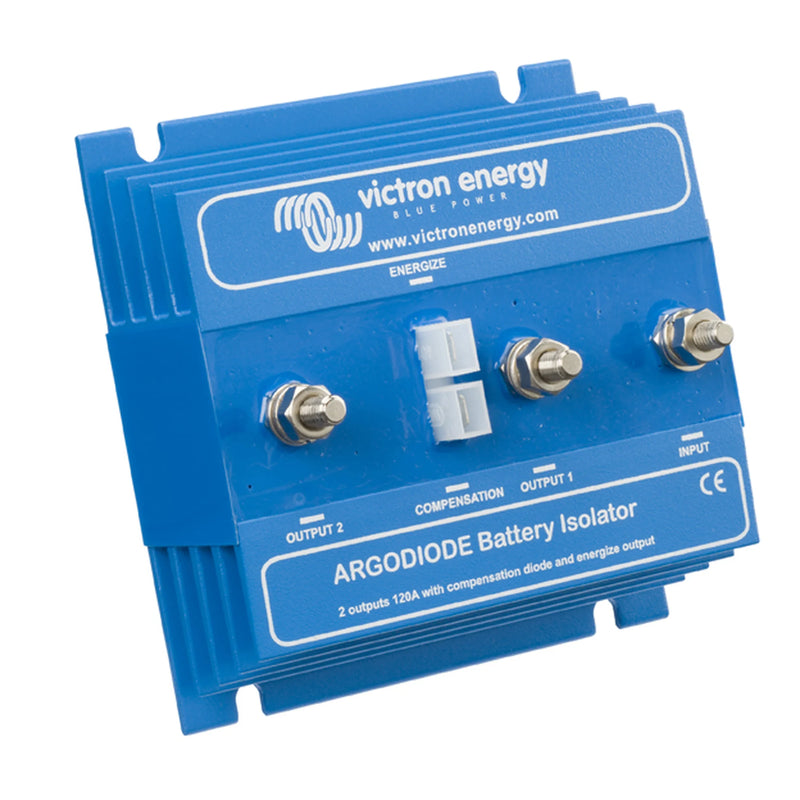

The Victron Argodiode Battery Isolator allows for the simultaneous charging of two or more batteries from a single alternator without the need to connect the batteries together. This is particularly useful for leisure applications, ensuring that multiple batteries can be charged effectively and safely.
It features an energize terminal with Faston 6.3 mm connections, compensation diode terminal also with Faston 6.3 mm, and battery terminals secured with M8 bolts. The alternator terminal is similarly equipped with M8 bolts for secure connections.
With dimensions of 150 mm in depth, 60 mm in height, and 120 mm in width, this isolator is compact yet powerful, handling a maximum alternator current and charge current of 140 A. It supports nominal battery voltages of 12V or 24V and can accommodate up to 3 batteries.
Key Features
- Simultaneous charging of multiple batteries
- Maximum alternator current of 140 A
- Compact dimensions: 150 mm x 60 mm x 120 mm
- Compatible with 12V or 24V battery systems
- Secure M8 bolt terminals for reliable connections
Specifications
| Brand | Victron |
| EAN | 8719076019107 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Energize Terminal | Faston 6.3 mm |
| Compensation Diode Terminal | Faston 6.3 mm |
| Battery Terminals | M8 bolts |
| Alternator Terminal | M8 bolts |
| Item Depth | 150 mm |
| Item Height | 60 mm |
| Weight | 1.1 kg |
| Item Width | 120 mm |
| Alternator Energize Input | True |
| Maximum alternator current | 140 A |
| Maximum charge current | 140 A |
| Nominal Battery Voltage | 12V or 24V |
| Number of batteries | 3 |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | ARG140301020R |
