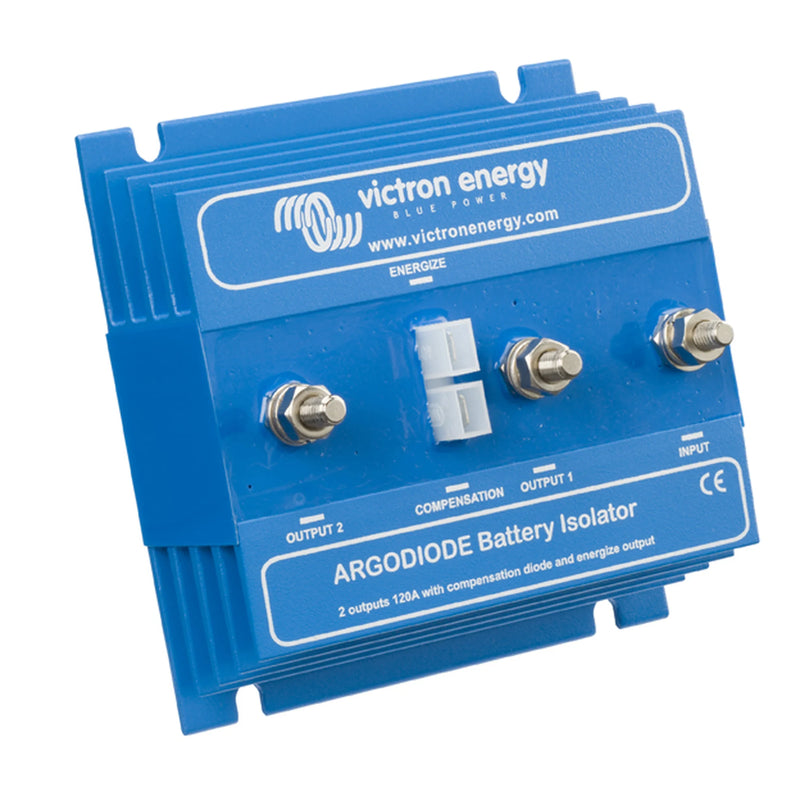

Victron Argodiode Battery Isolator 120A for 2 Batteries
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
Make simultaneous charging of two or more batteries from one alternator possible, without connecting the batteries together, with Victron's Argodiode Battery Isolators.
This isolator features Faston 6.3 mm terminals for both compensation and energize connections, ensuring a reliable setup. The alternator and battery terminals use M8 bolts, providing a secure connection.
With a compact design, the Argodiode measures 120 mm in width, 115 mm in depth, and 60 mm in height. It is lightweight at only 0.8 kg, making it easy to install in various setups.
Designed to handle a maximum alternator current of 120 A and a maximum charge current of 120 A, it operates effectively at a nominal battery voltage of either 12V or 24V, accommodating two batteries.
Key Features
- Simultaneous charging of two batteries from one alternator
- Faston 6.3 mm terminals for easy connections
- Secure M8 bolt terminals for alternator and battery
- Compact dimensions: 120 mm x 115 mm x 60 mm
- Lightweight at 0.8 kg for easy installation
- Compatible with 12V or 24V battery systems
Specifications
| Brand | Victron |
| EAN | 8719076019084 |
| Type | Leisure Battery |
| Sub-Type | leisure |
| Custom Bundle | No |
| Compensation Diode Terminal | Faston 6.3 mm |
| Energize Terminal | Faston 6.3 mm |
| Alternator Terminal | M8 bolts |
| Battery Terminals | M8 bolts |
| Item Depth | 115 mm |
| Item Height | 60 mm |
| Weight | 0.8 kg |
| Item Width | 120 mm |
| Alternator Energize Input | True |
| Maximum alternator current | 120 A |
| Maximum charge current | 120 A |
| Nominal Battery Voltage | 12V or 24V |
| Number of batteries | 2 |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | ARG120201020R |
