Trend STAIR/A Staircase Jig
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.

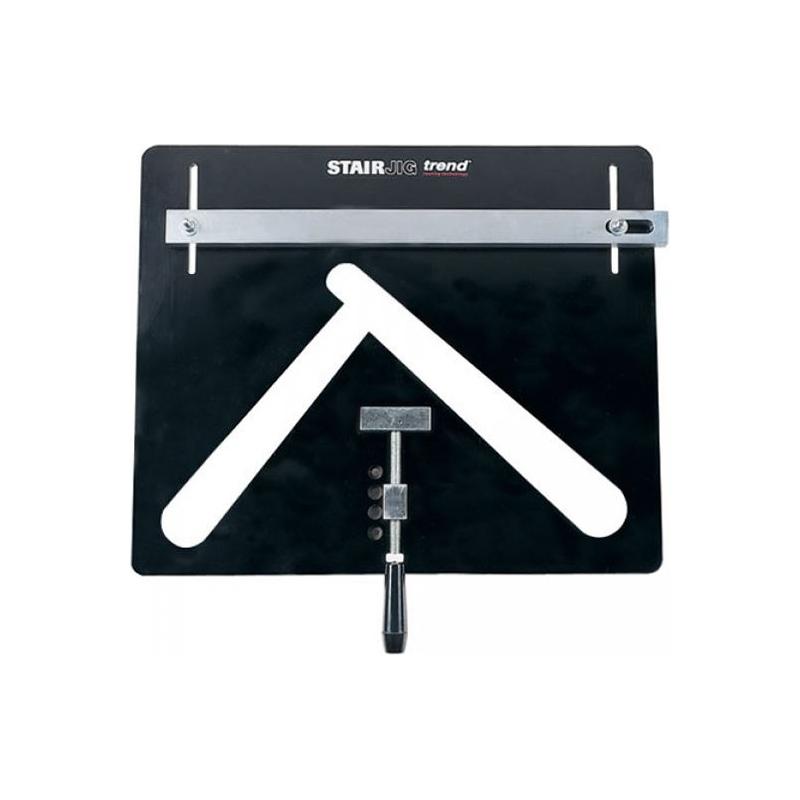

This Trend STAIR/AStaircase Jig is a template jig with well proven means of routing out stair housings quickly and accurately. It is constructed from hard wearing compact grade high pressure laminate and includes a reversible fence for exact matching of stair strings and fully adjustable nosing piece. It has a built-in heavy duty front clamp for quick clamping for each trench.
It is adjustable to suit private and common stair angle pitches and can be used with all heavy-duty routers over 1600 watts.
The sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2-inch routers, for other makes the sub-base will have to be redrilled.
Kit includes:-
1 x Adjustable reversible clamp.
1 x Reversible clamp bar.
1 x Sub-base.
1 x Nose piece.
1 x Line up pin and bush.
2 x Spanners.
Specifications:
Tread Thickness: 22-32 mm.
Slider Diameter: 30 mm.
Nosing Adjustment: 16-19 mm.
Length: 585 mm.
Height: 485 mm.
Width: 12.5 mm.
Weight: 6.17kg.
