Propex LPG Underslung Tank Kit - Ducato/Boxer/Relay 25L
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.

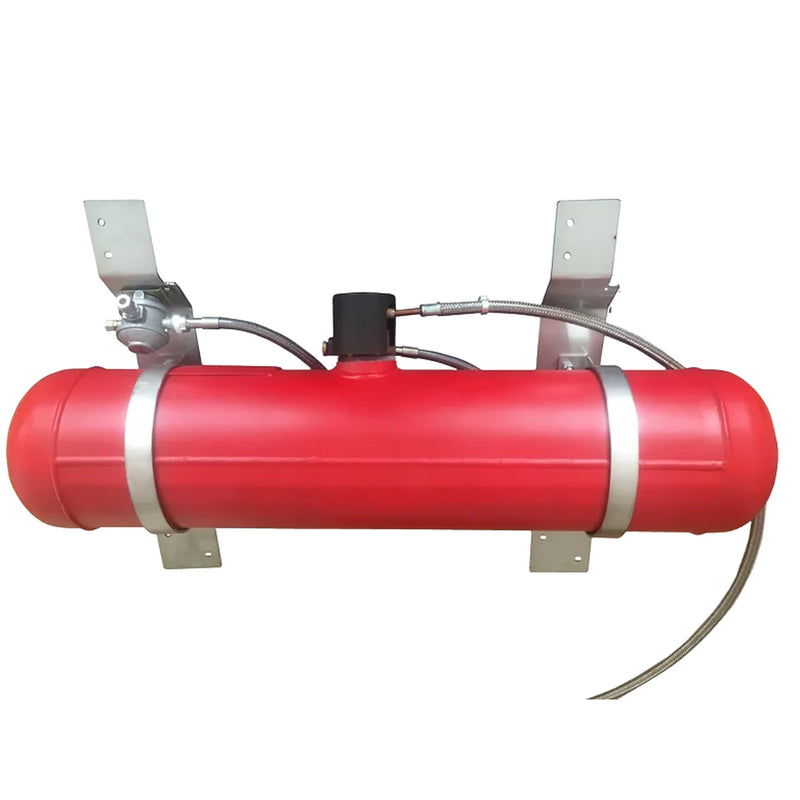

This Propex LPG Underslung Tank Kit is a complete, vehicle-specific solution for fitting a 25L refillable LPG tank to third-generation chassis models (2006-present) of the Peugeot Boxer, Citroën Relay, and Fiat Ducato.
It’s perfect for professional van converters and DIY builders who want a safe, CE-approved, and hassle-free LPG system without the guesswork. Designed to bolt straight into existing chassis mounting points (no drilling required), this kit includes everything from the fill point to the regulator, with a user-friendly internal gas control/display panel that lets you monitor and control gas levels from inside the van.
What’s Included?
- 25L LPG tank (20L usable at 80% fill = approx. 10kg LPG)
- Multivalve with solenoid and level sender
- Stainless steel crossmember mounting brackets
- UK bayonet filler housing (throughbody)
- 3m high-pressure fill hose (8mm)

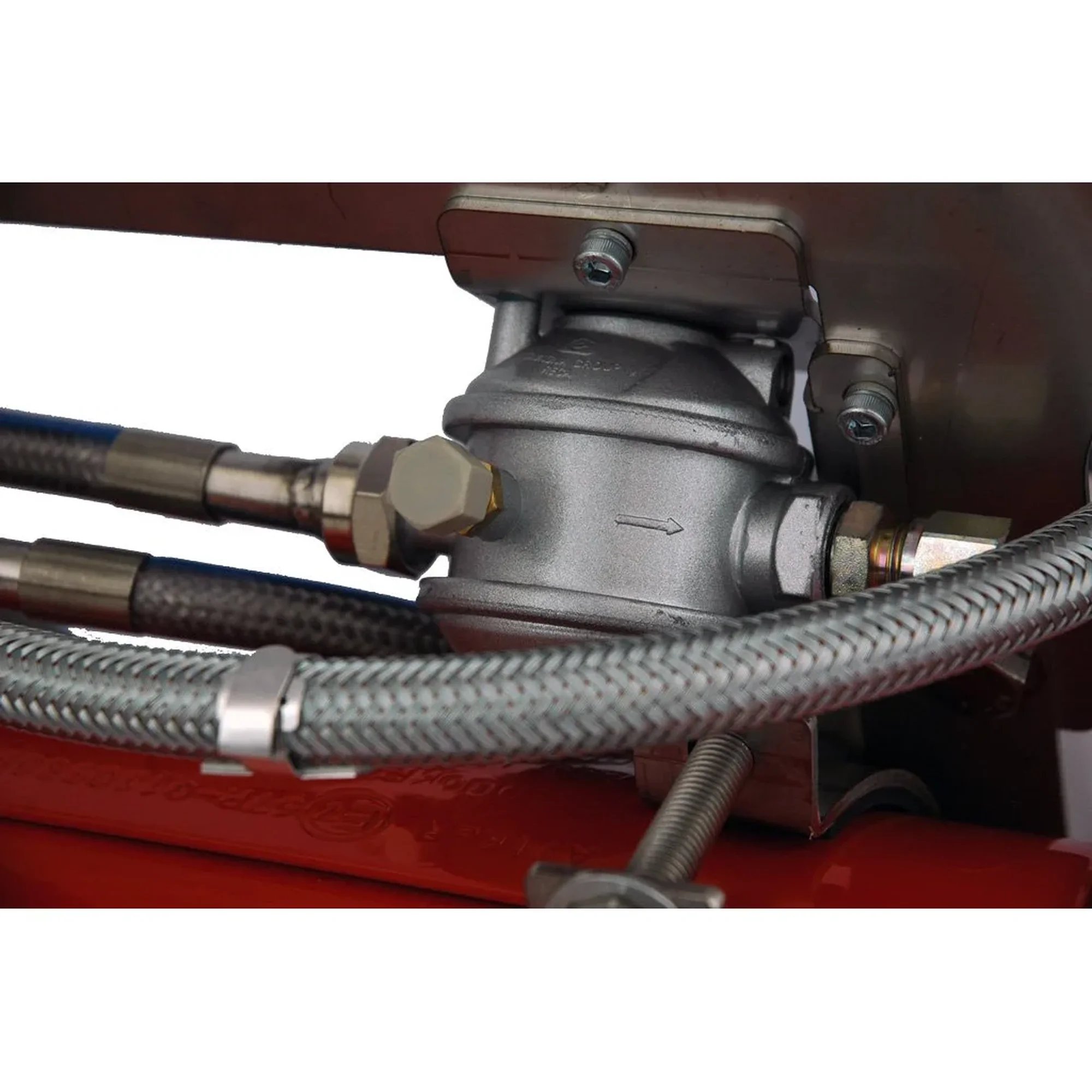

- Cavagna 2830 mBar regulator with GOK test nipple
- 0.75m pigtail hose

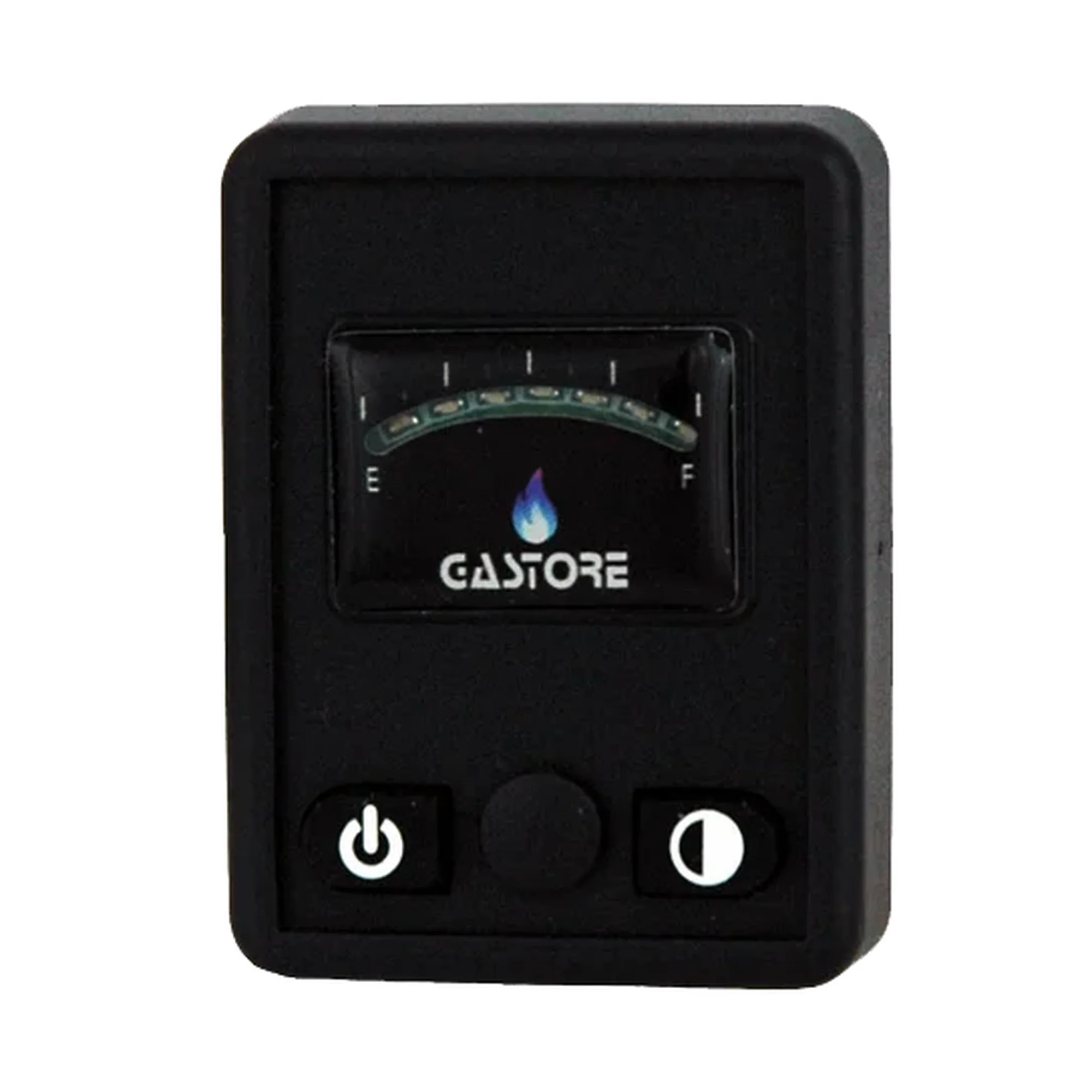

- Internal GASTORE CE-approved controller/display
- Double pole fused junction box
- 5.5m solenoid cable & 5.5m level sender cable
- Full stainless steel fixing hardware, Rivnuts, Pclips, and all necessary fittings
- Installation instructions and compliance certificates
- Tank birth certificate and log card
Specifications
| Brand | Propex |
| Type | Gas |
| Sub-Type | Miscellaneous Gas Products |
| Custom Bundle | No |
| weight | N/A |
| Application | Automotive |
| Manufacturer Part Number (MPN) | G-076 |
