Description

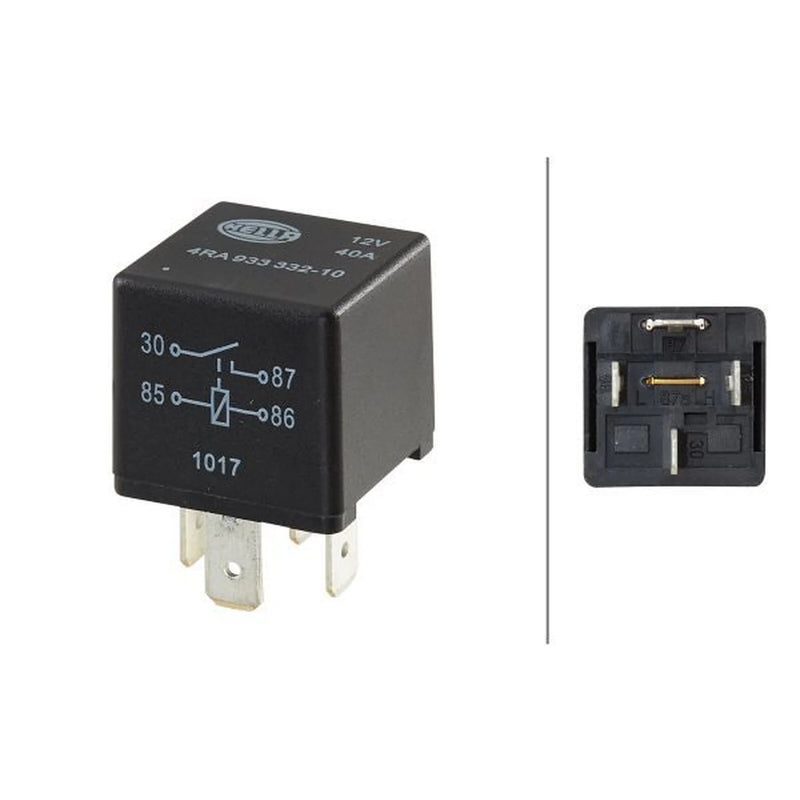

This Hella Relay, main current (Part Number 4RA 933 332-101) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Relay, main current |
| Voltage | 12V |
| Temperature range from | -40°C |
| Temperature range to | +125°C |
| Weight | 24g |
| Inductive Load | 15A |
| Capacitive Load | 5A |
| Rated current | 40A |
| Ohmic Load | 40A |

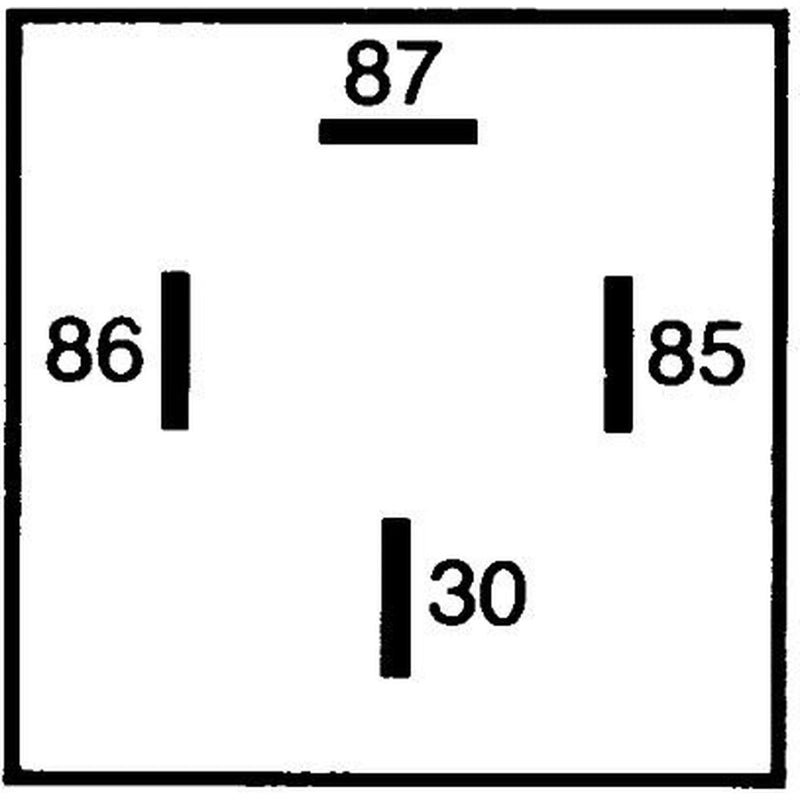

| Number of pins | 4 |

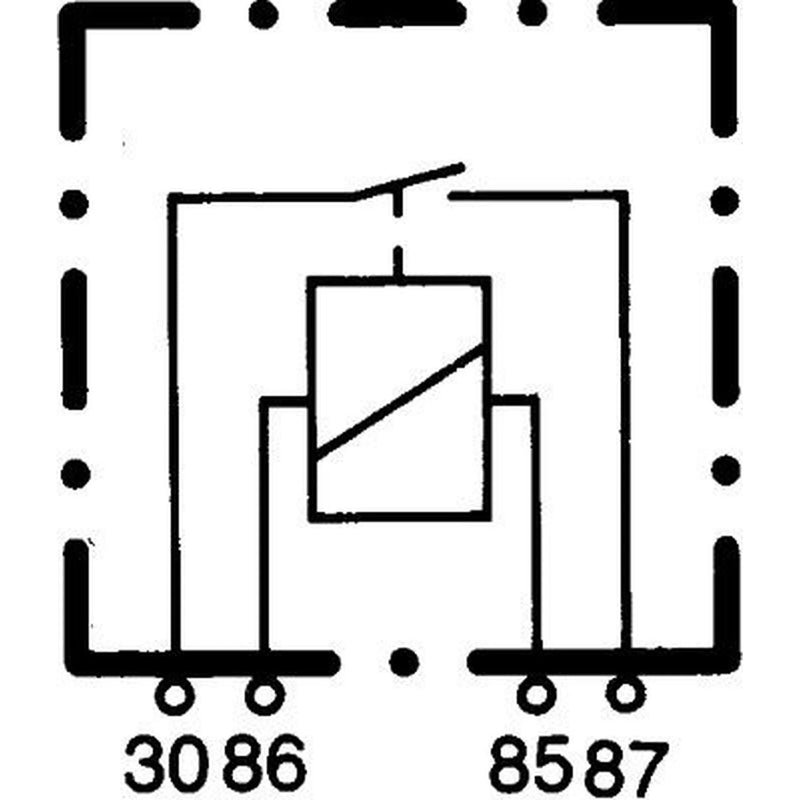

| Switch Function | Normally Open Contact |
| Manufacturer Part Number | 4RA 933 332-101 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Agco | D45060021 |
| Agromehanika | 557074 |
| Case Ih | 1115-760-460 |
| Fendt | D 450 600 21 |
| Hyster | 1301233 |
